RF Multiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPX2012LL75R2455ADIPLEXER SMD 2.4G/5G |
11,486 | 0.28 |
|
Datasheet |
2012 | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 20.00dB / - | 20.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
DPX165850DT-8040B1MULTILAYER DPX FOR WLAN/BT |
7,285 | 0.30 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.85GHz | 30.00dB / 46.00dB | 30.00dB / 44.00dB | 10.0dB / 9.0dB | - | - | Surface Mount |
|
|
TPX2012LL95R1525ATRIPLEXER SMD WLAN GNSS |
3,975 | 0.28 |
|
Datasheet |
2012 | 0805 (2012 Metric), 8 PC Pad | Tape & Reel (TR) | Active | Triplexer | 1.57GHz ~ 1.61GHz / 4.9GHz ~ 5.95GHz | 20.00dB / - | 30.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
KFDIP2004L157B1URF DIPLEXER 2.4GHZ/5GHZ ISM |
1,490 | 0.34 |
|
Datasheet |
KFDIP | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 10.00dB / - | 20.00dB / - | - | - | - | Surface Mount |
|
DPX162690DT-8039B1MULTILAYER DPX FOR UMTS/LTE/5G |
8,000 | 0.30 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 1.88GHz ~ 1.92GHz / 2.496GHz ~ 2.69GHz | 10.00dB / 13.40dB | 15.00dB / 22.70dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|

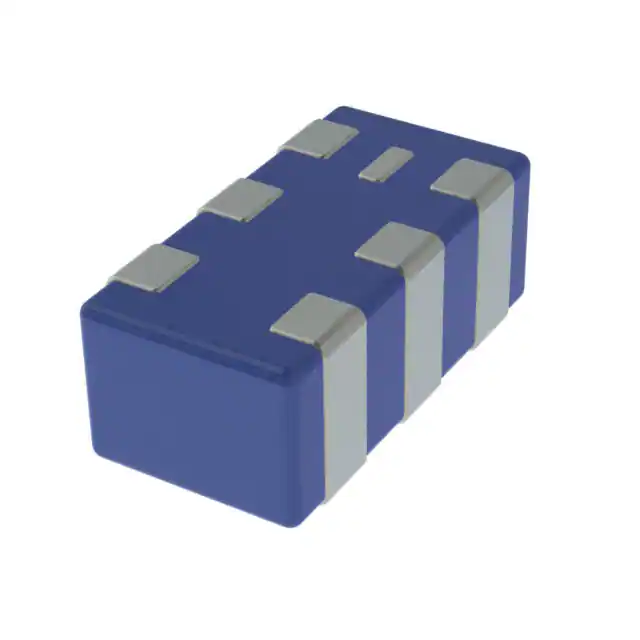

RFDIP1607L123ATRF DIPLEXER 2.4GHZ/5GHZ ISM |
4,005 | 0.36 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.9GHz | - | - | - | - | - | Surface Mount |
|
DPX164200DT-8202B1MULTILAYER DIPLEXER FOR LTE/N77 |
7,929 | 0.34 |
|
Datasheet |
- | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 617MHz ~ 2.69GHz / 3.3GHz ~ 4.2GHz | 25.00dB / 30.00dB | 15.00dB / 22.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
DPX165850DT-8086A1MULTILAYER DIPLEXER FOR 698 - 26 |
5,627 | 0.34 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 698MHz ~ 2.69GHz / 3.4GHz ~ 5.85GHz | 20.00dB / 23.80dB | 18.00dB / 23.40dB | 9.54dB / 9.54dB | - | - | Surface Mount |
|

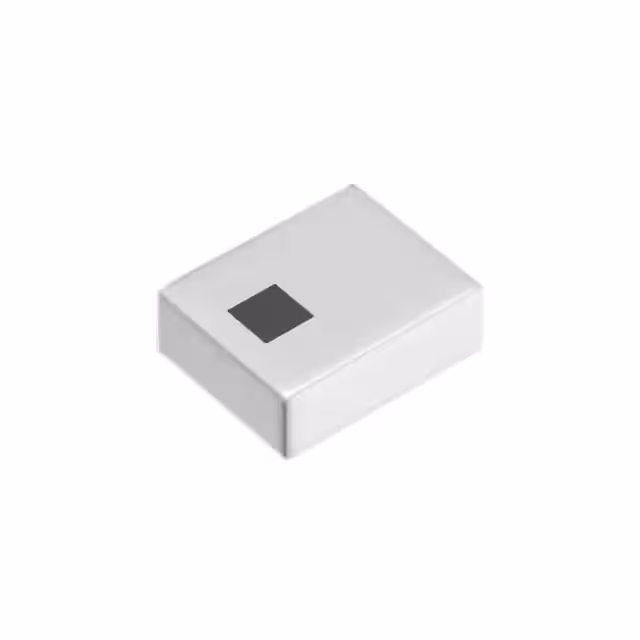

TPX255925MT-7062B1MULTILAYER TRIPLEXER FOR 5GHZ |
3,975 | 0.49 |
|
Datasheet |
- | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Triplexer | 617MHz ~ 2.69GHz / 5.15GHz ~ 5.925GHz | 28.00dB / 30.00dB | 35.00dB / 59.00dB | 10.0dB / 12.0dB | - | - | Surface Mount |
|

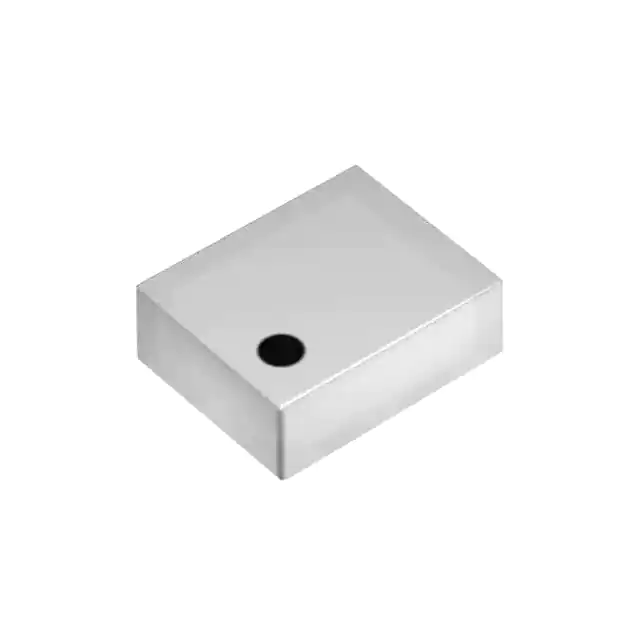

DPX252690DT-5225A1MULTILAYER DPX FOR WLAN/UMTS/5G |
3,708 | 0.35 |
|
Datasheet |
DPX | 1008 (2520 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 699MHz ~ 2.17GHz / 2.3GHz ~ 2.69GHz | 10.00dB / 16.00dB | 15.00dB / 19.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
DPX165950DT-8060A1RF DIPLEXER 2.45/5.425GHZ 0603 |
7,074 | 0.33 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Not For New Designs | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 15.00dB / 43.00dB | 9.00dB / 42.00dB | - | - | - | Surface Mount |
|
|
DPX165850DT-8040A3RF DIPLEXER 0603 6 PC PAD |
2,550 | 0.33 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Not For New Designs | Diplexer | - | - | - | - | - | - | Surface Mount |
|
DPX162500DT-8128A1RF DIPLEXER 0603 6 PC PAD |
1,900 | 0.33 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|

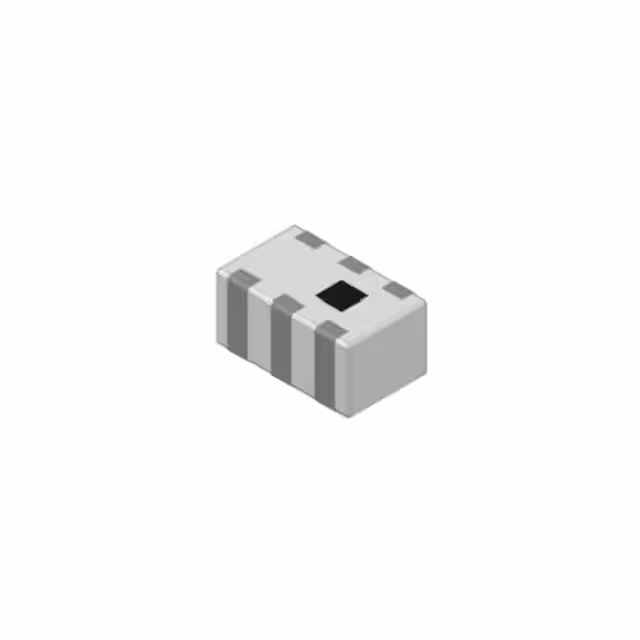

SLFD18-5R950G-03TDIPLEXER FOR 2400-2500MHZ/4900-5 |
7,795 | 0.35 |
|
Datasheet |
SLFD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 10.00dB / 35.00dB | 15.00dB / 20.00dB | - | - | - | Surface Mount |
|
|
TPX2520LKTAR0924LANT LB JB HB N78 5GHZ TRIPLEXER |
3,000 | 0.00 |
|
Datasheet |
TPX | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Triplexer | 915MHz ~ 960MHz / 5.15GHz ~ 5.925GHz | 12.00dB / 14.00dB | 19.00dB / 21.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
TPX255000MT-7019B6MULTILAYER TPX FOR UMTS/LTE/5G |
3,910 | 0.39 |
|
Datasheet |
TPX | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Triplexer | 698MHz ~ 960MHz / 2.496GHz ~ 5GHz | 35.00dB / 51.30dB | 18.00dB / 21.70dB | 14.0dB / 14.0dB | - | - | Surface Mount |
|
|
TPX252690MT-7007A1MULTILAYER TPX FOR UMTS/LTE/5G |
3,823 | 0.39 |
|
Datasheet |
TPX | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Triplexer | 698MHz ~ 960MHz / 2.5GHz ~ 2.69GHz | 15.00dB / 28.70dB | 15.00dB / 20.50dB | 10.03dB / 10.03dB | - | - | Surface Mount |
|
|
TPX255925MT-7013A6MULTILAYER TPX FOR WLAN/UMTS/5G |
3,750 | 0.39 |
|
Datasheet |
TPX | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Triplexer | 450MHz ~ 960MHz / 3.3GHz ~ 5.925GHz | 20.00dB / 28.00dB | 15.00dB / 18.00dB | 11.73dB / 9.54dB | - | - | Surface Mount |
|
|
DPX2520LKGJR0922LANT LB MB HB DIPLEXER |
3,000 | 0.00 |
|
Datasheet |
- | 1008 (2520 Metric), 8 PC Pad | Tape & Reel (TR) | Active | Diplexer | 617MHz ~ 690MHz / 1.71GHz ~ 2.69GHz | 30.00dB / 5.00dB | 7.50dB / 10.00dB | - | - | - | Surface Mount |
|

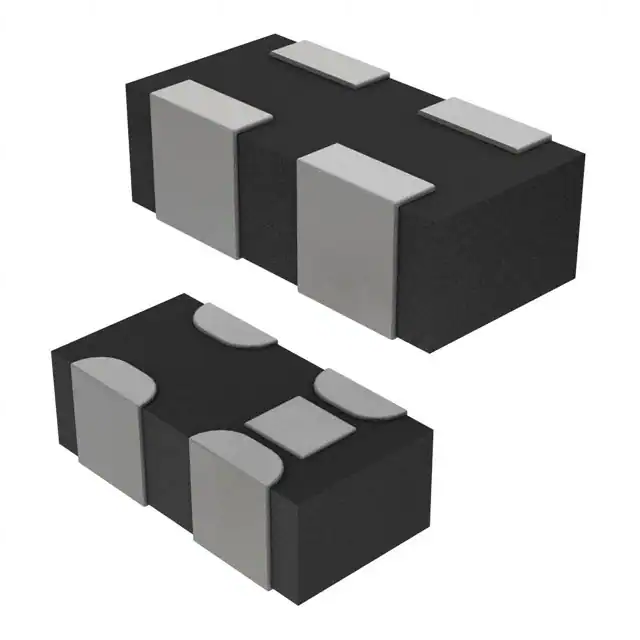

DPX105950DT-6012A1RF DIPLEXER 2.4GHZ/5.425GHZ 0402 |
28,693 | 0.33 |
|
Datasheet |
DPX | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.3GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 30.00dB / - | 20.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
