RF Multiplexers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPX202700DT-4035B5RF DIPLEXER 1159MHZ/2.31GHZ 0805 |
2,000 | 0.88 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 698MHz ~ 1.62GHz / 1.92GHz ~ 2.7GHz | 10.00dB / 22.00dB | 10.00dB / 30.00dB | 10.0dB / 18.0dB | - | - | Surface Mount |
|
|
DPX205950DT-9126A1RF DIPLEXER 2.45/5.425GHZ 0805 |
1,975 | 0.88 |
|
Datasheet |
DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 20.00dB / 36.00dB | 15.00dB / 28.00dB | 17.0dB / 16.0dB | - | - | Surface Mount |
|

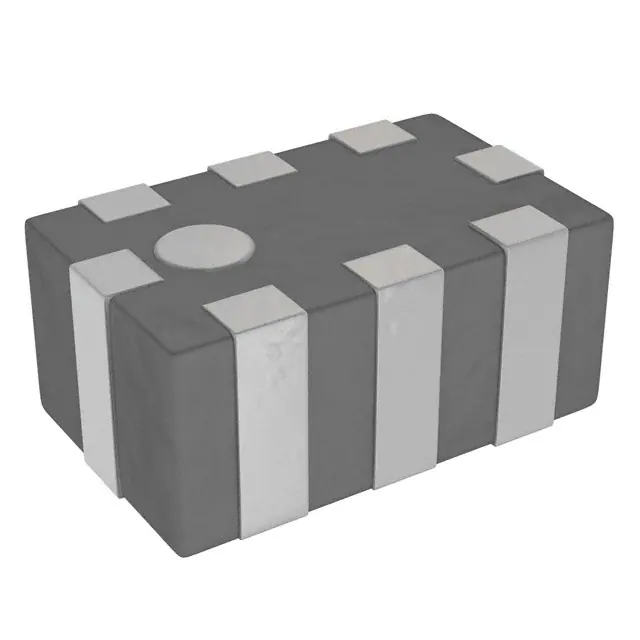

FI212P082931-TRF DIPLEXER 829MHZ/2.055GHZ 0805 |
5,691 | 1.07 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Not For New Designs | Diplexer | 698MHz ~ 960MHz / 1.42GHz ~ 2.69GHz | 13.00dB / - | 13.00dB / - | - | - | - | Surface Mount |
|
|
FI212P089208-TRF DIPLEXER 892MHZ/1.94GHZ 2012 |
4,360 | 1.07 |
|
- |
- | 2012 (5030 Metric) | Tape & Reel (TR) | Not For New Designs | Diplexer | 824MHz ~ 960MHz / 1.71GHz ~ 2.17GHz | 13.00dB / - | 19.00dB / - | 9.5dB / 9.5dB | - | - | Surface Mount |
|

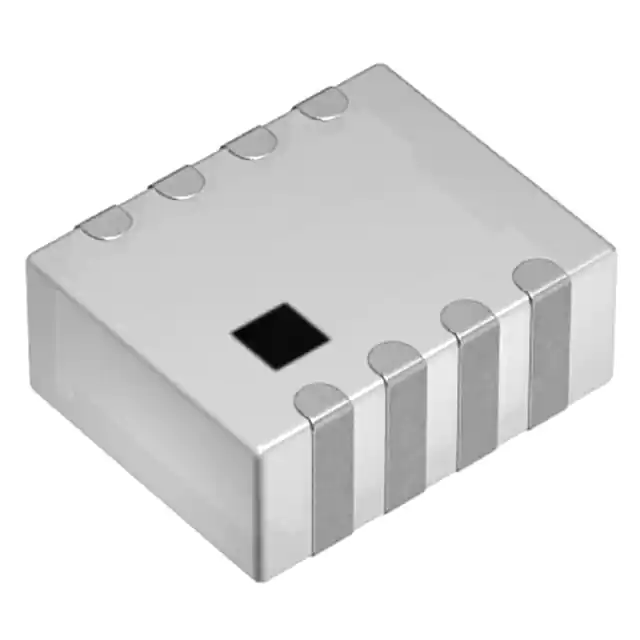

DPX252690DT-5042B2RF DIPLEXER 1008 8 PC PAD |
1,053 | 0.97 |
|
Datasheet |
DPX | 1008 (2520 Metric), 8 PC Pad | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
D6DA2G140K2A4-ZRF DUPLEXER 1.95GHZ/2.14GHZ 8SMD |
1,555 | 1.33 |
|
Datasheet |
- | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz | 45.00dB / 49.00dB | 42.00dB / 50.00dB | - | - | - | Surface Mount |
|

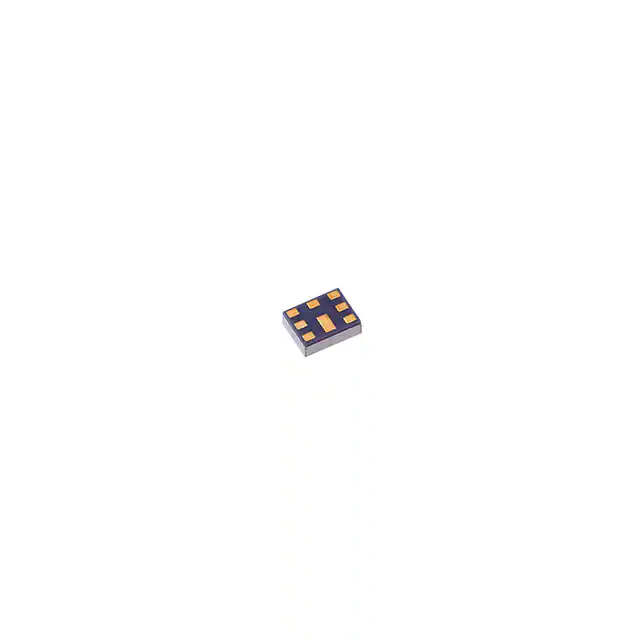

D6DA2G155K2T2-ZRF SAW DUPLEXER LTE BAND 66 |
5,026 | 2.17 |
|
Datasheet |
D6 | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 1GHz / 5GHz | - / 57.00dB | - / 54.00dB | - | - | - | Surface Mount |
|

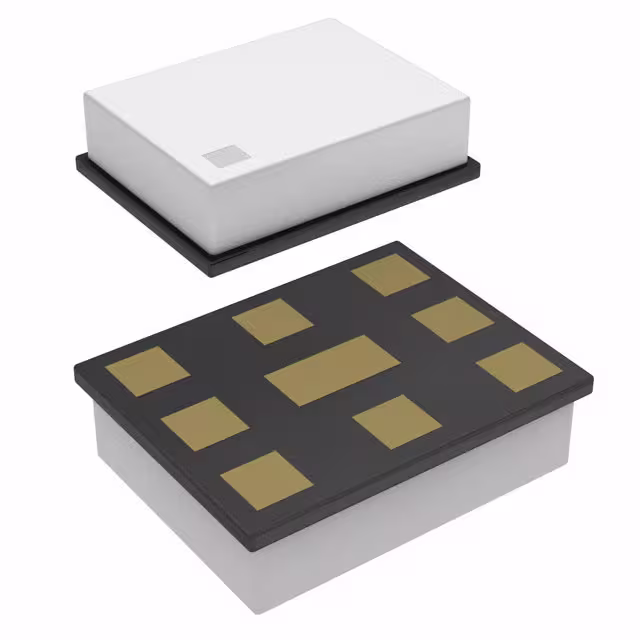

D5PF788M0M3Y9-ZRF DUPLEXER 733MHZ/788MHZ 9SMD |
1,292 | 2.67 |
|
Datasheet |
- | 9-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | Duplexer | 718MHz ~ 748MHz / 773MHz ~ 803MHz | 50.00dB / 59.00dB | 47.00dB / 53.00dB | - | - | - | Surface Mount |
|

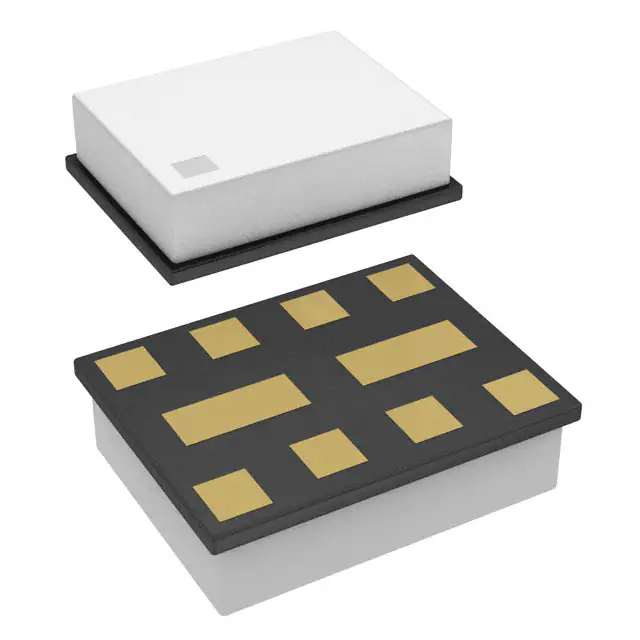

D5DA737M5K2H2-ZRF DUPLEXER 707.5/737.5MHZ 8SMD |
1,183 | 2.67 |
|
Datasheet |
- | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 699MHz ~ 716MHz / 729MHz ~ 746MHz | 55.00dB / 62.00dB | 45.00dB / 54.00dB | - | - | - | Surface Mount |
|
|
D6DA1G842K2C7-ZRF SAW DUPLEXER LTE BAND 3 |
2,910 | 2.78 |
|
Datasheet |
D6 | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 1GHz / 5GHz | - / 60.00dB | - / 56.00dB | - | - | - | Surface Mount |
|
|
D5PF773M0M3Y6-ZRF DUPLEXER 718MHZ/773MHZ 9SMD |
2,262 | 2.67 |
|
Datasheet |
- | 9-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | Duplexer | 703MHz ~ 733MHz / 758MHz ~ 788MHz | 50.00dB / 60.00dB | 47.00dB / 52.00dB | - | - | - | Surface Mount |
|

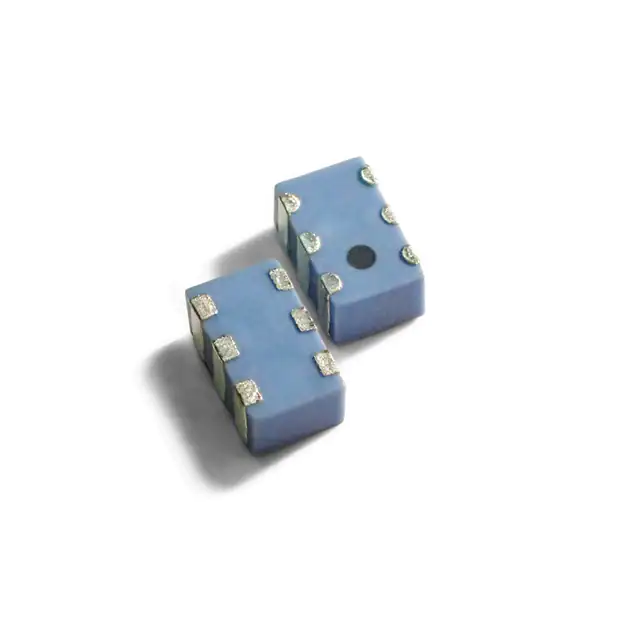

RFDIP2010L38A7B1URF DIPLEXER 2.4GHZ/5GHZ ISM 0805 |
983 | 3.40 |
|
Datasheet |
RFDIP | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 7.5GHz | 25.00dB / - | 45.00dB / - | - | - | - | Surface Mount |
|
DPX1608LL87R1524ADIPLEXER SMD GPS 2.4G |
3,700 | 0.18 |
|
Datasheet |
1608 | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 1.57GHz ~ 1.61GHz / 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | 15.00dB / - | 15.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX1608LL85R2455ADIPLEXER SMD 2.4G/5G |
11,895 | 0.18 |
|
Datasheet |
1608 | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 6GHz | 20.00dB / - | 30.00dB / - | 10.0dB / 13.0dB | - | - | Surface Mount |
|
|
DPX1608LL88R1524ADIPLEXER SMD GPS 2.4G |
4,000 | 0.18 |
|
Datasheet |
1608 | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 1.559GHz ~ 1.61GHz / 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | 10.00dB / 20.00dB | 10.00dB / 20.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|

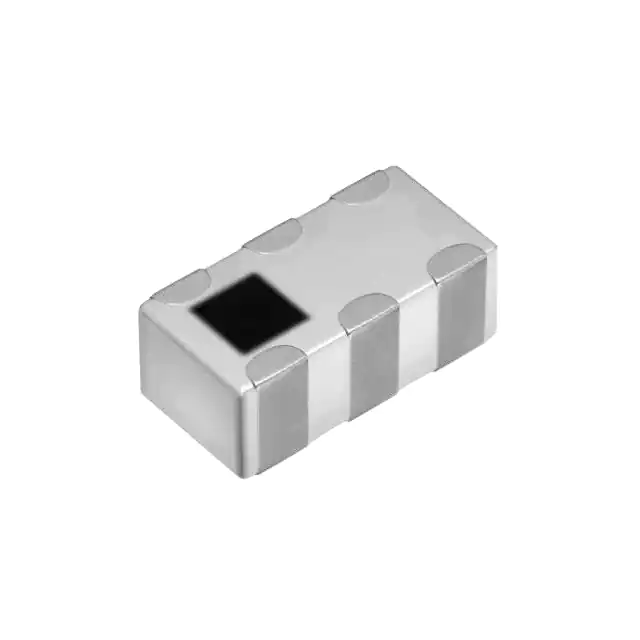

DPX165950DT-8044A1MULTILAYER DPX FOR WLAN/GPS/5G |
11,483 | 0.30 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 704MHz ~ 1.61GHz / 2.4GHz ~ 5.95GHz | 16.00dB / 20.00dB | 20.00dB / 23.00dB | 10.03dB / 10.03dB | - | - | Surface Mount |
|
|
DPX2012LL76R2455ADIPLEXER SMD 2.4G/5G |
3,955 | 0.28 |
|
Datasheet |
2012 | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | - / 20.00dB | - / 20.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
DPX165950DT-8045A1RF DIPLEXER 2.45/5.425GHZ 0603 |
4,738 | 0.33 |
|
Datasheet |
DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 28.00dB / 37.00dB | 11.00dB / 36.00dB | - | - | - | Surface Mount |
|
TPX255000MT-7066A1MULTILAYER TPX FOR GPS/LTE/5G |
3,790 | 0.39 |
|
Datasheet |
TPX | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Triplexer | 617MHz ~ 2.69GHz / 4.4GHz ~ 5GHz | 30.00dB / 34.70dB | 25.00dB / 36.30dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX2012LKGHR1931LANT MB & HB N78 DIPLEXER |
4,000 | 0.00 |
|
Datasheet |
- | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 1.71GHz ~ 2.2GHz / 2.496GHz ~ 3.8GHz | 11.00dB / - | 11.00dB / - | - | - | - | Surface Mount |
