Solder Stencils, Templates
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Positions | Pitch | Outer Dimension | Inner Dimension | Thermal Center Pad | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA0218-STSOP-28 STENCIL |
1,140 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSOP | 28 | 0.022" (0.55mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

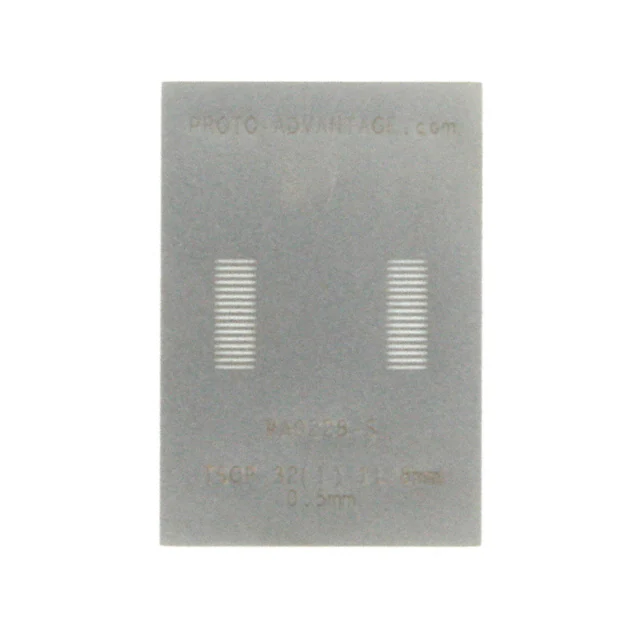

PA0228-STSOP-32I STENCIL |
4,587 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSOP | 32 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

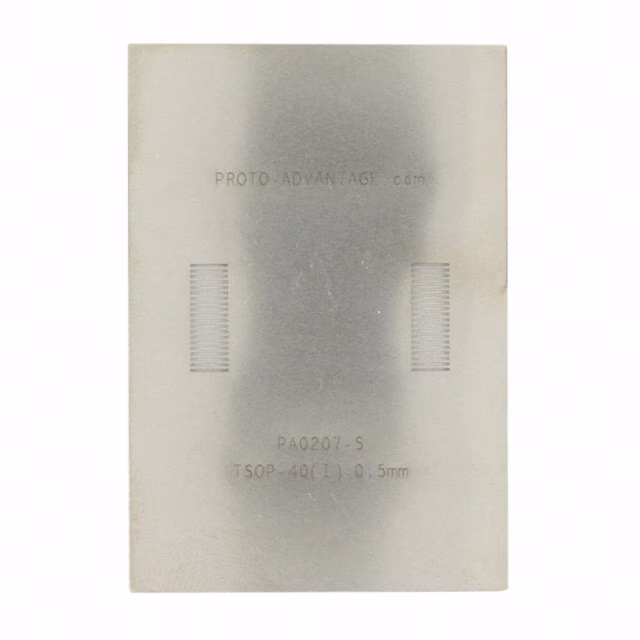

PA0207-STSOP-40 I STENCIL |
2,513 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSOP | 40 | 0.020" (0.50mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | - | - | Stainless Steel |
|
PA0192-STSSOP-14-EXP-PAD STENCIL |
1,807 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSSOP | 14 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.173" W (5.00mm x 4.40mm) | 0.433" L x 0.118" W (11.00mm x 3.00mm) | Stainless Steel |
|
PA0038-STSSOP-30 STENCIL |
4,498 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSSOP | 30 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

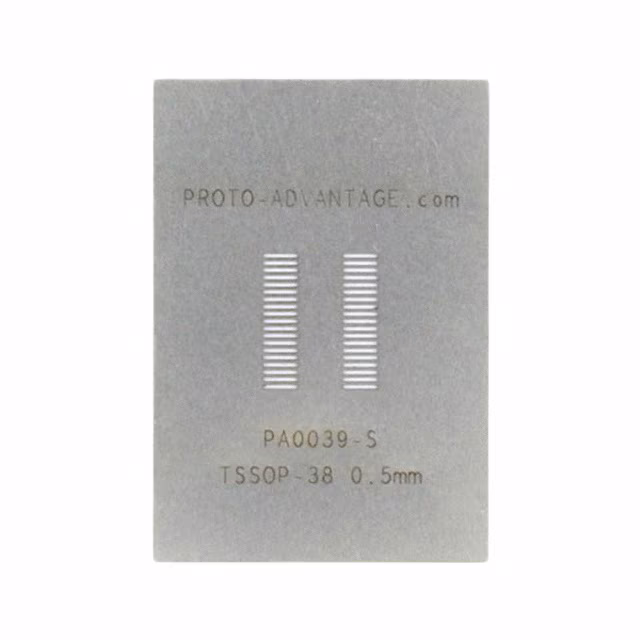

PA0039-STSSOP-38 STENCIL |
4,067 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TSSOP | 38 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0077-STVSOP-20 STENCIL |
1,843 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | TVSOP | 20 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

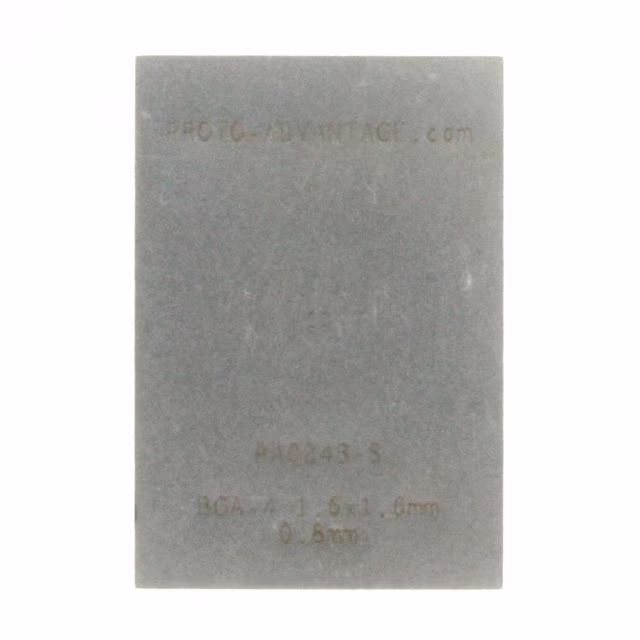

PA0243-SBGA-4 STENCIL |
4,014 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | BGA | 4 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | - | Stainless Steel |
|

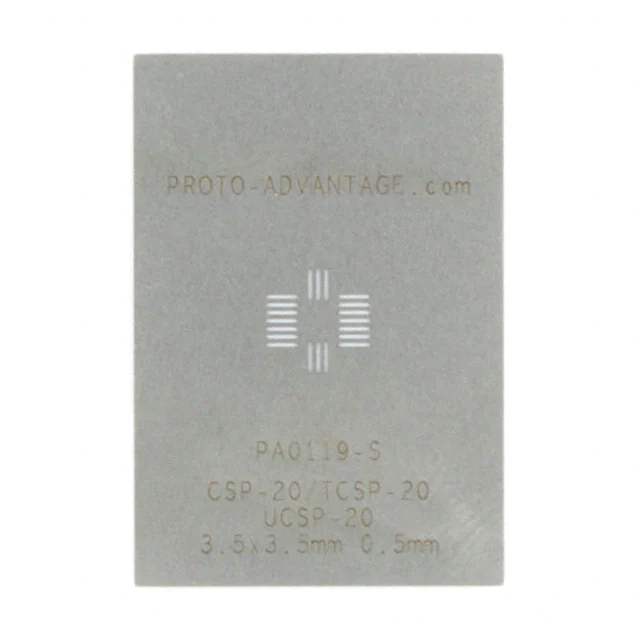

PA0119-SCSP-20/TCSP-20/UCSP-20 STENCIL |
1,541 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | CSP | 20 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.138" L x 0.138" W (3.50mm x 3.50mm) | - | Stainless Steel |
|
PA0117-SCSP-28 STENCIL |
2,664 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | CSP | 28 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.217" L x 0.177" W (5.50mm x 4.50mm) | - | Stainless Steel |
|
IPC0150-SDFN-10 STENCIL |
3,698 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.098" L x 0.098" W (2.50mm x 2.50mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | Stainless Steel |
|

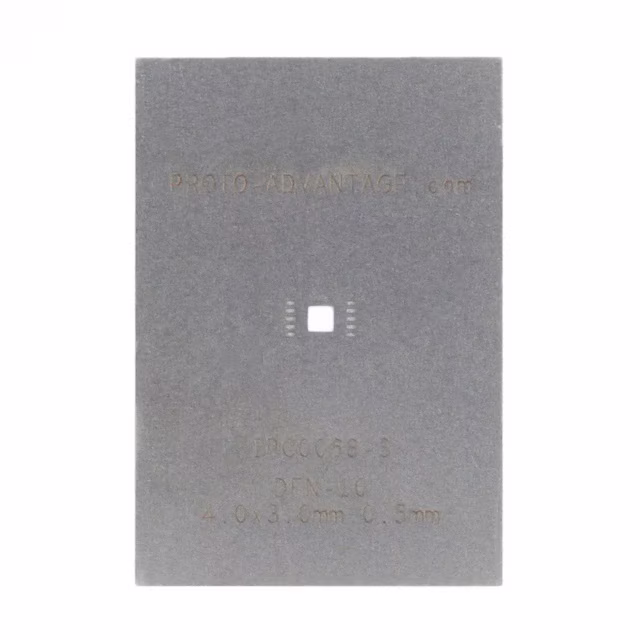

IPC0068-SDFN-10 STENCIL |
1,496 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.083" L x 0.083" W (2.10mm x 2.10mm) | Stainless Steel |
|

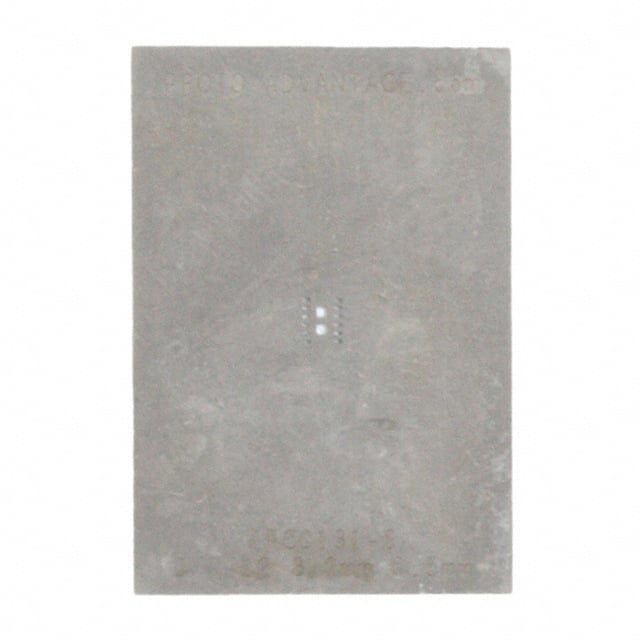

IPC0127-SDFN-12 STENCIL |
3,388 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 12 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.098" W (4.00mm x 2.50mm) | 0.096" L x 0.077" W (2.45mm x 1.95mm) | Stainless Steel |
|
IPC0131-SDFN-12 STENCIL |
3,452 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 12 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.079" W (3.00mm x 2.00mm) | 0.079" L x 0.035" W (2.00mm x 0.90mm) | Stainless Steel |
|

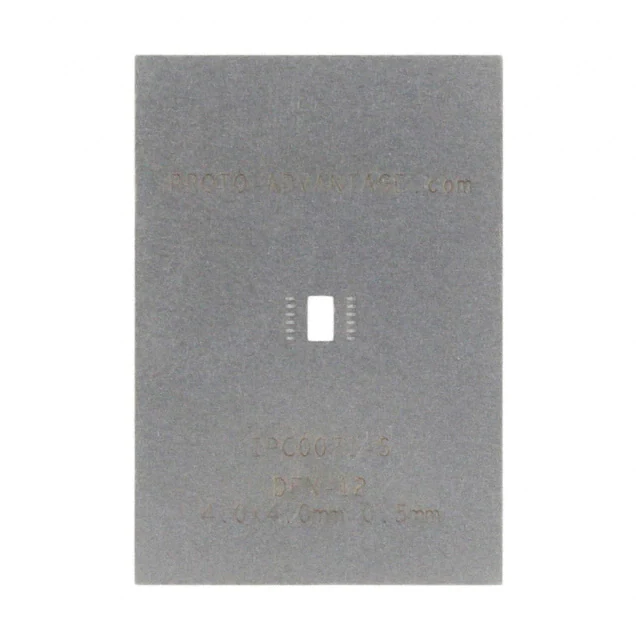

IPC0071-SDFN-12 STENCIL |
2,098 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 12 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" L x 0.063" W (2.80mm x 1.60mm) | Stainless Steel |
|

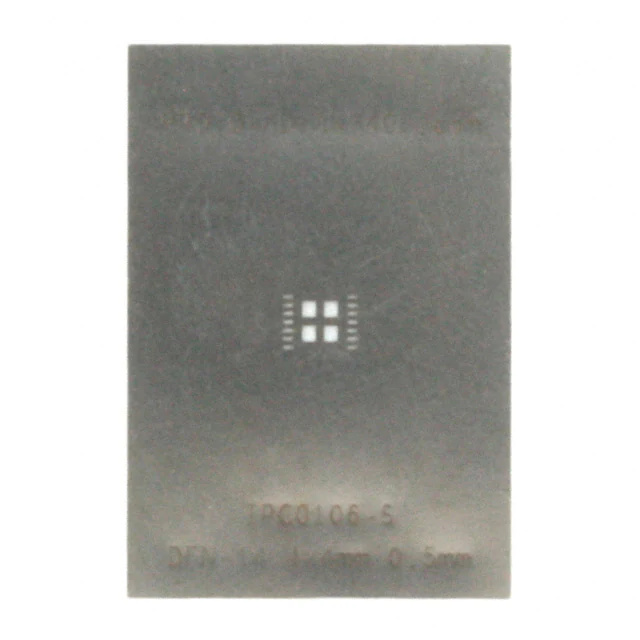

IPC0106-SDFN-14 STENCIL |
3,134 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 14 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" L x 0.102" W (3.00mm x 2.60mm) | Stainless Steel |
|

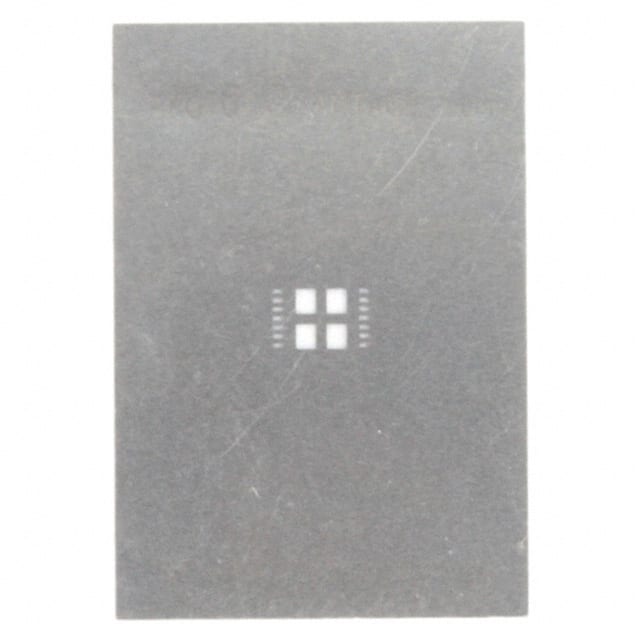

IPC0115-SDFN-14 STENCIL |
4,375 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 14 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.169" L x 0.142" W (4.30mm x 3.60mm) | Stainless Steel |
|

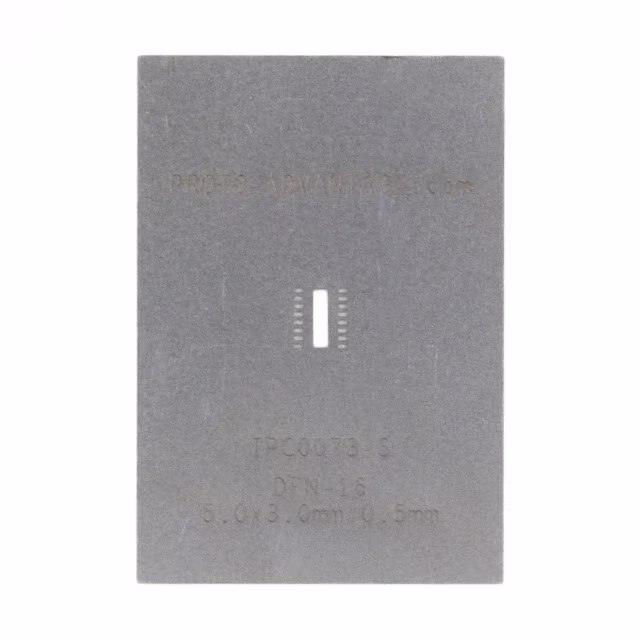

IPC0073-SDFN-16 STENCIL |
3,476 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.118" W (5.00mm x 3.00mm) | 0.173" L x 0.065" W (4.40mm x 1.65mm) | Stainless Steel |
|

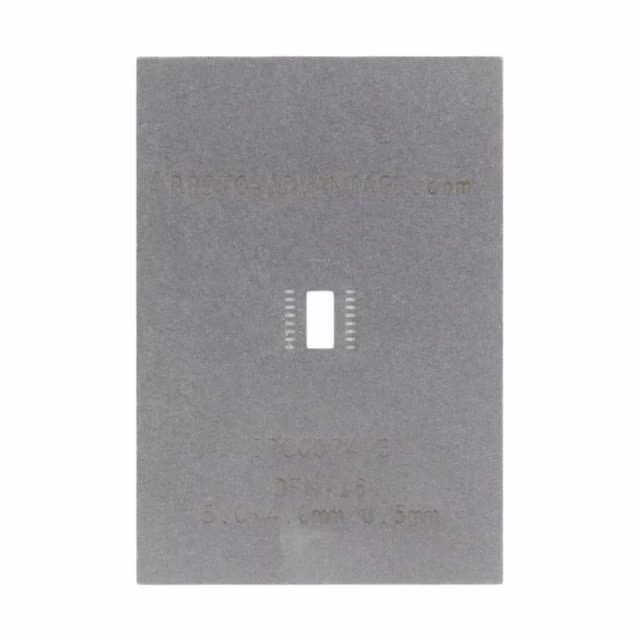

IPC0074-SDFN-16 STENCIL |
3,256 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.171" L x 0.096" W (4.35mm x 2.45mm) | Stainless Steel |
|
PA0206-SDFN-16 STENCIL |
4,852 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | DFN | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.354" L x 0.096" W (9.00mm x 2.45mm) | Stainless Steel |
