Solder Stencils, Templates
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Positions | Pitch | Outer Dimension | Inner Dimension | Thermal Center Pad | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

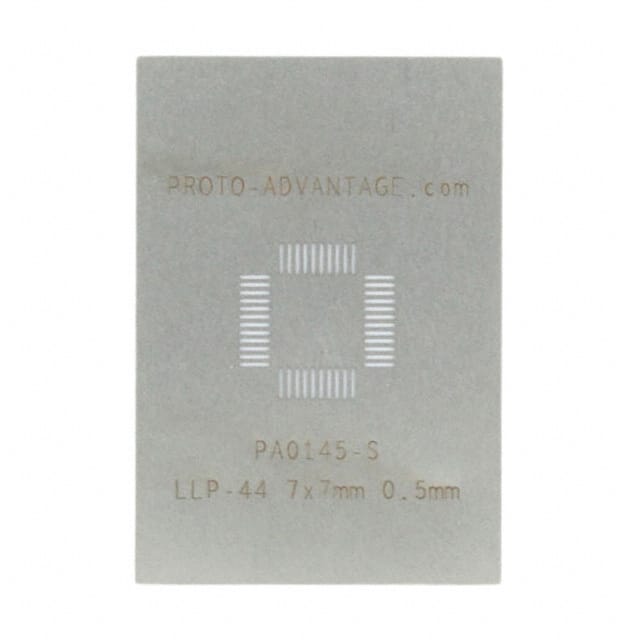

PA0145-SLLP-44 STENCIL |
4,990 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 44 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | Stainless Steel |
|

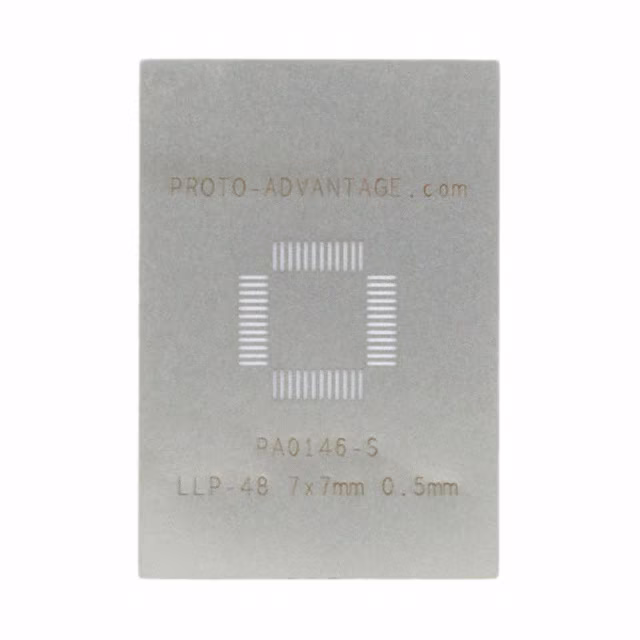

PA0146-SLLP-48 STENCIL |
4,609 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 48 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | Stainless Steel |
|

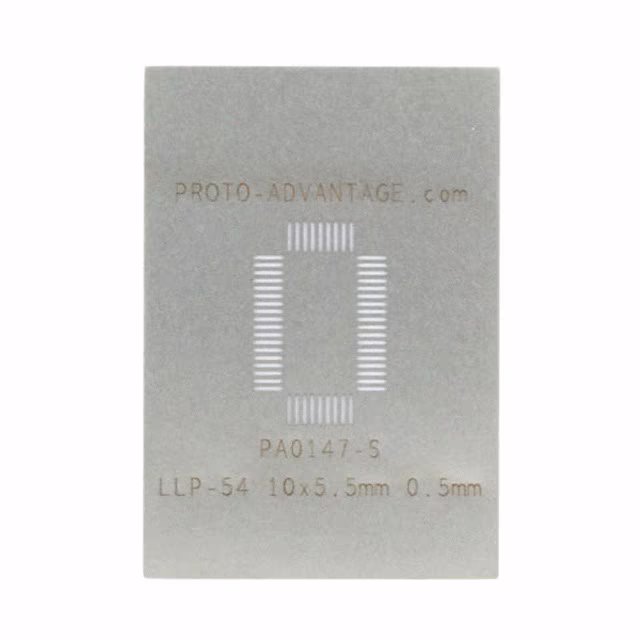

PA0147-SLLP-54 STENCIL |
3,075 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 54 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.394" L x 0.217" W (10.00mm x 5.50mm) | - | Stainless Steel |
|

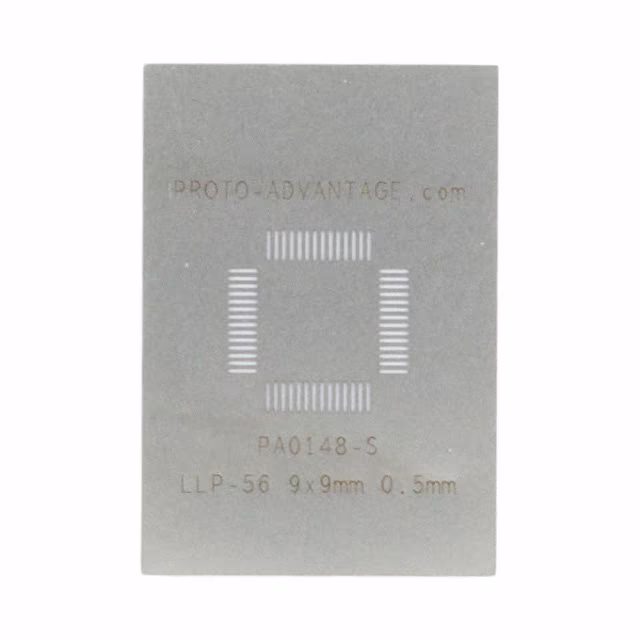

PA0148-SLLP-56 STENCIL |
4,550 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 56 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.354" L x 0.354" W (9.00mm x 9.00mm) | - | Stainless Steel |
|
PA0132-SLLP-6 STENCIL |
4,524 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 6 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.079" L x 0.079" W (2.00mm x 2.00mm) | - | Stainless Steel |
|

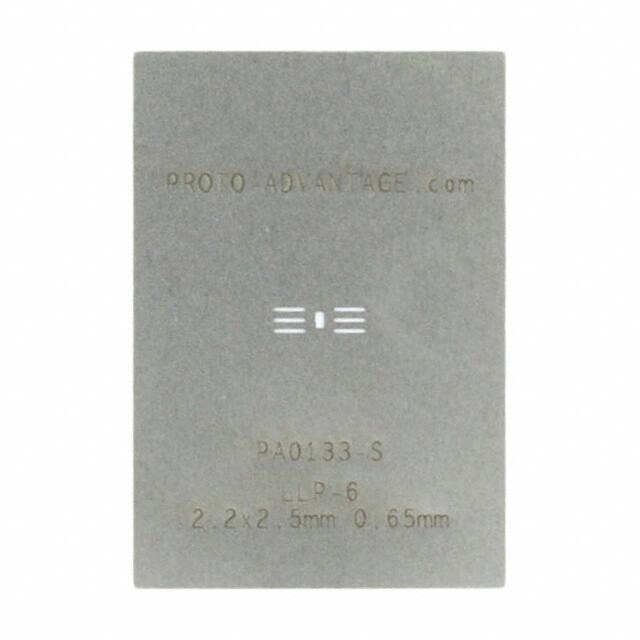

PA0133-SLLP-6 STENCIL |
3,970 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 6 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.098" L x 0.087" W (2.50mm x 2.20mm) | 0.197" L x 0.030" W (5.00mm x 0.75mm) | Stainless Steel |
|

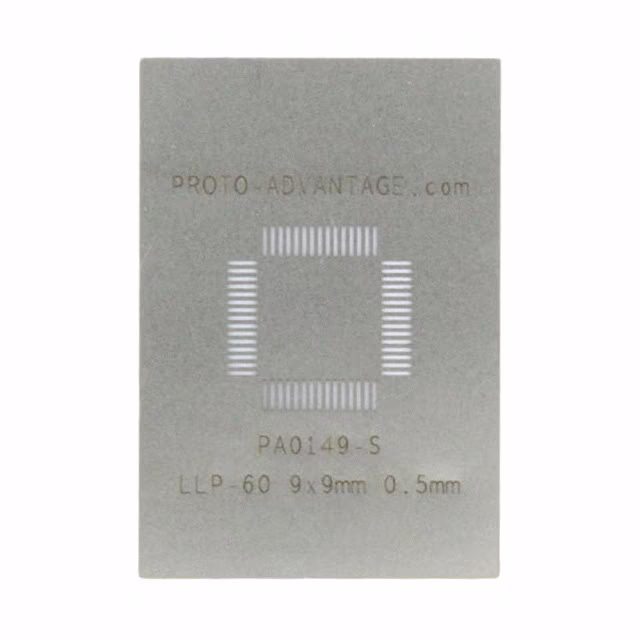

PA0149-SLLP-60 STENCIL |
1,278 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 60 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.354" L x 0.354" W (9.00mm x 9.00mm) | - | Stainless Steel |
|
PA0150-SLLP-64 STENCIL |
1,483 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 64 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.354" L x 0.354" W (9.00mm x 9.00mm) | - | Stainless Steel |
|
PA0151-SLLP-68 STENCIL |
2,580 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 68 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | Stainless Steel |
|

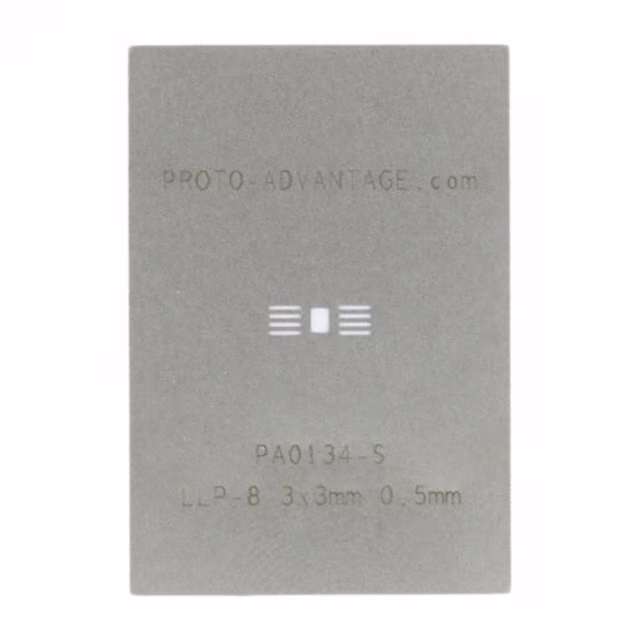

PA0134-SLLP-8 BODY STENCIL |
3,450 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 8 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.236" L x 0.063" W (6.00mm x 1.60mm) | Stainless Steel |
|
PA0235-SLQFP-40 STENCIL |
4,514 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LQFP | 40 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | Stainless Steel |
|

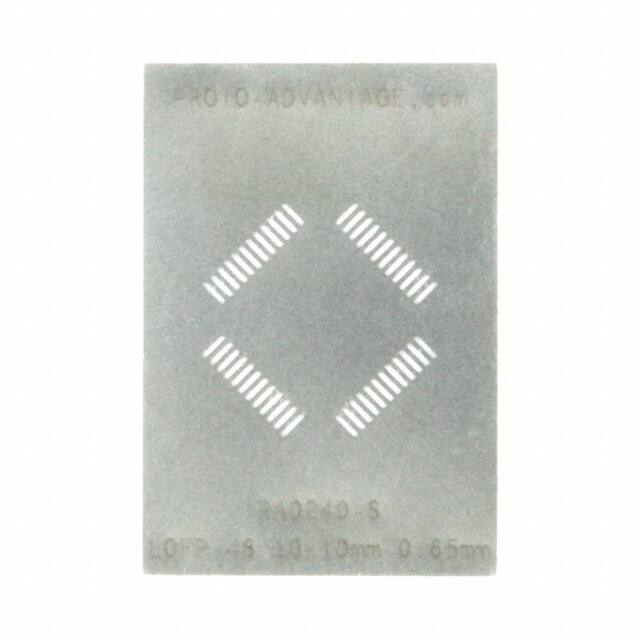

PA0240-SLQFP-48 STENCIL |
3,217 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LQFP | 48 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | Stainless Steel |
|
PA0225-SLSOP-10 STENCIL |
1,547 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LSOP | 10 | 0.063" (1.60mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0157-SMICROSMD-10 STENCIL |
1,082 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | BGA | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.098" L x 0.089" W (2.50mm x 2.25mm) | - | Stainless Steel |
|

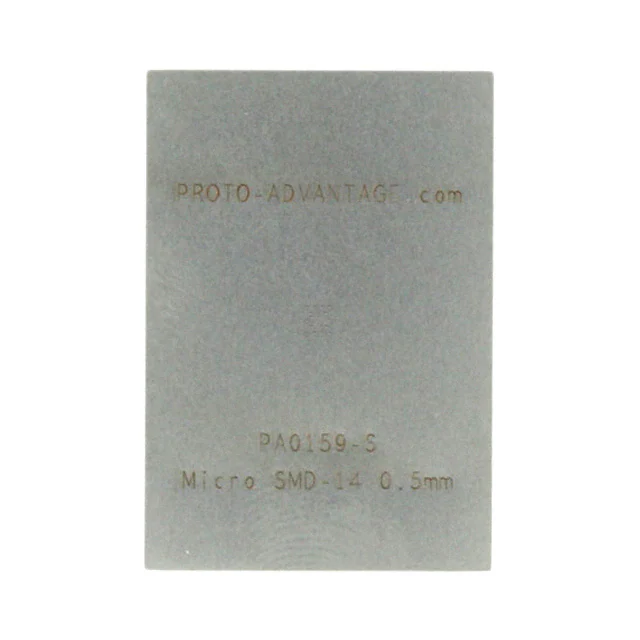

PA0159-SMICROSMD-14 STENCIL |
3,769 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | BGA | 14 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.094" L x 0.083" W (2.40mm x 2.10mm) | - | Stainless Steel |
|

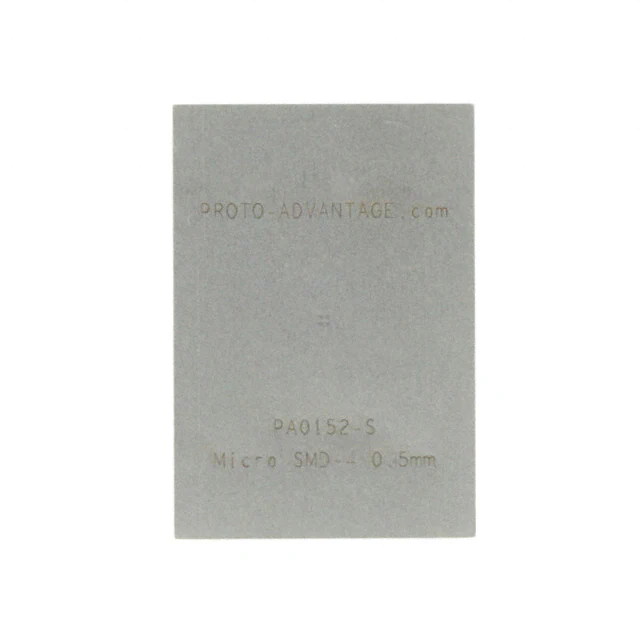

PA0152-SMICROSMD-4 STENCIL |
2,600 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | BGA | 4 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.033" L x 0.033" W (0.85mm x 0.85mm) | - | Stainless Steel |
|
PA0153-SMICROSMD-5 STENCIL |
4,692 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | BGA | 5 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.055" L x 0.042" W (1.39mm x 1.06mm) | - | Stainless Steel |
|
PA0154-SMICROSMD-6 STENCIL |
2,662 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | BGA | 6 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.063" L x 0.037" W (1.61mm x 0.95mm) | - | Stainless Steel |
|
PA0155-SMICROSMD-8 STENCIL |
2,234 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | BGA | 8 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.054" L x 0.054" W (1.36mm x 1.36mm) | - | Stainless Steel |
|

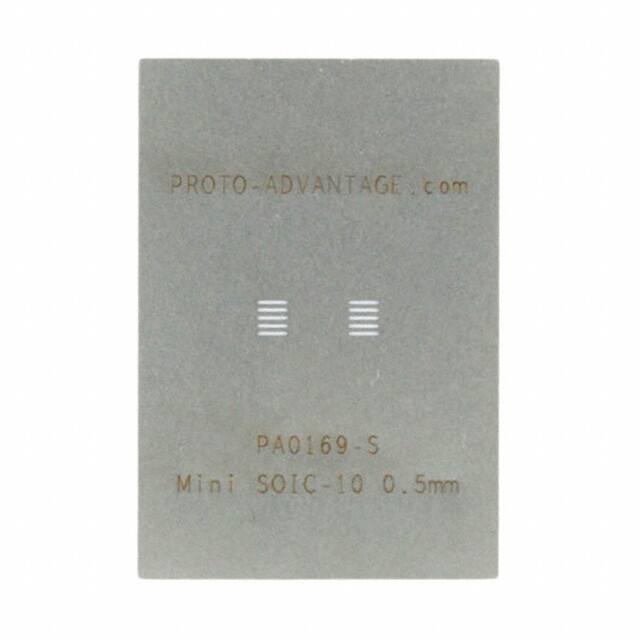

PA0169-SMINI SOIC-10 STENCIL |
2,187 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | Mini SOIC | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | Stainless Steel |
