Solder Stencils, Templates
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Positions | Pitch | Outer Dimension | Inner Dimension | Thermal Center Pad | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPC0152-SDFN-18 STENCIL |
1,492 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 18 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.177" L x 0.138" W (4.50mm x 3.50mm) | 0.156" L x 0.083" W (3.95mm x 2.10mm) | Stainless Steel |
|
IPC0075-SDFN-18 STENCIL |
3,904 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 18 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.118" W (5.00mm x 3.00mm) | 0.173" L x 0.059" W (4.40mm x 1.50mm) | Stainless Steel |
|

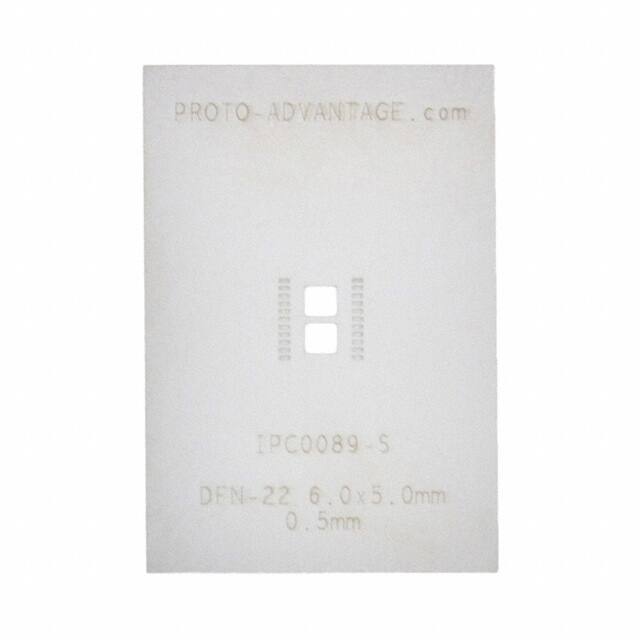

IPC0089-SDFN-22 STENCIL |
2,045 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 22 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.213" L x 0.102" W (5.40mm x 2.60mm) | Stainless Steel |
|

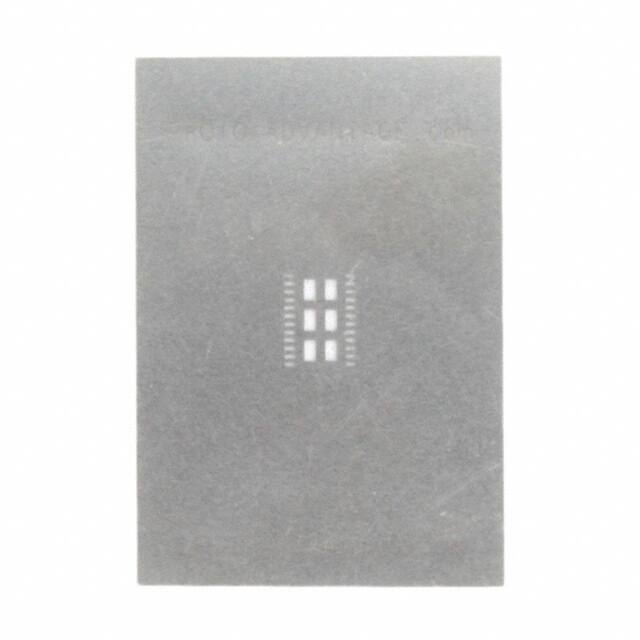

IPC0112-SDFN-24 STENCIL |
1,515 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 24 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.157" W (7.00mm x 4.00mm) | 0.253" L x 0.104" W (6.43mm x 2.64mm) | Stainless Steel |
|
IPC0053-SDFN-5 STENCIL |
4,439 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 5 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.083" L x 0.079" W (2.10mm x 2.00mm) | 0.053" L x 0.026" W (1.35mm x 0.65mm) | Stainless Steel |
|
IPC0119-SDFN-6 STENCIL |
4,649 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 6 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.057" L x 0.039" W (1.45mm x 1.00mm) | - | Stainless Steel |
|
IPC0055-SDFN-6 STENCIL |
4,929 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 6 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" L x 0.018" W (1.00mm x 0.45mm) | Stainless Steel |
|

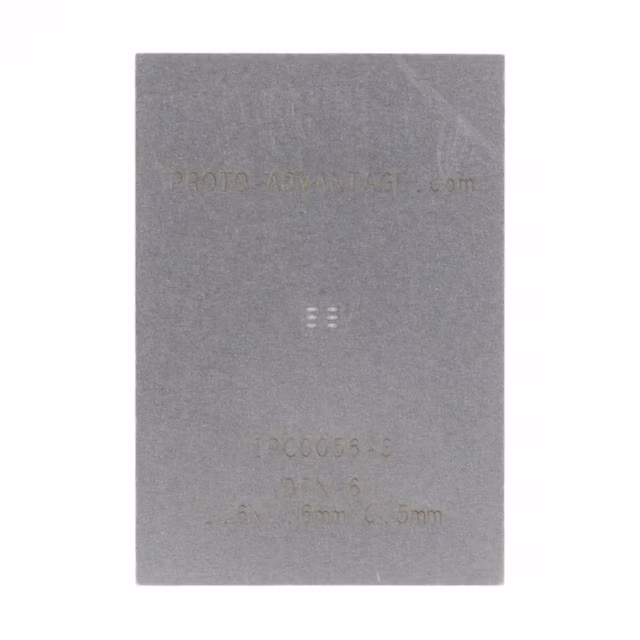

IPC0056-SDFN-6 STENCIL |
1,697 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 6 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | - | Stainless Steel |
|
IPC0153-SDFN-6 STENCIL |
4,701 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 6 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.079" W (3.00mm x 2.00mm) | 0.051" L x 0.049" W (1.30mm x 1.25mm) | Stainless Steel |
|
IPC0058-SDFN-8 STENCIL |
1,415 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | DFN | 8 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.083" L x 0.079" W (2.10mm x 2.00mm) | 0.059" L x 0.030" W (1.50mm x 0.75mm) | Stainless Steel |
|

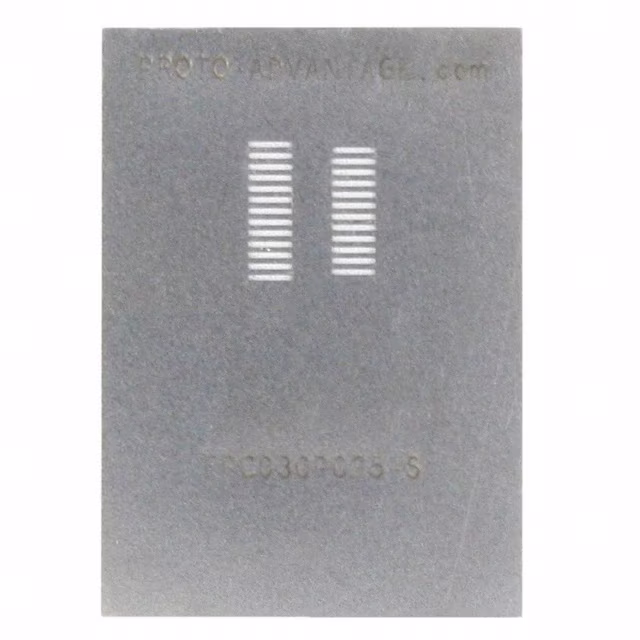

FPC030P025-SFPC/FFC SMT CONN STENCIL |
3,972 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 25 | 0.024" (0.60mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
FPC040P010-SFPC/FFC SMT CONN STENCIL |
2,614 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 10 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.386" L x 0.157" W (9.80mm x 4.00mm) | Stainless Steel |
|

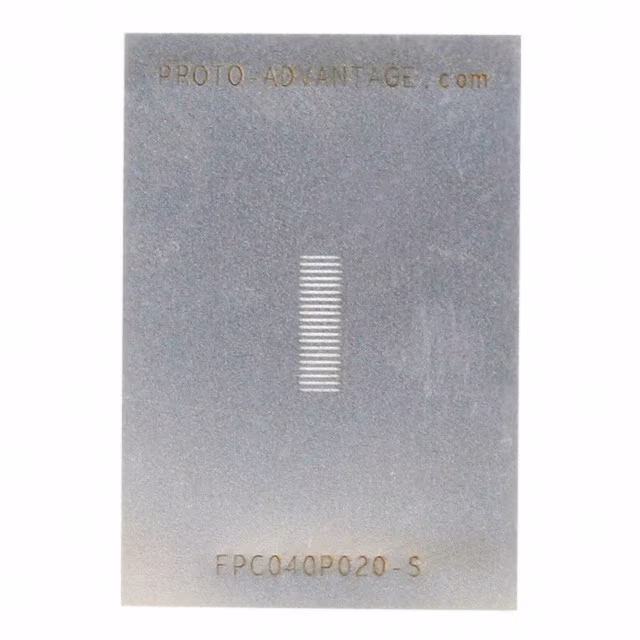

FPC040P020-SFPC/FFC SMT CONN STENCIL |
4,154 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 20 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.543" L x 0.157" W (13.80mm x 4.00mm) | Stainless Steel |
|

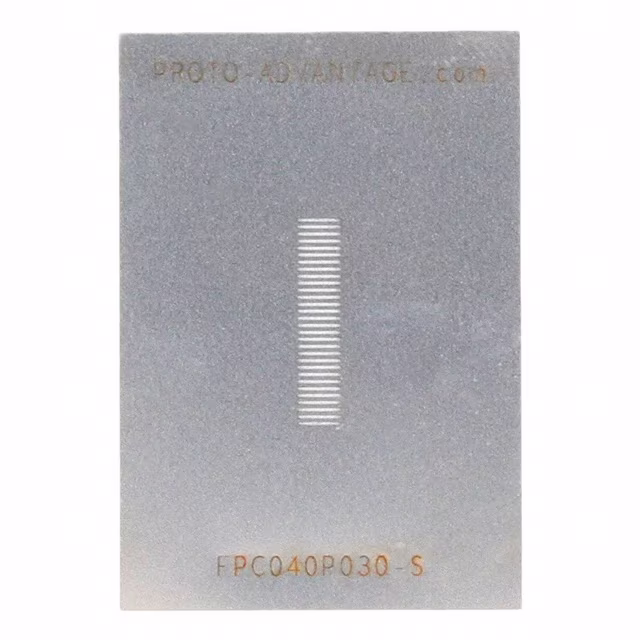

FPC040P030-SFPC/FFC SMT CONN STENCIL |
3,929 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 30 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.701" L x 0.157" W (17.80mm x 4.00mm) | Stainless Steel |
|
FPC040P040-SFPC/FFC SMT CONN STENCIL |
2,183 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 40 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.858" L x 0.157" W (21.80mm x 4.00mm) | Stainless Steel |
|
FPC040P080-SFPC/FFC SMT CONN STENCIL |
2,131 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 80 | 0.016" (0.40mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.488" L x 0.157" W (37.80mm x 4.00mm) | Stainless Steel |
|
FPC040P090-SFPC/FFC SMT CONN STENCIL |
3,104 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 90 | 0.016" (0.40mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.646" L x 0.157" W (41.80mm x 4.00mm) | Stainless Steel |
|
FPC050P010-SFPC/FFC SMT CONN STENCIL |
4,130 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.504" L x 0.157" W (12.80mm x 4.00mm) | Stainless Steel |
|

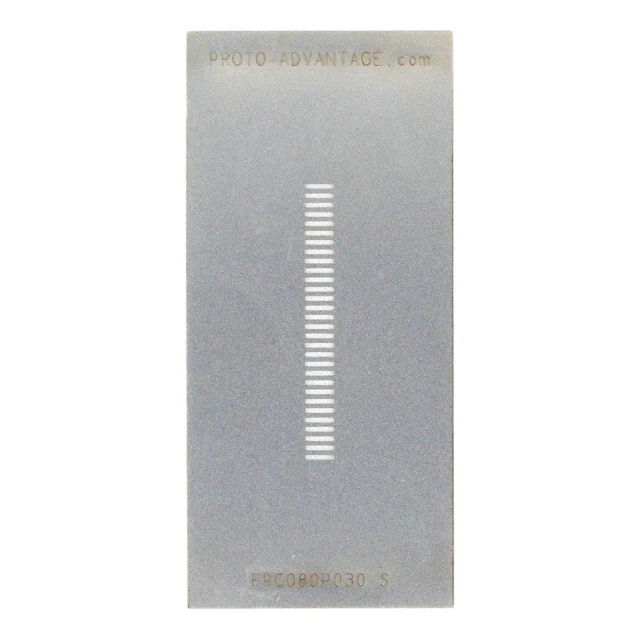

FPC080P030-SFPC/FFC SMT CONN STENCIL |
2,337 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 30 | 0.031" (0.80mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.248" L x 0.157" W (31.70mm x 4.00mm) | Stainless Steel |
|
FPC080P040-SFPC/FFC SMT CONN STENCIL |
2,295 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 40 | 0.031" (0.80mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.563" L x 0.157" W (39.70mm x 4.00mm) | Stainless Steel |
