Solder Stencils, Templates
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Positions | Pitch | Outer Dimension | Inner Dimension | Thermal Center Pad | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

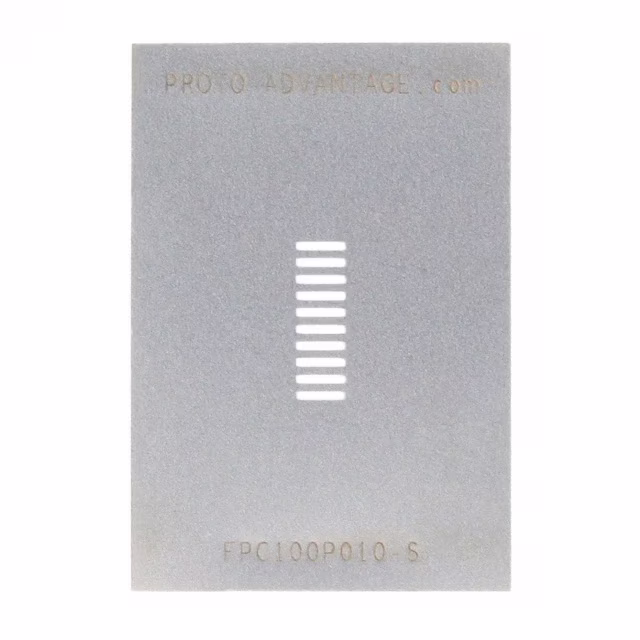

FPC100P010-SFPC/FFC SMT CONN STENCIL |
3,467 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 10 | 0.039" (1.00mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.774" L x 0.157" W (19.65mm x 4.00mm) | Stainless Steel |
|
FPC100P020-SFPC/FFC SMT CONN STENCIL |
1,447 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 20 | 0.039" (1.00mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 1.167" L x 0.157" W (29.65mm x 4.00mm) | Stainless Steel |
|

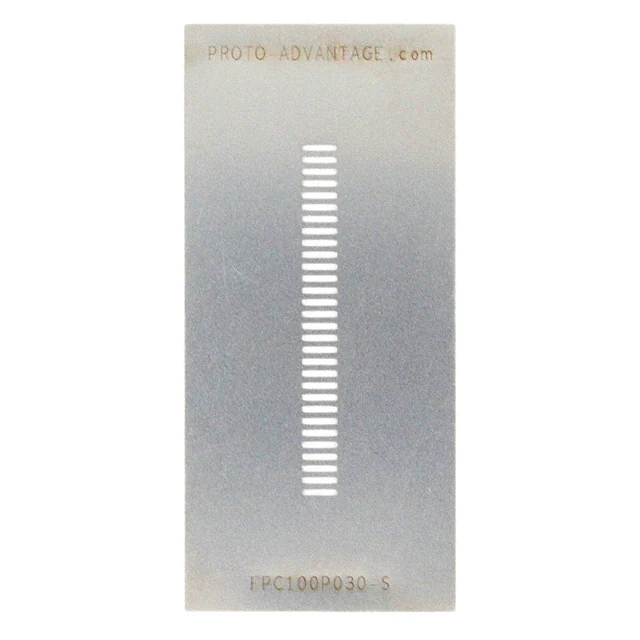

FPC100P030-SFPC/FFC SMT CONN STENCIL |
3,837 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 30 | 0.039" (1.00mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.561" L x 0.157" W (39.65mm x 4.00mm) | Stainless Steel |
|
FPC100P040-SFPC/FFC SMT CONN STENCIL |
1,843 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 40 | 0.039" (1.00mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.955" L x 0.157" W (49.65mm x 4.00mm) | Stainless Steel |
|

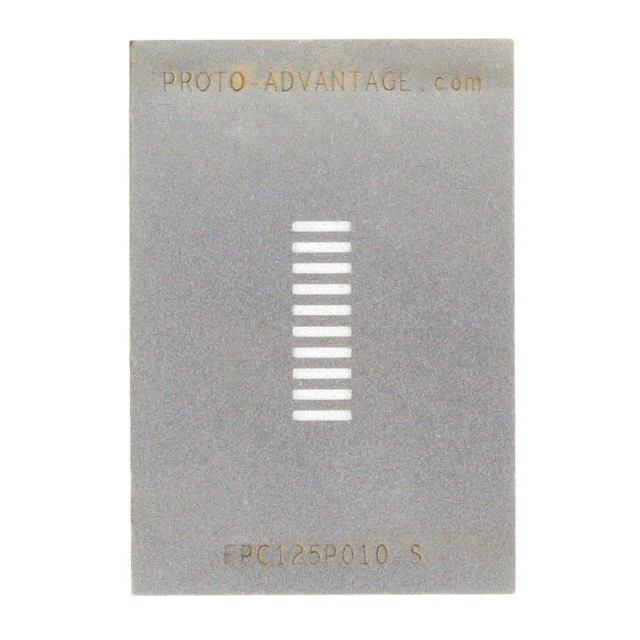

FPC125P010-SFPC/FFC SMT CONN STENCIL |
4,704 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 10 | 0.049" (1.25mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.872" L x 0.157" W (22.15mm x 4.00mm) | Stainless Steel |
|

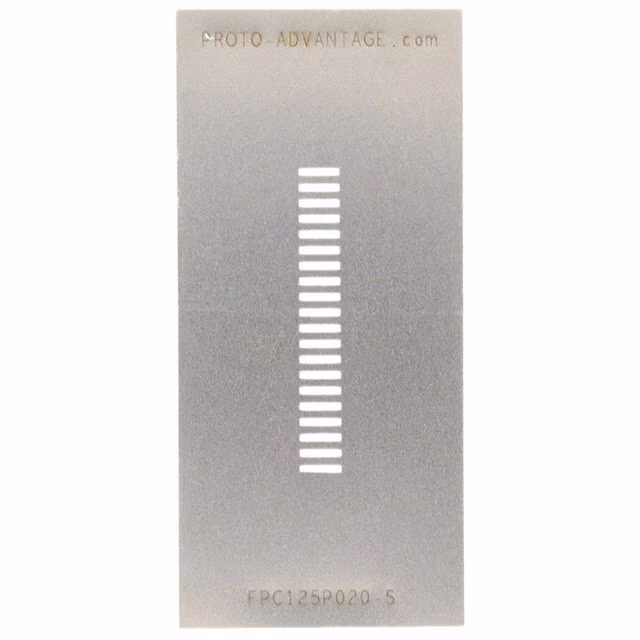

FPC125P020-SFPC/FFC SMT CONN STENCIL |
4,991 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 20 | 0.049" (1.25mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.364" L x 0.157" W (34.65mm x 4.00mm) | Stainless Steel |
|
FPC125P030-SFPC/FFC SMT CONN STENCIL |
1,843 | 11.59 |
|
Datasheet |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 30 | 0.049" (1.25mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.856" L x 0.157" W (47.15mm x 4.00mm) | Stainless Steel |
|
IPC0111-SHSOP-44 STENCIL |
1,242 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | HSOP | 44 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.630" L x 0.433" W (16.00mm x 11.00mm) | 0.630" L x 0.270" W (16.00mm x 6.85mm) | Stainless Steel |
|

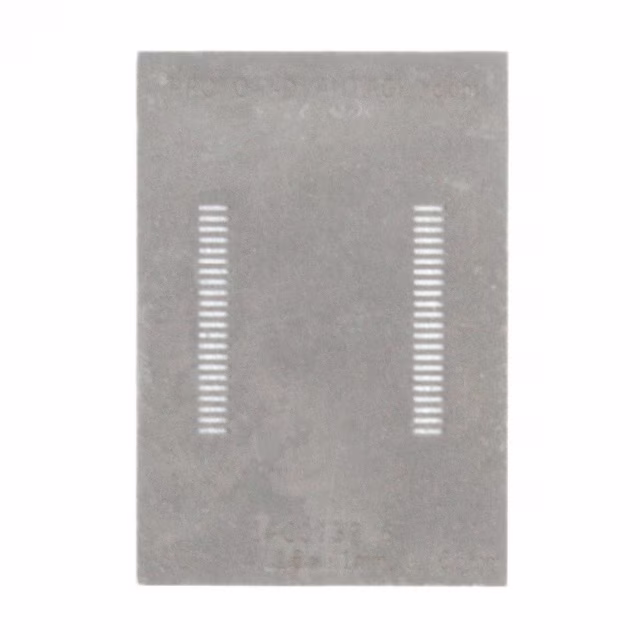

IPC0132-SHSOP-44 STENCIL |
3,685 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | HSOP | 44 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.630" L x 0.433" W (16.00mm x 11.00mm) | - | Stainless Steel |
|

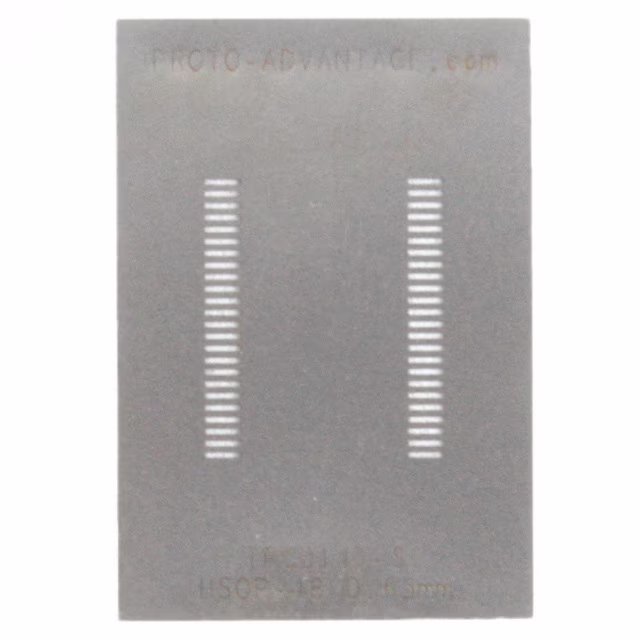

IPC0147-SHSOP-48 STENCIL |
1,696 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | HSOP | 48 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.630" L x 0.346" W (16.00mm x 8.80mm) | - | Stainless Steel |
|

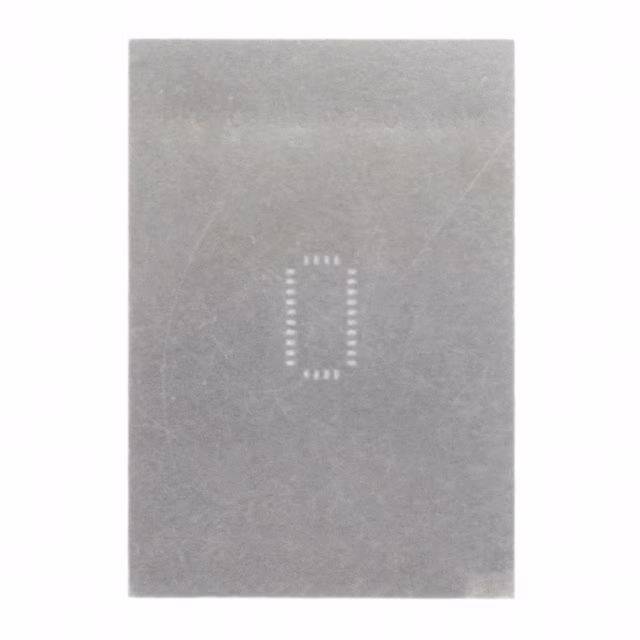

IPC0109-SLGA-28 STENCIL |
4,425 | 11.59 |
|
Datasheet |
Proto-Advantage IPC | Bulk | Active | LGA | 28 | 0.024" (0.60mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.295" L x 0.173" W (7.50mm x 4.40mm) | - | Stainless Steel |
|

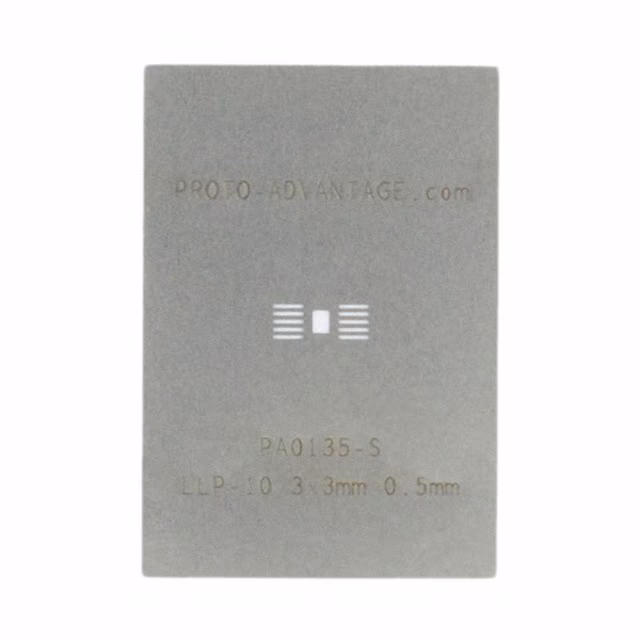

PA0135-SLLP-10 STENCIL |
4,040 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.236" L x 0.063" W (6.00mm x 1.60mm) | Stainless Steel |
|
PA0136-SLLP-12 STENCIL |
1,924 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 12 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.236" L x 0.063" W (6.00mm x 1.60mm) | Stainless Steel |
|

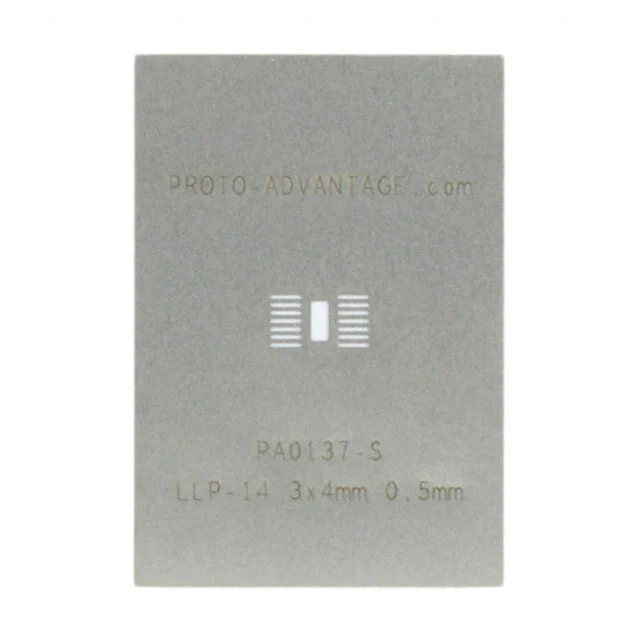

PA0137-SLLP-14 STENCIL |
4,502 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 14 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.276" L x 0.063" W (7.00mm x 1.60mm) | Stainless Steel |
|

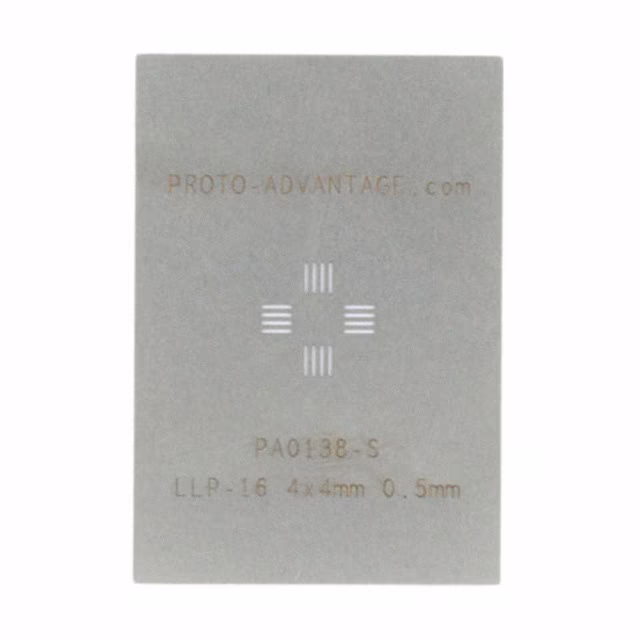

PA0138-SLLP-16 STENCIL |
3,738 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | Stainless Steel |
|

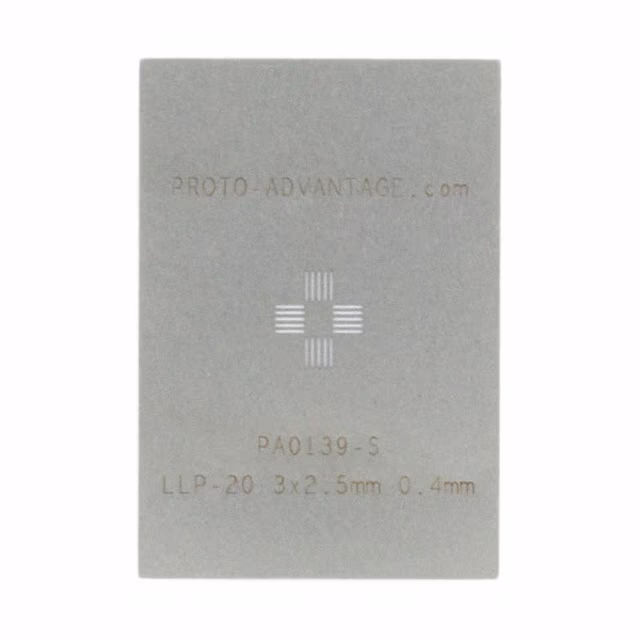

PA0139-SLLP-20 STENCIL |
4,186 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 20 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.098" W (3.00mm x 2.50mm) | - | Stainless Steel |
|
PA0141-SLLP-28 STENCIL |
4,716 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 28 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
|
PA0142-SLLP-32 STENCIL |
2,024 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 32 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
|
PA0143-SLLP-36 STENCIL |
2,970 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 36 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | Stainless Steel |
|

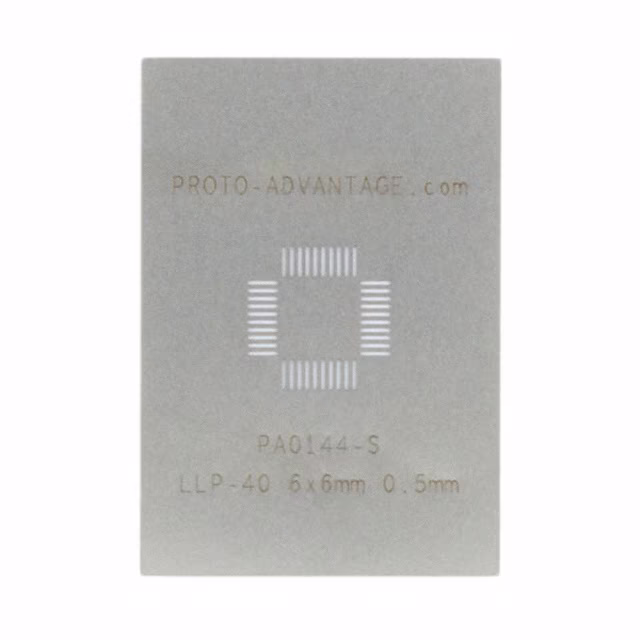

PA0144-SLLP-40 STENCIL |
3,780 | 11.59 |
|
Datasheet |
Proto-Advantage PA | Bulk | Active | LLP | 40 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | Stainless Steel |
