Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9363NLTXFMR FLYBACK DC/DC CONV SMD |
472 | 5.16 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | ACPL-32JT, ACPL-302J | - | 8 ~ 18V | - | 2500Vrms | - | 80kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.472" L x 0.366" W (12.00mm x 9.30mm) | 0.266" (6.75mm) | 0.472" L x 0.512" W (12.00mm x 13.00mm) | - |
|

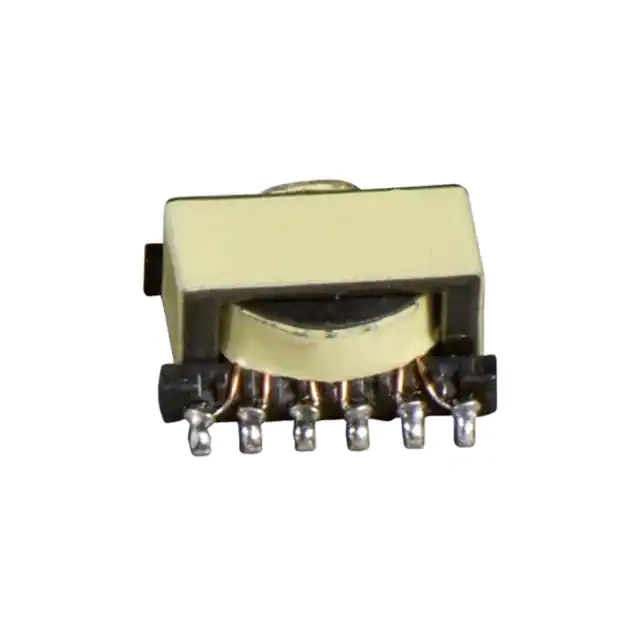

7491192912XFMR POE DC/DC CONV 210UH SMD |
653 | 5.00 |
|
Datasheet |
WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | Linear Technology, Texas Instruments | 36 ~ 57V | - | 1.5kVAC | 210µH @ 100kHz | 200 ~ 500kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.291" (7.40mm) | 0.709" L x 0.642" W (18.00mm x 16.30mm) | - |
|
750313970XFMR FLYBACK DC/DC CONV 40UH SMD |
349 | 4.93 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8301 | Linear Technology | 18 ~ 42V | - | 1500Vrms | 40µH @ 10kHz | 200 ~ 300kHz | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750315835XFMR FLYBACK DC/DC CONV 40UH SMD |
1,370 | 3.50 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8304 | Linear Technology | 36 ~ 75V | - | 1500Vrms | 40µH @ 10kHz | 50 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" (12.70mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|

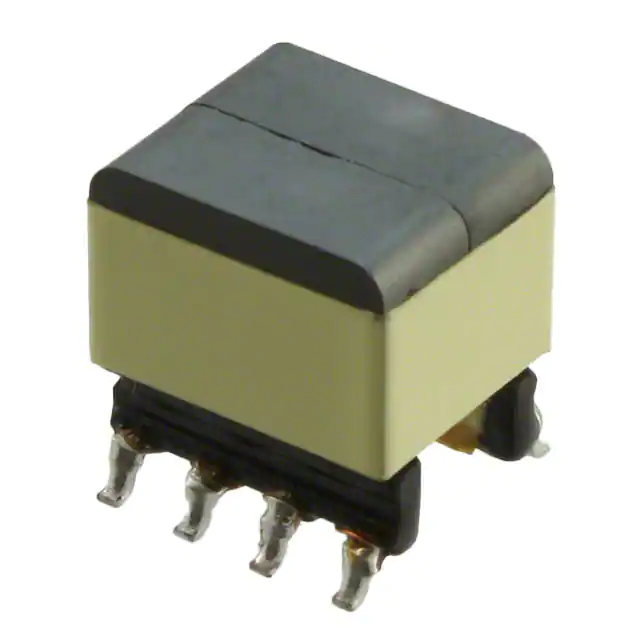

750311780XFMR 2UH SMD |
973 | 4.73 |
|
Datasheet |
WE-FB, MID-IBTI | Tape & Reel (TR) | Active | - | - | TPS55010 | Texas Instruments | - | - | 2000Vrms | 2µH @ 100kHz | - | - | - | - | Surface Mount | - | 0.420" (10.67mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
7491199312XFMR POE DC/DC CONV 40UH SMD |
502 | 6.02 |
|
Datasheet |
WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | - | 36 ~ 57V | - | 1500Vrms | 40µH @ 100kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.591" W (13.46mm x 15.00mm) | 0.500" (12.70mm) | 0.530" L x 0.713" W (13.46mm x 18.10mm) | - |
|
|
749119933XFMR POE DC/DC CONV 127UH SMD |
375 | 6.02 |
|
Datasheet |
WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | - | 36 ~ 57V | 12V @ 15mA | 1500Vrms | 127µH @ 100kHz | 200 ~ 500kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.591" W (13.46mm x 15.00mm) | 0.500" (12.70mm) | 0.530" L x 0.713" W (13.46mm x 18.10mm) | - |
|
|
7491199212XFMR POE DC/DC CONV 127UH SMD |
341 | 6.02 |
|
Datasheet |
WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | - | 34 ~ 72V | 12V @ 15mA | 1500Vrms | 127µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.591" W (13.46mm x 15.00mm) | 0.500" (12.70mm) | 0.530" L x 0.713" W (13.46mm x 18.10mm) | - |
|
750817014XFMR FLYBCK AC/DC CONV 1.84MH SM |
234 | 4.66 |
|
Datasheet |
WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | 78 ~ 375V | 16V @ 50mA | 3000Vrms | 1.84mH @ 10kHz | 50kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.438" (11.13mm) | 0.543" L x 0.941" W (13.80mm x 23.90mm) | - |
|

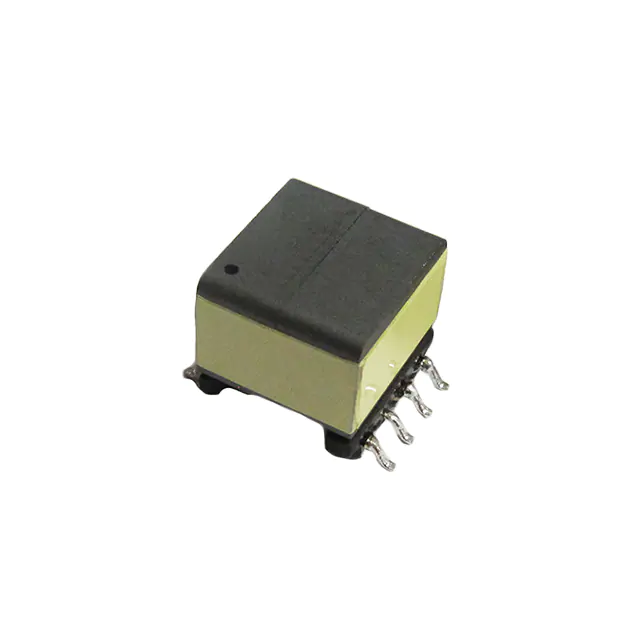

750342557XFMR FLYBACK DC/DC CONV 50UH SMD |
1,000 | 5.76 |
|
Datasheet |
MID-IBMAX | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 24V | 15V @ 100mA | 1500Vrms | 50µH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
749196131XFMR FLEX CONF DC/DC 10.9UH SMD |
761 | 6.21 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VAC | 10.9µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.508" L x 0.362" W (12.90mm x 9.20mm) | 0.244" (6.20mm) | 0.559" L x 0.508" W (14.20mm x 12.90mm) | - |
|
|
749196121XFMR FLEX CONF DC/DC 14.7UH SMD |
680 | 6.21 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VAC | 14.7µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.508" L x 0.362" W (12.90mm x 9.20mm) | 0.244" (6.20mm) | 0.559" L x 0.508" W (14.20mm x 12.90mm) | - |
|

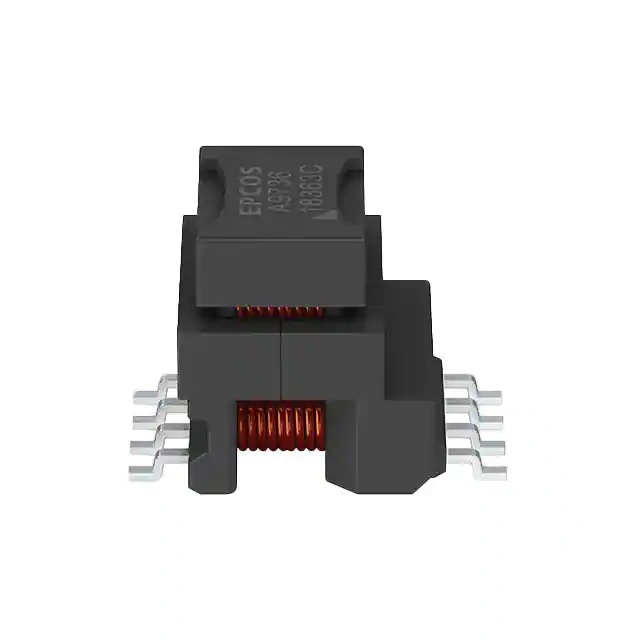

B78308A2485A003XFMR FWD P-P DC/DC CONV 90UH SMD |
160 | 5.90 |
|
Datasheet |
E13 EMHV | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 3000Vrms | 90µH @ 100kHz | 100 ~ 400kHz | -40°C ~ 150°C | - | - | Surface Mount | 0.508" L x 0.433" W (12.90mm x 11.00mm) | 0.449" (11.40mm) | 0.622" L x 0.508" W (15.80mm x 12.90mm) | - |
|
|
B78308A2484A003XFMR FWD P-P DC/DC CONV 90UH SMD |
224 | 5.90 |
|
Datasheet |
E13 EMHV | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 3000Vrms | 90µH @ 100kHz | 100 ~ 400kHz | -40°C ~ 150°C | - | - | Surface Mount | 0.508" L x 0.433" W (12.90mm x 11.00mm) | 0.449" (11.40mm) | 0.622" L x 0.508" W (15.80mm x 12.90mm) | - |
|
|
B78308A2461A003XFMR FLYBACK DC/DC CONV 4.1UH SM |
204 | 5.90 |
|
Datasheet |
E13 EMHV | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | - | - | 3000Vrms | 4.1µH @ 100kHz | 100 ~ 400kHz | -40°C ~ 150°C | - | - | Surface Mount | 0.508" L x 0.433" W (12.90mm x 11.00mm) | 0.449" (11.40mm) | 0.622" L x 0.508" W (15.80mm x 12.90mm) | - |
|
|
750342864XFMR FLYBACK DC/DC CONV 50UH SMD |
949 | 5.76 |
|
Datasheet |
MID-IBMAX | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 17 ~ 36V | 7.5V @ 100mA | 1875Vrms | 50µH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
PAT6261.006NLTXFMR FLYBACK 3UH SMD |
133 | 0.00 |
|
Datasheet |
PAT6261.XXXNL | Tape & Reel (TR) | Active | - | Flyback Converters | - | - | 9 ~ 57V | 12.5V @ 50mA | 1500Vrms | 3µH @ 100kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.650" L x 0.650" W (16.50mm x 16.50mm) | 0.413" (10.50mm) | 0.650" L x 0.875" W (16.50mm x 22.23mm) | Wirewound |
|
750311559XFMR FLYBACK DC/DC CONV 175UH SM |
2,396 | 5.39 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 35 ~ 75V | 5V | 1500Vrms | 175µH @ 10kHz | 200 ~ 300kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.415" (10.54mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
750314783XFMR POE DC/DC CONV SMD |
687 | 5.95 |
|
Datasheet |
MID-POELT | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | Linear Technology | - | 12V @ 10mA | 3000Vrms | - | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.699" W (13.46mm x 17.75mm) | 0.500" (12.70mm) | - | - |
|

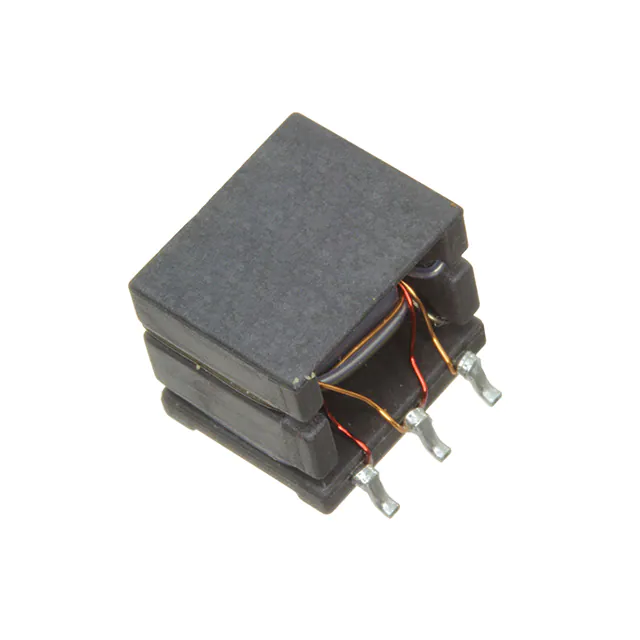

750316033XFMR FWD P-P DC/DC CONV SMD |
1,296 | 6.00 |
|
Datasheet |
WE-PP, MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 4.5 ~ 5.5V | - | - | - | 150kHz | -40°C ~ 85°C | - | - | Surface Mount | 0.485" L x 0.410" W (12.32mm x 10.41mm) | - | - | - |
