Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750341793XFMR FLYBACK DC/DC CONV SMD |
703 | 7.98 |
|
Datasheet |
MID-OLON | Tray | Active | For DC/DC Converters | Flyback Converters | - | On Semiconductor | - | 12V | 3000Vrms | - | 50kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.906" L x 0.866" W (23.00mm x 22.00mm) | 0.690" (17.53mm) | - | - |
|

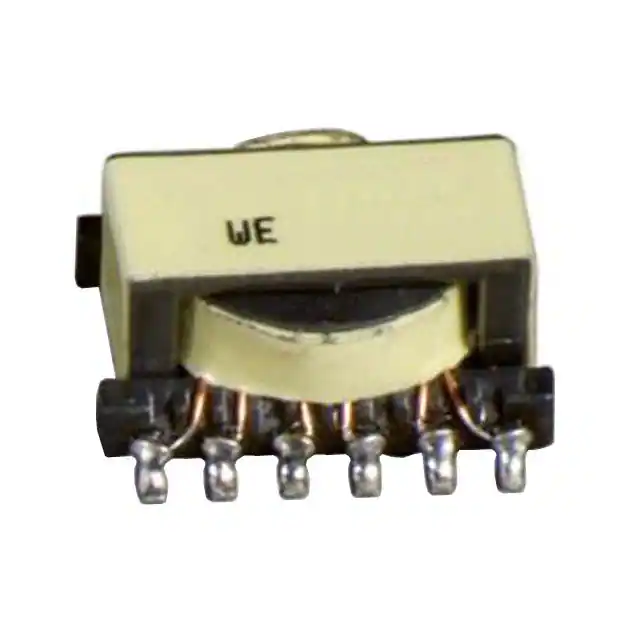

749119150XFMR POE DC/DC CONV 400UH SMD |
1,567 | 6.63 |
|
Datasheet |
WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | Linear Technology, Texas Instruments | 36 ~ 57V | - | 1500Vrms | 400µH @ 100kHz | 200 ~ 500kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.508" L x 0.362" W (12.90mm x 9.20mm) | 0.244" (6.20mm) | 0.508" L x 0.559" W (12.90mm x 14.20mm) | - |
|

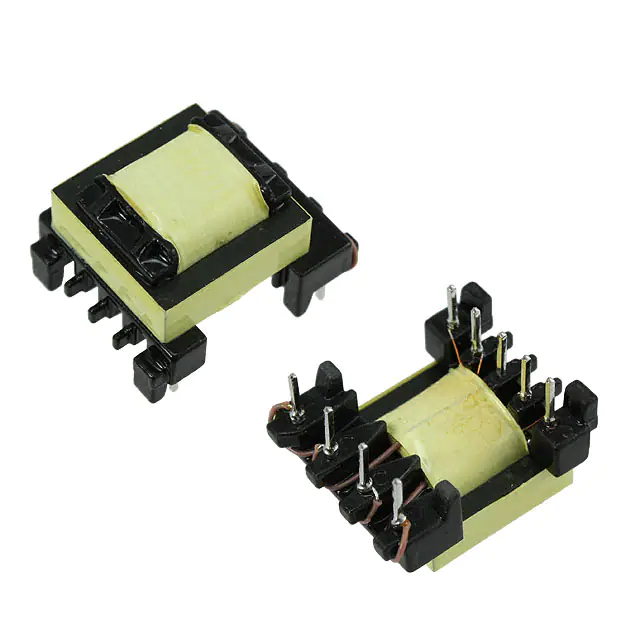

750871030XFMR FLYBCK AC/DC CONV 2.38MH TH |
2,001 | 6.53 |
|
Datasheet |
WE-UNIT, MID-OLSTM | Tray | Active | For AC/DC Converters | Flyback Converters | VIPER17L | STMicroelectronics | 120 ~ 385V | 12V @ 10mA | 4000Vrms | 2.38mH @ 10kHz | 60kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.635" (16.13mm) | 0.787" L x 0.975" W (20.00mm x 24.00mm) | - |
|
749119250XFMR POE DC/DC CONV 210UH SMD |
400 | 4.91 |
|
Datasheet |
WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | Linear Technology, Texas Instruments | 36 ~ 57V | - | 1.5kVAC | 210µH @ 100kHz | 200 ~ 500kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.291" (7.40mm) | 0.709" L x 0.642" W (18.00mm x 16.30mm) | - |
|

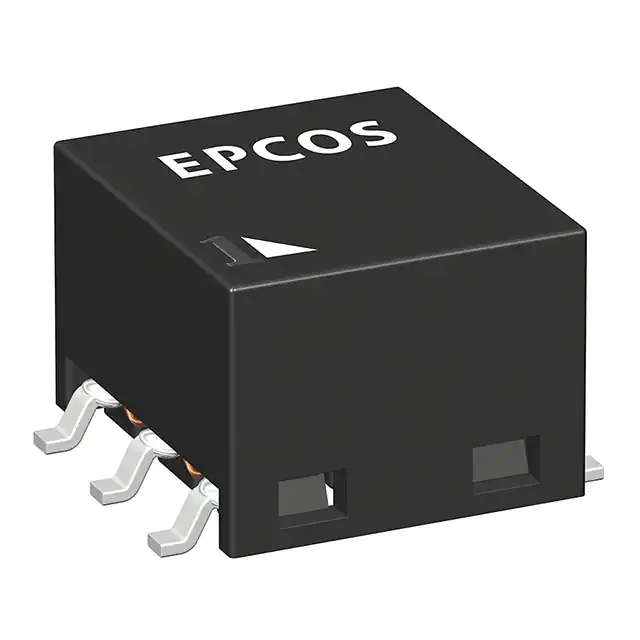

B82805A943A250XFMR FWD P-P DC/DC CONV 94UH SMD |
4,597 | 5.90 |
|
Datasheet |
B82805 | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VAC | 94µH @ 50kHz | 250kHz | -25°C ~ 125°C | - | - | Surface Mount | 0.315" L x 0.236" W (8.00mm x 6.00mm) | 0.224" (5.70mm) | 0.315" L x 0.378" W (8.00mm x 9.60mm) | - |
|
|
B82805A0773A250XFMR FWD P-P DC/DC CONV 77UH SMD |
1,504 | 7.01 |
|
Datasheet |
B82805 | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VAC | 77µH @ 50kHz | 250kHz | -25°C ~ 125°C | - | - | Surface Mount | 0.315" L x 0.236" W (8.00mm x 6.00mm) | 0.224" (5.70mm) | 0.315" L x 0.378" W (8.00mm x 9.60mm) | - |
|

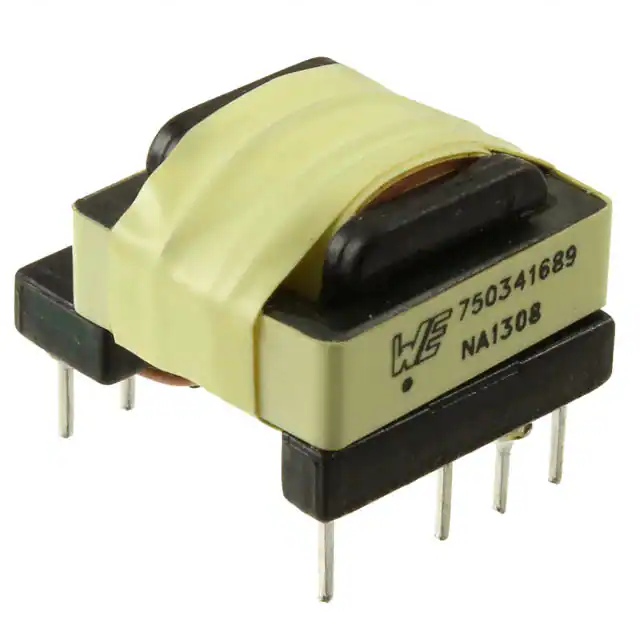

750341689XFMR FLYBACK AC/DC CONV 1.6MH TH |
296 | 5.18 |
|
Datasheet |
- | Tray | Active | For AC/DC Converters | Flyback Converters | MP020-5 | Monolithic Power Systems Inc | 90 ~ 375V | 12V | 3500Vrms | 1.6mH @ 50kHz | 65kHz | -40°C ~ 125°C | - | - | Through Hole | 0.708" L x 0.740" W (18.00mm x 18.80mm) | 0.556" (14.12mm) | 0.709" L x 0.740" W (18.00mm x 18.80mm) | - |
|

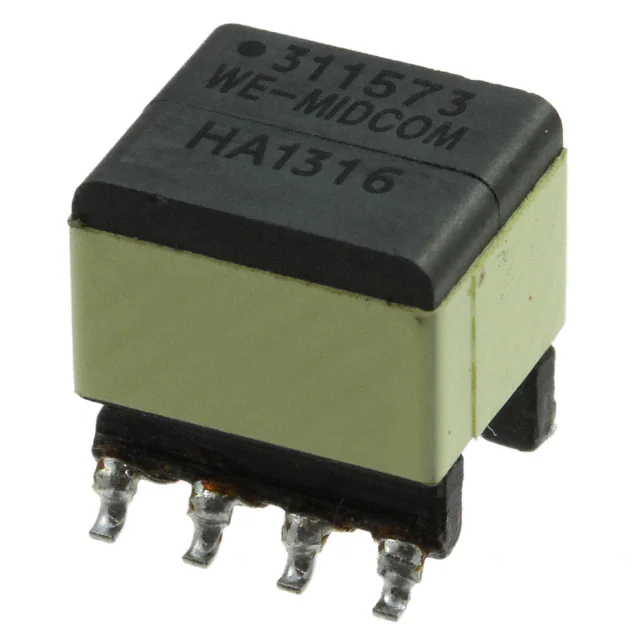

750311573XFMR FLYBACK DC/DC CONV 200UH SM |
1,178 | 6.80 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3512 | Linear Technology | 35 ~ 75V | 5V | 1500Vrms | 200µH @ 10kHz | 200 ~ 300kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.69mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
750312872XFMR POE DC/DC CONV 14UH TH |
667 | 9.17 |
|
Datasheet |
WE-FB, MID-FLYLT | Tray | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 20 ~ 60V | 24V @ 20mA | 1500Vrms | 14µH @ 10kHz | 50kHz | -40°C ~ 125°C | - | - | Through Hole | 1.559" L x 1.700" W (39.60mm x 43.18mm) | 1.200" (30.48mm) | 1.559" L x 1.700" W (39.60mm x 43.18mm) | - |
|

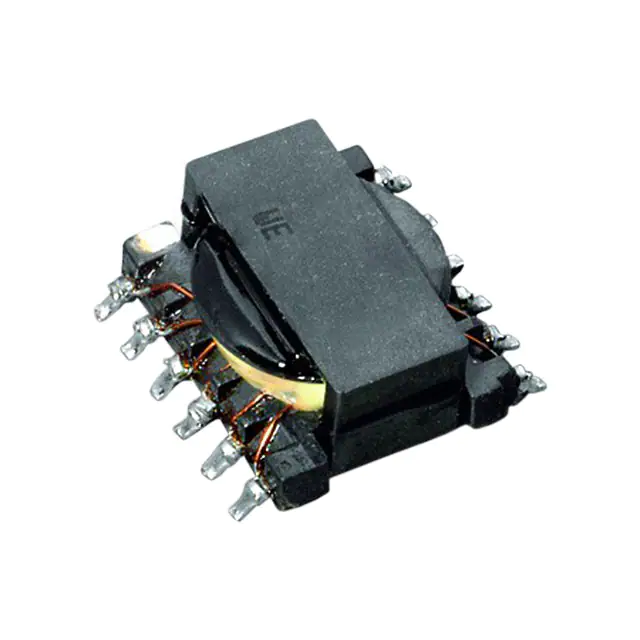

749196241XFMR FLEX CONFIG DC/DC 6.6UH SMD |
902 | 4.67 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VAC | 6.6µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.291" (7.40mm) | 0.709" L x 0.642" W (18.00mm x 16.30mm) | - |
|
|
749196231XFMR FLEX CONFIG DC/DC 8.3UH SMD |
656 | 4.67 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VAC | 8.3µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.291" (7.40mm) | 0.709" L x 0.642" W (18.00mm x 16.30mm) | - |
|
|
749196201XFMR FLEX CONFIG DC/DC 140UH SMD |
211 | 7.37 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VAC | 140µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.291" (7.40mm) | 0.709" L x 0.642" W (18.00mm x 16.30mm) | - |
|
7491195212XFMR POE DC/DC CONV 21UH SMD |
216 | 7.39 |
|
Datasheet |
WE-PoEH | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 9 ~ 57V | 10V | 1500Vrms | 21µH @ 100kHz | 200 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.551" L x 0.591" W (14.00mm x 15.00mm) | 0.571" (14.50mm) | 0.551" L x 0.591" W (14.00mm x 18.10mm) | - |
|

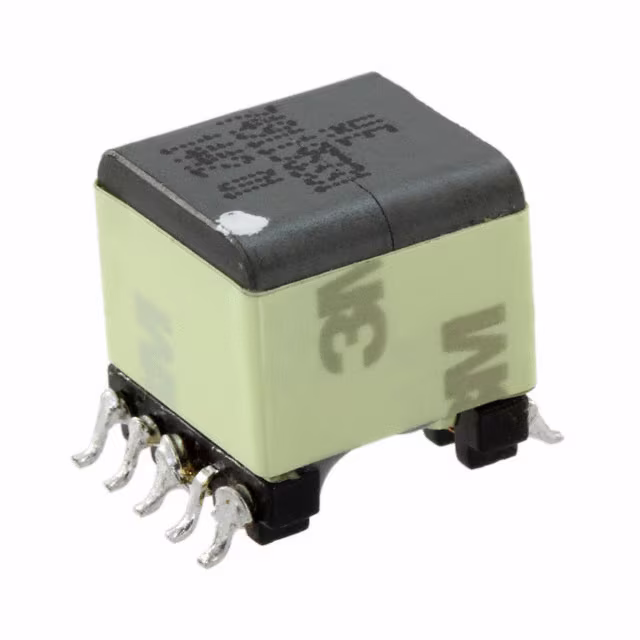

7491195331XFMR POE DC/DC CONV 21UH SMD |
207 | 7.39 |
|
Datasheet |
WE-PoEH | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 9 ~ 57V | 10V | 1500Vrms | 21µH @ 100kHz | 200 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.551" L x 0.591" W (14.00mm x 15.00mm) | 0.571" (14.50mm) | 0.551" L x 0.713" W (14.00mm x 18.10mm) | - |
|
749196341XFMR FLEX CONFIG DC/DC 7.9UH SMD |
272 | 6.37 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 7.9µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.689" L x 0.630" W (17.50mm x 16.00mm) | 0.327" (8.30mm) | 0.689" L x 0.935" W (17.50mm x 23.74mm) | - |
|
|
749196331XFMR FLEX CONFIG DC/DC 9.3UH SMD |
221 | 6.37 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 9.3µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.689" L x 0.630" W (17.50mm x 16.00mm) | 0.327" (8.30mm) | 0.689" L x 0.935" W (17.50mm x 23.74mm) | - |
|
B78307A2385A003XFMR FLYBACK DC/DC CONV 10UH SMD |
280 | 8.10 |
|
Datasheet |
E10 EM | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | - | - | - | 10µH @ 100kHz | 100 ~ 500kHz | -40°C ~ 150°C | Automotive | AEC-Q200 | Surface Mount | 0.461" L x 0.367" W (11.70mm x 9.33mm) | 0.447" (11.35mm) | 0.518" L x 0.461" W (13.15mm x 11.70mm) | - |
|
|
B78307A2338A003XFMR FLYBACK DC/DC CONV 2UH SMD |
218 | 8.10 |
|
Datasheet |
E10 EM | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | - | - | - | 2µH @ 100kHz | 100 ~ 500kHz | -40°C ~ 150°C | Automotive | AEC-Q200 | Surface Mount | 0.461" L x 0.367" W (11.70mm x 9.33mm) | 0.447" (11.35mm) | 0.518" L x 0.461" W (13.15mm x 11.70mm) | - |
|
750311597XFMR FLYBACK DC/DC CONV 6UH SMD |
286 | 11.00 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 20 ~ 48V | - | 1500Vrms | 6µH @ 150kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.910" L x 1.150" W (23.11mm x 29.08mm) | - |
|

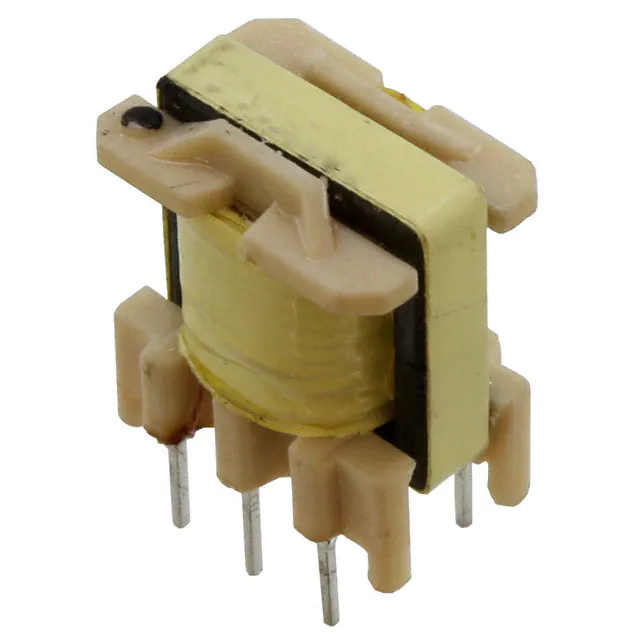

749118105XFMR LED DR AC/DC CONV 2.8MH TH |
202 | 7.74 |
|
Datasheet |
WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCP101x, NCP105x | On Semiconductor | 120 ~ 385V | - | 4000Vrms | 2.8mH @ 10kHz | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.661" (16.80mm) | 0.591" L x 0.433" W (15.00mm x 11.00mm) | - |
