Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

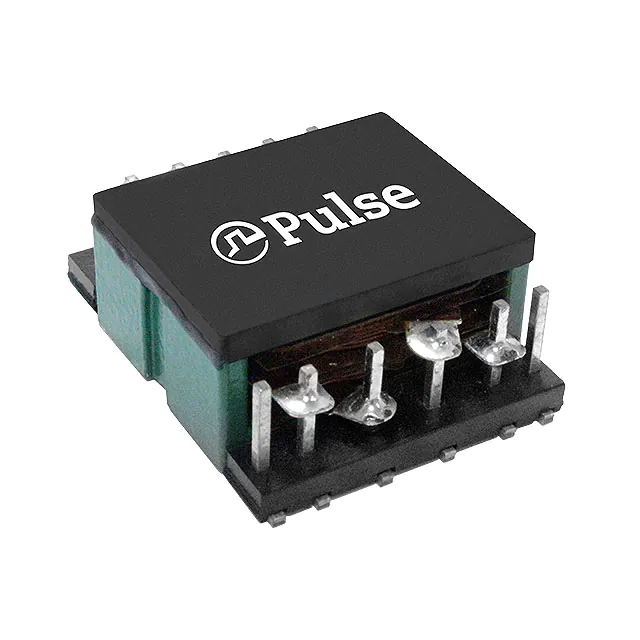

PH0801CNLXFMR DC/DC CONV SMD |
752 | 10.78 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|

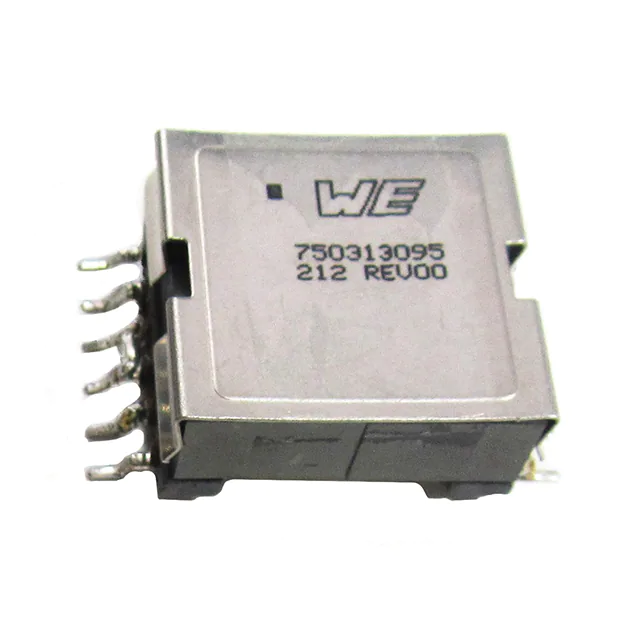

750313095XFMR POE DC/DC CONV 175UH SMD |
217 | 9.00 |
|
Datasheet |
MID-POELT | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | Linear Technology | 40 ~ 57V | - | 3000Vrms | 175µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | - | - | - |
|
750310564XFMR FLYBACK DC/DC CONV 63UH SMD |
1,404 | 6.88 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 12 ~ 30V | 5V @ 20mA | 1500Vrms | 63µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
|
750310563XFMR FLYBACK DC/DC CONV 25UH SMD |
375 | 6.88 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 18 ~ 30V | 12V @ 20mA | 1500Vrms | 25µH @ 10kHz | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
|
750310471XFMR FLYBACK DC/DC CONV 25UH SMD |
1,049 | 6.88 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 9 ~ 30V | 5V @ 20mA | 1500Vrms | 25µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750319496XFMR FLYBACK DC/DC CONV 7UH SMD |
126 | 0.00 |
|
Datasheet |
WE-AGDT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Analog Devices, Inc | 9 ~ 18V | - | 4000V | 7µH | 350kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.445" L x 0.431" W (11.30mm x 10.95mm) | 0.470" (11.94mm) | - | Wirewound |
|
|
750319497XFMR FLYBACK DC/DC CONV 7UH SMD |
110 | 0.00 |
|
Datasheet |
WE-AGDT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Analog Devices, Inc | 9 ~ 18V | - | 4000V | 7µH | 350kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.445" L x 0.431" W (11.30mm x 10.95mm) | 0.470" (11.94mm) | - | Wirewound |
|

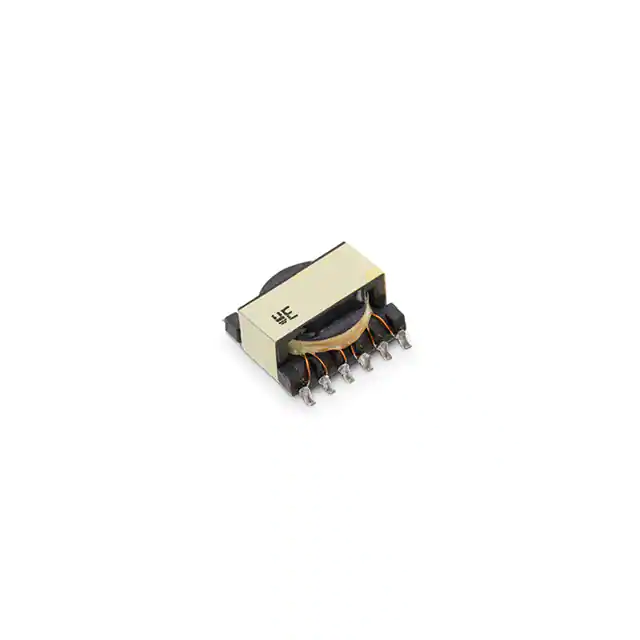

749196118XFMR FLEX DC/DC CONV 27.4UH SMD |
966 | 8.72 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | For DC/DC Converters | Flexible | - | - | - | - | 1500Vrms | 27.4µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.362" L x 0.508" W (9.19mm x 12.90mm) | 0.244" (6.20mm) | 0.512" L x 0.508" W (13.00mm x 12.90mm) | - |
|
749196540XFMR FLEX CONFIG DC/DC 3.4UH SMD |
238 | 9.50 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 3.4µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.425" (10.80mm) | 0.827" L x 1.169" W (21.00mm x 29.70mm) | - |
1-Series.jpg)
|
VPH1-0102-RXFMR 14.7UH SMD |
1,322 | 8.55 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.508" L x 0.512" W (12.90mm x 13.00mm) | 0.244" (6.20mm) | - | - |
|

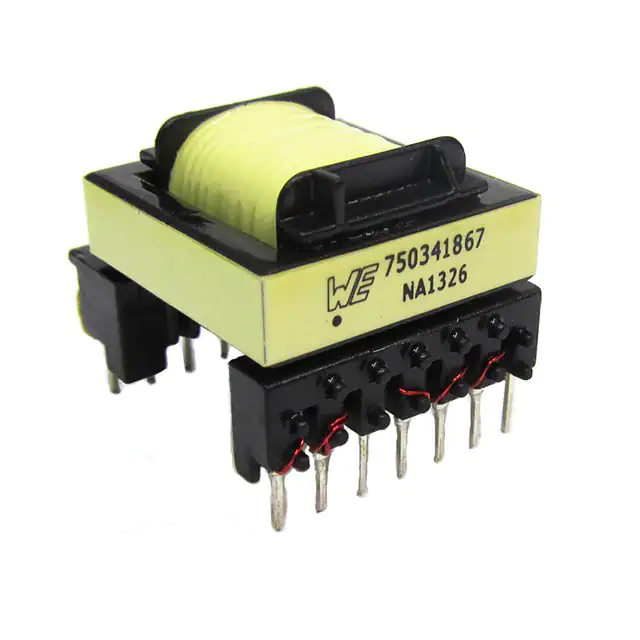

750341867XFMR FLYBACK DC/DC CONV 1.3MH SM |
216 | 9.99 |
|
Datasheet |
MID-OLON | Tray | Active | For DC/DC Converters | Flyback Converters | - | On Semiconductor | - | - | 3750Vrms | 1.3mH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 1.065" L x 1.270" W (27.05mm x 32.25mm) | 0.900" (22.86mm) | - | - |
|
|
750311342XFMR FLYBACK DC/DC CONV 15UH SMD |
696 | 9.90 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 36V | 10V @ 20mA | 1500Vrms | 15µH @ 250kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|

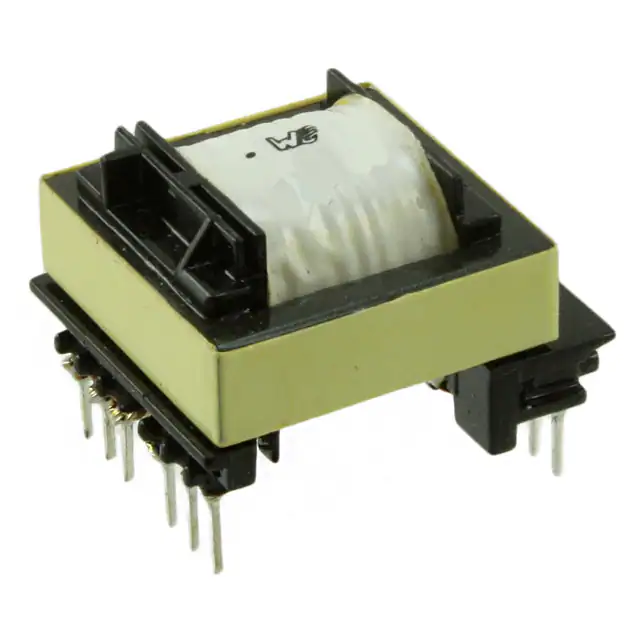

750311911XFMR FLYBCK DC/DC CONV 6.78UH TH |
115 | 9.90 |
|
Datasheet |
WE-FB | Tray | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 16 ~ 24V | 5V @ 300mA | 1500Vrms | 6.78µH @ 100kHz | - | -40°C ~ 125°C | - | - | Through Hole | 0.874" L x 0.984" W (22.20mm x 25.00mm) | 0.635" (16.13mm) | 0.874" L x 0.984" W (22.20mm x 25.00mm) | - |
|
750311458XFMR FLYBACK DC/DC CONV 15UH SMD |
1,132 | 11.00 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 36V | 8V @ 20mA | 2500Vrms | 15µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
|
750311423XFMR FLYBACK DC/DC CONV 50UH SMD |
480 | 8.25 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 36V | 10V @ 20mA | 1500Vrms | 50µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.505" (12.83mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|

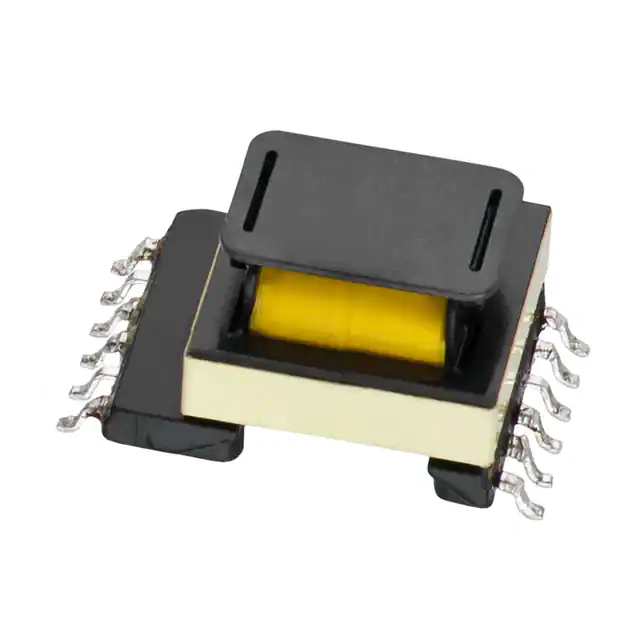

760871113XFMR LED DR AC/DC CONV 1.31MH SM |
403 | 9.25 |
|
Datasheet |
WE-UOST | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | 14V | 4000Vrms | 1.31mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.654" L x 0.790" W (16.60mm x 20.06mm) | 0.551" (14.00mm) | 0.654" L x 1.016" W (16.60mm x 25.81mm) | - |
|
|
760875532XFMR LED DR AC/DC CONV 1.5MH SMD |
236 | 9.86 |
|
Datasheet |
WE-UOST | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | 14V | 4000Vrms | 1.5mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.654" L x 0.790" W (16.60mm x 20.06mm) | 0.551" (14.00mm) | 0.654" L x 1.016" W (16.60mm x 25.81mm) | - |
|
|
760871534XFMR LED DR AC/DC CONV 1.25MH SM |
208 | 9.25 |
|
Datasheet |
WE-UOST | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | 14V | 4000Vrms | 1.25mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.654" L x 0.790" W (16.60mm x 20.06mm) | 0.551" (14.00mm) | 0.654" L x 1.016" W (16.60mm x 25.81mm) | - |
|
|
760871135XFMR LED DR AC/DC CONV 1.25MH SM |
165 | 9.86 |
|
Datasheet |
WE-UOST | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | 14V | 4000Vrms | 1.25mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.654" L x 0.790" W (16.60mm x 20.06mm) | 0.551" (14.00mm) | 0.654" L x 1.016" W (16.60mm x 25.81mm) | - |
|
|
760871543XFMR LED DR AC/DC CONV 1.31MH SM |
162 | 9.86 |
|
Datasheet |
WE-UOST | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | 14V | 4000Vrms | 1.31mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.654" L x 0.790" W (16.60mm x 20.06mm) | 0.551" (14.00mm) | 0.654" L x 1.016" W (16.60mm x 25.81mm) | - |
