Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750316886XFMR FWD P-P DC/DC CONV 200UH SM |
1,407 | 4.49 |
|
Datasheet |
MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 200µH @ 10kHz | 420kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.450" L x 0.327" W (11.43mm x 8.30mm) | 0.165" (4.20mm) | 0.581" L x 0.327" W (14.75mm x 8.30mm) | - |
|
750315231XFMR FWD P-P SMD |
760 | 3.75 |
|
Datasheet |
MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | - | - |
|

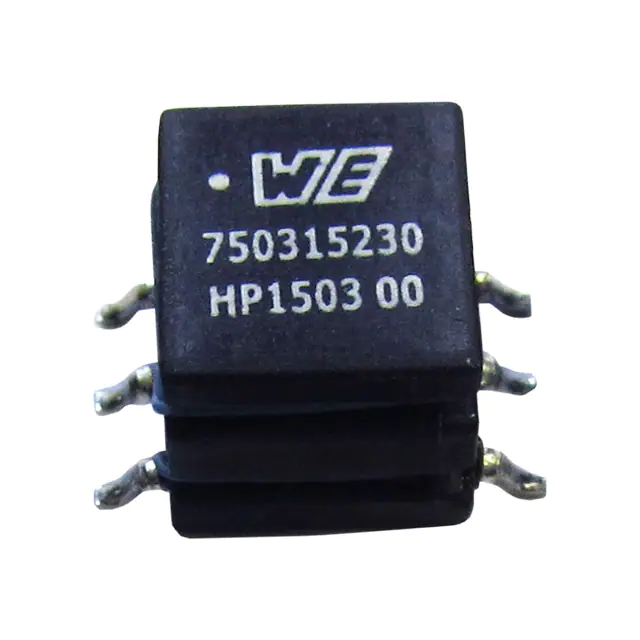

750315230XFMR FWD P-P SMD |
488 | 3.75 |
|
Datasheet |
MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | - | - |
|

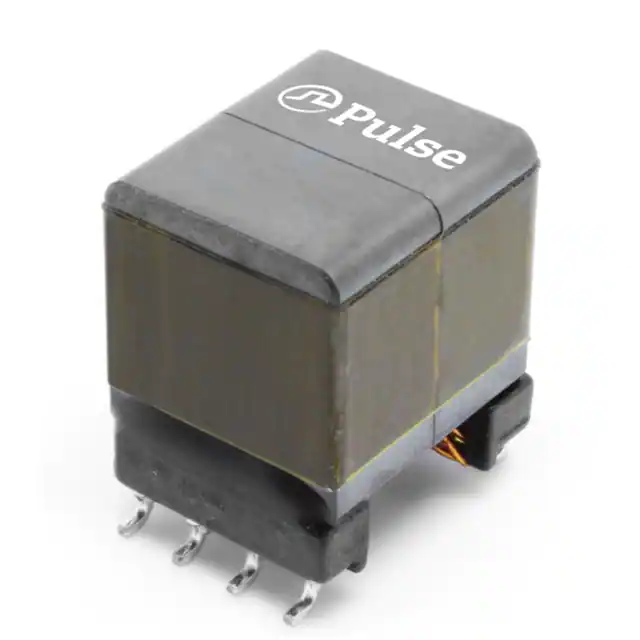

PA5099.006NLTXFMR FLYBACK DC/DC CONV SMD |
975 | 2.63 |
|
Datasheet |
PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
|
PA5099.005NLTXFMR FLYBACK DC/DC CONV SMD |
264 | 2.63 |
|
Datasheet |
PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
PA3855.004NLTXFMR FLYBACK DC/DC CONV 21UH SMD |
247 | 3.54 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
.00xNL-Series.jpg)
|
PA3856.005NLXFMR FWD P-P DC/DC CONV SMD |
302 | 4.42 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3856.003NLTXFMR FWD P-P DC/DC CONV SMD |
672 | 3.68 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3856.006NLXFMR FWD P-P DC/DC CONV SMD |
174 | 0.00 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|

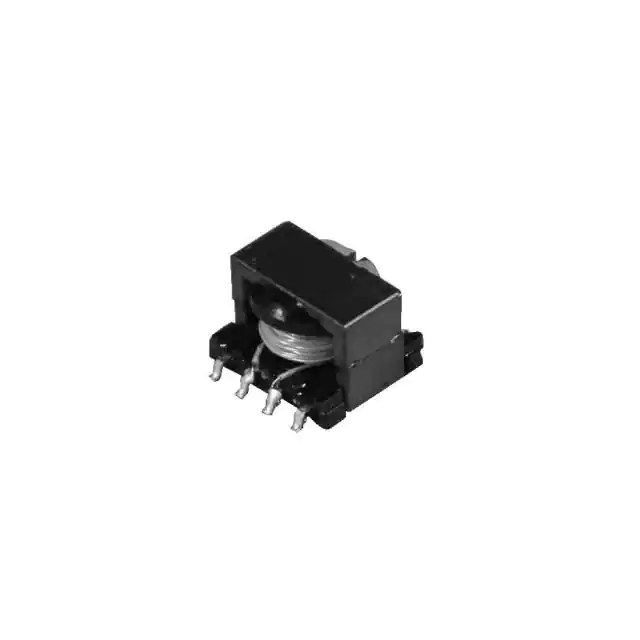

CEER117-AX05-13-048XFMR FLYBACK DC/DC CONV 59UH SMD |
1,076 | 4.83 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV | Broadcom, ROHM | 12V | - | 2500Vrms | 59µH @ 100kHz, 240µH @ 100kHz | 120kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.449" L x 0.390" W (11.40mm x 9.90mm) | 0.331" (8.40mm) | 0.508" L x 0.449" W (12.90mm x 11.40mm) | - |
|

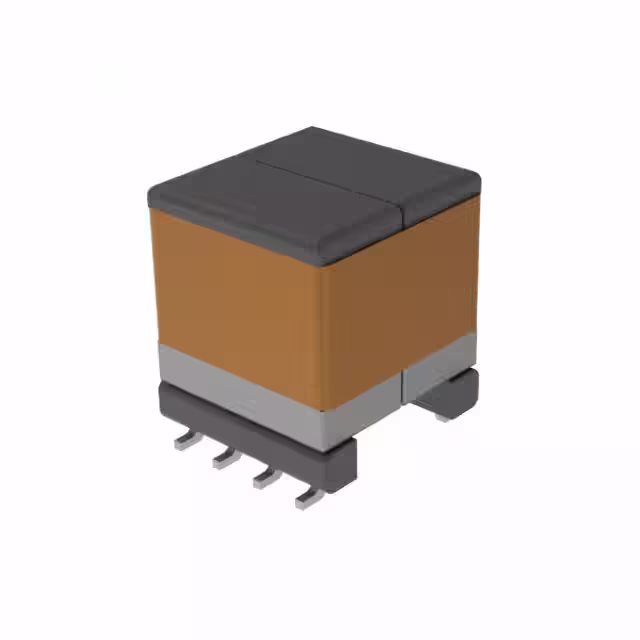

PH9496NLTXFMR FLYBACK DC/DC CONV SMD |
875 | 4.71 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | ACPL-32JT, ACPL-302J | - | 8 ~ 18V | - | 2500Vrms | - | 80kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.492" (12.50mm) | - | - |
|
750312558XFMR FLYBACK DC/DC CONV 300UH SM |
1,749 | 4.17 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 36 ~ 72V | - | 1500Vrms | 300µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.69mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
750313442XFMR FLYBACK DC/DC CONV 12UH SMD |
159 | 3.88 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 8 ~ 32V | - | 1500Vrms | 12µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
|
750313460XFMR FLYBACK DC/DC CONV 12UH SMD |
120 | 3.88 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 4 ~ 8V | - | 1500Vrms | 12µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750315837XFMR FLYBACK DC/DC CONV 40UH SMD |
458 | 3.04 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8304 | Linear Technology | 36 ~ 75V | - | 1500Vrms | 40µH @ 10kHz | 50 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" (12.70mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
750312366XFMR FLYBACK DC/DC CONV 400UH SM |
2,667 | 4.17 |
|
Datasheet |
WE-UNIT, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 18 ~ 75V | - | 1500Vrms | 400µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.340" (8.64mm) | 0.400" L x 0.526" W (10.16mm x 13.36mm) | - |
|
750312365XFMR FLYBACK DC/DC CONV 300UH SM |
1,488 | 4.17 |
|
Datasheet |
WE-PoE, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 30 ~ 72V | - | 1500Vrms | 300µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.342" (8.69mm) | 0.400" L x 0.526" W (10.16mm x 13.36mm) | - |
|
750312557XFMR FLYBACK DC/DC CONV 300UH SM |
166 | 4.17 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 36 ~ 72V | - | 1500Vrms | 300µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.342" (8.69mm) | 0.400" L x 0.526" W (10.16mm x 13.36mm) | - |
|
750315229XFMR FWD P-P SMD |
885 | 4.26 |
|
Datasheet |
MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | - | - |
|
POE025-PD13120SXFMR POE DC/DC CONV 80UH SMD |
5,098 | 1.47 |
|
Datasheet |
POE-PD | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 57V | 14.5V | 1500Vrms | 80µH @ 100kHz | 220kHz | -40°C ~ 105°C | - | - | Surface Mount | 0.638" L x 0.551" W (16.20mm x 14.00mm) | 0.571" (14.50mm) | - | - |
