Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

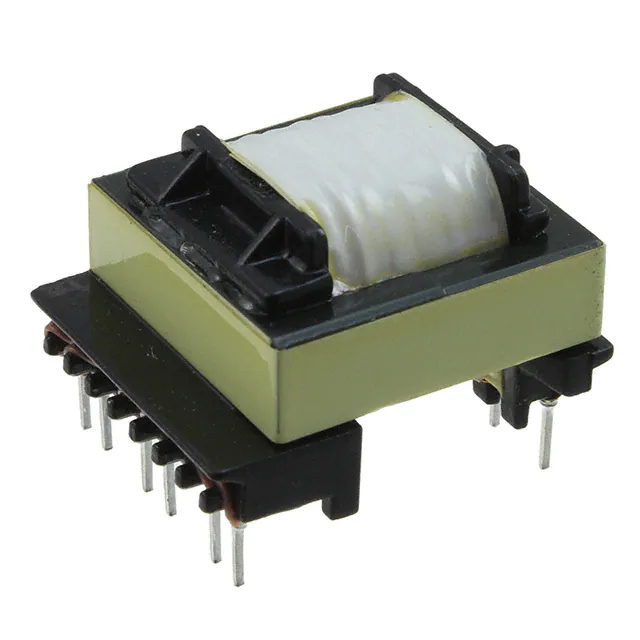

750341526XFMR FWD P-P AC/DC CONV 660UH TH |
1,050 | 7.04 |
|
Datasheet |
MID-OLON | Tray | Active | For AC/DC Converters | Forward, Push-Pull Converters | - | - | 60 ~ 600V | 15V | 4000Vrms | 660µH @ 10kHz | 67kHz | -40°C ~ 125°C | - | - | Through Hole | 0.874" L x 0.984" W (22.20mm x 25.00mm) | 0.650" (16.51mm) | 0.874" L x 0.984" W (22.20mm x 25.00mm) | - |
|

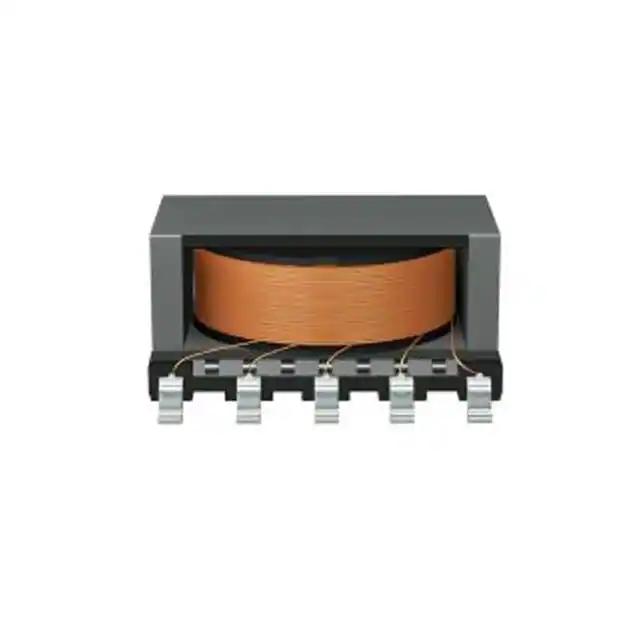

B78334B1033A003XFMR DC/DC CONV 100UH SMD |
251 | 9.02 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 1000Vrms | 100µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.472" L x 0.535" W (12.00mm x 13.60mm) | 0.252" (6.40mm) | 0.480" L x 0.535" W (12.20mm x 13.60mm) | - |
|
PH0805CNLXFMR DC/DC CONV SMD |
200 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.388" (9.85mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|

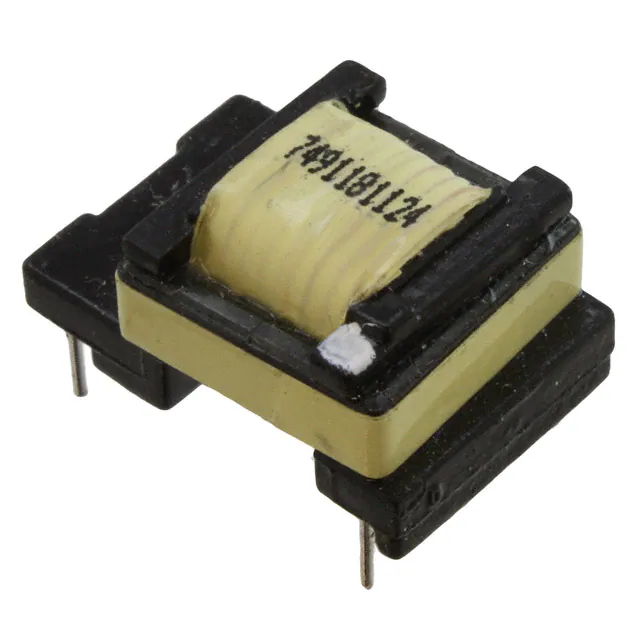

7491181124XFMR LED DR AC/DC CONV 2.8MH TH |
177 | 7.74 |
|
Datasheet |
WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCP101x, NCP105x | On Semiconductor | 120 ~ 385V | - | 4000Vrms | 2.8mH @ 10kHz | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 0.591" L x 0.846" W (15.00mm x 21.50mm) | 0.472" (12.00mm) | 0.591" L x 0.846" W (15.00mm x 21.50mm) | - |
|

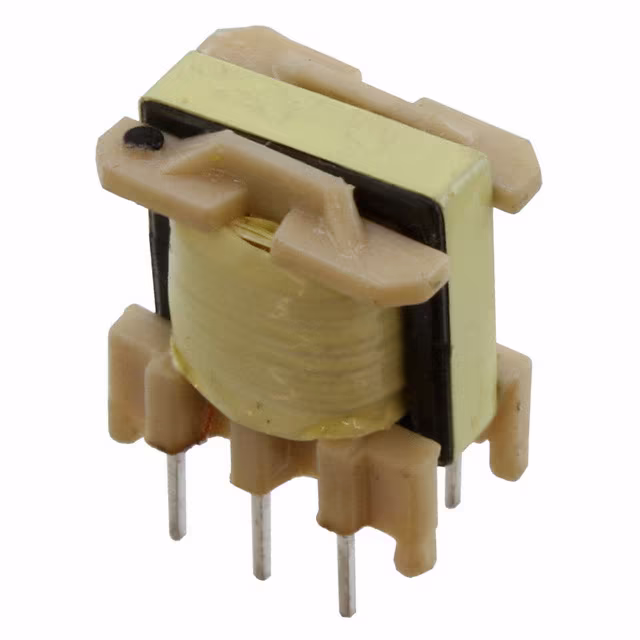

7491181024XFMR LED DR AC/DC CONV 2.8MH TH |
114 | 7.74 |
|
Datasheet |
WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCP101x, NCP105x | On Semiconductor | 120 ~ 385V | - | 4000Vrms | 2.8mH @ 10kHz | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 0.591" L x 0.433" W (15.00mm x 11.00mm) | 0.661" (16.80mm) | 0.591" L x 0.433" W (15.00mm x 11.00mm) | - |
|
|
B78334B1034A003XFMR DC/DC CONV 1.08MH SMD |
496 | 9.02 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 1000Vrms | 1.08mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.472" L x 0.535" W (12.00mm x 13.60mm) | 0.252" (6.40mm) | 0.480" L x 0.535" W (12.20mm x 13.60mm) | - |
|
|
PH0809CNLXFMR DC/DC CONV SMD |
290 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.388" (9.85mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
PH0812CNLXFMR DC/DC CONV SMD |
290 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
PH0815CNLXFMR DC/DC CONV SMD |
290 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.388" (9.85mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
PH0811CNLXFMR DC/DC CONV SMD |
288 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
PH0814CNLXFMR DC/DC CONV SMD |
268 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.388" (9.85mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
PH0813CNLXFMR DC/DC CONV SMD |
226 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
750311595XFMR FLYBACK DC/DC CONV 12UH SMD |
304 | 13.48 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 30 ~ 75V | 10V | 1500Vrms | 12µH @ 150kHz | 150kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.544" (13.82mm) | 1.064" L x 1.272" W (27.03mm x 32.31mm) | - |
|
750811611XFMR LED DR AC/DC CONV 800UH SMD |
186 | 7.10 |
|
Datasheet |
MID-OLEFD | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 120 ~ 375V | 20V | 4500Vrms | 800µH @ 10kHz | 68 ~ 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.477" (12.12mm) | 0.846" L x 1.331" W (21.50mm x 33.80mm) | - |
|

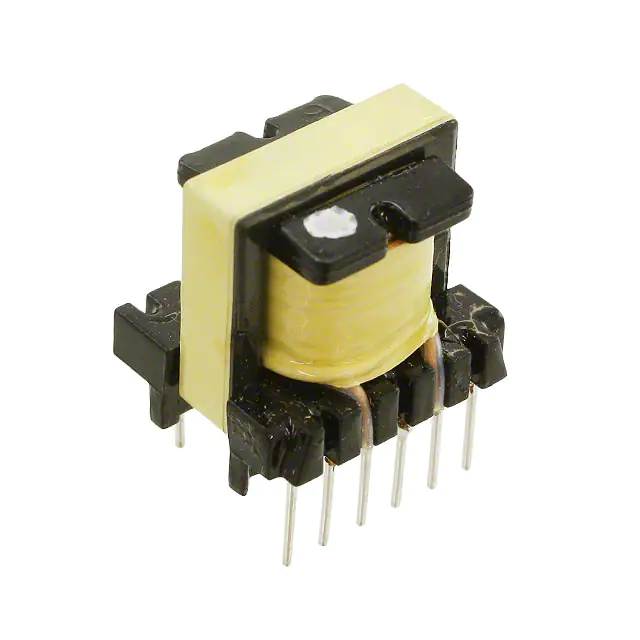

7491182024XFMR LED DR AC/DC CONV 900UH TH |
139 | 8.51 |
|
Datasheet |
WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCP101x, NCP105x | On Semiconductor | 120 ~ 385V | - | 4000Vrms | 900µH @ 10kHz | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 0.709" L x 0.650" W (18.00mm x 16.50mm) | 0.709" (18.00mm) | 0.709" L x 0.650" W (18.00mm x 16.50mm) | - |
|

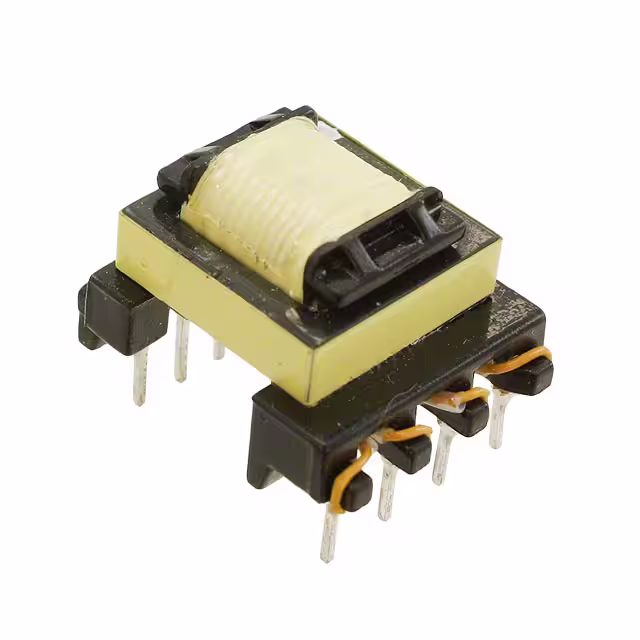

7491182112XFMR LED DR AC/DC CONV 900UH TH |
128 | 8.51 |
|
Datasheet |
WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCP101x, NCP105x | On Semiconductor | 120 ~ 385V | - | 4000Vrms | 900µH @ 10kHz | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 0.795" L x 0.965" W (20.20mm x 24.50mm) | 0.650" (16.50mm) | 0.795" L x 0.965" W (20.20mm x 24.50mm) | - |
|
|
PH0808CNLXFMR DC/DC CONV SMD |
171 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|

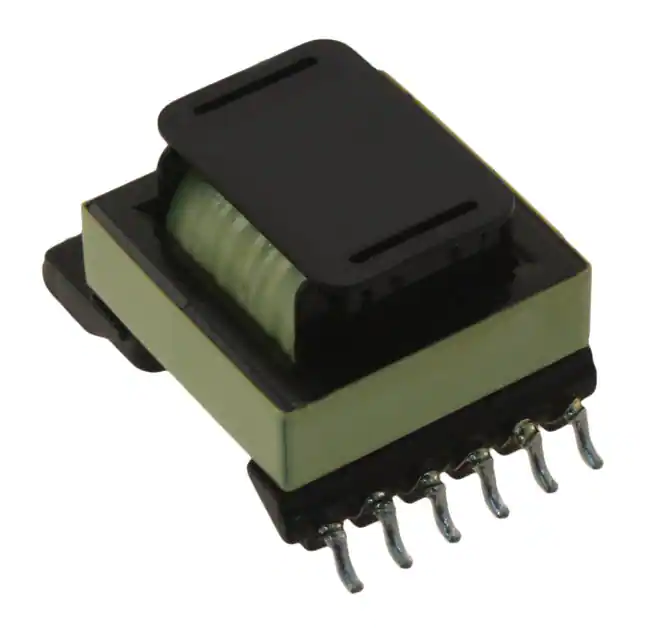

750811137XFMR LED DR AC/DC CONV 1.39MH SM |
867 | 8.73 |
|
Datasheet |
WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | - | 3000Vrms | 1.39mH @ 10kHz | 80 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.548" (13.92mm) | 0.700" L x 1.028" W (17.78mm x 26.10mm) | - |
1-Series.jpg)
|
VP1-0059-RXFMR 3.8UH SMD |
1,206 | 8.63 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.508" L x 0.512" W (12.90mm x 13.00mm) | 0.244" (6.20mm) | - | - |
|
750319077XFMR FLYBACK DC/DC CONV 42UH SMD |
430 | 0.00 |
|
Datasheet |
WE-AGDT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | NCV3064 | onsemi | 12 ~ 18V | 5V | 4000V | 42µH @ 10kHz | 150kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.445" L x 0.431" W (11.30mm x 10.95mm) | 0.470" (11.94mm) | - | Wirewound |
