Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750315445XFMR ISOL BUCK DC/DC CON 25UH SM |
782 | 5.20 |
|
Datasheet |
MID-IBTI | Tray | Active | For DC/DC Converters | Isolated Buck Converters | - | Texas Instruments | - | - | 2500Vrms | 25µH @ 10kHz | 300kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.335" (8.50mm) | - | - |
|

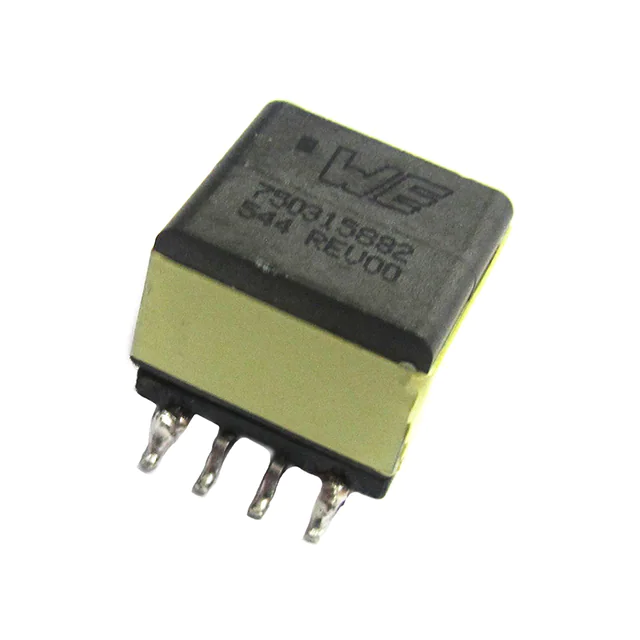

750315882XFMR FLYBACK DC/DC CONV SMD |
816 | 5.27 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 17 ~ 36V | - | 1875Vrms | - | 500kHz | -40°C ~ 125°C | - | - | Surface Mount | - | - | - | - |
|
PA5112.001NLTXFMR FLYBACK DC/DC CONV 173UH SM |
109 | 5.38 |
|
Datasheet |
PA5112.XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 85 ~ 265V | - | 3000Vrms | 173µH @ 140kH | 140kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.689" L x 0.531" W (17.50mm x 13.50mm) | Wirewound |
|
7491199332XFMR POE DC/DC CONV 35UH SMD |
172 | 6.02 |
|
Datasheet |
WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | - | 14 ~ 60V | 10V @ 50mA | 1500Vrms | 35µH @ 100kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.591" W (13.46mm x 15.00mm) | 0.500" (12.70mm) | 0.530" L x 0.713" W (13.46mm x 18.10mm) | - |
|
|
7491199501XFMR POE DC/DC CONV 127UH SMD |
170 | 6.02 |
|
Datasheet |
WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | - | 34 ~ 72V | 12V @ 15mA | 1500Vrms | 127µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.591" W (13.46mm x 15.00mm) | 0.500" (12.70mm) | 0.530" L x 0.713" W (13.46mm x 18.10mm) | - |
|
749119433XFMR POE DC/DC CONV 42UH SMD |
129 | 6.02 |
|
Datasheet |
WE-PoE+ | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 72V | 11V | 1500Vrms | 42µH @ 100kHz | 250 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.910" L x 1.145" W (23.11mm x 29.08mm) | - |
|
B78308A2387A003XFMR FWD P-P DC/DC CONV 100UH SM |
138 | 5.90 |
|
Datasheet |
E13 EMHV | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 3000Vrms | 100µH @ 100kHz | 100 ~ 400kHz | -40°C ~ 150°C | - | - | Surface Mount | 0.508" L x 0.433" W (12.90mm x 11.00mm) | 0.449" (11.40mm) | 0.622" L x 0.508" W (15.80mm x 12.90mm) | - |
|
750316878XFMR FLYBACK DC/DC CONV 2.2MH TH |
1,272 | 5.61 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Flyback Converters | - | STMicroelectronics | 120 ~ 375VDC | 15V @ 10mA | - | 2.2mH @ 100kHz | 80kHz | -40°C ~ 125°C | - | - | Through Hole | 0.545" L x 0.701" W (13.84mm x 17.81mm) | 0.888" (22.55mm) | 0.555" L x 0.456" W (14.10mm x 11.58mm) | Wirewound |
|
|
B78308A2462A003XFMR FLYBACK DC/DC CONV 4.1UH SM |
189 | 5.90 |
|
Datasheet |
E13 EMHV | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | - | - | 3000Vrms | 4.1µH @ 100kHz | 100 ~ 400kHz | -40°C ~ 150°C | - | - | Surface Mount | 0.508" L x 0.433" W (12.90mm x 11.00mm) | 0.449" (11.40mm) | 0.622" L x 0.508" W (15.80mm x 12.90mm) | - |
|
PAT6261.002NLTXFMR FLYBACK 24UH SMD |
150 | 0.00 |
|
Datasheet |
PAT6261.XXXNL | Tape & Reel (TR) | Active | - | Flyback Converters | - | - | 33 ~ 57V | 10.7V @ 50mA | 1500Vrms | 24µH @ 100kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.650" L x 0.650" W (16.50mm x 16.50mm) | 0.413" (10.50mm) | 0.650" L x 0.875" W (16.50mm x 22.23mm) | Wirewound |
|
|
PAT6261.001NLTXFMR FLYBACK 24UH SMD |
148 | 0.00 |
|
Datasheet |
PAT6261.XXXNL | Tape & Reel (TR) | Active | - | Flyback Converters | - | - | 33 ~ 57V | 10.7V @ 50mA | 1500Vrms | 24µH @ 100kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.650" L x 0.650" W (16.50mm x 16.50mm) | 0.413" (10.50mm) | 0.650" L x 0.875" W (16.50mm x 22.23mm) | Wirewound |
|
|
PAT6261.003NLTXFMR FLYBACK 24UH SMD |
146 | 0.00 |
|
Datasheet |
PAT6261.XXXNL | Tape & Reel (TR) | Active | - | Flyback Converters | - | - | 33 ~ 57V | 10.7V @ 50mA | 1500Vrms | 24µH @ 100kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.650" L x 0.650" W (16.50mm x 16.50mm) | 0.413" (10.50mm) | 0.650" L x 0.875" W (16.50mm x 22.23mm) | Wirewound |
|
|
PAT6261.005NLTXFMR FLYBACK 3UH SMD |
145 | 0.00 |
|
Datasheet |
PAT6261.XXXNL | Tape & Reel (TR) | Active | - | Flyback Converters | - | - | 9 ~ 57V | 12.5V @ 50mA | 1500Vrms | 3µH @ 100kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.650" L x 0.650" W (16.50mm x 16.50mm) | 0.413" (10.50mm) | 0.650" L x 0.875" W (16.50mm x 22.23mm) | Wirewound |
|
|
PAT6261.004NLTXFMR FLYBACK 3UH SMD |
139 | 0.00 |
|
Datasheet |
PAT6261.XXXNL | Tape & Reel (TR) | Active | - | Flyback Converters | - | - | 9 ~ 57V | 12.5V @ 50mA | 1500Vrms | 3µH @ 100kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.650" L x 0.650" W (16.50mm x 16.50mm) | 0.413" (10.50mm) | 0.650" L x 0.875" W (16.50mm x 22.23mm) | Wirewound |
|

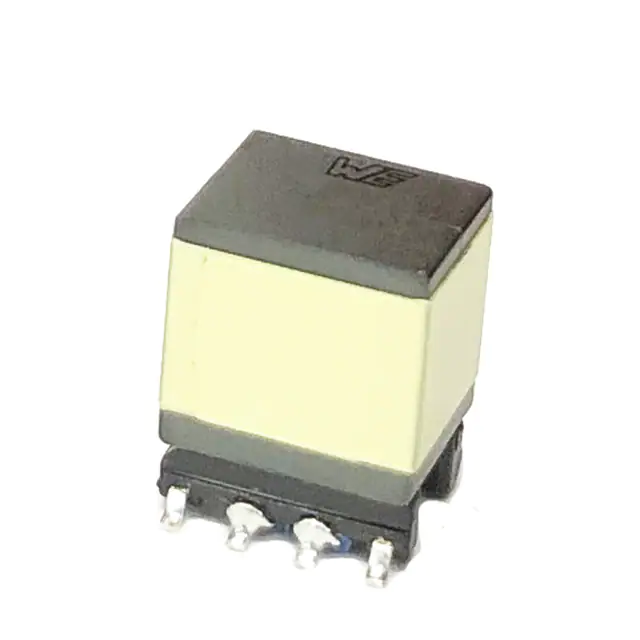

750343805XFMR SMD |
463 | 6.35 |
|
Datasheet |
WE-FW, MID-HB | Tape & Reel (TR) | Active | - | - | - | - | 15V | - | 3000VAC | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.485" (12.32mm) | - | - |
|

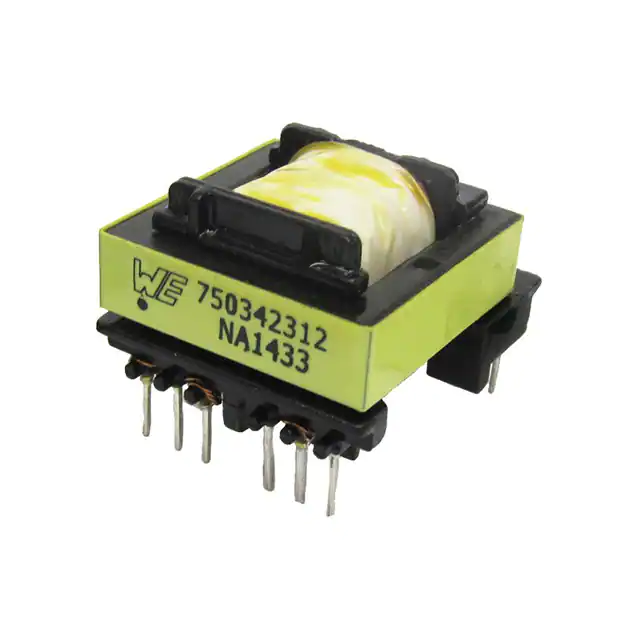

750342312XFMR FWD P-P DC/DC CONV SMD |
524 | 6.38 |
|
Datasheet |
WE-PP, MID-PPTI | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | - | - | 1875Vrms | - | 500kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.874" L x 0.984" W (22.20mm x 25.00mm) | 0.630" (16.00mm) | - | - |
|
749119218XFMR POE DC/DC CONV 210UH SMD |
398 | 4.91 |
|
Datasheet |
WE-PoE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | LM5070, LM5071, LM5072, LTC4267, TPS23750, TPS23770 | Linear Technology, Texas Instruments | 36 ~ 57V | - | 1.5kVAC | 210µH @ 100kHz | 200 ~ 500kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.642" L x 0.472" W (16.30mm x 12.00mm) | 0.291" (7.40mm) | 0.709" L x 0.642" W (18.00mm x 16.30mm) | - |
|
B82805A0173A250XFMR FWD P-P DC/DC CONV 17UH SMD |
509 | 7.01 |
|
Datasheet |
B82805 | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VAC | 17µH @ 50kHz | 250kHz | -25°C ~ 125°C | - | - | Surface Mount | 0.315" L x 0.236" W (8.00mm x 6.00mm) | 0.224" (5.70mm) | 0.315" L x 0.378" W (8.00mm x 9.60mm) | - |
|
|
B82805A0363A250XFMR FWD P-P DC/DC CONV 36UH SMD |
306 | 7.01 |
|
Datasheet |
B82805 | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | - | - | 500VAC | 36µH @ 50kHz | 250kHz | -25°C ~ 125°C | - | - | Surface Mount | 0.315" L x 0.236" W (8.00mm x 6.00mm) | 0.224" (5.70mm) | 0.315" L x 0.378" W (8.00mm x 9.60mm) | - |
|
7491196112XFMR POE DC/DC CONV 100UH SMD |
370 | 7.39 |
|
Datasheet |
WE-PoEH | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 10V | 1500Vrms | 100µH @ 100kHz | 200 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.551" L x 0.591" W (14.00mm x 15.00mm) | 0.571" (14.50mm) | 0.551" L x 0.591" W (14.00mm x 18.10mm) | - |
