Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750318616XFMR FLYBACK DC/DC CONV 10UH SMD |
239 | 0.00 |
|
Datasheet |
WE-AGDT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 7 ~ 31V | 13V | 4000V | 10µH | 400kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.445" L x 0.431" W (11.30mm x 10.95mm) | 0.470" (11.94mm) | - | Wirewound |
|
|
750319282XFMR FLYBACK DC/DC CONV 42UH SMD |
224 | 0.00 |
|
Datasheet |
WE-AGDT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | NCV3064 | onsemi | 6 ~ 18V | 5V | 4000V | 42µH @ 10kHz | 150kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.445" L x 0.431" W (11.30mm x 10.95mm) | 0.470" (11.94mm) | - | Wirewound |
|
749196108XFMR FLEX DC/DC CONV 224.6UH SMD |
473 | 9.30 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | For DC/DC Converters | Flexible | - | - | - | - | 1500Vrms | 224.6µH @ 100kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.362" L x 0.508" W (9.19mm x 12.90mm) | 0.244" (6.20mm) | 0.512" L x 0.508" W (13.00mm x 12.90mm) | - |
|
749196531XFMR FLEX CONFIG DC/DC 9.7UH SMD |
230 | 8.10 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 9.7µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.425" (10.80mm) | 0.827" L x 1.169" W (21.00mm x 29.70mm) | - |
|
|
749196520XFMR FLEX CONFIG DC/DC 5.3UH SMD |
110 | 8.10 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 5.3µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.425" (10.80mm) | 0.827" L x 1.169" W (21.00mm x 29.70mm) | - |
|
|
749196530XFMR FLEX CONFIG DC/DC 4.3UH SMD |
106 | 8.10 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 4.3µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.425" (10.80mm) | 0.827" L x 1.169" W (21.00mm x 29.70mm) | - |
|
750311307XFMR FLYBACK DC/DC CONV 100UH SM |
200 | 9.08 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3573, LT3574, LT3575, LT3748 | Linear Technology | 9 ~ 30V | 8V @ 20mA | 1500Vrms | 100µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
760875131XFMR LED DR AC/DC CONV 1.5MH SMD |
286 | 9.86 |
|
Datasheet |
WE-UOST | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | 14V | 4000Vrms | 1.5mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.654" L x 0.790" W (16.60mm x 20.06mm) | 0.551" (14.00mm) | 0.654" L x 1.016" W (16.60mm x 25.81mm) | - |
|
|
760875112XFMR LED DR AC/DC CONV 1.5MH SMD |
264 | 9.86 |
|
Datasheet |
WE-UOST | Tape & Reel (TR) | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | - | - | 85 ~ 265V | 14V | 4000Vrms | 1.5mH @ 100kHz | 60 ~ 150kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.654" L x 0.790" W (16.60mm x 20.06mm) | 0.551" (14.00mm) | 0.654" L x 1.016" W (16.60mm x 25.81mm) | - |
|
750319033XFMR POE DC/DC CONV 70UH SMD |
104 | 7.38 |
|
Datasheet |
MID-POE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 12V | 1500Vrms | 70µH @ 10kHz | 200 ~ 300kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.969" L x 0.858" W (24.60mm x 21.80mm) | 0.450" (11.43mm) | 1.167" L x 0.858" W (29.65mm x 21.80mm) | - |
|
|
749196521XFMR FLEX CONFIG DC/DC 12UH SMD |
143 | 10.32 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 12µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.425" (10.80mm) | 0.827" L x 1.169" W (21.00mm x 29.70mm) | - |
2-Series.jpg)
|
VPH2-0066-RXFMR 6.6UH SMD |
122 | 10.29 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.642" L x 0.661" W (16.30mm x 16.80mm) | 0.307" (7.80mm) | - | - |
|
|
749196511XFMR FLEX CONF DC/DC 22.3UH SMD |
283 | 10.67 |
|
Datasheet |
WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 22.3µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.425" (10.80mm) | 0.827" L x 1.169" W (21.00mm x 29.70mm) | - |
|
|
VPH2-0083-RXFMR 8.3UH SMD |
304 | 9.21 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.642" L x 0.661" W (16.30mm x 16.80mm) | 0.307" (7.80mm) | - | - |
|
PH0806CNLXFMR DC/DC CONV SMD |
203 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
VP3-0780-RXFMR 63.2UH SMD |
285 | 9.88 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.673" L x 0.878" W (17.10mm x 22.30mm) | 0.331" (8.40mm) | - | - |
|
|
VPH3-0138-RXFMR 23.3UH SMD |
179 | 9.57 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.673" L x 0.878" W (17.10mm x 22.30mm) | 0.331" (8.40mm) | - | - |
|
|
VP3-0047-RXFMR 3.8UH SMD |
438 | 9.57 |
|
Datasheet |
VERSA-PAC® | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.673" L x 0.878" W (17.10mm x 22.30mm) | 0.331" (8.40mm) | - | - |
|

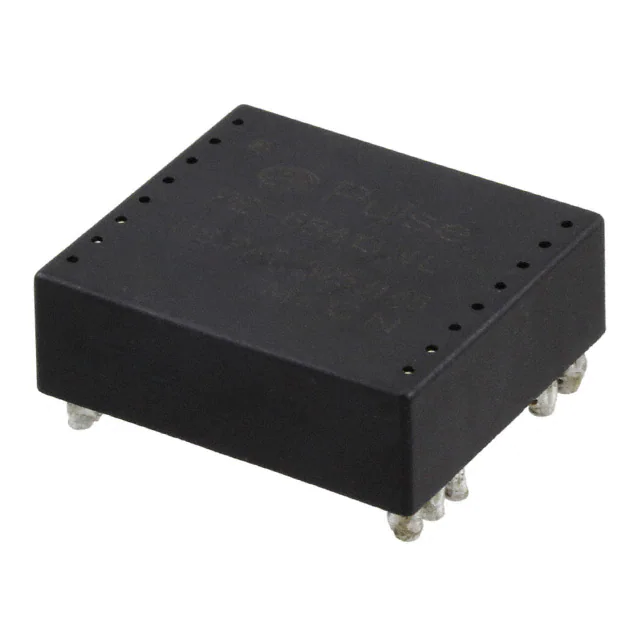

PE-68413NLXFMR FLYBACK DC/DC CONV SMD |
239 | 0.00 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 18 ~ 36V | - | 1500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.920" L x 1.040" W (23.37mm x 26.42mm) | 0.480" (12.19mm) | 0.920" L x 1.040" W (23.37mm x 26.42mm) | - |
|
|
750319034XFMR POE DC/DC CONV 70UH SMD |
116 | 9.08 |
|
Datasheet |
MID-POE | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 33 ~ 57V | 12V | 1500Vrms | 70µH @ 10kHz | 200 ~ 300kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.969" L x 0.858" W (24.60mm x 21.80mm) | 0.450" (11.43mm) | 1.167" L x 0.858" W (29.65mm x 21.80mm) | - |
