Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

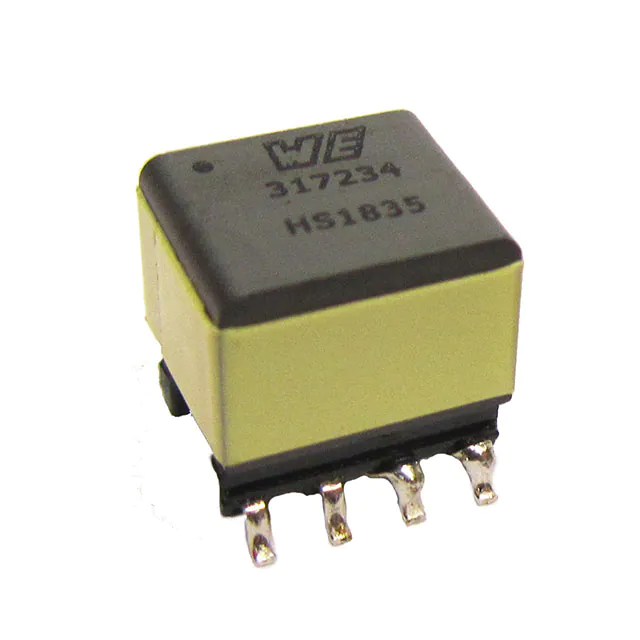

750317234XFMR FLYBACK DC/DC CONV 84UH SMD |
246 | 2.59 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Maxim Integrated | 18 ~ 60VDC | - | 1500Vrms | 84µH @ 100kHz | 143.5kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.385" L x 0.374" W (9.78mm x 9.50mm) | 0.415" (10.54mm) | 0.324" L x 0.360" W (8.23mm x 9.14mm) | Wirewound |
.00xNL-Series.jpg)
|
PA3856.001NLXFMR FWD P-P DC/DC CONV SMD |
770 | 0.00 |
|
Datasheet |
EP13Plus | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3856.002NLXFMR FWD P-P DC/DC CONV SMD |
473 | 0.00 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
750315831XFMR FLYBACK DC/DC CONV 150UH SM |
295 | 2.64 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | Linear Technology | 9 ~ 36V | - | 1875Vrms | 150µH @ 10kHz | 50 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | - | - | - |
|
PA3856.002NLTXFMR FWD P-P DC/DC CONV SMD |
974 | 3.68 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|

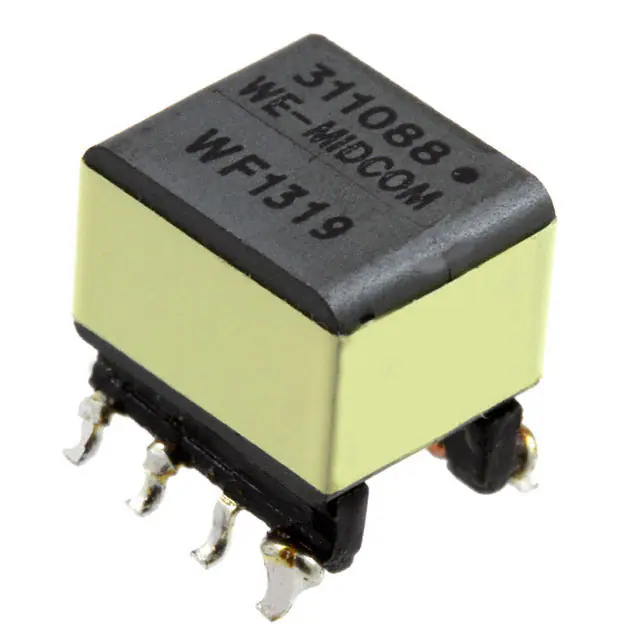

750311088XFMR FLYBACK DC/DC CONV 2.7UH SM |
122 | 2.81 |
|
Datasheet |
WE-FB | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 6 ~ 12.6V | - | 500Vrms | 2.7µH @ 100kHz | 391kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.69mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
PA3965.002NLXFMR FLYBACK 7W |
1,352 | 2.97 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.557" (14.15mm) | 0.657" L x 0.650" W (16.70mm x 16.50mm) | - |
|
750316668XFMR FWD P-P DC/DC CONV 60UH SMD |
175 | 3.99 |
|
Datasheet |
MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 60µH @ 10kHz | 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.458" L x 0.364" W (11.63mm x 9.25mm) | 0.157" (3.99mm) | 0.458" L x 0.496" W (11.63mm x 12.60mm) | - |
|

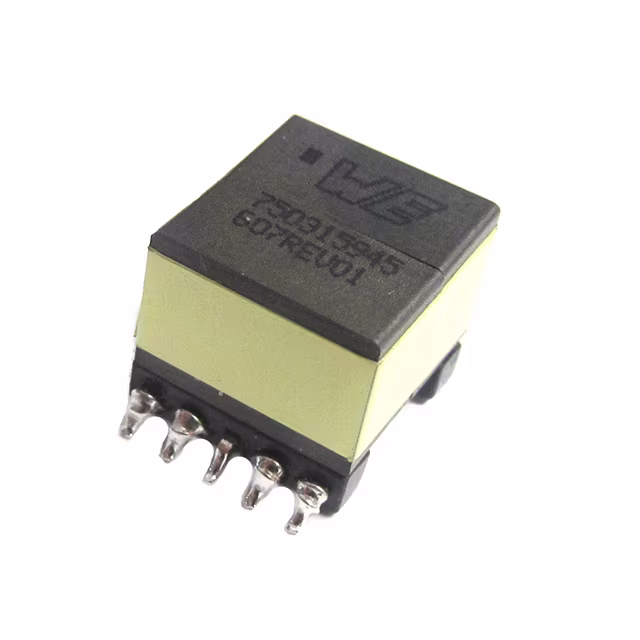

750315945XFMR FWD P-P DC/DC CONV SMD |
426 | 4.98 |
|
Datasheet |
MID-FWD | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 17 ~ 36V | - | 1250Vrms | - | 500kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.699" W (13.46mm x 17.75mm) | 0.500" (12.70mm) | - | - |
|
750315504XFMR RES CONV DC/DC 2.5MH SM |
256 | 3.43 |
|
Datasheet |
WE-FW, MID-HB | Tape & Reel (TR) | Active | For DC/DC Converters | Resonant Converters | - | - | 3 ~ 3.6V | - | 1500Vrms | 2.5mH @ 10kHz | 30 ~ 70kHz | -40°C ~ 105°C | - | - | Surface Mount | - | 0.385" (9.78mm) | 0.310" L x 0.330" W (7.87mm x 8.38mm) | - |
|

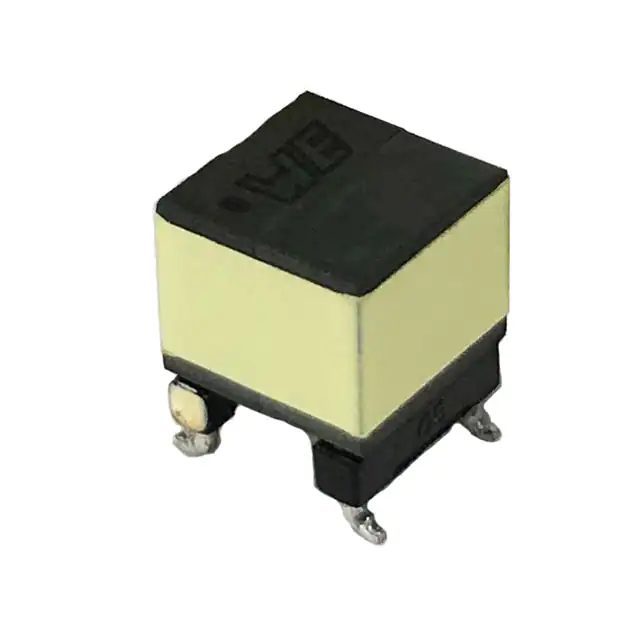

750316743XFMR FLYBACK SMD |
1,248 | 4.58 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PA5099.001NLTXFMR FLYBACK DC/DC CONV SMD |
610 | 2.63 |
|
Datasheet |
PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
|
PA5099.002NLTXFMR FLYBACK DC/DC CONV SMD |
212 | 2.63 |
|
Datasheet |
PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|

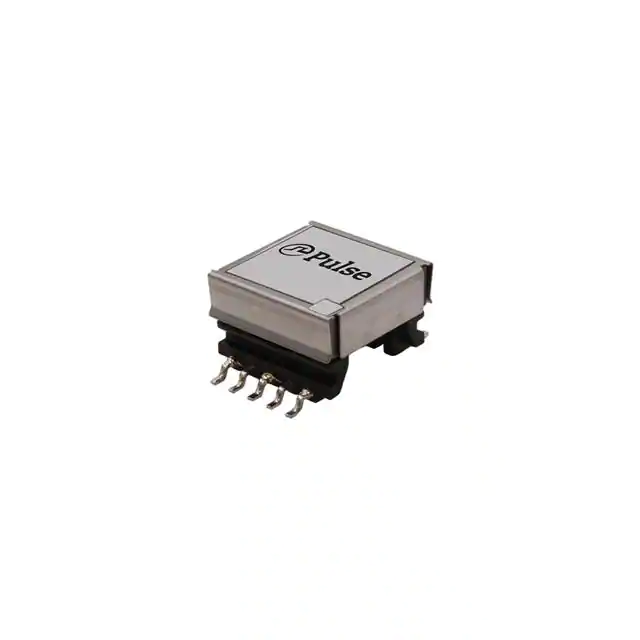

PGT6466NLTXFMR FLYBACK 1.8UH SMD |
148 | 3.75 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | 6 ~ 28V | - | 3000VDC | 1.8µH @ 100kHz | 500kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.650" L x 0.642" W (16.50mm x 16.30mm) | 0.433" (11.00mm) | 0.862" L x 0.650" W (21.90mm x 16.50mm) | Wirewound |
|
|
PA3856.005NLTXFMR FWD P-P DC/DC CONV SMD |
1,151 | 3.68 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|

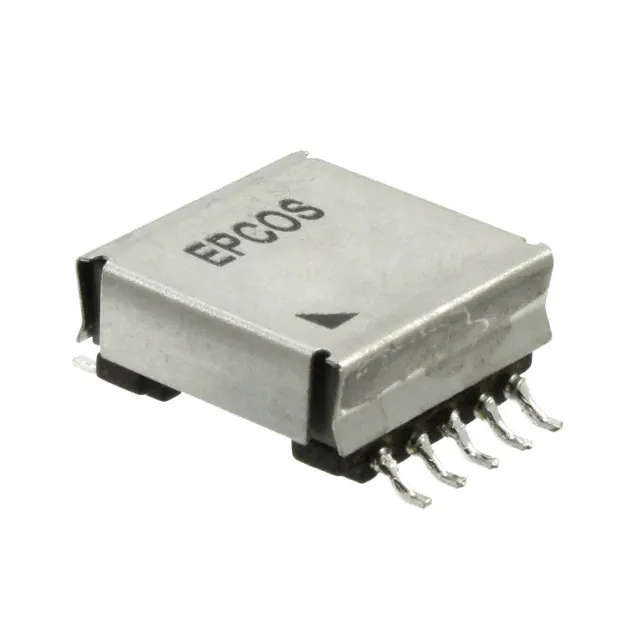

B82802A0012A315XFMR FLYBACK DC/DC CONV 100UH SM |
101 | 4.93 |
|
Datasheet |
B82802A | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 36 ~ 60V | - | 1500Vrms | 100µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.650" L x 0.681" W (16.50mm x 17.30mm) | 0.341" (8.65mm) | 0.650" L x 0.902" W (16.50mm x 22.90mm) | - |
|
750313439XFMR FLYBACK DC/DC CONV 12UH SMD |
684 | 3.88 |
|
Datasheet |
WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 8 ~ 40V | - | 1500Vrms | 12µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750310743XFMR POE DC/DC CONV 38UH SMD |
738 | 5.35 |
|
Datasheet |
WE-PoE+ | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 37 ~ 57V | 12.7V @ 30mA | 1500Vrms | 38µH @ 100kHz | 250 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.530" L x 0.591" W (13.46mm x 15.00mm) | 0.500" (12.70mm) | 0.530" L x 0.713" W (13.46mm x 18.10mm) | - |
|

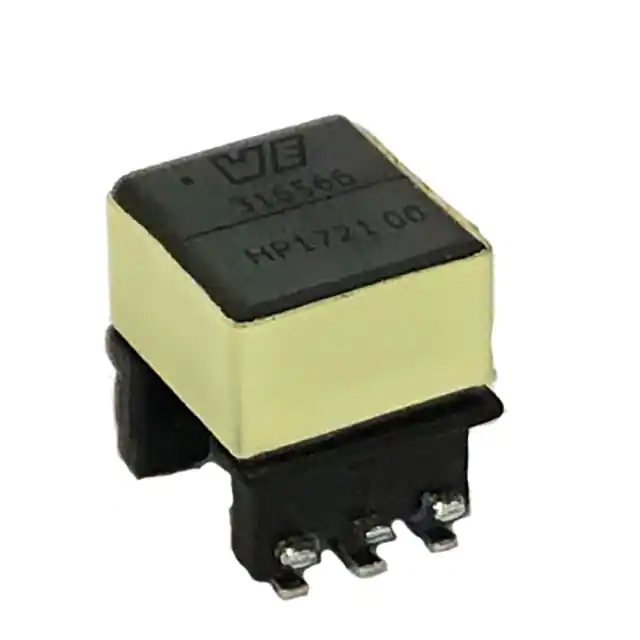

750316566XFMR FLYBACK SMD |
228 | 5.70 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
7508170311XFMR FLYBACK AC/DC CONV 491UH SM |
765 | 4.66 |
|
Datasheet |
WE-UNIT, MID-OLEE | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | 78 ~ 375V | 16V @ 50mA | 3000Vrms | 491µH @ 10kHz | 150kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.438" (11.13mm) | 0.543" L x 0.941" W (13.80mm x 23.90mm) | - |
