Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
563202B00000GBOARD LEVEL HEAT SINK |
3,734 | 2.53 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 1.380" (35.05mm) | - | 0.500" (12.70mm) | 1.0W @ 20°C | 5.00°C/W @ 200 LFM | 9.40°C/W | Aluminum | Black Anodized |
|
|
625-35ABT4EHEATSINK FOR 25MM BGA |
2,576 | 1.60 |
|
Datasheet |
625 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.350" (8.89mm) | - | 1.00°C/W @ 400 LFM | - | Aluminum | Black Anodized |
|
|
655-26ABT3HEATSINK FOR 40MM BGA |
4,676 | 2.34 |
|
Datasheet |
655 | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.600" (40.64mm) | 1.600" (40.64mm) | - | 0.260" (6.60mm) | 5.0W @ 60°C | 3.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
|
V2035NCPU HEATSINKS |
2,655 | 0.00 |
|
- |
- | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.230" (31.25mm) | 1.230" (31.25mm) | - | 0.728" (18.50mm) | - | - | 4.00°C/W | Aluminum Alloy | Natural Anodized |
|
|
241809B92200G241809B92200G |
2,248 | 0.00 |
|
- |
- | Bulk | Active | Top Mount | Eighth Brick DC/DC Converter | Bolt On | Rectangular, Fins | 2.280" (57.90mm) | 0.902" (22.90mm) | - | 0.902" (22.90mm) | - | 1.20°C/W @ 500 LFM | 2.40°C/W | - | - |
|
|
655-53ABT5HEATSINK FOR 40MM BGA |
2,276 | 2.75 |
|
Datasheet |
655 | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.600" (40.64mm) | 1.600" (40.64mm) | - | 0.525" (13.34mm) | 4.0W @ 40°C | 2.00°C/W @ 400 LFM | - | Aluminum | Black Anodized |
|
VHS-95HEATSINK HALF BRICK ALUM BLACK |
3,636 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Board Level | Half Brick DC/DC Converter | Bolt On | Square, Fins | 2.402" (61.00mm) | 2.283" (58.00mm) | - | 0.940" (23.88mm) | - | 2.10°C/W @ 200 LFM | 4.70°C/W | Aluminum | Black Anodized |
|

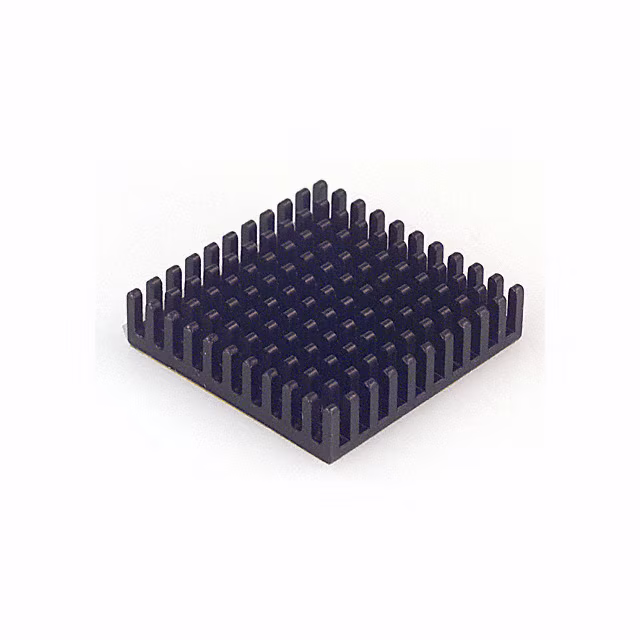

BDN15-3CB/A01HEATSINK CPU W/ADHESIVE 1.51"SQ |
2,352 | 2.67 |
|
Datasheet |
BDN | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.510" (38.35mm) | 1.510" (38.35mm) | - | 0.355" (9.02mm) | - | 4.50°C/W @ 400 LFM | 15.10°C/W | Aluminum | Black Anodized |
|
CS8672810B128.5X28.5X10MM |
1,834 | 2.76 |
|
- |
CS86 | Box | Active | Top Mount | - | Push Pin, Thermal Material | Square, Pin Fins | 1.122" (28.50mm) | 1.122" (28.50mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum | Black Anodized |
|
|
625-45ABT4EHEATSINK FOR 25MM BGA |
3,855 | 1.65 |
|
Datasheet |
625 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.450" (11.43mm) | - | 8.00°C/W @ 400 LFM | - | Aluminum | Black Anodized |
|
|
527-45AB-MEHEATSINK DC/DC HALF BRICK VERT |
3,216 | 3.21 |
|
Datasheet |
527 | Bulk | Active | Board Level | Half Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 2.280" (57.91mm) | 2.400" (60.96mm) | - | 0.950" (24.13mm) | 7.0W @ 60°C | 2.30°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
|
527-45AB-MET725HEATSINK DC/DC HALF BRICK VERT |
3,517 | 5.62 |
|
Datasheet |
527 | Bulk | Active | Board Level | Half Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 2.280" (57.91mm) | 2.400" (60.96mm) | - | 0.950" (24.13mm) | 7.0W @ 60°C | 2.30°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
|
6045BBOARD LEVEL HEAT SINK |
2,936 | 2.78 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | Clip | Rectangular | 1.000" (25.40mm) | 0.750" (19.05mm) | - | 0.350" (8.89mm) | 1.0W @ 30°C | 16.00°C/W @ 200 LFM | 26.00°C/W | Aluminum | Black Anodized |
|
|
500303B00000GBOARD LEVEL HEAT SINK |
3,129 | 2.79 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-3 | Bolt On | Square, Pin Fins | 1.810" (45.97mm) | 1.810" (45.97mm) | - | 1.000" (25.40mm) | 6.0W @ 40°C | 1.50°C/W @ 700 LFM | 5.80°C/W | Aluminum | Black Anodized |
|
|
220SA220-SA |
1,838 | 0.00 |
|
- |
- | Bulk | Active | Board Level | TO-126, TO-220 | Bolt On | Rectangular | 1.102" (28.00mm) | 0.748" (19.00mm) | - | 0.504" (12.80mm) | - | - | 22.60°C/W | Aluminum | Black Anodized |
|
WA-T264-101EHEATSINK W/CLIP FOR TO-264 |
3,855 | 2.92 |
|
Datasheet |
W | Box | Obsolete | Board Level, Vertical | TO-264 | Clip and PC Pin | Rectangular, Fins | 1.260" (32.00mm) | 0.921" (23.40mm) | - | 0.630" (16.00mm) | 1.0W @ 20°C | 8.00°C/W @ 500 LFM | 11.00°C/W | Aluminum | Black Anodized |
|
|
HBH29031-08AL HEAT SINK 29X29X8MM |
2,804 | 0.00 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
MBH30001-20W5/2.5AL HEAT SINK 30X30X20MM |
3,507 | 0.00 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
MBH30001-10W5/2.0AL HEAT SINK 30X30X10MM |
4,122 | 0.00 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
TV4GPRESSED HTSK-(TV4G ZA0779/7)-R |
1,091 | 0.00 |
|
- |
- | Bulk | Active | Board Level, Vertical | TO-126 | Bolt On and PC Pin | Rectangular, Fins | 0.866" (22.00mm) | 0.749" (19.03mm) | - | 0.749" (19.03mm) | 1.5W @ 40°C | 12.00°C/W @ 300 LFM | 21.60°C/W | Aluminum | Black Anodized |
