Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
V10196E1-LPCPU HEATSINK, CROSS CUT, AL6063, |
4,090 | 0.00 |
|
Datasheet |
- | Bag | Active | Top Mount | CPU | PC Pin | Square, Pin Fins | 1.654" (42.00mm) | 1.654" (42.00mm) | - | 0.992" (25.20mm) | - | - | 12.00°C/W | Aluminum | Black Anodized |
|
528-24ABHEATSINK DC/DC HALF BRICK VERT |
4,176 | 1.95 |
|
Datasheet |
528 | Bulk | Active | Board Level, Vertical | Half Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 2.400" (60.96mm) | 2.280" (57.91mm) | - | 0.240" (6.10mm) | 5.0W @ 60°C | 3.50°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
|
374824B00032G374824B00032G |
3,612 | 0.00 |
|
- |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.984" (25.00mm) | 2.0W @ 30°C | 4.30°C/W @ 200 LFM | 12.00°C/W | Aluminum | Black Anodized |
|
RA-T2X-38EHEATSINK TO-220,TO-218,TO-247 |
4,532 | 2.51 |
|
Datasheet |
R | Box | Active | Board Level, Vertical | TO-218, TO-220, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.654" (42.00mm) | 0.985" (25.00mm) | - | 1.500" (38.10mm) | 14.0W @ 70°C | 1.00°C/W @ 400 LFM | 3.90°C/W | Aluminum | Black Anodized |
|
|
341600F00000GHEATSINK |
2,824 | 2.92 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PF758GPRESSED HTSK, ZA4290-8, PF758G |
3,526 | 0.00 |
|
- |
- | Bulk | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular, Fins | 0.866" (22.00mm) | 0.433" (11.00mm) | - | 0.945" (24.00mm) | 2.0W @ 40°C | 10.00°C/W @ 500 LFM | 17.30°C/W | Aluminum | Tin |
|
|
576802B00000GW/ROHS576802B00000GW/ROHS+TAB 059099 |
4,157 | 0.00 |
|
- |
- | Bulk | Active | Board Level | TO-220, TO-262 | Clip | Rectangular, Fins | 0.750" (19.05mm) | 0.500" (12.70mm) | - | 0.500" (12.70mm) | 1.5W @ 40°C | 7.00°C/W @ 400 LFM | 27.30°C/W | Aluminum | Black Anodized |
|
|
10-L4LB-05G10-L4LB-05G |
1,209 | 0.00 |
|
- |
- | Bulk | Active | Board Level | BGA, FPGA | Push Pin | Rectangular, Pin Fins | 1.780" (45.21mm) | 1.630" (41.40mm) | - | 0.460" (11.68mm) | 2.5W @ 50°C | 5.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

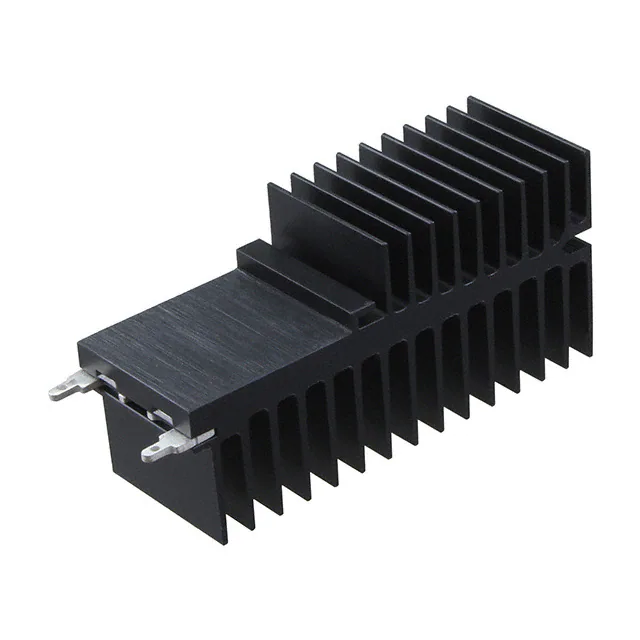

OMNI-UNI-34-25HEATSINK TO-247 TO-264 TO-220 |
4,576 | 4.13 |
|
Datasheet |
OmniKlip™ | Bulk | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 0.984" (25.00mm) | 1.339" (34.00mm) | - | 2.953" (75.00mm) | - | - | - | Aluminum | Black Anodized |
|
EV-T220-64EHEATSINK FOR TO-220 |
4,474 | 2.80 |
|
Datasheet |
E | Box | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.500" (63.50mm) | 1.378" (35.00mm) | - | 0.500" (12.70mm) | 6.0W @ 40°C | 4.00°C/W @ 500 LFM | 10.00°C/W | Aluminum | Degreased |
|
|
656-15ABPEHEATSINK TO-220 W/PINS BLK 1.5" |
2,251 | 0.90 |
|
Datasheet |
656 | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 10.0W @ 50°C | 2.00°C/W @ 500 LFM | 3.70°C/W | Aluminum | Black Anodized |
|
|
V4330E2PROFILE HEATSINK |
4,527 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V2035BCPU HEATSINKS |
2,881 | 0.00 |
|
- |
- | Bulk | Active | Top Mount | - | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.230" (31.25mm) | 1.230" (31.25mm) | - | 0.728" (18.50mm) | - | - | 4.00°C/W | Aluminum Alloy | Black Anodized |
|
|
MBH40001-10W5/2.0AL HEAT SINK 40X40X10MM |
3,827 | 0.00 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
HBH34031-06AL HEAT SINK 34X34X06MM |
1,492 | 0.00 |
|
- |
- | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
547-24AB-MEHEATSINK DC/DC QUARTER BRICK |
2,981 | 3.59 |
|
Datasheet |
547 | Bulk | Active | Board Level, Vertical | Quarter Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 1.450" (36.83mm) | 2.280" (57.91mm) | - | 0.240" (6.10mm) | - | 3.50°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
|
547-24AB-MET725HEATSINK DC/DC QUARTER BRICK |
1,428 | 5.75 |
|
Datasheet |
547 | Bulk | Active | Board Level, Vertical | Quarter Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 1.450" (36.83mm) | 2.280" (57.91mm) | - | 0.240" (6.10mm) | - | 3.50°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
|
547-24AB-T725HEATSINK DC/DC QUARTER BRICK |
1,199 | 3.48 |
|
Datasheet |
547 | Bulk | Active | Board Level, Vertical | Quarter Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 1.450" (36.83mm) | 2.280" (57.91mm) | - | 0.240" (6.10mm) | - | 3.50°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
CR401-25VEALUMINUM HEATSINK 25MM DEGREASED |
4,712 | 2.68 |
|
Datasheet |
CR | Box | Obsolete | Board Level, Vertical | TO-401 | 2 Clips and PC Pin | Rectangular, Fins | 0.984" (25.00mm) | 1.570" (39.88mm) | - | 2.950" (74.93mm) | - | - | 5.40°C/W | Aluminum Alloy | Degreased |
|
|
530400B00100GBOARD LEVEL HEAT SINK |
2,964 | 2.81 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220, TO-218 | Bolt On and Board Mounts | Square, Angled Fins | 1.750" (44.45mm) | 0.490" (12.44mm) | - | 1.750" (44.45mm) | 4.0W @ 30°C | 2.00°C/W @ 400 LFM | 6.30°C/W | Aluminum | Black Anodized |
