Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-55450W-C1-R0HEAT SINK 45MM X 45MM X 24.5MM |
4,976 | 12.27 |
|
Datasheet |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.965" (24.50mm) | - | 2.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-132-C2-R0HEATSINK 60X60X25MM XCUT T766 |
1,038 | 12.27 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.984" (25.00mm) | - | 2.66°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

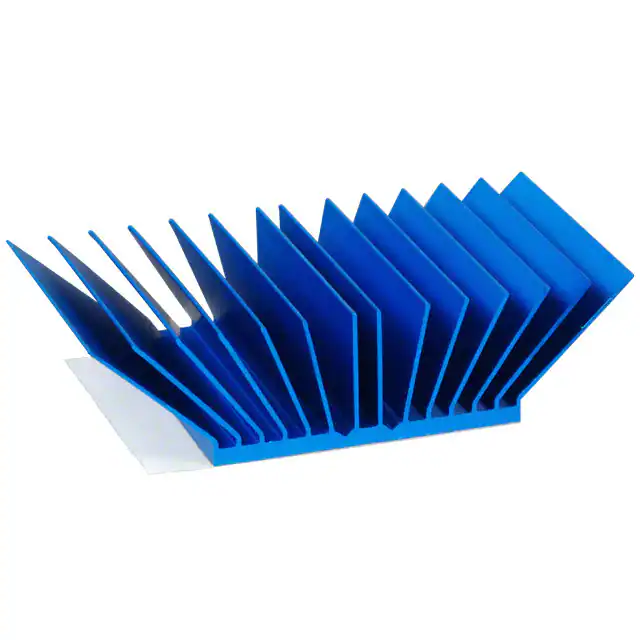

ATS-52400P-C1-R0HEAT SINK 40MM X 40MM X 17.5MM |
4,175 | 12.49 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.689" (17.50mm) | - | 2.00°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-1098-C1-R01/4 BRICK HEATSINK 58X37X6.1MM |
1,094 | 12.54 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | Quarter Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.283" (58.00mm) | 1.457" (37.00mm) | - | 0.240" (6.10mm) | - | 12.10°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
ATS-52425P-C1-R0HEAT SINK 42.5 X 42.5 X 17.5MM |
100 | 12.60 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Angled Fins | 1.673" (42.50mm) | 1.673" (42.49mm) | - | 0.689" (17.50mm) | - | 1.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

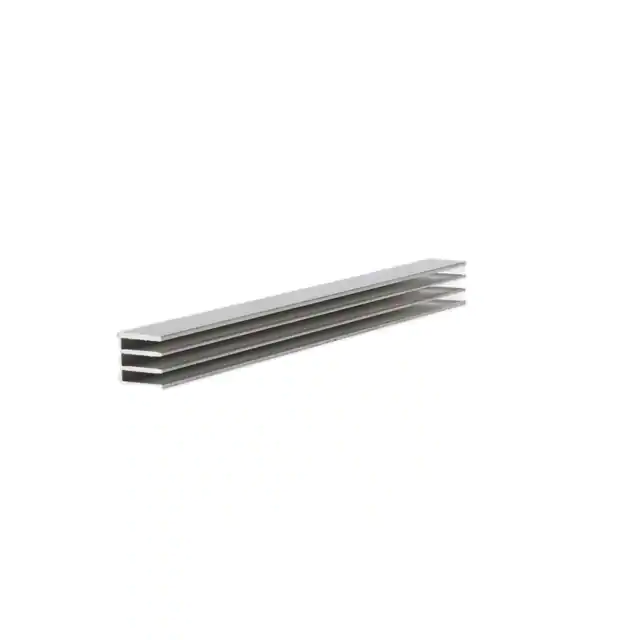

1276971.26" X 12" FLATBACK HEATSINK EX |
3,731 | 13.05 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 1.000" (25.40mm) | - | 1.000" (25.40mm) | - | - | 1.60°C/W | Aluminum | - |
|

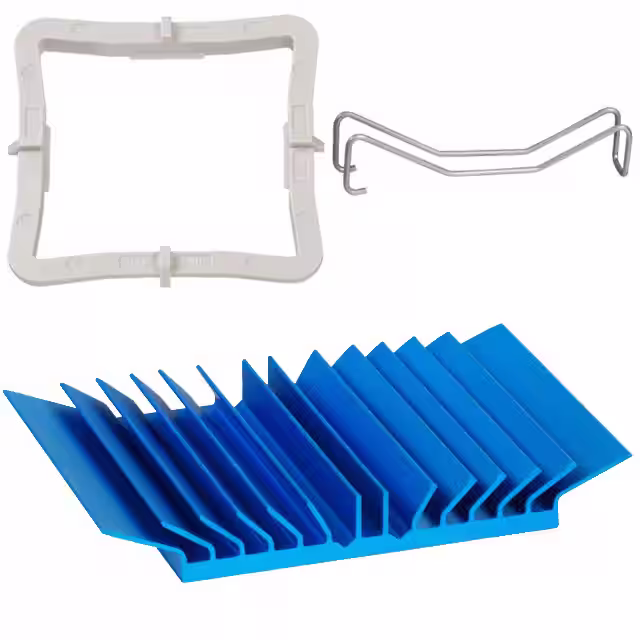

ATS-50350B-C1-R0HEAT SINK 35MM X 35MM X 7.5MM |
4,788 | 13.07 |
|
Datasheet |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.295" (7.50mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

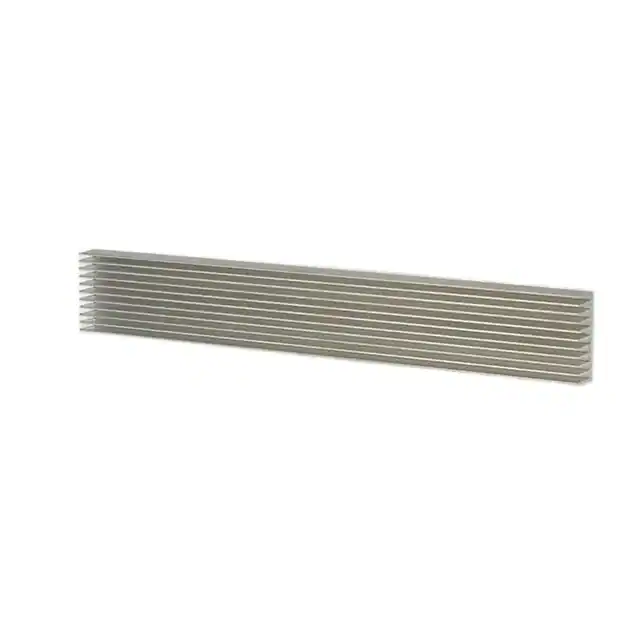

1252891.75WX12" EXTRUS 16249 XX8260-65 |
3,294 | 14.10 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | BGA | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 1.750" (44.45mm) | - | 0.650" (16.51mm) | - | - | 1.95°C/W | Aluminum | - |
|

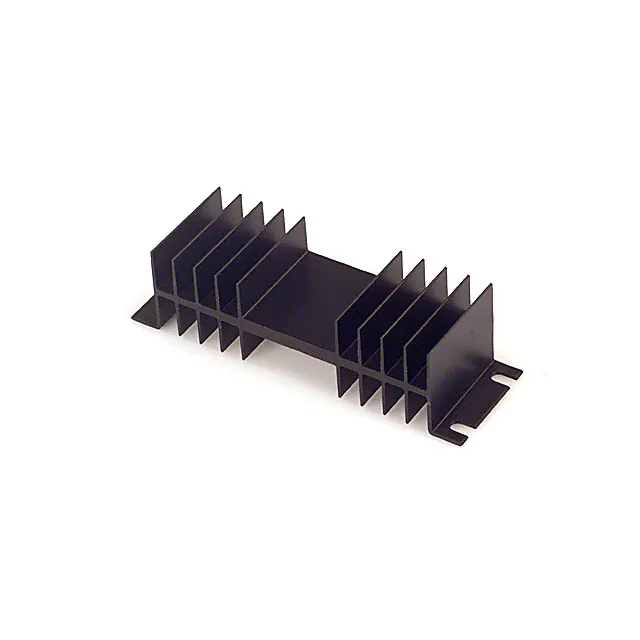

401KHEATSINK POWER NO MNT HOLES BLK |
2,400 | 13.78 |
|
Datasheet |
401 | Bulk | Active | Board Level | TO-3, Stud Mount | Press Fit | Rectangular, Fins | 1.500" (38.10mm) | 4.750" (120.65mm) | - | 1.250" (31.75mm) | 30.0W @ 80°C | 1.50°C/W @ 250 LFM | 3.00°C/W | Aluminum | Black Anodized |
|

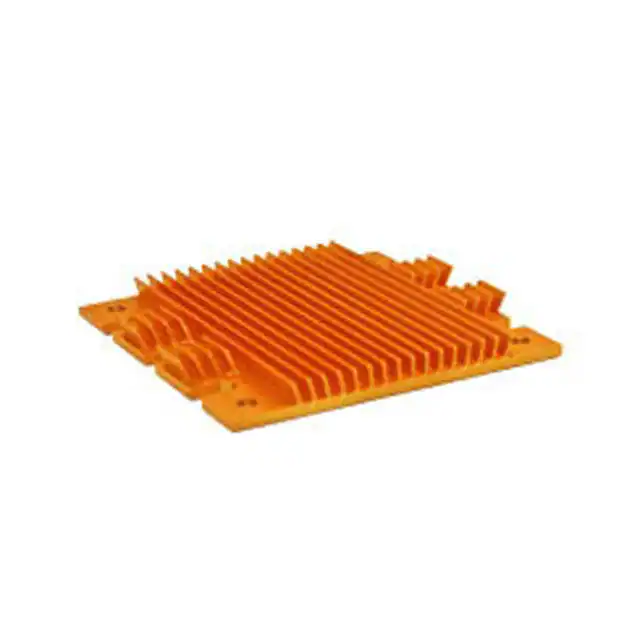

ATS-1143-C1-R01/2 BRICK HEATSINK 58X61X6.1MM |
1,573 | 14.16 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | Half Brick DC/DC Converter | Bolt On | Rectangular, Angled Fins | 2.283" (58.00mm) | 2.401" (61.00mm) | - | 0.240" (6.10mm) | - | 9.40°C/W @ 200 LFM | - | Aluminum | Gold Anodized |
|
ATS-X50270P-C1-R0SUPERGRIP HEATSINK 27X27X17.5MM |
3,434 | 22.20 |
|
Datasheet |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.689" (17.50mm) | - | 3.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53270P-C1-R0SUPERGRIP HEATSINK 27X27X17.5MM |
2,520 | 21.13 |
|
Datasheet |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.689" (17.50mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-1041-C2-R0HEATSINK 41X45X10MM BRASSPUSHPIN |
3,230 | 14.67 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.610" (40.89mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 3.90°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|

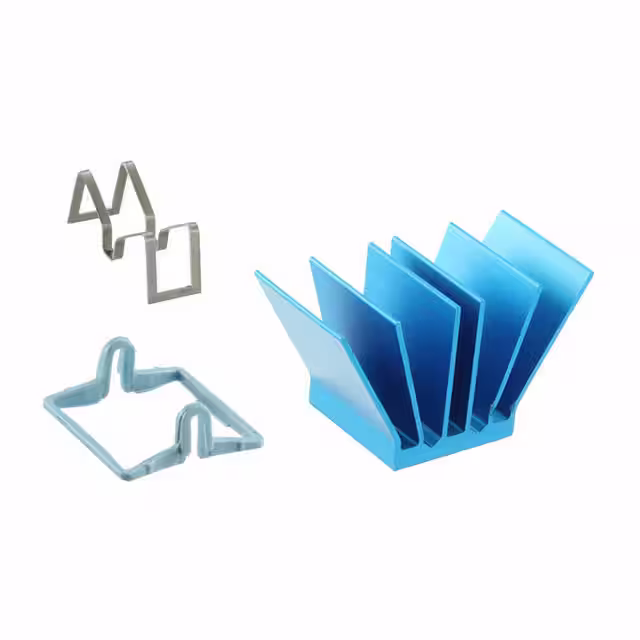

ATS-X50150P-C1-R0SUPERGRIP HEATSINK 15X15X17.5MM |
100 | 20.03 |
|
Datasheet |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.591" (15.00mm) | 0.591" (15.00mm) | - | 0.689" (17.50mm) | - | 8.70°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

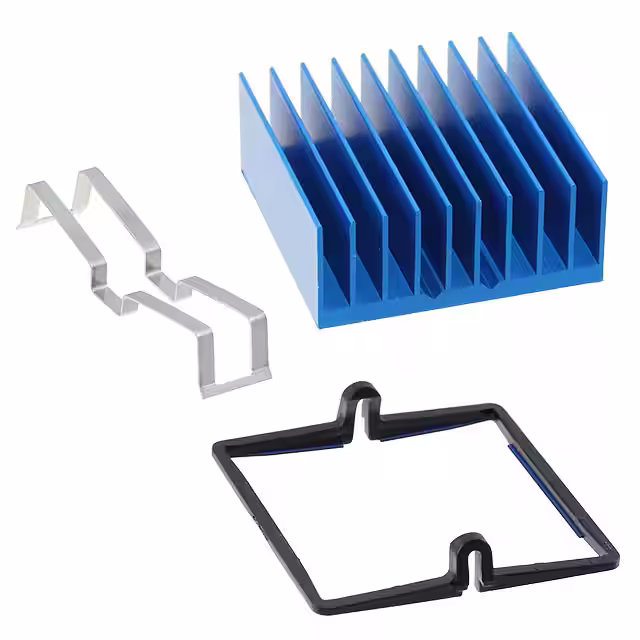

ATS-X53310G-C1-R0SUPERGRIP HEATSINK 31X31X12.5MM |
2,027 | 20.07 |
|
Datasheet |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.220" (30.99mm) | 1.220" (30.99mm) | - | 0.492" (12.50mm) | - | 6.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

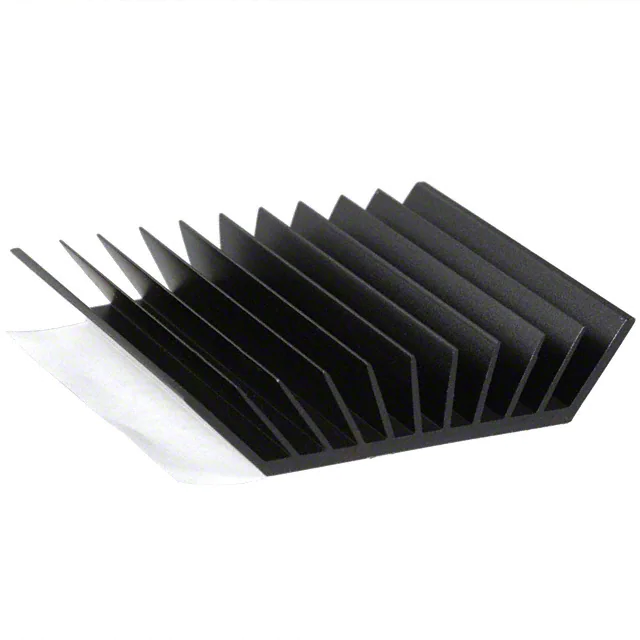

ATS-56009-C3-R0HEAT SINK 58MM X 30MM X 9MM |
4,149 | 15.65 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Included) | Rectangular, Angled Fins | 2.283" (58.00mm) | 1.181" (30.00mm) | - | 0.354" (9.00mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

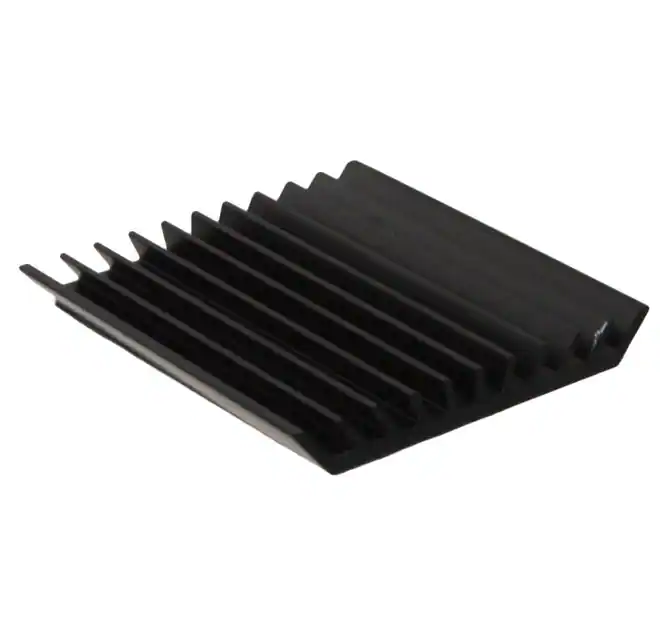

ATS-56004-C1-R0HEAT SINK 40MM X 30MM X 5MM |
1,991 | 15.76 |
|
Datasheet |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Included) | Rectangular, Angled Fins | 1.575" (40.00mm) | 1.181" (30.00mm) | - | 0.197" (5.00mm) | - | 7.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-61400D-C1-R0MAXIGRIP FANSINK 40X40X9.5MM |
2,259 | 16.60 |
|
Datasheet |
fanSINK, maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.374" (9.50mm) | - | 2.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
1276921.40" WIDE X 12" BGA HEATSINK EX |
2,494 | 16.36 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | BGA | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 1.400" (35.56mm) | - | 0.650" (16.51mm) | - | - | 1.55°C/W | Aluminum | - |
|

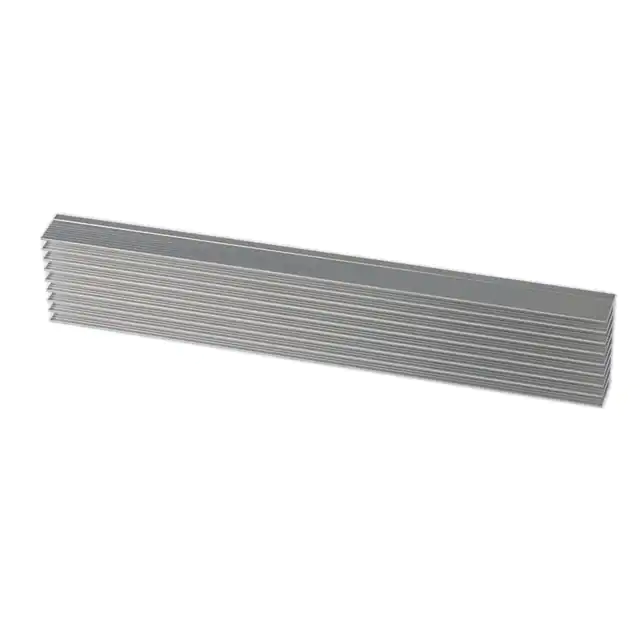

1253432.22WX12" EXTRUSION 14192 |
3,999 | 16.40 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | DC/DC Converter | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 2.220" (56.39mm) | - | 0.930" (23.62mm) | - | - | 3.66°C/W | Aluminum | - |
