Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-61800K-C2-R0FANSINK ASSEMBLY W/ MOUNTING HAR |
2,761 | 32.64 |
|
Datasheet |
fanSINK™ | Bulk | Active | Top Mount | BGA | Push Pin, Thermal Material | Square, Pin Fins | 3.307" (84.00mm) | 3.307" (84.00mm) | - | 0.571" (14.50mm) | - | - | - | - | - |
|

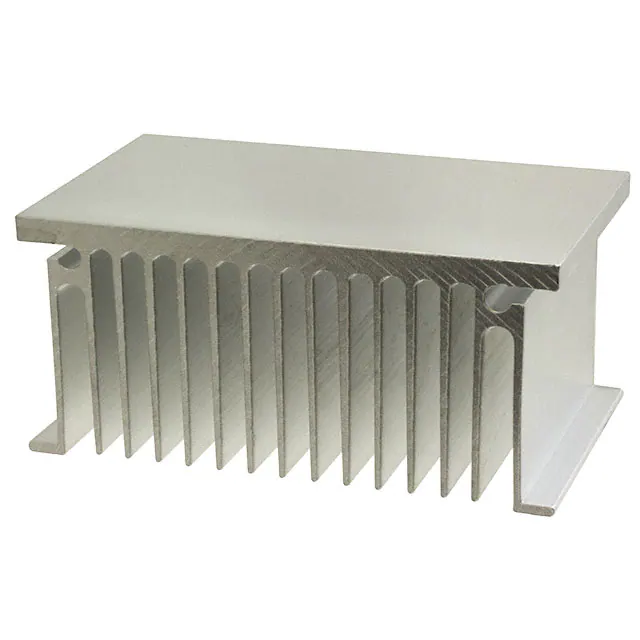

511-3MHEATSINK FOR PWR MOD/IGBT/RELAY |
3,045 | 39.70 |
|
Datasheet |
511 | Bulk | Active | Top Mount | Power Modules | Adhesive | Rectangular, Fins | 3.000" (76.20mm) | 5.210" (132.33mm) | - | 2.350" (59.69mm) | - | - | 0.90°C/W | Aluminum | - |
|

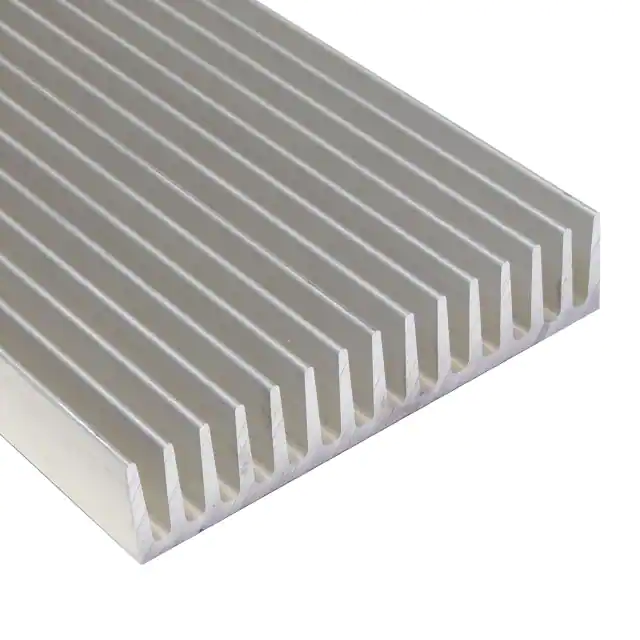

1277543.66" WIDE X 36" FLATBACK HEATSI |
1,944 | 44.49 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 3.660" (92.96mm) | - | 0.774" (19.66mm) | - | - | 0.55°C/W | Aluminum | - |
|

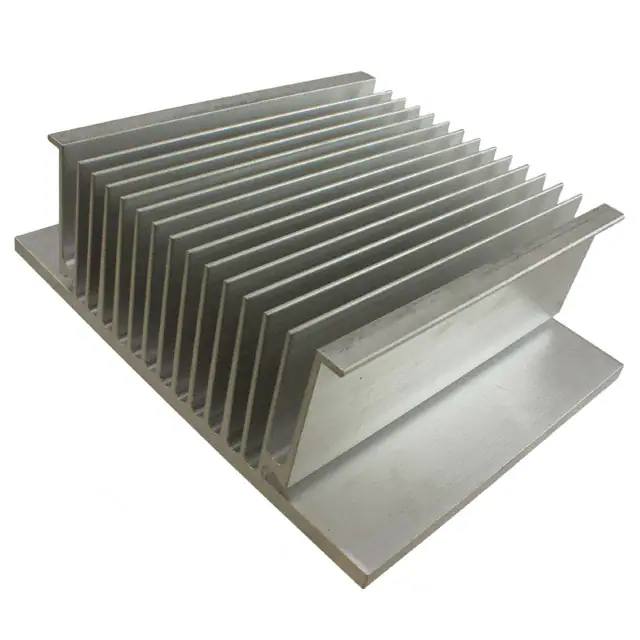

512-6UHEATSINK HF 7.2X6.0X2.41 NONMIL |
3,586 | 47.46 |
|
Datasheet |
512 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 6.000" (152.40mm) | 7.200" (182.88mm) | - | 2.410" (61.21mm) | - | - | 0.65°C/W | Aluminum | - |
|

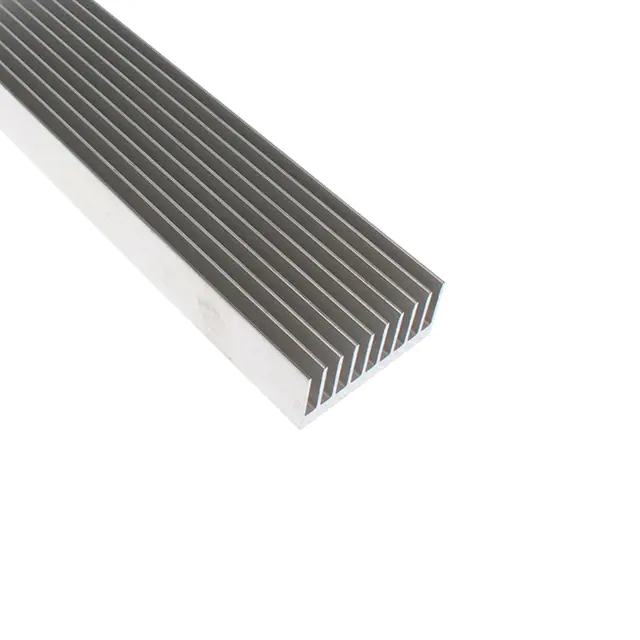

1253142.875WX36" EXTRUSIO 16078 XX2013 |
3,098 | 50.53 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 2.875" (73.03mm) | - | 1.312" (33.32mm) | - | - | 0.58°C/W | Aluminum | - |
|

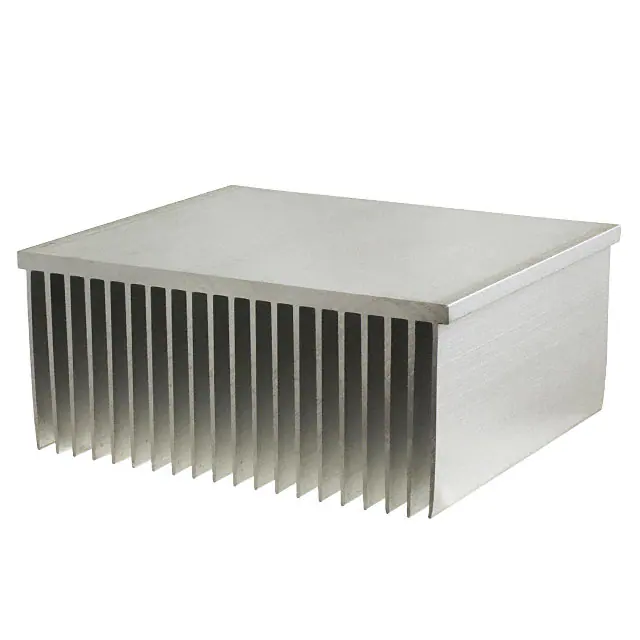

510-6UHEATSINK FOR PWR MOD/IGBT/RELAY |
1,093 | 65.88 |
|
Datasheet |
510 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 6.000" (152.40mm) | 7.380" (187.45mm) | - | 3.136" (79.65mm) | - | - | 0.38°C/W | Aluminum | - |
|

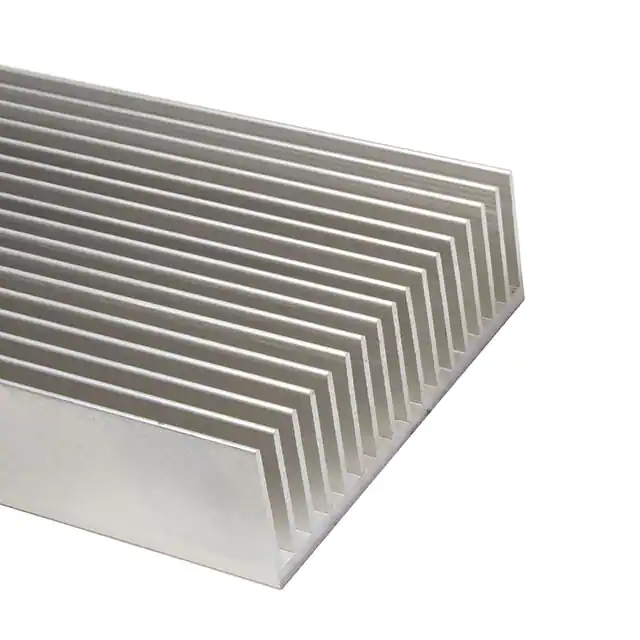

1277585.00" WIDE X 36" FLATBACK HEATSI |
3,732 | 80.65 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 5.000" (127.00mm) | - | 1.650" (41.91mm) | - | - | 0.28°C/W | Aluminum | - |
|

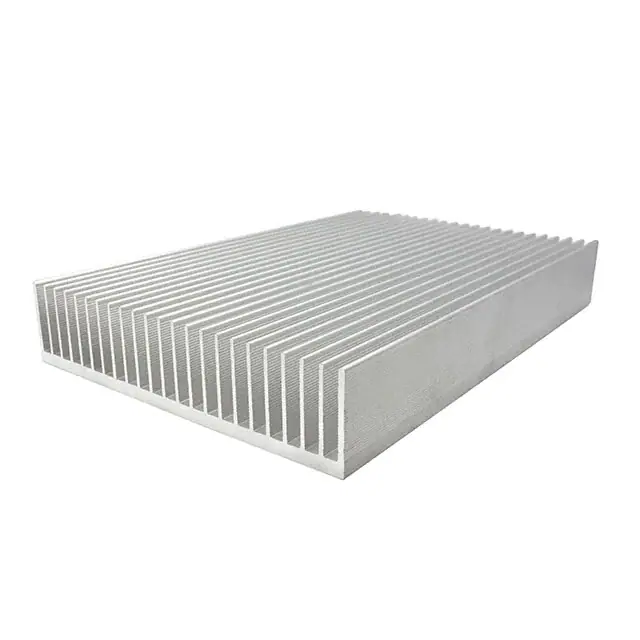

ATS-EXL110-300-R0HEATSINK AL6063 300X201X45MM |
4,365 | 96.07 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 11.811" (300.00mm) | 7.874" (200.00mm) | - | 1.772" (45.00mm) | - | 0.72°C/W @ 200 LFM | 2.47°C/W | Aluminum | Degreased |
|

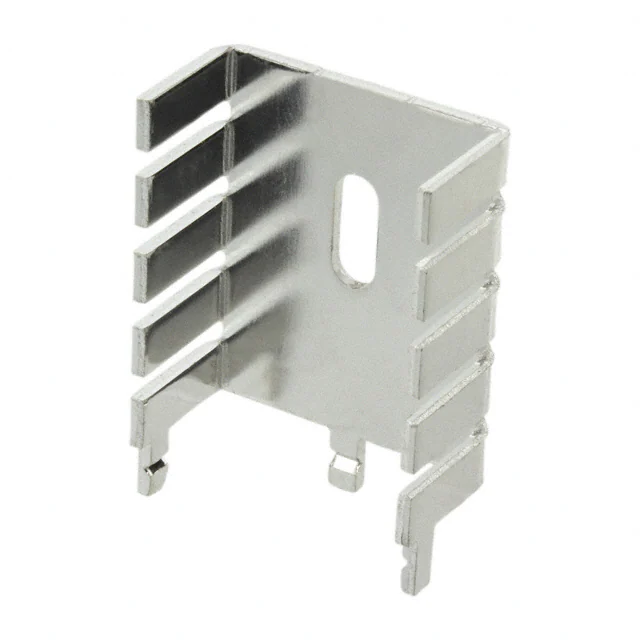

563002D00000GHEATSINK TO-220 TAB TIN |
1,632 | 5.85 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 1.0W @ 20°C | 4.00°C/W @ 600 LFM | 13.00°C/W | - | Tin |
|
HSS-B20-NPS-02HEATSINK TO-220 5.1W ALUMINUM |
3,040 | 0.57 |
|
Datasheet |
HSS | Bag | Active | Board Level | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 0.500" (12.70mm) | 1.000" (25.40mm) | - | 1.180" (29.97mm) | 5.1W @ 75°C | 4.20°C/W @ 200 LFM | 14.71°C/W | Aluminum | Black Anodized |
|
V5074C-THEATSINK ALUM ANOD TO-220 |
2,066 | 0.39 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.984" (25.00mm) | 0.550" (13.97mm) | - | 0.590" (15.00mm) | - | - | 20.00°C/W | Aluminum | Black Anodized |
|
V5641A-THEATSINK ALUM ANOD |
4,431 | 0.40 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 1.410" (35.81mm) | 0.878" (22.30mm) | - | 0.252" (6.40mm) | - | - | 21.00°C/W | Aluminum | Black Anodized |
|

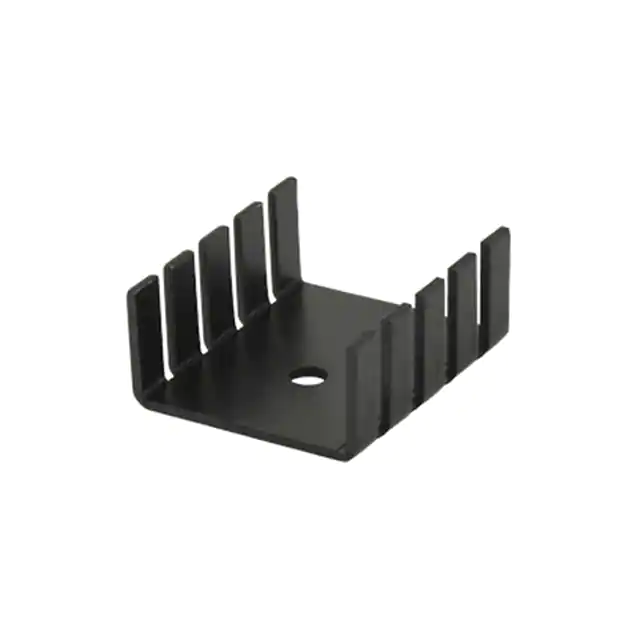

HSS-B20-NPS-01HEATSINK TO-220 4.2W ALUMINUM |
4,628 | 0.62 |
|
Datasheet |
HSS | Bag | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 4.2W @ 75°C | 5.88°C/W @ 200 LFM | 17.74°C/W | Aluminum | Black Anodized |
|
V5274B-THEATSINK ALUM ANOD |
2,070 | 0.63 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.984" (25.00mm) | 0.472" (12.00mm) | - | 0.177" (4.50mm) | - | - | 60.00°C/W | Aluminum | Black Anodized |
|
XL25W-TO264-28-22-1CERAMIC HEAT SPREADER 28X22MM WH |
2,961 | 0.73 |
|
Datasheet |
XL-25 | Bulk | Active | Heat Spreader | TO-264 | Thermal Tape | Rectangular | 1.102" (28.00mm) | 0.866" (22.00mm) | - | 0.039" (1.00mm) | - | - | - | Ceramic | - |
|

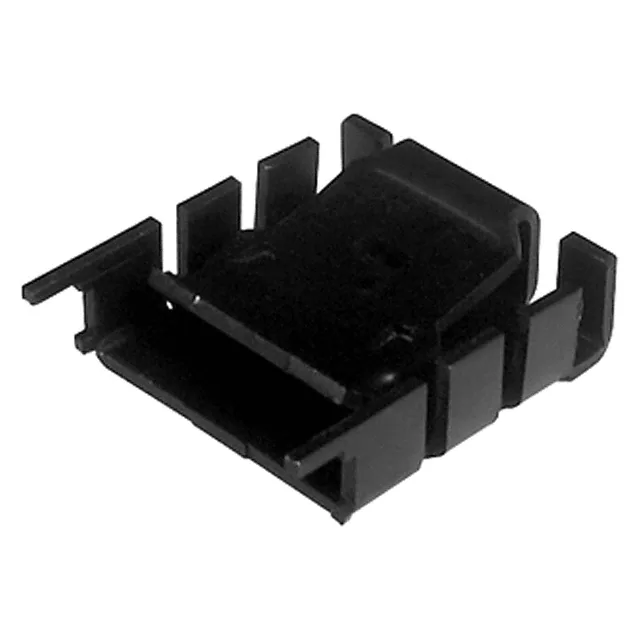

V8510B-THEATSINK ALUM ANOD |
4,512 | 0.69 |
|
Datasheet |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Clip and Board Mounts | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.335" (8.50mm) | - | - | 18.00°C/W | Aluminum | Black Anodized |
|

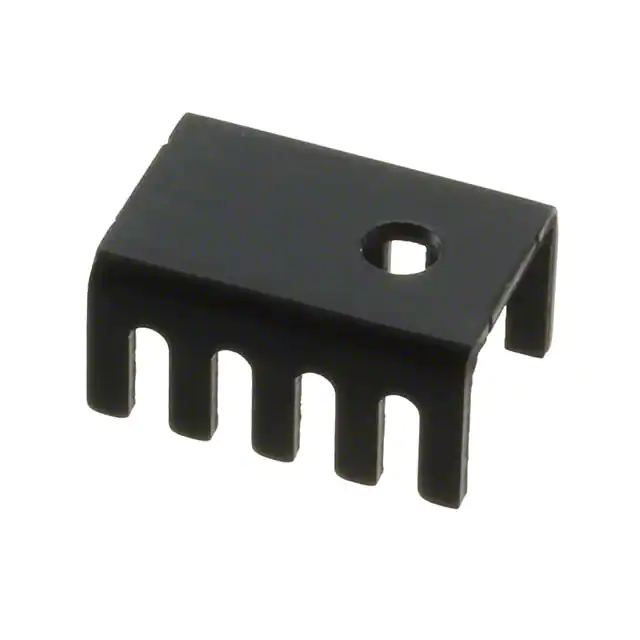

ATS-PCB1070HEATSINK TO-220 BLACK |
3,711 | 0.81 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.375" (9.52mm) | - | 15.80°C/W @ 200 LFM | 25.90°C/W | Aluminum | Black Anodized |
|
V8508DHEAT SINK ANOD ALUM TO-220 |
4,678 | 0.60 |
|
Datasheet |
- | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | PC Pin | Square, Pin Fins | 0.551" (14.00mm) | 0.551" (14.00mm) | - | 0.500" (12.70mm) | - | - | 16.00°C/W | Aluminum | Black Anodized |
|

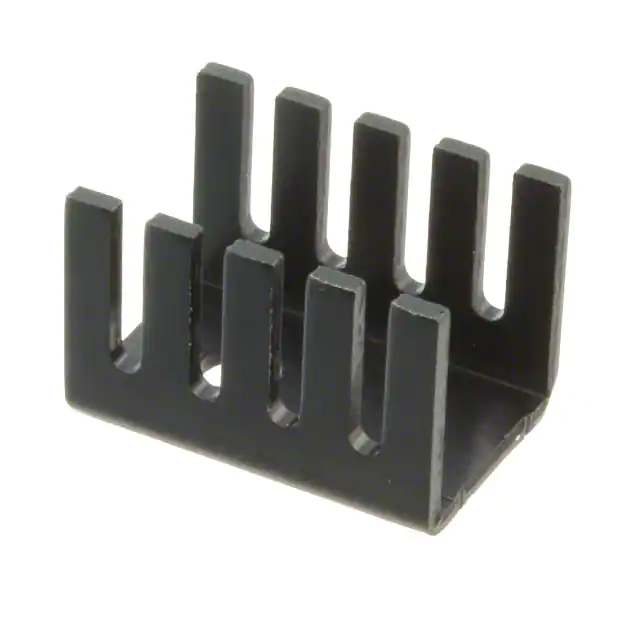

ATS-PCB1072HEATSINK TO-220 BLACK |
4,444 | 0.91 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.520" (13.21mm) | - | 0.500" (12.70mm) | - | 9.50°C/W @ 200 LFM | 24.40°C/W | Aluminum | Black Anodized |
|

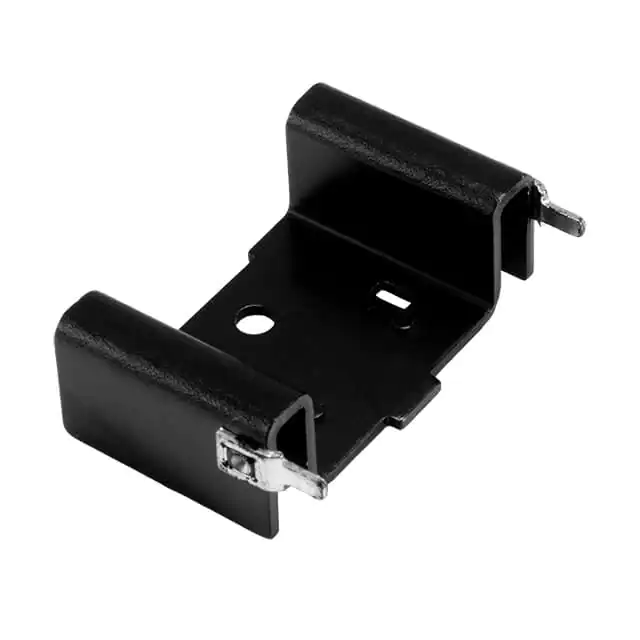

HSS15-B20-P40HEAT SINK, STAMPING, TO-220, 23. |
4,853 | 1.02 |
|
Datasheet |
HSS | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular | 1.500" (38.10mm) | 0.921" (23.40mm) | - | 0.500" (12.70mm) | 5.0W @ 75°C | 8.50°C/W @ 200 LFM | 15.16°C/W | Aluminum Alloy | Black Anodized |
