Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RU67B1BHEATSINK PRESS ON VERT BLK TO-92 |
3,176 | 0.00 |
|
- |
- | - | Obsolete | - | TO-92 | Press Fit | - | - | - | - | 0.580" (14.73mm) | - | - | - | Aluminum | - |
|
|
RUR671UHEATSINK PRESSON PANEL MNT TO-92 |
2,546 | 0.00 |
|
- |
- | - | Obsolete | - | TO-92 | Press Fit | - | - | - | - | 0.590" (15.00mm) | - | - | - | Brass | - |
|
|
RUR67B1BHEATSINK PRESSON SINGL MNT TO-92 |
2,201 | 0.00 |
|
- |
- | - | Obsolete | - | TO-92 | Press Fit | - | - | - | - | 0.590" (15.00mm) | - | - | - | Aluminum | - |
|

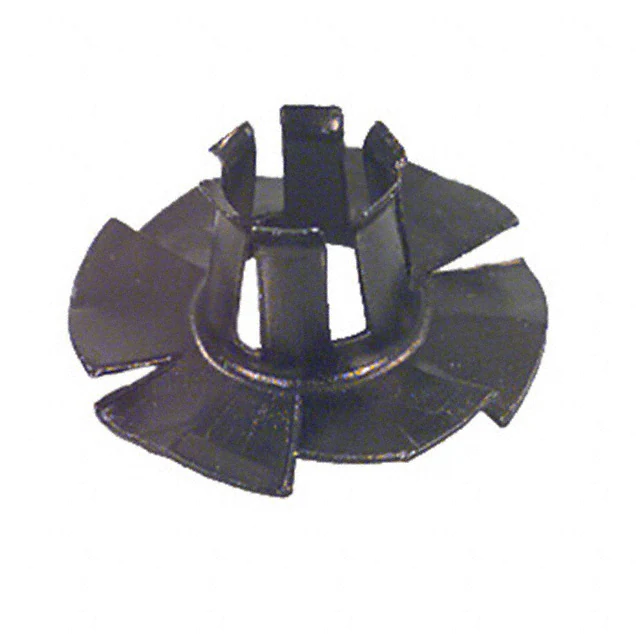

TXBF-019-025BTHERMAL LINK PRESSON TO-18 |
2,368 | 0.00 |
|
Datasheet |
Fan Top | - | Obsolete | Top Mount | TO-18 | Press Fit | Cylindrical | - | - | 0.500" (12.70mm) OD | 0.250" (6.35mm) | - | - | 150.00°C/W | Beryllium Copper | Black Cadmium |
|
|
7-192-BAHEATSINK VERT .50"H BLACK TO-220 |
4,237 | 0.00 |
|
Datasheet |
7 | Box | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.710" (18.03mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 1.5W @ 50°C | - | 33.90°C/W | Aluminum | Black Anodized |
|
|
7-195-1-BAHEATSINK VERT .187"H BLK TO-220 |
1,084 | 0.00 |
|
Datasheet |
7 | - | Obsolete | Board Level | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 0.750" (19.05mm) | 0.750" (19.05mm) | - | 0.187" (4.75mm) | 1.5W @ 50°C | - | 33.90°C/W | Aluminum | Black Anodized |
|

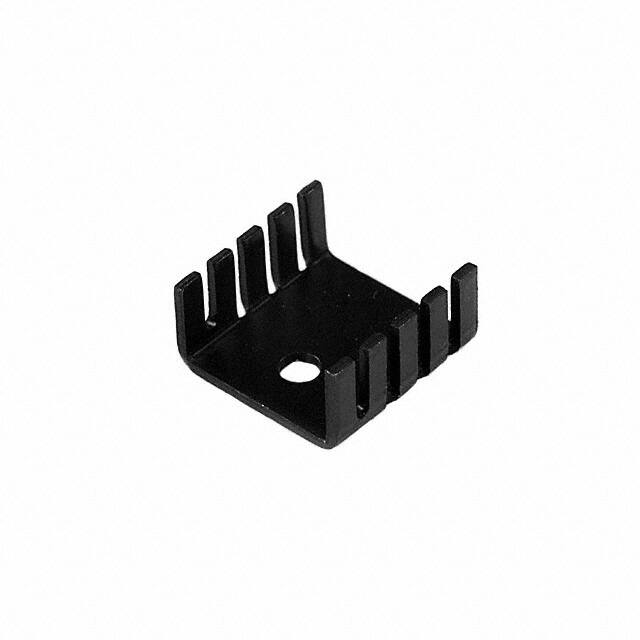

7-195-2-BAHEATSINK VERT .375"H BLK TO-220 |
3,709 | 0.00 |
|
Datasheet |
7 | - | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.750" (19.05mm) | - | 0.375" (9.52mm) | 2.0W @ 50°C | - | 27.00°C/W | Aluminum | Black Anodized |
|
|
7-198-BAHEATSINK VERT .85"H BLACK TO-220 |
2,294 | 0.00 |
|
Datasheet |
7 | - | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 0.700" (17.78mm) | 0.780" (19.81mm) | - | 0.850" (21.60mm) | 2.0W @ 40°C | - | 26.00°C/W | Aluminum | Black Anodized |
|

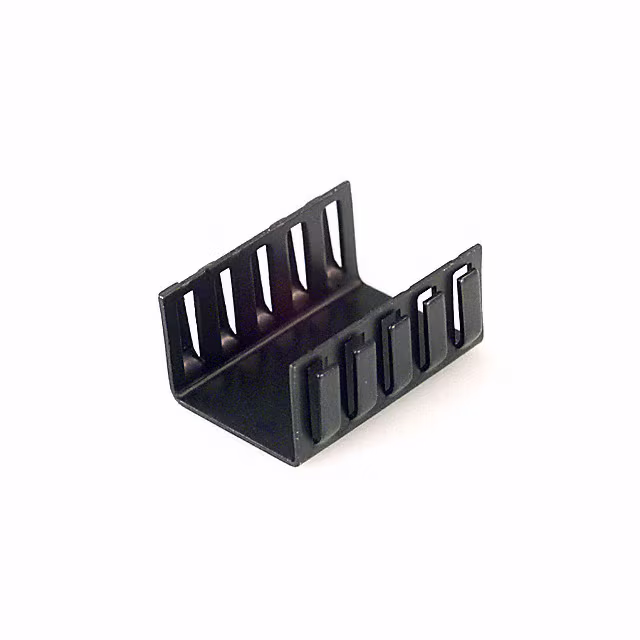

7-300-000-BAHEATSINK HORZ .62"H BLACK TO-220 |
3,343 | 0.00 |
|
Datasheet |
7 | - | Obsolete | Board Level | TO-220 | Bolt On | Rectangular, Fins | 1.310" (33.27mm) | 1.090" (27.69mm) | - | 0.620" (15.75mm) | 1.5W @ 40°C | - | - | Aluminum | Black Anodized |
|
|
7-311-BAHEATSINK VERT W/TABS BLK TO-220 |
4,835 | 0.00 |
|
Datasheet |
7 | - | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.000" (50.80mm) | 0.054" (1.38mm) | - | 0.370" (9.40mm) | 2.0W @ 30°C | - | - | Aluminum | Black Anodized |
|
|
7-441-01E-BAHEATSINK PWR HORZ .50"H TO-3 |
1,146 | 0.00 |
|
Datasheet |
7 | - | Obsolete | Board Level | TO-3 | Bolt On | Rhombus | 1.900" (48.26mm) | 1.400" (35.56mm) | - | 0.500" (12.70mm) | 6.0W @ 60°C | - | - | Aluminum | Black Anodized |
|
|
7-444-01E-BAHEATSINK PWR HORZ 1.25"H TO-3 |
2,226 | 0.00 |
|
Datasheet |
7 | - | Obsolete | Board Level | TO-3 | Bolt On | Rhombus | 1.900" (48.26mm) | 1.400" (35.56mm) | - | 1.250" (31.75mm) | 9.0W @ 50°C | - | - | Aluminum | Black Anodized |
|
7-338-2PP-BAHEATSINK PWR W/PINS BLACK TO-220 |
2,694 | 0.00 |
|
Datasheet |
7 | Box | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.750" (44.45mm) | 1.380" (35.05mm) | - | 0.500" (12.70mm) | 9.0W @ 70°C | - | - | Aluminum | Black Anodized |
|

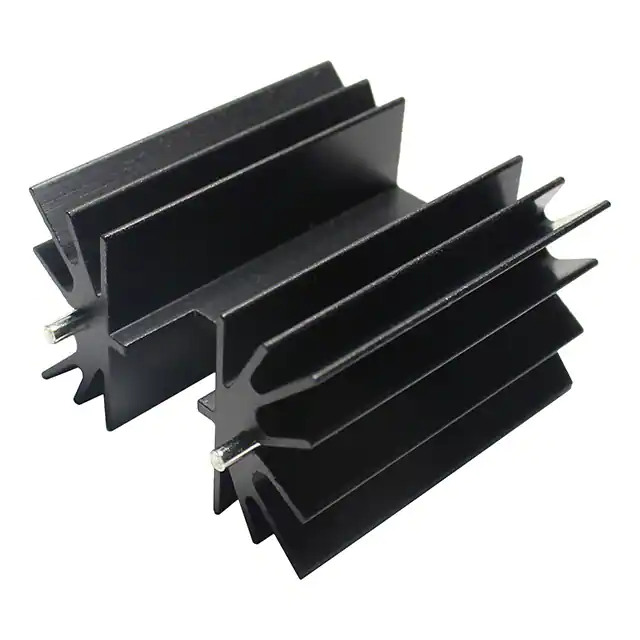

7-339-2PP-BAHEATSINK PWR W/PINS BLACK TO-220 |
1,790 | 0.00 |
|
Datasheet |
7 | Box | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.750" (44.45mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 9.0W @ 70°C | - | - | Aluminum | Black Anodized |
|

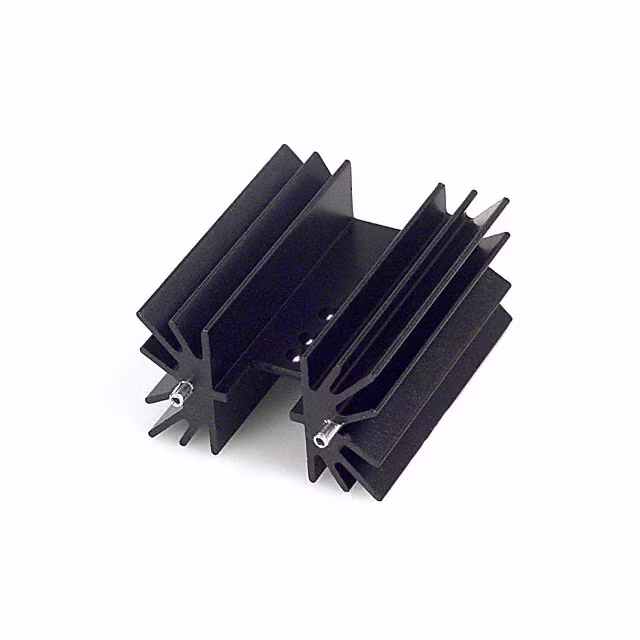

7-339-4PP-BAHEATSINK PWR W/PINS BLACK TO-220 |
3,871 | 0.00 |
|
Datasheet |
7 | Box | Obsolete | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 2.500" (63.50mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 9.0W @ 40°C | - | 5.70°C/W | Aluminum | Black Anodized |
|
|
LAT0127B2CBHEATSINK PWR .50"H BLACK TO-220 |
4,983 | 0.00 |
|
Datasheet |
LA-B2 | - | Obsolete | Board Level | TO-127, TO-220 | Bolt On | Rhombus | 1.630" (41.40mm) | 1.290" (32.77mm) | - | 0.500" (12.70mm) | - | - | 15.00°C/W | Aluminum | Black Anodized |
|
|
LBE66B1CBHEATSINK PWR .31"H BLACK TO-220 |
4,304 | 0.00 |
|
Datasheet |
LB-B1 | - | Obsolete | Board Level | TO-126, TO-220 | Bolt On | Rectangular, Fins | 1.400" (35.56mm) | 1.120" (28.45mm) | - | 0.500" (12.70mm) | 1.0W @ 50°C | - | 0.90°C/W | Aluminum | Black Anodized |
|
PA2-1CBHEATSINK LOW PROFILE BLK TO-220 |
1,572 | 0.00 |
|
Datasheet |
PA2 | - | Obsolete | Board Level | TO-126, TO-127, TO-220 | Bolt On | Rectangular, Fins | 0.710" (18.03mm) | 1.000" (25.40mm) | - | 0.310" (7.87mm) | - | - | 30.00°C/W | Aluminum | Black Anodized |
|
PB1ST-69CBHEATSINK VERT W/LOCKTABS TO-220 |
1,949 | 0.00 |
|
- |
- | - | Obsolete | Board Level, Vertical | TO-126, TO-127, TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.330" (33.78mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | - | - | 20.00°C/W | Aluminum | Black Anodized |
|
|
PC1-1CBHEATSINK HORZ .375"H BLK TO-220 |
4,029 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Board Level | TO-126, TO-127, TO-220 | Bolt On | Rectangular, Fins | 0.750" (19.05mm) | 0.750" (19.05mm) | - | 0.375" (9.52mm) | - | - | 27.30°C/W | Aluminum | Black Anodized |
