Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

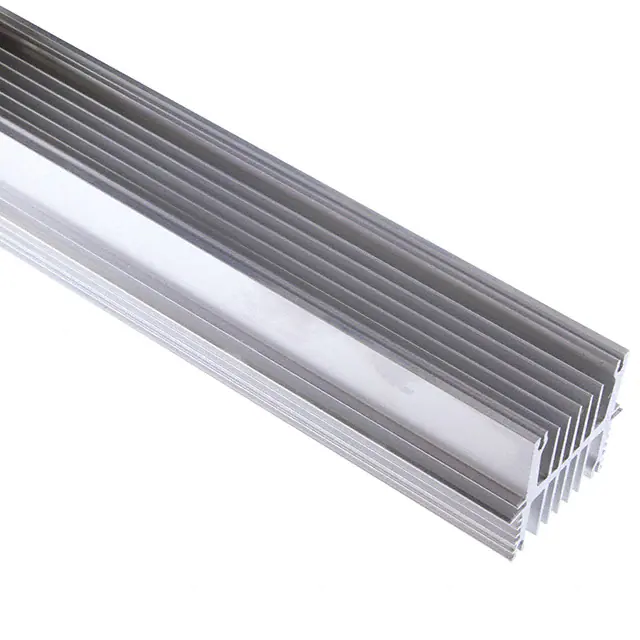

780302F00000G78030 EXTRUSION 2.36X2.9"X4.1' |
2,671 | 120.28 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | - | Rectangular, Pin Fins | 49.500" (1257.30mm) | 2.895" (73.54mm) | - | 2.362" (60.00mm) | - | 0.80°C/W @ 300 LFM | - | Aluminum | - |
|
12544910.25WX36" EXTRUSIO 14236 XX5772 |
3,658 | 306.38 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 10.250" (260.35mm) | - | 2.500" (63.50mm) | - | - | 0.18°C/W | Aluminum | - |
|
24645RBOM FINAL ASSY MINI DEMO BOARD |
1,710 | 300.12 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FMAMC5022AMPLIFIER HEAT SINK FOR RF POWER |
3,536 | 0.00 |
|
Datasheet |
- | Bag | Obsolete | Top Mount | Power Modules | Adhesive | Square, Fins | 7.700" (195.58mm) | 7.700" (195.58mm) | - | 1.310" (33.27mm) | - | - | - | - | - |
|

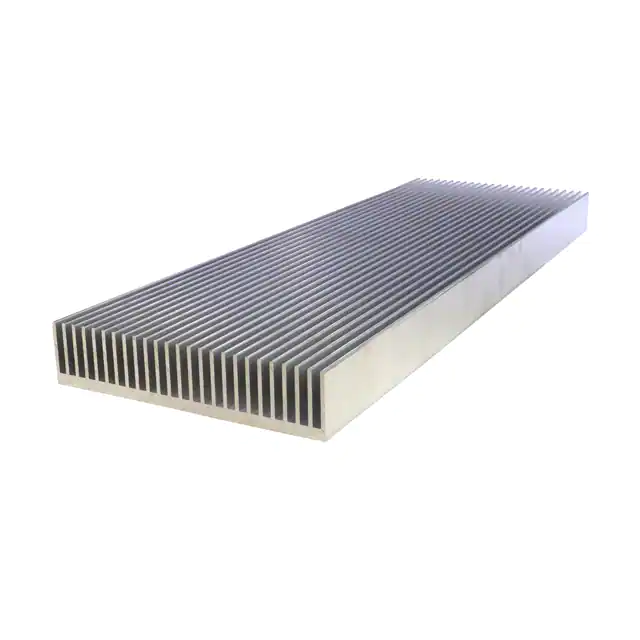

12562011.875WX36" EXTRUSION 17099 |
3,552 | 414.20 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 11.875" (301.63mm) | - | 2.594" (65.89mm) | - | - | 0.10°C/W | Aluminum | - |
|

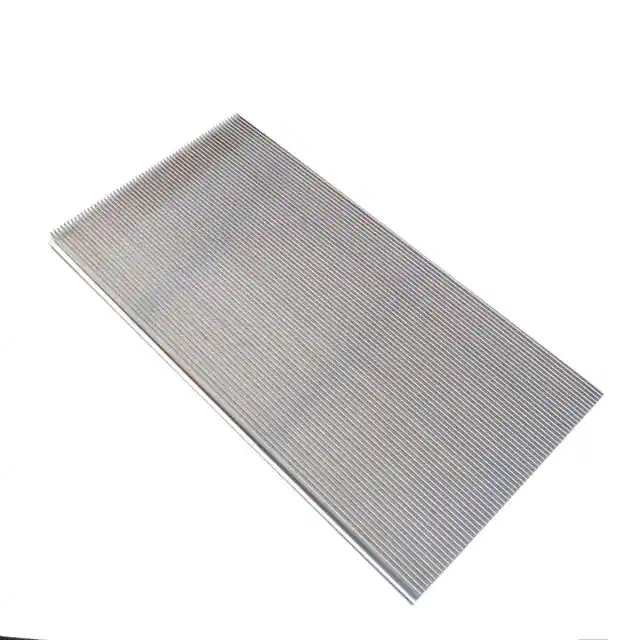

12548219WX36" EXTRUSION XX2016 |
2,150 | 512.59 |
|
Datasheet |
- | Box | Obsolete | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 19.000" (482.60mm) | - | 1.320" (33.53mm) | - | - | 0.16°C/W | Aluminum | - |
|
|
FMAMC5022FAMPLIFIER HEAT SINK WITH FAN FOR |
3,097 | 0.00 |
|
Datasheet |
- | Bag | Active | Top Mount | Power Modules | Bolt On and Thermal Tape, Adhesive (Included) | Rectangular, Fins | 7.380" (187.45mm) | 6.700" (170.18mm) | - | 3.250" (82.55mm) | - | - | - | - | - |
|
|
FMAMC5014HEATSINK FOR AMPLIFIER MODELS FM |
4,036 | 0.00 |
|
Datasheet |
- | Bag | Active | Top Mount | Power Modules | Bolt On, Thermal Material | Square, Fins | 3.937" (100.00mm) | 3.937" (100.00mm) | - | 1.575" (40.00mm) | - | - | - | Aluminum | Black Anodized |
|

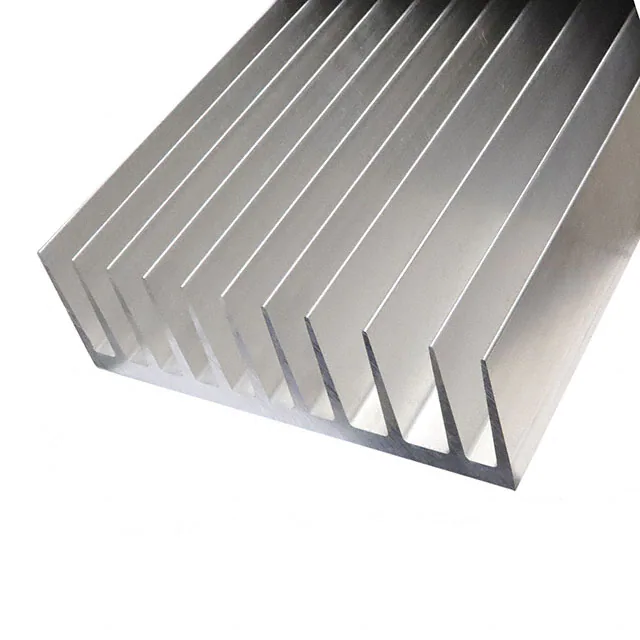

12546110.78WX36" EXTRUSION XX4559 |
1,888 | 473.91 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 10.780" (273.81mm) | - | 3.770" (95.76mm) | - | - | 0.13°C/W | Aluminum | - |
|
|
622851F00000HEAT SINK BAR |
4,333 | 568.13 |
|
Datasheet |
- | Bag | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 47.244" (1200.00mm) | 6.750" (171.45mm) | - | 1.630" (41.40mm) | - | 0.65°C/W @ 200 LFM | - | Aluminum | Unfinished |
|
|
FMAMC5013AMPLIFIER HEAT SINK FOR MOST RF |
3,003 | 0.00 |
|
Datasheet |
- | Bag | Active | Top Mount | Power Modules | Adhesive | Rectangular, Fins | 8.000" (203.20mm) | 5.710" (145.03mm) | - | 1.790" (45.47mm) | - | - | - | - | - |
|
|
FMAMG5060FHEATSINK FOR AMPLIFIER MODELS FM |
1,016 | 0.00 |
|
Datasheet |
- | Bag | Obsolete | Top Mount with Fan | Power Modules | Bolt On, Thermal Material | Rectangular, Fins | 5.910" (150.11mm) | 5.040" (128.02mm) | - | 2.760" (70.10mm) | - | - | - | Aluminum | - |
|
|
FMAMG5069FHEATSINK FOR AMPLIFIER MODELS FM |
3,072 | 0.00 |
|
Datasheet |
- | Bag | Active | Top Mount with Fan | Power Modules | Bolt On | Rectangular, Fins | 8.660" (219.96mm) | 7.362" (186.99mm) | - | 3.900" (99.06mm) | - | - | - | Aluminum | - |
|
|
FMAMG5068FHEATSINK FOR AMPLIFIER MODELS FM |
3,313 | 0.00 |
|
- |
- | Bag | Obsolete | Top Mount with Fan | Power Modules | Bolt On, Thermal Material | Rectangular, Fins | 8.660" (219.96mm) | 5.910" (150.00mm) | - | 3.900" (99.06mm) | - | - | - | Aluminum | - |
|
|
476600U02200GBFIN,476600U02200G |
2,350 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
568003B00000GHEATSINK TO-3 0.5"17 WATTS |
4,810 | 6.52 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-3 | Bolt On | Square | 1.810" (45.97mm) | 1.810" (45.97mm) | - | 0.500" (12.70mm) | 5.0W @ 50°C | 1.50°C/W @ 400 LFM | 8.00°C/W | Aluminum | Black Anodized |
|

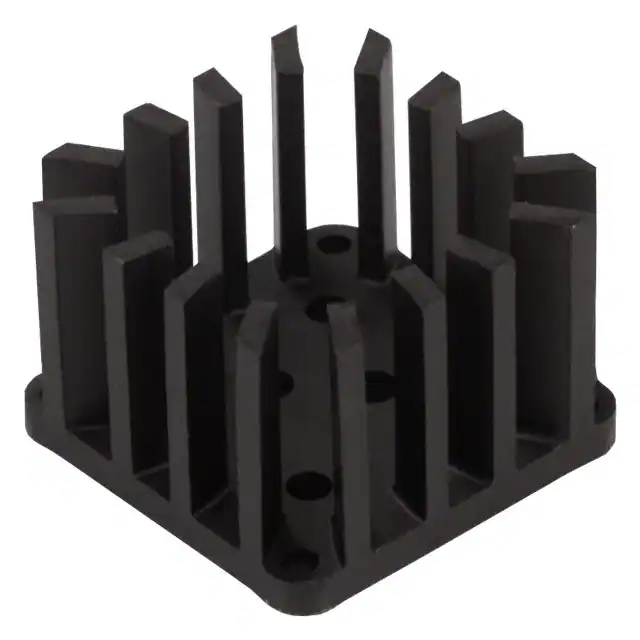

568303B00000GHEATSINK TO-3 1.25" 25WATT |
4,003 | 6.95 |
|
Datasheet |
- | Bulk | Obsolete | Board Level | TO-3 | Bolt On | Square | 1.810" (45.97mm) | 1.810" (45.97mm) | - | 1.250" (31.75mm) | 5.0W @ 30°C | 2.50°C/W @ 200 LFM | 5.40°C/W | Aluminum | Black Anodized |
|

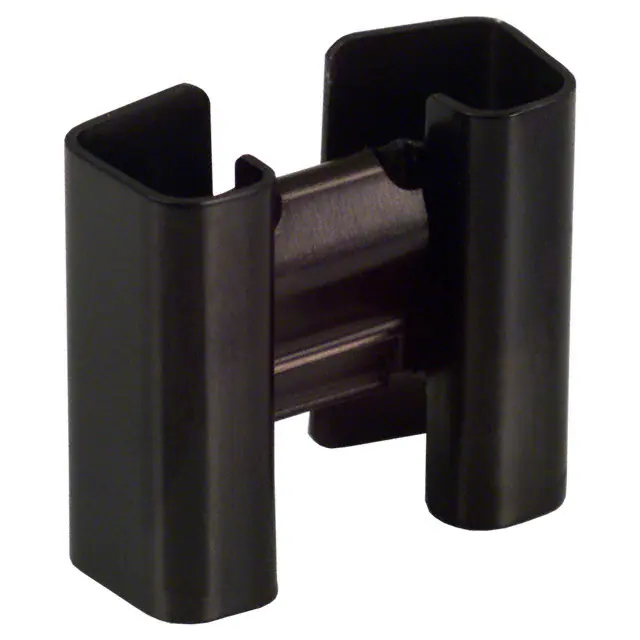

574204B00000GHEATSINK TO-202 CLIP-ON 5W |
4,582 | 2.39 |
|
Datasheet |
- | Bag | Active | Board Level | TO-202 | Clip | Rectangular | 0.900" (22.86mm) | 1.020" (25.91mm) | - | 0.420" (10.67mm) | 1.0W @ 20°C | 8.00°C/W @ 200 LFM | 16.80°C/W | Aluminum | Black Anodized |
|
|
580300B00000GHEATSINK 18-DIP BLK ANODIZED |
1,905 | 0.00 |
|
Datasheet |
- | Bag | Active | Top Mount | 18-DIP | Press Fit, Slide On | Rectangular, Fins | 1.125" (28.58mm) | 0.700" (17.78mm) | - | 0.556" (14.12mm) | 2.0W @ 60°C | 20.00°C/W @ 200 LFM | 39.00°C/W | Aluminum | Black Anodized |
|

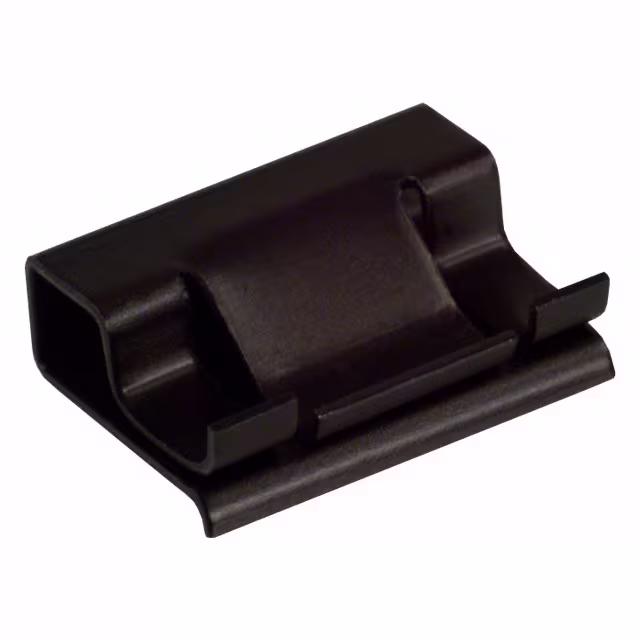

574004B00000GHEATSINK TO-202 CLIP-ON .58" BK |
2,778 | 2.12 |
|
Datasheet |
- | Bag | Active | Board Level | TO-202 | Clip | Rectangular | 0.800" (20.32mm) | 0.577" (14.66mm) | - | 0.250" (6.35mm) | 1.0W @ 30°C | 4.00°C/W @ 600 LFM | 28.00°C/W | Aluminum | Black Anodized |
