Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
392-180AGHEATSINK EXTRUSION IGBT/SSR BLK |
4,931 | 147.74 |
|
Datasheet |
392 | Bulk | Active | Top Mount | Power Modules | Press Fit | Rectangular, Fins | 7.087" (180.01mm) | 4.921" (124.99mm) | - | 5.346" (135.79mm) | - | 0.10°C/W @ 100 LFM | 0.43°C/W | Aluminum | Gold Iridite |
|
1256497.375WX36" EXTRUSIO 15817 XX5113 |
3,112 | 159.85 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 7.375" (187.33mm) | - | 3.136" (79.65mm) | - | - | 0.17°C/W | Aluminum | - |
|
|
1963872-1HEATSINK, 100 GIG PLUGGABLE |
3,768 | 182.80 |
|
- |
* | Bag | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

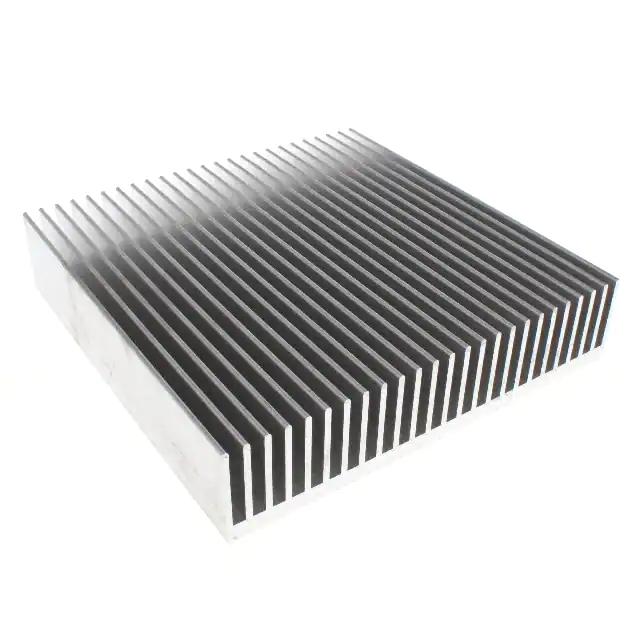

12561911.875WX12" EXTRUSION 17099 |
4,504 | 145.26 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 11.875" (301.63mm) | - | 2.594" (65.89mm) | - | - | 0.10°C/W | Aluminum | - |
|
|
V5435APROFILE HEATSINK |
2,216 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1963856-2CFP HS KIT STS AIRFLOW, 22 FIN, |
4,567 | 0.00 |
|
Datasheet |
- | Bulk | Active | Board Level | - | Push Pin | Rectangular, Fins | 0.453" (11.51mm) | 3.370" (85.60mm) | - | 0.404" (10.27mm) | - | - | - | Aluminum | - |
|

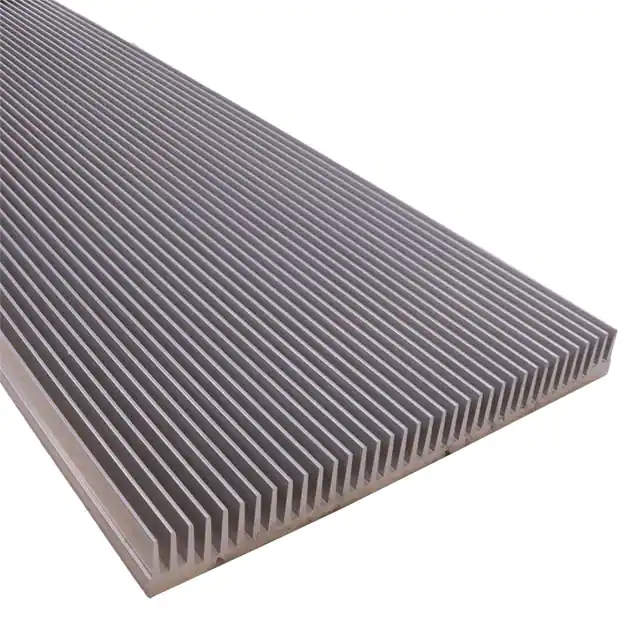

12557810.827WX36" EXTRUSION 19572 |
3,187 | 176.92 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 10.827" (275.01mm) | - | 1.220" (31.00mm) | - | - | 0.21°C/W | Aluminum | - |
|

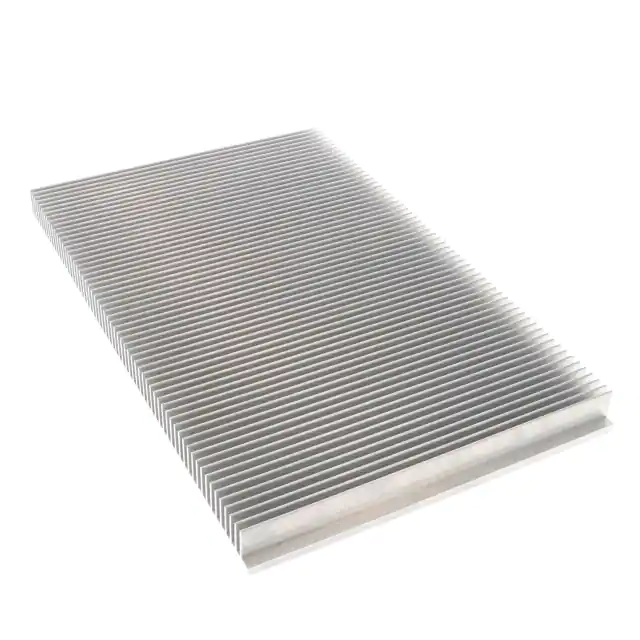

125481HEATSINK 12X19" EXTRUSION |
1,236 | 186.41 |
|
Datasheet |
- | Box | Obsolete | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 19.000" (482.60mm) | - | 1.320" (33.53mm) | - | - | 0.16°C/W | Aluminum | - |
|

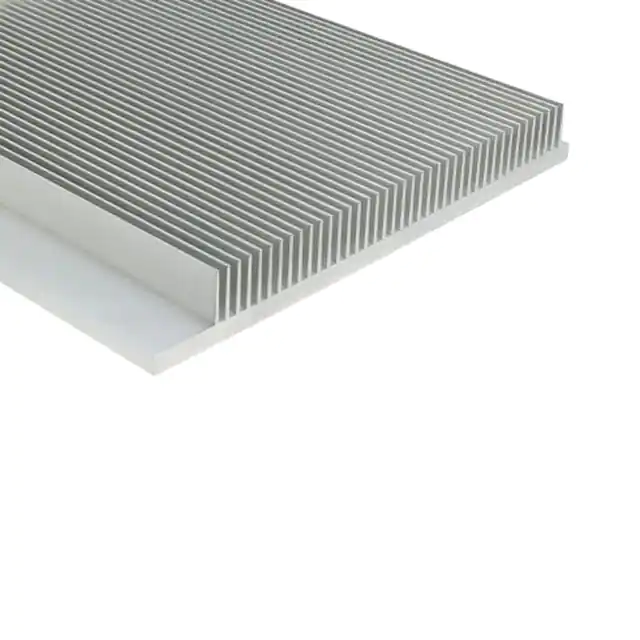

12565311WX36" EXTRUSION 19584 |
3,619 | 190.64 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 11.000" (279.40mm) | - | 1.375" (34.93mm) | - | - | 0.36°C/W | Aluminum | - |
|
|
ATS-EXL6-1220-R0HEATSINK AL6063 1220X100.76X27MM |
1,386 | 175.98 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 3.967" (100.76mm) | - | 1.063" (27.00mm) | - | 0.70°C/W @ 200 LFM | 7.90°C/W | Aluminum | Degreased |
|
|
V5435BPROFILE HEATSINK |
3,073 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
392-300AGHI-POWER HEATSINK SSR/IGBT/POWER |
2,208 | 190.12 |
|
Datasheet |
392 | Bulk | Active | Top Mount | Power Modules | Press Fit | Rectangular, Fins | 11.811" (300.00mm) | 4.921" (124.99mm) | - | 5.346" (135.79mm) | - | 0.10°C/W @ 100 LFM | 0.33°C/W | Aluminum | Gold Iridite |
|

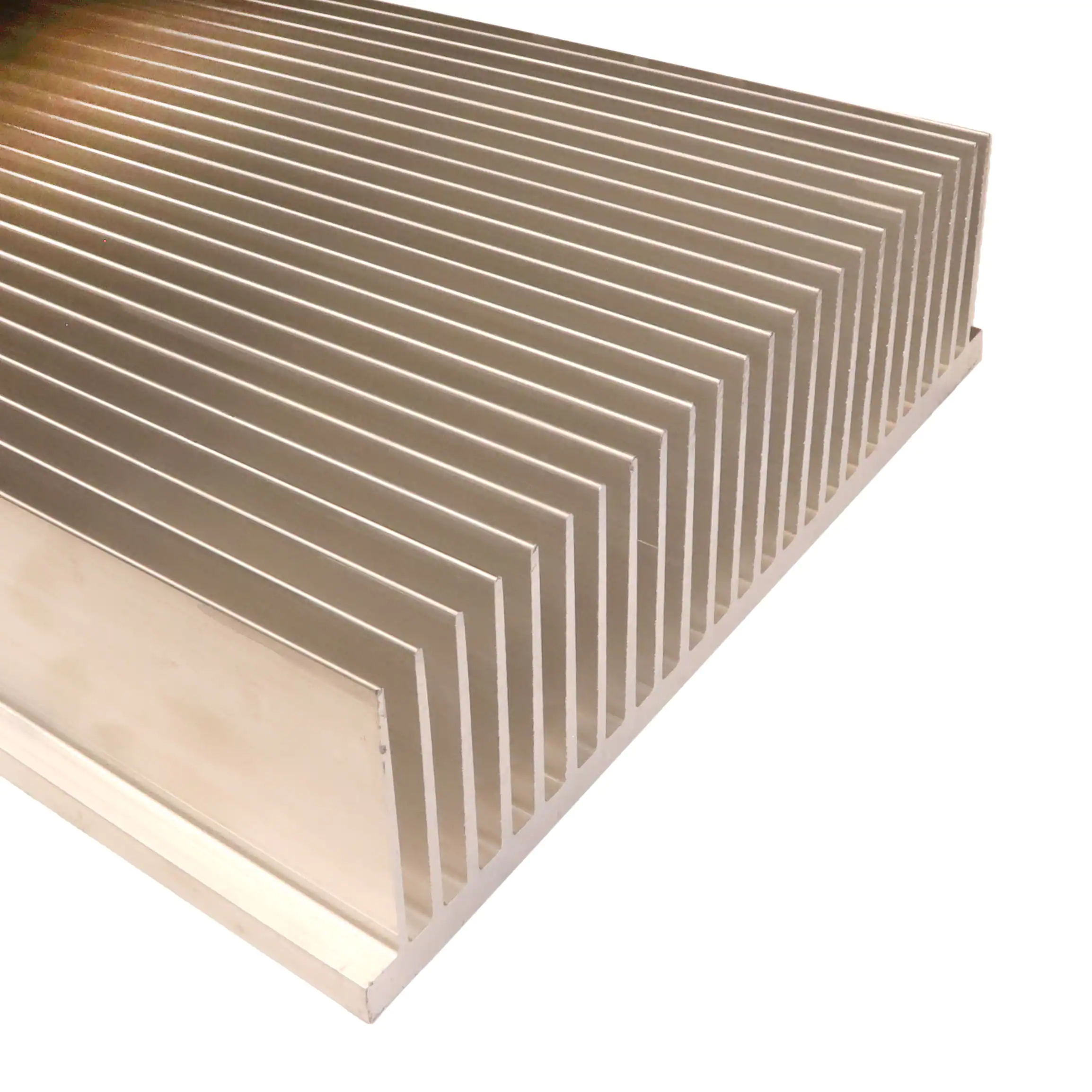

12557210.08WX36" EXTRUSION 21052 |
4,823 | 234.17 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 10.080" (256.03mm) | - | 2.905" (73.79mm) | - | - | 0.13°C/W | Aluminum | - |
|
ATS-EXL120-1220-R0PCIE EXTRUSION PROFILE, AL6063 |
4,491 | 227.16 |
|
Datasheet |
- | Bulk | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 3.150" (80.00mm) | - | 0.551" (14.00mm) | - | 2.40°C/W @ 200 LFM | 13.00°C/W | Aluminum | Degreased |
|
|
490-12KHEATSINK KING SIZE HIGH PWR RECT |
2,985 | 210.46 |
|
Datasheet |
490 | Bulk | Active | Board Level, Extrusion | Stud Mounted Diode | Press Fit | Rectangular, Fins | 12.000" (304.80mm) | 9.520" (241.81mm) | - | 6.750" (171.45mm) | 200.0W @ 45°C | 0.09°C/W @ 600 LFM | - | Aluminum | Black Anodized |
|
|
V6434BPROFILE HEATSINK |
4,453 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ATS-EXL76-1220-R0HEATSINK AL6063 1220X93.4X40MM |
4,310 | 229.20 |
|
Datasheet |
- | Box | Obsolete | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 48.032" (1220.00mm) | 3.677" (93.40mm) | - | 1.575" (40.00mm) | - | 0.50°C/W @ 200 LFM | 5.20°C/W | Aluminum | Degreased |
|

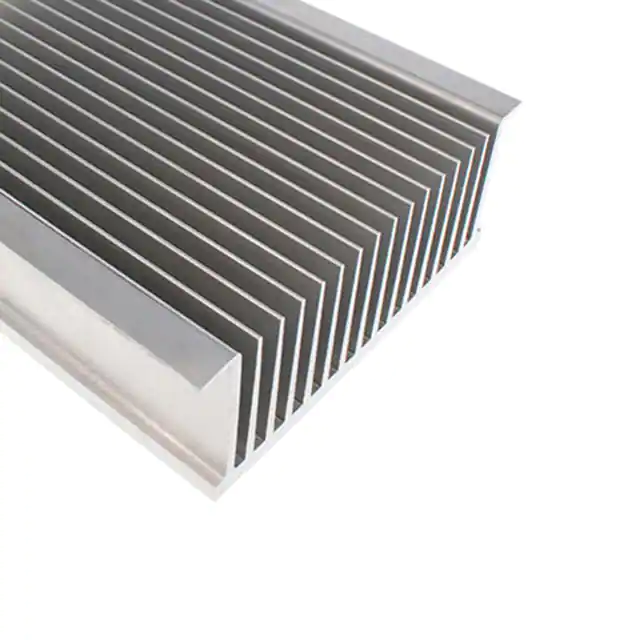

1256027.574WX36" EXTRUSION 21910 |
3,190 | 205.80 |
|
Datasheet |
- | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 36.000" (914.40mm) | 7.574" (192.38mm) | - | 3.150" (80.00mm) | - | - | 0.16°C/W | Aluminum | - |
|
|
V5436A39PROFILE HEATSINK |
2,024 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V5436APROFILE HEATSINK |
3,548 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
