Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPC303050WTCERAMIC HEAT SINK - WAVE TYPE |
790 | 1.61 |
|
Datasheet |
MPC | Bulk | Active | Top Mount | - | - | Square | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.211" (5.37mm) | - | - | - | Ceramic | - |
|
|
MPC404025TCERAMIC HEAT SINK - FLAT TYPE |
146 | 1.67 |
|
Datasheet |
MPC | Bulk | Active | Top Mount | - | - | Square | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.108" (2.75mm) | - | - | - | Ceramic | - |
|
|
MBA14001-11L/1.7YAL HEAT SINK 14X14X11MM WITH LIN |
217 | 0.00 |
|
Datasheet |
MBA | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 0.551" (14.00mm) | 0.551" (14.00mm) | - | 0.354" (9.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
EBH27001-10 REV.BAL HEAT SINK 27X27X10MM WITH EXT |
178 | 0.00 |
|
- |
EBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.276" (7.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
M48098B011000GMAX CLIP HEATSINK |
860 | 1.68 |
|
Datasheet |
Max Clip System™ | Bulk | Active | Board Level, Vertical | TO-126, TO-220, TO-247 | Clip and PC Pin | Rectangular, Angled Fins | 0.980" (24.89mm) | 0.866" (22.00mm) | - | 1.516" (38.50mm) | - | - | - | Aluminum | Black Anodized |
|
SAR55ASX70MMEXTRUDED HEATSINK 55MM X 70MM |
500 | 1.85 |
|
Datasheet |
55A | Box | Active | Board Level | TO-220 | PC Pin | Rectangular, Fins | 2.756" (70.00mm) | 2.165" (55.00mm) | - | 0.630" (16.00mm) | - | - | - | Aluminum | Black Anodized |
|

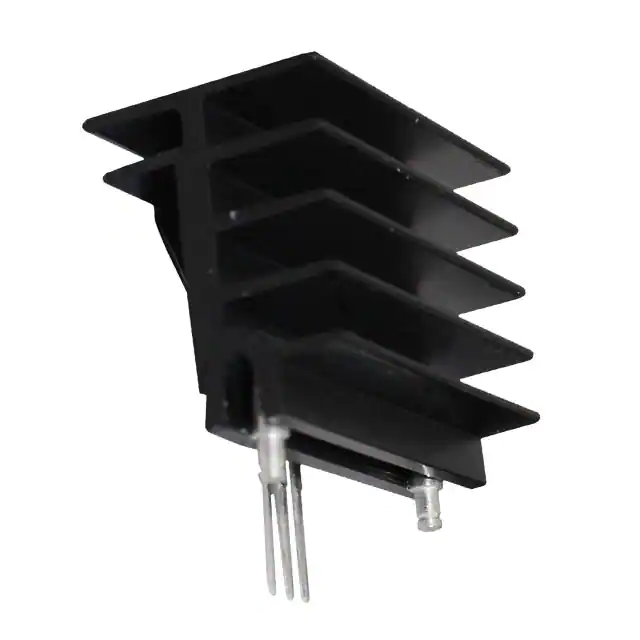

M49138B021000GMAX CLIP HEATSINK |
733 | 1.80 |
|
Datasheet |
Max Clip System™ | Bulk | Active | Board Level, Vertical | TO-126, TO-220, TO-247 | Clip and PC Pin | Rectangular, Fins | 1.380" (35.05mm) | 0.866" (22.00mm) | - | 1.260" (32.00mm) | - | - | - | Aluminum | Black Anodized |
|
CS9461020B*10X10X20MM |
732 | 1.87 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBH15001-10L/2.0AL HEAT SINK 15X15X10MM |
147 | 0.00 |
|
Datasheet |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 0.591" (15.01mm) | 0.591" (15.00mm) | - | 0.295" (7.50mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBH17002-7P/1.717X17X6.7MM |
224 | 0.00 |
|
Datasheet |
MBH | Tray | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.378" (35.00mm) | 0.669" (17.00mm) | - | 0.670" (17.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
M49165B021000GMAX CLIP HEATSINK |
488 | 1.98 |
|
Datasheet |
Max Clip System™ | Bulk | Active | Board Level, Vertical | TO-126, TO-220, TO-247 | Clip and PC Pin | Rectangular, Fins | 1.650" (41.91mm) | 0.866" (22.00mm) | - | 1.260" (32.00mm) | - | - | - | Aluminum | Black Anodized |
|
|
MBH15001-15L/2.5AL HEAT SINK 15X15X15MM |
140 | 0.00 |
|
Datasheet |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Pin Fins | 0.551" (14.00mm) | 0.551" (14.00mm) | - | 0.472" (12.00mm) | - | - | - | Copper | - |
|

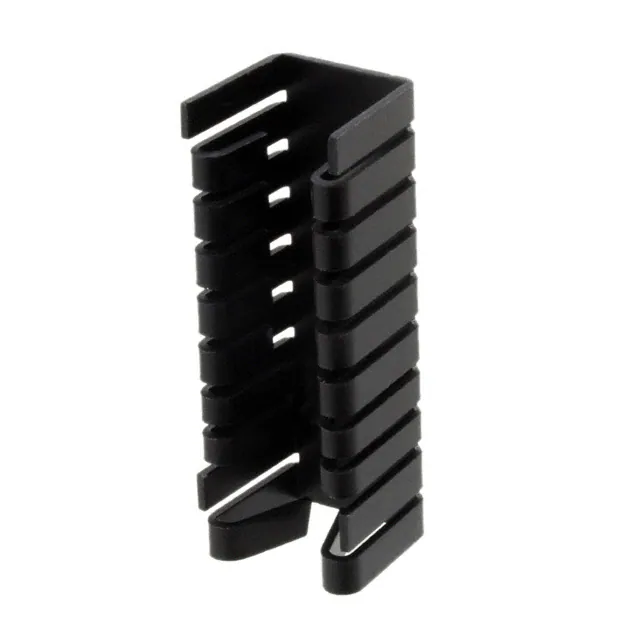

573902B00000GHEATSINK TO-220 BLACK CLIP-ON |
1,524 | 2.54 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-220 | Clip | Rectangular, Fins | 1.500" (38.10mm) | 0.500" (12.70mm) | - | 0.500" (12.70mm) | 3.0W @ 60°C | 7.00°C/W @ 200 LFM | 18.80°C/W | Aluminum | Black Anodized |
|
CS8672510B025X25X10MM |
172 | 2.17 |
|
- |
CS86 | Box | Active | Top Mount | - | Push Pin | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 9.72°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

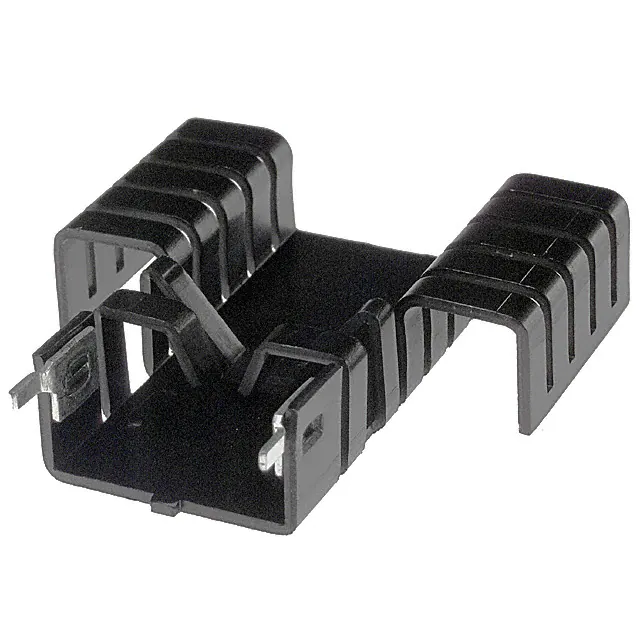

592201B03400GHEAT SINK TO-218 12W SPRING ACT |
3,588 | 2.56 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-218 | Clip and PC Pin | Rectangular, Fins | 1.970" (50.04mm) | 1.950" (49.53mm) | - | 0.500" (12.70mm) | 4.0W @ 30°C | 1.00°C/W @ 500 LFM | 6.80°C/W | Aluminum | Black Anodized |
|
PRT01345-127742127742 CUSTOM |
3,080 | 0.00 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MBH17001-12W/2.5AL HEAT SINK 17X17X12MM |
187 | 0.00 |
|
Datasheet |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 0.591" (15.01mm) | 0.591" (15.00mm) | - | 0.472" (12.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBH17001-11W/2.3AL HEAT SINK 17X17X11MM |
187 | 0.00 |
|
Datasheet |
MBH | Tray | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.433" (11.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
HBH22031-1021.5X21.8X9.5MM |
150 | 0.00 |
|
Datasheet |
HBH | Tray | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.866" (22.00mm) | 0.866" (22.00mm) | - | 0.315" (8.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
HBH25031-05AL HEAT SINK 25X25X5MM WITH LINE |
136 | 0.00 |
|
- |
HBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.130" (3.30mm) | - | - | - | Aluminum Alloy | Black Anodized |
