Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CS9463520BM35X35X20MM, T412 |
577 | 3.46 |
|
- |
CS94 | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.787" (20.00mm) | - | 2.15°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P1-137-C2-R0HEATSINK 25X25X10MM L-TAB T766 |
360 | 4.86 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 18.36°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
CS8674010B040X40X10MM |
705 | 3.61 |
|
- |
CS86 | Box | Active | Top Mount | - | Push Pin | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum | Black Anodized |
|
|
MBH45001-15W/2.6AL HEAT SINK 45X45X15MM |
447 | 0.00 |
|
Datasheet |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.472" (12.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
CS9463520BP35X35X20MM, T411 |
263 | 3.61 |
|
- |
CS94 | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.787" (20.00mm) | - | 2.68°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
CS9464020BM40X40X20MM, T412 |
613 | 3.76 |
|
- |
CS94 | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.787" (20.00mm) | - | 1.79°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
537-45ABHEATSINK DC/DC QUARTER BRICK |
999 | 3.65 |
|
Datasheet |
537 | Bulk | Active | Top Mount | Quarter Brick DC/DC Converter | Bolt On, Thermal Material | Rectangular, Fins | 2.280" (57.91mm) | 1.450" (36.83mm) | - | 0.450" (11.43mm) | - | 2.30°C/W @ 300 LFM | - | Aluminum | Black Anodized |
|
|
PM10-01 REV.ASINTERED W-CU HEAT SPREADER/THER |
258 | 0.00 |
|
Datasheet |
PM | Bag | Obsolete | - | - | - | Square | 0.394" (10.00mm) | 0.394" (10.00mm) | - | - | - | - | - | Copper Tungsten | Gold Plating |
|
|
CS8673710B137.4X37.4 X10MM, INTERFACE MATER |
511 | 3.91 |
|
- |
CS86 | Box | Active | Top Mount | - | Push Pin, Thermal Material | Square, Pin Fins | 1.472" (37.39mm) | 1.472" (37.39mm) | - | 0.394" (10.00mm) | 3.0W @ 70°C | 0.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-01F-140-C2-R0HEATSINK 25X25X25MM L-TAB T766 |
301 | 5.57 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.984" (25.00mm) | - | 7.28°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

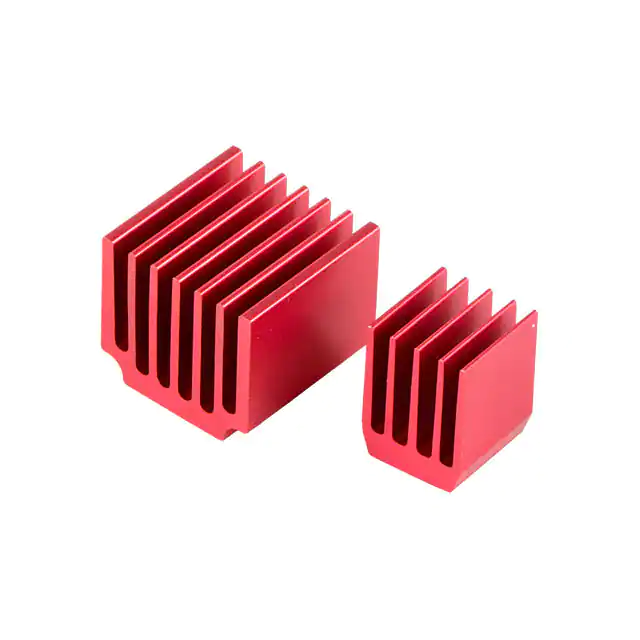

RPIHS-02RASPBERRY PI TALL FIN HEAT SINK |
281 | 3.95 |
|
Datasheet |
- | Retail Package | Active | Top Mount | Raspberry Pi | Thermal Tape, Adhesive (Included) | Square, Fins | - | - | - | - | - | - | - | Aluminum | - |
|
|
UNI-H19051-12W/2.6BUAL HEAT SINK 19X19X12MM WITH ELL |
176 | 0.00 |
|
Datasheet |
UNI-H19051 | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.354" (9.00mm) | - | 6.37°C/W @ 200 LFM | 14.77°C/W | Aluminum Alloy | Black Anodized |
|
|
UNI-H19052-12P/2.6BUAL HEAT SINK 19X19X12MM WITH PIN |
172 | 0.00 |
|
Datasheet |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.354" (9.00mm) | - | 6.6°C/W @ 200 LFM | 12.74°C/W | Aluminum Alloy | Black Anodized |
|
|
CS8672510B125X25X10MM WITH INTERFACE MATERI |
634 | 4.00 |
|
- |
CS86 | Box | Active | Top Mount | - | Push Pin, Thermal Material | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 9.86°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ALB-821AS-200.827'' (21mm) Wide Heatsink |
491 | 0.00 |
|
Datasheet |
ALB-821AS | Retail Package | Active | Top Mount | - | Thermal Tape, Adhesive (Not Included) | Rectangular, Fins | 20.000" (508.00mm) | 0.827" (21.00mm) | - | 0.295" (7.50mm) | - | - | 9.62°C/W | Aluminum Alloy | Unfinished |
|

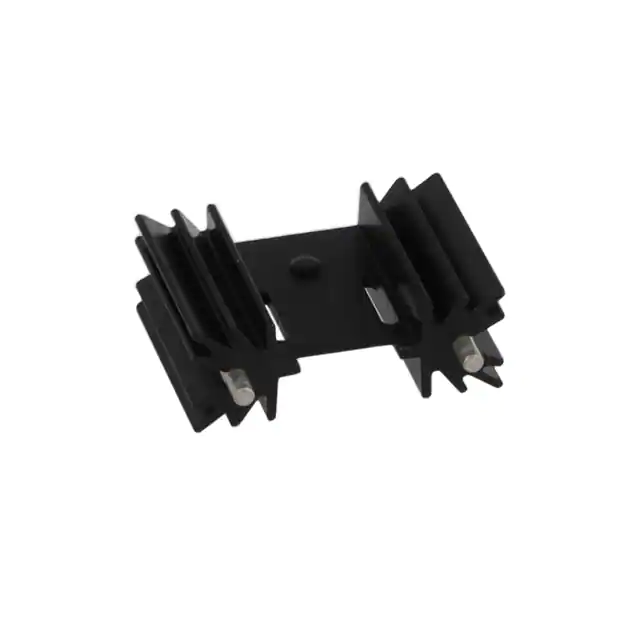

533802B02500GBOARD LEVEL HEAT SINK |
2,464 | 5.04 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 3.0W @ 50°C | 4.00°C/W @ 700 LFM | 13.00°C/W | Aluminum | Black Anodized |
|

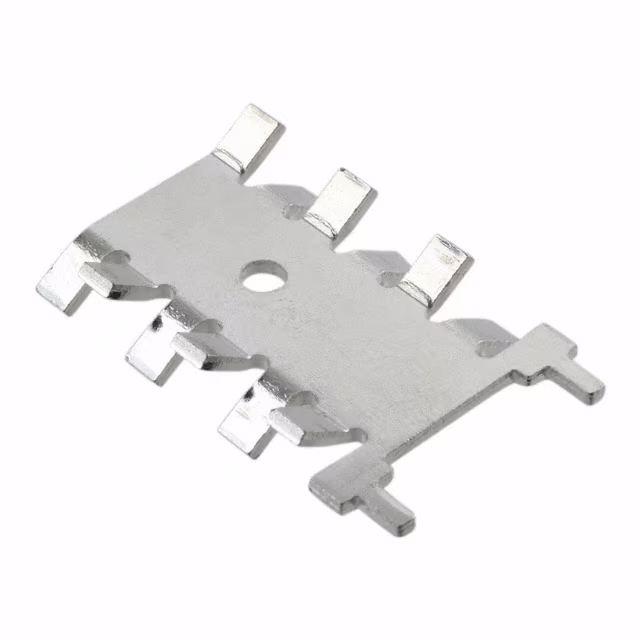

542502D00000GHEATSINK TO-220 TAB TIN |
7,936 | 1.08 |
|
Datasheet |
- | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.250" (31.75mm) | 0.875" (22.22mm) | - | 0.250" (6.35mm) | 2.5W @ 60°C | 4.00°C/W @ 700 LFM | 24.00°C/W | Aluminum | Tin |
|
|
UNI-H21052-12P/2.6BUAL HEAT SINK 21X21X12MM WITH PIN |
264 | 0.00 |
|
Datasheet |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.354" (9.00mm) | - | 6.16°C/W @ 200 LFM | 12.4°C/W | Aluminum Alloy | Black Anodized |
|
|
UNI-H19051-21W/2.6Y A1AL HEAT SINK 19X19X21MM WITH ELL |
222 | 0.00 |
|
Datasheet |
UNI-H19051 | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.709" (18.00mm) | - | 508°C/W @ 200 LFM | 12.46°C/W | Aluminum Alloy | Black Anodized |
|
|
UNI-H19052-23P/2.6BUAL HEAT SINK 19X19X23MM WITH PIN |
175 | 0.00 |
|
Datasheet |
Uni-Holder Elliptical Fin | Tray | Active | Top Mount | BGA | Clip | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.787" (20.00mm) | - | 5.36°C/W @ 200 LFM | 10.55°C/W | Aluminum Alloy | Black Anodized |
