Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MBH33002-25P/2.6AL HEAT SINK 33X33X25MM WITH PIN |
180 | 0.00 |
|
- |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Pin Fins | 1.299" (33.00mm) | 1.299" (33.00mm) | - | 0.866" (22.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBH25001-15W/2.6AL HEAT SINK 25X25X15MM |
171 | 0.00 |
|
Datasheet |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.709" (18.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBH27001-17W/2.3AL HEAT SINK 27X27X17MM WITH ELL |
170 | 0.00 |
|
- |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.590" (15.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBH27001-6LT/2.0AL HEAT SINK 27X27X6MM WITH LINE |
146 | 0.00 |
|
- |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.157" (4.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBA4436-12P/2.0 A2AL HEAT SINK 44X36X12MM WITH PIN |
126 | 0.00 |
|
Datasheet |
MBA4436-12P | Tray | Active | Top Mount | BGA | Clip | Rectangular, Pin Fins | 1.732" (44.00mm) | 1.417" (36.00mm) | - | 0.378" (9.60mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
CS9462520BM25X25X20MM, T412 |
534 | 2.74 |
|
- |
CS94 | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.787" (20.00mm) | - | 3.5°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
CS9462320BP23X23X20MM, T411 |
852 | 2.80 |
|
- |
CS94 | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.906" (23.00mm) | 0.906" (23.00mm) | - | 0.787" (20.00mm) | - | 5.73°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
CS9462520BP25X25X20MM, T411 |
130 | 2.80 |
|
- |
CS94 | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.787" (20.00mm) | - | 4.55°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
MBH25001-21W/2.8AL HEAT SINK 25X25X21MM |
175 | 0.00 |
|
Datasheet |
MBH | Tray | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.787" (19.99mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
552703B00000BOARD LEVEL HEAT SINK |
4,845 | 1.86 |
|
Datasheet |
- | Bulk | Active | Board Level | TO-3 | Bolt On | Square, Fins | 1.780" (45.21mm) | 1.780" (45.21mm) | - | 0.470" (11.94mm) | 3.0W @ 40°C | 3.00°C/W @ 400 LFM | 9.40°C/W | Aluminum | Black Anodized |
|
|
ALB-821AS-150.827'' (21mm) Wide Heatsink |
485 | 0.00 |
|
Datasheet |
ALB-821AS | Retail Package | Active | Top Mount | - | Thermal Tape, Adhesive (Not Included) | Rectangular, Fins | 15.000" (381.00mm) | 0.827" (21.00mm) | - | 0.295" (7.50mm) | - | - | 9.62°C/W | Aluminum Alloy | Unfinished |
|
|
CS9463510BP35X35X10MM, T411 |
152 | 3.01 |
|
- |
CS94 | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 2.15°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
MBH19001-3LT/2.0AL HEAT SINK 19X19X3MM |
423 | 0.00 |
|
Datasheet |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.079" (2.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBH30001-6LT/2.0AL HEAT SINK 30X30X6MM |
146 | 0.00 |
|
Datasheet |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 1.165" (29.60mm) | 1.165" (29.60mm) | - | 0.157" (4.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|

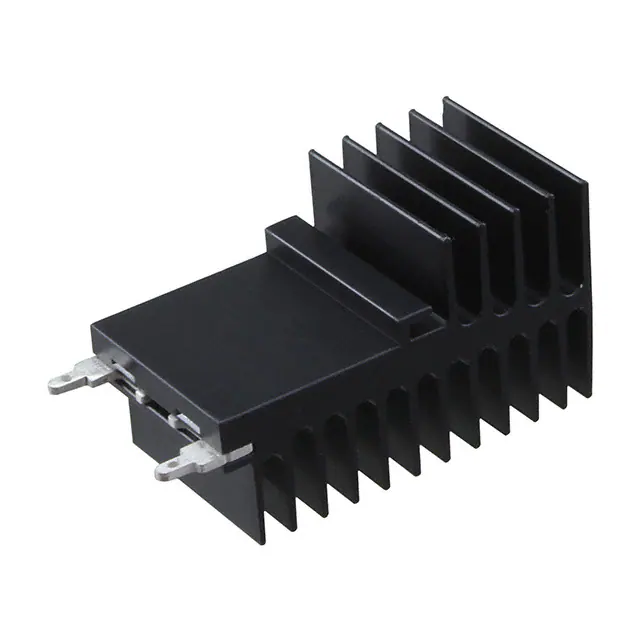

OMNI-UNI-27-25HEATSINK TO-247 TO-264 TO-220 |
551 | 3.15 |
|
Datasheet |
OmniKlip™ | Bulk | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 0.984" (25.00mm) | 1.063" (27.00mm) | - | 1.969" (50.00mm) | - | - | - | Aluminum | Black Anodized |
|

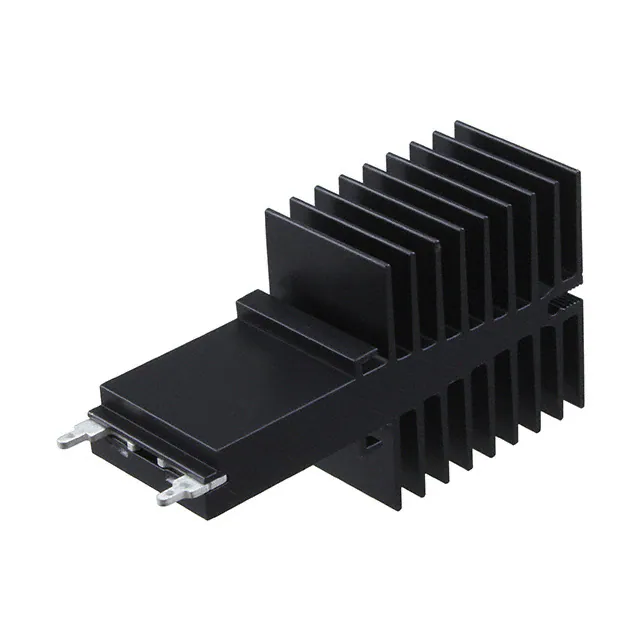

OMNI-UNI-40-25-DHEATSINK TO-247 TO-264 TO-220 |
1,209 | 4.68 |
|
Datasheet |
OmniKlip™ | Bulk | Active | Board Level, Vertical | TO-220, TO-247, TO-264 | Clip, Solder Foot | Rectangular, Fins | 0.984" (25.00mm) | 1.575" (40.00mm) | - | 2.953" (75.00mm) | - | - | - | Aluminum | Black Anodized |
|
CS86720095B120X20X9.5MM WITH INTERFACE MATER |
1,168 | 3.40 |
|
- |
CS86 | Box | Active | Top Mount | - | Push Pin, Thermal Material | Square, Pin Fins | 0.787" (20.00mm) | 0.787" (20.00mm) | - | 0.374" (9.50mm) | - | 9.84°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
CS9464020BP40X40X20MM, T411 |
196 | 3.41 |
|
- |
CS94 | Box | Active | Top Mount | - | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.787" (20.00mm) | - | 2.2°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
MBH19001-13LF/2.5AL HEAT SINK 19X19X13MM |
224 | 0.00 |
|
Datasheet |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.394" (10.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
MBH19001-10LF/2.0AL HEAT SINK 19X19X10MM |
157 | 0.00 |
|
- |
MBH | Tray | Active | Top Mount | BGA | Clip, Thermal Tape, Adhesive (Not included) | Square, Fins | 0.669" (17.00mm) | 0.669" (17.00mm) | - | 0.354" (9.00mm) | - | - | - | Aluminum Alloy | Black Anodized |
