TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF05C.TCTTVS DIODE 5VWM 12.5VC SC70-6 |
32,451 | 0.79 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | SMF | Tape & Reel (TR) | Active | Zener | 5 | - | 5V (Max) | 6V | 12.5V | 8A (8/20µs) | 100W | No | General Purpose | 130pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
RCLAMP0542T.TCTTVS DIODE 5VWM 15VC SLP1610P4T |
26,045 | 0.79 |
|
Datasheet |
6-UFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6.5V | 15V | 5A (8/20µs) | 75W | Yes | Ethernet, HDMI | 0.45pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1610P4T |
.jpg)
|
5.0SMLJ36CA-TPTVS DIODE 36VWM 58.1VC DO214AB |
15,901 | 1.83 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 86.1A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SMDJ51CATVS DIODE 51VWM 82.4VC DO214AB |
5,918 | 1.46 |
|
Datasheet |
DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 51V | 56.7V | 82.4V | 36.41A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|

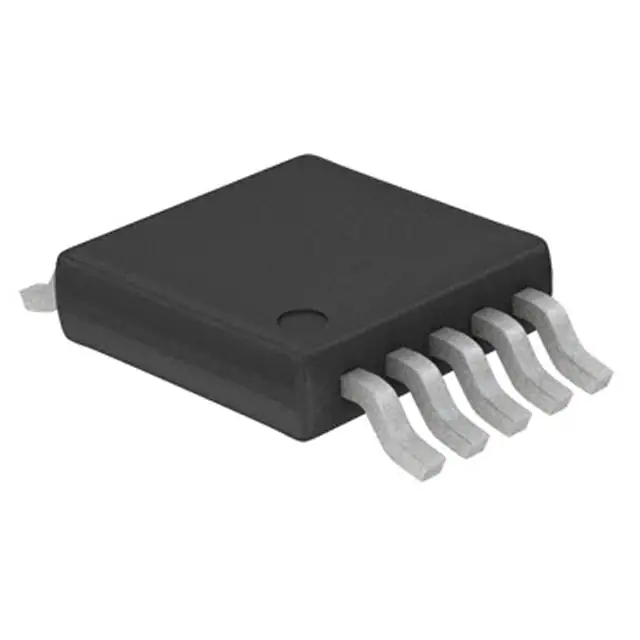

SP4065-08ATGTVS DIODE 3.3VWM 13.5VC 10MSOP |
5,423 | 1.42 |
|
Datasheet |
10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | SP4065, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 3.3V (Max) | - | 13.5V (Typ) | 20A (8/20µs) | 300W | Yes | - | - | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 10-MSOP |
|
824014TVS DIODE 5VWM 8.2VC SOT23-6 |
1,991 | 1.35 |
|
Datasheet |
SOT-23-6 | WE-TVS | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 8.2V (Typ) | 4A (8/20µs) | - | Yes | HDMI | - | -55°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
|
SMDJ100CATVS DIODE 100VWM 162VC DO214AB |
576 | 1.46 |
|
Datasheet |
DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 100V | 111V | 162V | 18.52A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
LC03-6R2GTVS DIODE 5VWM 20VC 8-SOIC |
1,475 | 1.25 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V | 6.8V | 20V | 100A (8/20µs) | 2000W (2kW) | No | General Purpose | 16pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SMLJ78CATVS DIODE 78VWM 126VC SMC |
13,642 | 1.31 |
|
Datasheet |
DO-214AB, SMC | SMLJ | Tape & Reel (TR) | Active | Zener | - | 1 | 78V | 86.7V | 126V | 22.8A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC (DO-214AB) |
|
|
SMLJ48CATVS DIODE 48VWM 77.4VC SMC |
3,106 | 1.31 |
|
Datasheet |
DO-214AB, SMC | SMLJ | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.3V | 77.4V | 38.8A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC (DO-214AB) |
|

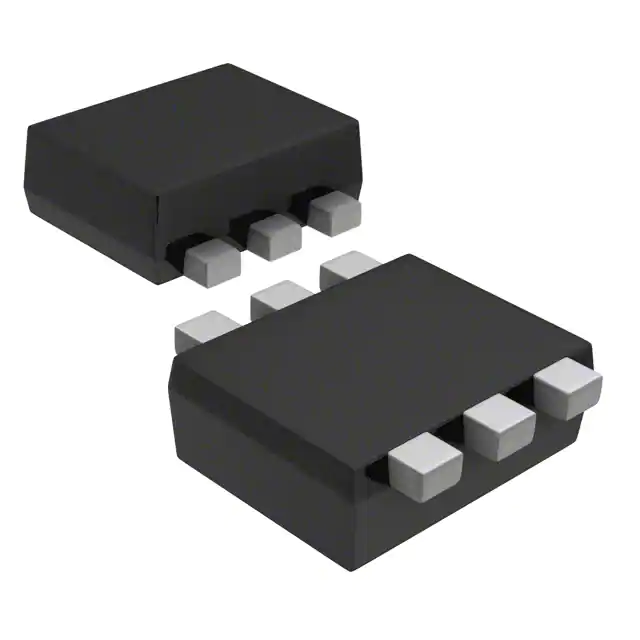

RCLAMP0502A.TCTTVS DIODE 5VWM 18VC SC89 |
322,876 | 0.82 |
|
Datasheet |
SOT-563, SOT-666 | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6V | 18V | 3A (8/20µs) | 50W | Yes | Ethernet, HDMI | 0.9pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SC-89 (SOT-666) |
|
|
UCLAMP3304A.TCTTVS DIODE 3.3VWM 8VC SC89-6 |
82,177 | 0.82 |
|
Datasheet |
SOT-563, SOT-666 | uClamp® | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | 3.5V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 22pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SC-89 (SOT-666) |
|
UCLAMP0571P.TNTTVS DIODE 5VWM 15VC SGP1610N2 |
42,569 | 0.82 |
|
Datasheet |
0603 (1610 Metric) | uClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 15V | 80A | 1200W (1.2kW) | No | - | 675pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SGP1610N2 |
|
RCLAMP1521P.TCTTVS DIODE 15VWM 30VC SLP1006P2 |
30,319 | 0.82 |
|
Datasheet |
0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 16.7V | 30V | 4A (8/20µs) | 120W | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2 |
|
|
UCLAMP1271P.TNTTVS DIODE 12VWM 30VC SGP1610N2 |
30,035 | 0.82 |
|
Datasheet |
0603 (1610 Metric) | uClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 14V | 30V | 45A (8/20µs) | - | No | - | 275pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SGP1610N2 |
|

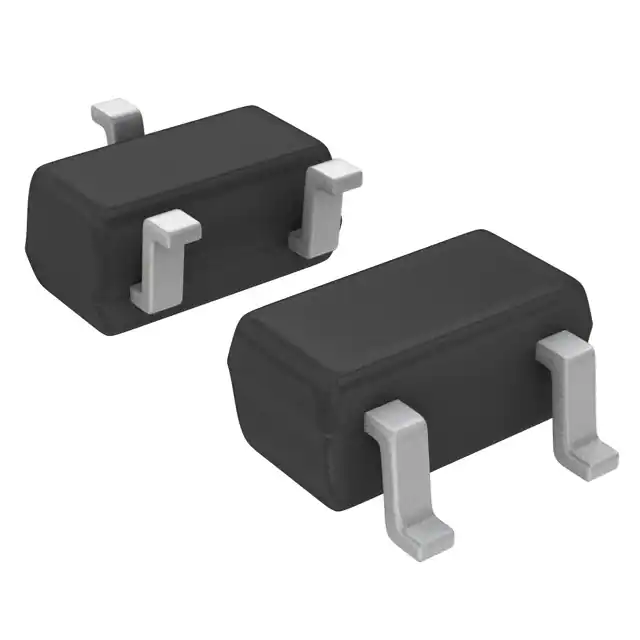

RCLAMP0502B.TCTTVS DIODE 5VWM 25VC SC75 |
22,481 | 0.82 |
|
Datasheet |
SC-75, SOT-416 | RailClamp® | Tape & Reel (TR) | Not For New Designs | Zener | 2 | - | 5V (Max) | 6V | 25V | 5A (8/20µs) | 125W | No | HDMI, RF Antenna | 1.2pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SC-75 (SOT523) |
|

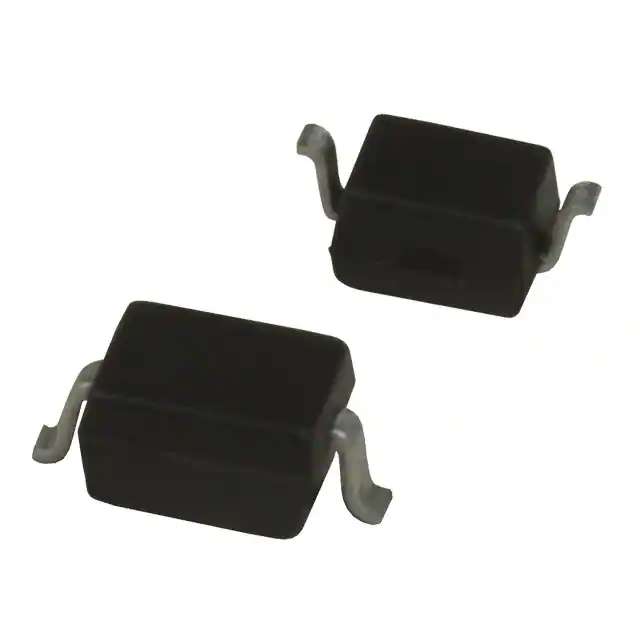

SD24C.TCTTVS DIODE 24VWM 44VC SOD323 |
17,642 | 0.82 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.7V | 44V | 8A (8/20µs) | 350W | No | General Purpose | 50pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
SMLJ28CATVS DIODE 28VWM 45.4VC SMC |
14,594 | 1.20 |
|
Datasheet |
DO-214AB, SMC | SMLJ | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 66A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC (DO-214AB) |
|
|
RCLAMP0502BATCTTVS DIODE 5VWM 25VC SC75 |
12,606 | 0.82 |
|
Datasheet |
SC-75, SOT-416 | RailClamp® | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6V | 25V | 5A (8/20µs) | 125W | No | General Purpose | 1.2pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SC-75 (SOT523) |
|
CDSOT23-SRV05-4TVS DIODE 5VWM 15VC SOT23-6 |
11,897 | 1.13 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 15V | 30A (8/20µs) | 500W | Yes | Ethernet | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
