TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

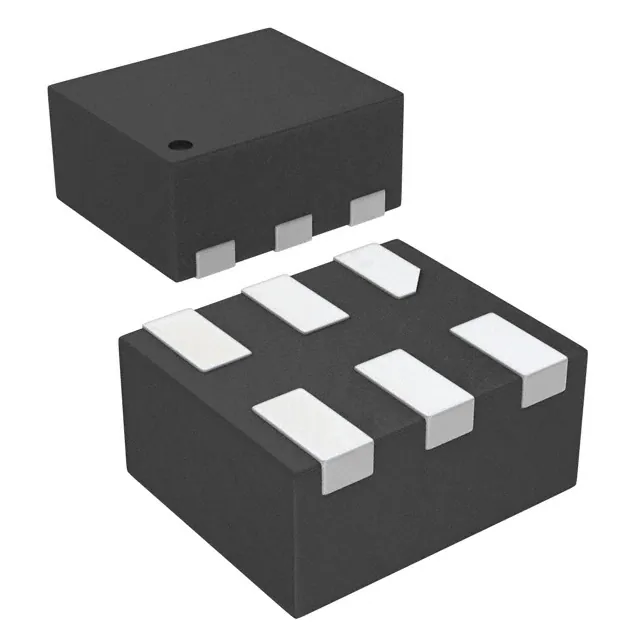

RCLAMP0582N.TCTTVS DIODE 6.5VWM 25VC SLP1210N6 |
97,099 | 0.86 |
|
Datasheet |
6-UFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 6.5V (Max) | 7V | 25V | 5A (8/20µs) | 125W | Yes | - | 0.2pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SLP1210N6 (1.2x1.0) |
|
RCLAMP0512TQTCTTVS DIODE 5VWM 8.5VC SGP1006N3T |
78,111 | 0.86 |
|
Datasheet |
0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6.5V | 8.5V | 20A (1.2/50µs) | 170W | Yes | Ethernet | 2pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SGP1006N3T |
|
UCLAMP3306P.TCTTVS DIODE 3.3VWM 8VC SLP1616P6 |
52,782 | 0.86 |
|
Datasheet |
6-UFDFN Exposed Pad | uClamp® | Tape & Reel (TR) | Active | Zener | 6 | - | 3.3V (Max) | 3.5V | 8V | 5A (8/20µs) | 40W | No | General Purpose | 20pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1616P6 (1.6x1.6) |
|
|
RCLAMP0854P.TCTTVS DIODE 5.5VWM 30VC SLP1616P6 |
35,573 | 0.86 |
|
Datasheet |
6-UFDFN Exposed Pad | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6.5V | 30V | 3A (8/20µs) | 100W | Yes | USB OTG | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1616P6 (1.6x1.6) |
|

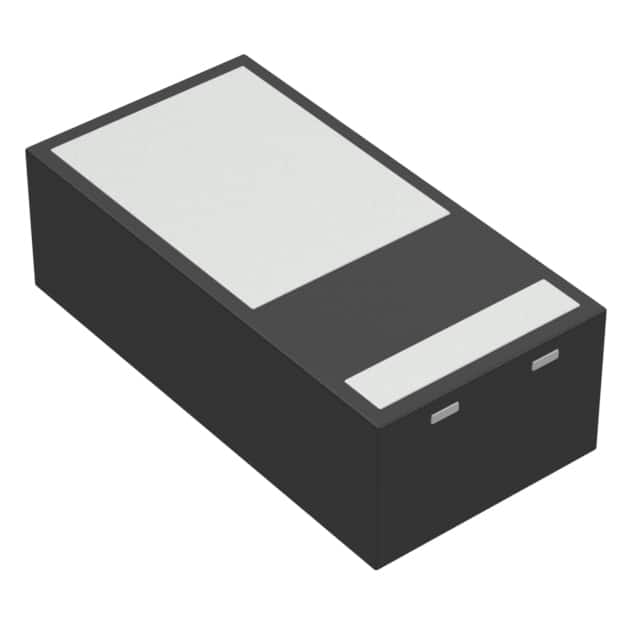

UCLAMP3061P.TNTTVS DIODE 30VWM 55VC SLP1608P2 |
33,887 | 0.33 |
|
Datasheet |
0603 (1608 Metric) | µClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 34V | 55V | 18A (8/20µs) | 1600W (1.6kW) | No | General Purpose | 800pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1608P2 |
|
SDC15.TCTTVS DIODE 12.8VWM 21.2VC SOT23-3 |
21,110 | 0.86 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12.8V (Max) | 14.3V | 21.2V | 10A (8/20µs) | 300W | No | General Purpose | 120pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
5.0SMDJ58CATVS DIODE 58VWM 93.6VC DO214AB |
19,413 | 2.57 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 53.5A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
RCLAMP0512TQTNTTVS DIODE 5VWM 8.5VC SGP1006N3T |
11,667 | 0.86 |
|
Datasheet |
0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6.5V | 8.5V | 20A (1.2/50µs) | 170W | Yes | Ethernet | 2pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SGP1006N3T |
|
NUP4201DR2GTVS DIODE 5VWM 25VC 8-SOIC |
3,164 | 1.53 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 25V | 25A (8/20µs) | 500W | Yes | General Purpose | 5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SMLJ170CATVS DIODE 170VWM 275VC SMC |
10,442 | 1.18 |
|
Datasheet |
DO-214AB, SMC | SMLJ | Tape & Reel (TR) | Active | Zener | - | 1 | 170V | 189V | 275V | 11A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC (DO-214AB) |
|
|
RCLAMP3304P.TCTTVS DIODE 3.3VWM 16VC SLP1616P6 |
10,982 | 0.89 |
|
Datasheet |
6-UFDFN Exposed Pad | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.5V | 16V | 5A (8/20µs) | 80W | Yes | Multimedia Card Interface | 0.8pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SLP1616P6 (1.6x1.6) |
|
5.0SMDJ18CATVS DIODE 18VWM 29.2VC DO214AB |
7,318 | 1.74 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 172A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ12ATVS DIODE 12VWM 19.9VC DO214AB |
9,190 | 1.70 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 252A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
RCLAMP3328P.TZTTVS DIODE 3.3VWM 10.5V SGP3810N9 |
15,950 | 0.92 |
|
Datasheet |
9-UDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 3.3V (Max) | 3.8V | 10.5V | 5A (8/20µs) | 75W | Yes | HDMI | 0.4pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SGP3810N9 |
|
|
RCLAMP2504P.TCTTVS DIODE 2.5VWM 13VC SLP1616P6 |
11,329 | 0.92 |
|
Datasheet |
6-UFDFN Exposed Pad | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 2.5V (Max) | 2.7V | 13V | 5A (8/20µs) | 80W | Yes | Multimedia Card Interface | 0.8pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SLP1616P6 (1.6x1.6) |
|
|
CDSOT23-SM712TVS DIODE 7V/12V 14V/26V SOT23-3 |
40,212 | 1.59 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V (Max), 7V (Max) | 13.3V, 7.5V | 26V, 14V | 17A (8/20µs) | 400W | No | RS-485 | 75pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
SM30T56CAYTVS DIODE 48VWM 76.6VC SMC |
3,615 | 1.88 |
|
Datasheet |
DO-214AB, SMC | SM30TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 48V | 53.2V | 76.6V | 38A | 3000W (3kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
SP0506BAATGTVS DIODE 5.5VWM 8.5VC 8-MSOP |
6,403 | 1.55 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | SP05, SPA® | Tape & Reel (TR) | Active | Zener | 6 | - | 5.5V (Max) | - | 8.5V | - | - | No | General Purpose | - | -40°C ~ 125°C | - | - | Surface Mount | 8-MSOP |
|
|
5.0SMDJ18ATVS DIODE 18VWM 29.2VC DO214AB |
3,688 | 1.70 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 172A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ24ATVS DIODE 24VWM 38.9VC DO214AB |
16,393 | 1.70 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 129A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
