TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCLAMP2431T.TCTTVS DIODE 24VWM 50VC SLP1006P2T |
11,324 | 0.86 |
|
Datasheet |
0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.7V | 50V | 2A (8/20µs) | 100W | No | General Purpose | 0.35pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SLP1006P2T |
|
|
RCLAMP0531T.TCTTVS DIODE 5VWM 20VC SLP1006P2T |
7,936 | 0.86 |
|
Datasheet |
0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 20V | 4A (8/20µs) | 80W | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2T |
|
CDDFN10-3304NATVS DIODE 3.3VWM 18VC 10DFN |
5,006 | 1.24 |
|
Datasheet |
10-UFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.9V | 18V | 25A (8/20µs) | - | Yes | DVI | 4pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | 10-DFN (2.5x2.5) |
|
SRDA05-4R2GTVS DIODE 5VWM 12VC 8-SOIC |
24,994 | 1.33 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 12V | 10A (8/20µs) | 500W | Yes | General Purpose | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SMLJ36CATVS DIODE 36VWM 58.1VC SMC |
20,409 | 1.20 |
|
Datasheet |
DO-214AB, SMC | SMLJ | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 51.6A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC (DO-214AB) |
|
SD15C.TCTTVS DIODE 15VWM 29VC SOD323 |
89,126 | 0.90 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 16.7V | 29V | 12A (8/20µs) | 350W | No | General Purpose | 75pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
SD12C.TCTTVS DIODE 12VWM 24VC SOD323 |
29,719 | 0.90 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 24V | 15A (8/20µs) | 350W | No | General Purpose | 100pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
RCLAMP3324P.TNTTVS DIODE 3.3VWM 4.5VC SGP2510P8 |
27,837 | 0.90 |
|
Datasheet |
10-UFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 8V (Typ) | 4.5V | 4.5A (8/20µs) | - | Yes | - | 0.6pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SGP2510P8 |
|
|
SD05C.TCTTVS DIODE 5VWM 14.5VC SOD323 |
21,818 | 0.90 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 14.5V | 24A (8/20µs) | 350W | No | General Purpose | 200pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
RCLAMP0502N.TCTTVS DIODE 6.5VWM 30VC SLP1210N6 |
17,086 | 0.90 |
|
Datasheet |
6-UFDFN | RailClamp® | Tape & Reel (TR) | Not For New Designs | Steering (Rail to Rail) | 3 | - | 6.5V (Max) | 7V | 30V | 3A (8/20µs) | 100W | Yes | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1210N6 (1.2x1.0) |
|
CDSOT236-0504CTVS DIODE 5VWM 10VC SOT23-6 |
15,138 | 1.41 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 10V | 5.5A (8/20µs) | - | Yes | HDMI | - | -55°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
SMLJ33CATVS DIODE 33VWM 53.3VC SMC |
14,521 | 1.14 |
|
Datasheet |
DO-214AB, SMC | SMLJ | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 56.2A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC (DO-214AB) |
|
SMDA24E3/TR7TVS DIODE 24VWM 43VC 8-SO |
2,858 | 1.36 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | TVSarray™ | Tape & Reel (TR) | Active | Zener | 4 | - | 24V | 26.7V | 43V | 5A (8/20µs) | 300W | No | General Purpose | 90pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
RCLAMP0552T.TNTTVS DIODE 5VWM 20VC SLP1006N3T |
13,243 | 0.82 |
|
Datasheet |
3-XDFN | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 6.5V | 20V | 3A (8/20µs) | 60W | No | HDMI | 0.21pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006N3T |
|

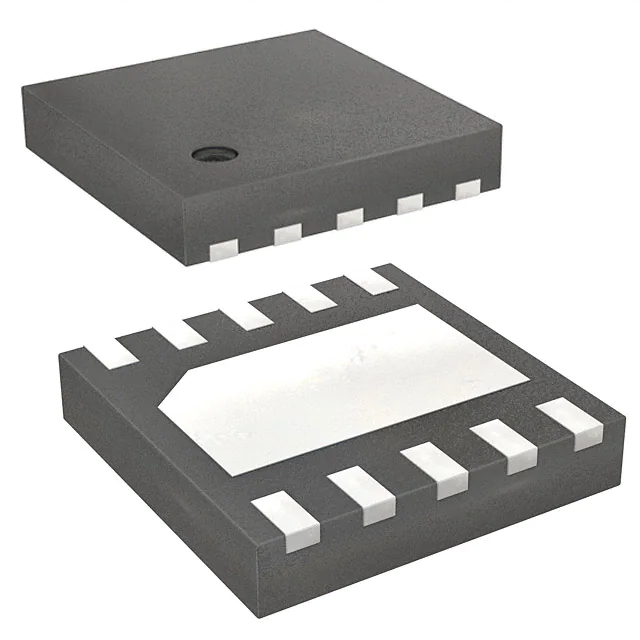

SP3304NUTGTVS DIODE 3.3VWM 11.5VC 10UDFN |
12,402 | 1.21 |
|
Datasheet |
10-UFDFN Exposed Pad | SP3304N, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | - | 11.5V | 20A (8/20µs) | 300W | Yes | Ethernet | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-UDFN (2.6x2.6) |
|
|
RCLAMP0821P.TCTTVS DIODE 8VWM 25VC SLP1006P2 |
3,397 | 0.82 |
|
Datasheet |
0402 (1006 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 8V (Max) | 10V | 25V | 4A (8/20µs) | 100W | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1006P2 |
|
SP2555NUTGTVS DIODE 2.5VWM 19VC 10UDFN |
5,559 | 1.56 |
|
Datasheet |
10-UDFN Exposed Pad | SP2555, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 2.5V | - | 19V | 45A (8/20µs) | 1000W (1kW) | Yes | Ethernet | 2.5pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 10-UDFN (3x2) |
|
CDDFN10-0524PTVS DIODE 5VWM 12VC 10DFN |
14,956 | 1.24 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 12V (Typ) | 3.8A (8/20µs) | 30W | Yes | HDMI | - | -55°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (2.5x1) |
|
RCLAMP0504S.TCTTVS DIODE 5VWM 25VC SOT23-6 |
208,644 | 0.86 |
|
Datasheet |
SOT-23-6 | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V | 6V | 25V | 6A (8/20µs) | 150W | Yes | Ethernet, USB OTG | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
RCLAMP0582B.TCTTVS DIODE 5VWM 20VC SC75 |
123,934 | 0.86 |
|
Datasheet |
SC-75, SOT-416 | RailClamp® | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6V | 20V | 15A (8/20µs) | 300W | No | General Purpose | 1.2pF @ 1MHz | -40°C ~ 105°C (TJ) | - | - | Surface Mount | SC-75 (SOT523) |
