TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg)
|
5.0SMDJ30ATVS DIODE 30VWM 48.4VC DO214AB |
3,369 | 1.65 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 103A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
RCLAMP0504FATCTTVS DIODE 5VWM 25VC SC70-6 |
67,011 | 1.12 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 25V | 6A (8/20µs) | 150W | Yes | USB OTG | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SC-70-6 |
|

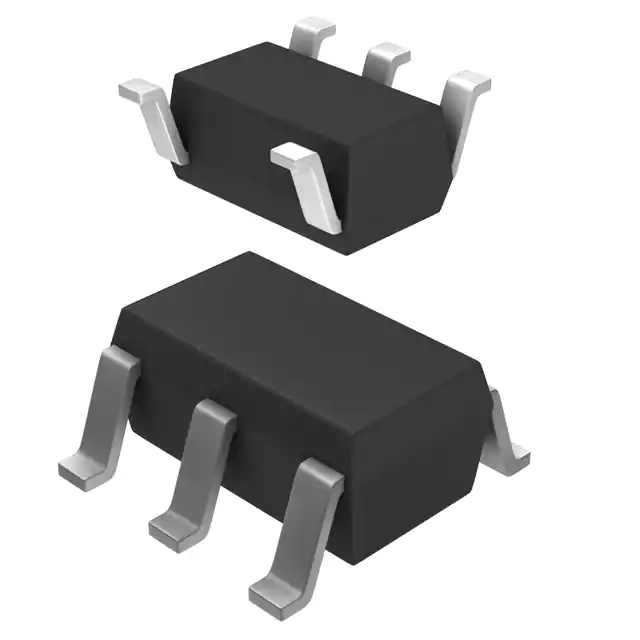

RCLAMP3354S.TCTTVS DIODE 3.3VWM 16VC SOT23-5 |
41,245 | 1.12 |
|
Datasheet |
SC-74A, SOT-753 | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.5V | 16V | 25A (8/20µs) | 400W | Yes | Ethernet | 3.8pF @ 1MHz | -55°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
RCLAMP7534P.TNTTVS DIODE 5VWM 25VC SGP2010N5 |
29,963 | 1.12 |
|
Datasheet |
5-UFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6.5V | 25V | 4A (8/20µs) | - | Yes | Ethernet, HDMI | 0.19pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SGP2010N5 |
|
|
RCLAMP0504F.TCTTVS DIODE 5VWM 23VC SC70-6 |
28,706 | 1.12 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | RailClamp® | Tape & Reel (TR) | Not For New Designs | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 23V | 6A (8/20µs) | 150W | Yes | Ethernet, HDMI, USB OTG | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SC-70-6 |
|
|
RCLAMP0564P.TNTTVS DIODE 5VWM 4VC SGP2010N5 |
26,714 | 1.12 |
|
Datasheet |
5-UFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6.5V | 4V | 3A (8/20µs) | - | Yes | HDMI | 0.17pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SGP2010N5 |
|
RCLAMP0554S.TCTTVS DIODE 5VWM 15VC SOT23-6 |
21,750 | 1.12 |
|
Datasheet |
SOT-23-6 | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 15V | 25A (8/20µs) | 375W | Yes | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
5.0SMDJ36ATVS DIODE 36VWM 58.1VC DO214AB |
17,362 | 1.70 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 86.1A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
RCLAMP3324T.TCTTVS DIODE 3.3V 10.5V SLP1710P4T |
14,890 | 1.12 |
|
Datasheet |
6-XFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.8V | 10.5V | 5A (8/20µs) | 75W | Yes | HDMI | 0.4pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1710P4T |
|
5.0SMDJ33ATVS DIODE 33VWM 53.3VC DO214AB |
9,810 | 1.65 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 93.9A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
RCLAMP3654PATCTTVS DIODE 5.5VWM 30VC SLP1616P6 |
5,731 | 1.12 |
|
Datasheet |
6-UFDFN Exposed Pad | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6.5V | 30V | 3A (8/20µs) | 100W | Yes | USB OTG | 0.8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1616P6 (1.6x1.6) |
|
|
5.0SMDJ48ATVS DIODE 48VWM 77.4VC DO214AB |
445 | 1.98 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 64.7A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
.jpg)
|
5.0SMLJ60CA-TPTVS DIODE 60VWM 96.8VC DO214AB |
5,583 | 1.83 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 51.7A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
SMS3.3.TCTTVS DIODE 3.3VWM 8.7VC SOT23-6 |
221,517 | 1.16 |
|
Datasheet |
SOT-23-6 | SMS | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | 3.5V | 8.7V | 12A (8/20µs) | 200W | No | General Purpose | 35pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
RCLAMP3331PQTCT1-LINE 3.3V 0.35PF 30KVESD SLP10 |
4,982 | 1.16 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 6V | 8V | 10A (8/20µs) | 30W | No | USB | 0.35pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | - | Surface Mount | SLP1006P2 |
|
UCLAMP6061P.TNT60V, 1-LINE SURGE PROTECTION |
714 | 0.45 |
|
Datasheet |
0603 (1608 Metric) | µClamp® | Tape & Reel (TR) | Active | Zener | 1 | - | 60V (Max) | 65V | 105V | 8A (8/20µs) | - | No | General Purpose | 110pF @ 1MHz (Max) | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-SLP1608P |
|
|
5.0SMDJ20CATVS DIODE 20VWM 32.4VC DO214AB |
4,420 | 2.17 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 155A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|

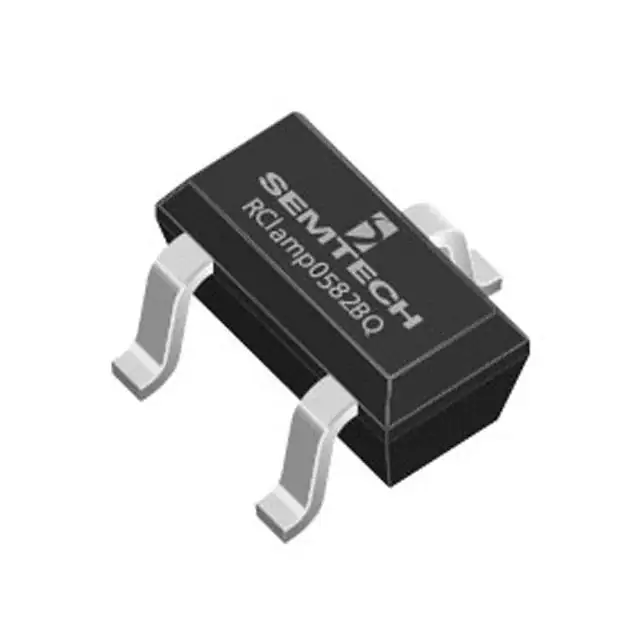

RCLAMP0582BQTCTTVS DIODE 5VWM 20VC SC75 |
36,205 | 1.19 |
|
Datasheet |
SC-75, SOT-416 | RailClamp® | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6V | 20V | 15A (8/20µs) | 300W | No | - | 1.2pF @ 1MHz | -40°C ~ 105°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SC-75 (SOT523) |
|
|
5.0SMDJ28ATVS DIODE 28VWM 45.4VC DO214AB |
6,569 | 1.70 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 110A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
RCLAMP3346P.TNTTVS DIODE 3.3VWM 4.5VC SGP2708N7 |
16,492 | 1.22 |
|
Datasheet |
7-UDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 6 | - | 3.3V (Max) | 7V | 4.5V | 4.5A (8/20µs) | - | No | USB | 0.6pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SGP2708N7 |
