TVS Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DF2B6M4BSL,L3FUNI-DIR ESD PR DI SOD-962 V(ESD) |
5,429 | 0.39 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 5.6V | 15V | 2A (8/20µs) | 30W | No | HDMI, USB | 0.12pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SL2 |
|
PESD30VF1BLYLTVS DIODE 30VWM 23VC DFN1006-2 |
4,978 | 0.06 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 30V (Max) | 31V | 23V | 16A | - | No | General Purpose | 0.27pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
SMAJ70CATVS DIODE 70VWM 113VC DO214AC |
3,775 | 0.42 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 2 | 70V | 77.8V | 113V | 3.5A | 400W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
PESD15VS2UT,215TVS DIODE 15VWM 40VC TO236AB |
3,405 | 0.50 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 15V (Max) | 17.6V | 40V | 5A (8/20µs) | 160W | No | General Purpose | 32pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
P4SMF12ATVS DIODE 12VWM 19.9VC SOD123FL |
1,214 | 0.30 |
|
Datasheet |
SOD-123F | P4SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
PJSD24TS_R1_00001SOD-523, TVS/ESD |
1,015 | 0.39 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V (Max) | 26.7V | 32V | 3A (8/20µs) | 120W | No | General Purpose | 25pF @ 1MHz (Max) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
SM05-7TVS DIODE 5VWM 20.6VC SOT23-3 |
447,878 | 0.41 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V | 6.2V | 20.6V | 17A (8/20µs) | 300W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
DESD5V0S1BLD-7BTVS DIODE 5VWM 14VC DFN1006-2 |
361,130 | 0.43 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.5V | 14V | 12A (8/20µs) | 130W | No | General Purpose | 35pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN1006-2 |
|
|
ESDA5V3LTVS DIODE 3VWM SOT23-3 |
324,781 | 0.49 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 2 | - | 3V | 5.3V | - | - | 300W | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
SMBJP6KE6.8A-TPTVS DIODE 5.8VWM 10.5VC DO214AA |
185,468 | 0.43 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 5.8V | 6.45V | 10.5V | 58.1A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
-Type-C;-;-2.jpg)
|
D24V0L1B2LPS-7BTVS DIODE 24VWM 46VC DFN1006-2 |
167,988 | 0.38 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26V | 46V | 2A (8/20µs) | 90W | No | - | 6pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
|
ESDCAN03-2BWYTVS DIODE 24VWM 41VC SOT323-3 |
162,191 | 0.43 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 26.5V | 41V | 3A (8/20µs) | 250W | No | CAN | 3pF @ 1MHz | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323-3 |
|
SMAJ33A-13-FTVS DIODE 33VWM 53.3VC SMA |
149,967 | 0.41 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 7.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
D6V3H1U2LP16-7TVS DIODE 6.3VWM 11.5VC 2DFN |
136,809 | 0.43 |
|
Datasheet |
0603 (1610 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.3V (Max) | 6.5V | 11.5V | 90A (8/20µs) | - | No | General Purpose | 800pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN1610-2 (Type B) |
|
|
SMBJ6.0CA-13-FTVS DIODE 6VWM 10.3VC SMB |
103,839 | 0.39 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 6V | 6.67V | 10.3V | 58.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
PESD3V3U1UT,215TVS DIODE 3.3VWM 20VC TO236AB |
101,297 | 0.40 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5.8V | 20V | 5A (8/20µs) | 80W | No | General Purpose | 0.6pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
|
PESD5V0U1UT,215TVS DIODE 5VWM 21VC TO236AB |
58,960 | 0.40 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 7V | 21V | 5A (8/20µs) | 80W | No | General Purpose | 0.6pF @ 1MHz | -65°C ~ 150°C (TA) | - | - | Surface Mount | TO-236AB |
|
|
ESDA6V1LTVS DIODE 5.25VWM SOT23-3 |
58,569 | 0.55 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | ESDA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 2 | - | 5.25V | 6.1V | - | - | 300W | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|

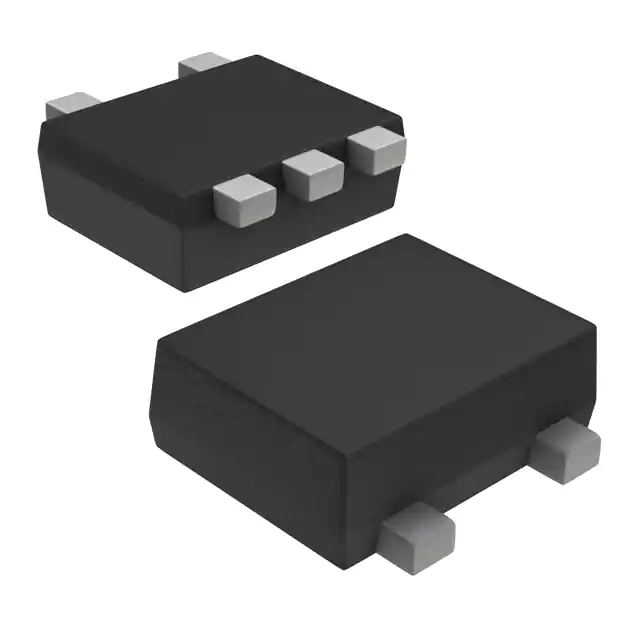

PESD3V3L4UW,115TVS DIODE 3.3VWM 12VC SOT665 |
42,220 | 0.41 |
|
Datasheet |
SOT-665 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | 5.32V | 12V | 3A (8/20µs) | 30W | No | General Purpose | 22pF @ 1MHz | -65°C ~ 150°C (TA) | - | - | Surface Mount | SOT-665 |
|
D7V0M1U2S9-7TVS DIODE 7VWM 13VC SOD923 |
40,442 | 0.31 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 7.5V | 13V | 7A (8/20µs) | 90W | No | - | 45pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-923 |
