Home > Products > Inductors, Coils, Chokes > Wireless Charging Coils

Wireless Charging Coils

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Function	Type	Inductance	Tolerance	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension
2677 QI WIRELESS CHARGING RECEIVER Adafruit Industries LLC	1,883	0.00	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	-	-	-	-	-	-	-	-	-	3.94" L x 1.50" W x 0.059" H (100.0mm x 38.0mm x 1.5mm)

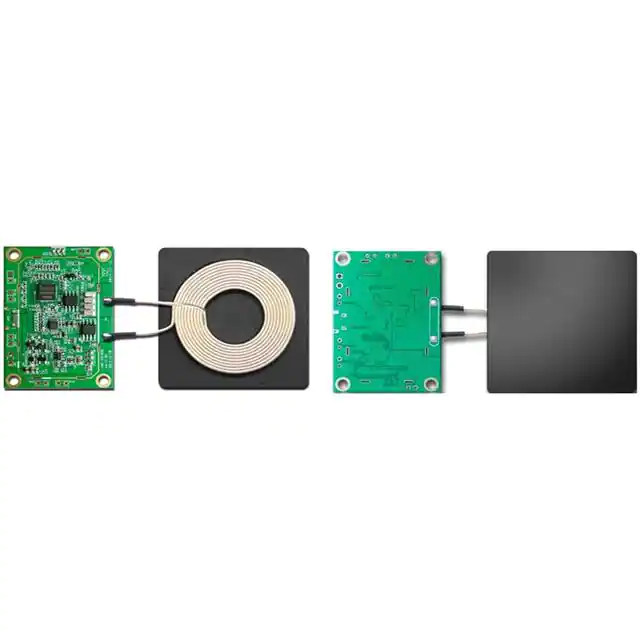

QPT-0003 Transmitter QST	3,453	42.86	RFQ	Datasheet	-	Bulk	Active	Transmitter	1 Coil, 1 Layer	6.5µH	±10%	35mOhm	100 @ 100kHz	-	-	-	0°C ~ 40°C	2.11" L x 2.11" W x 0.13" H (53.5mm x 53.5mm x 3.3mm)
QPT-0039A Transmitter QST	2,614	42.86	RFQ	Datasheet	-	Box	Active	Transmitter	1 Coil, 1 Layer	6.5µH	±10%	35mOhm	65 @ 100kHz	-	-	-	0°C ~ 40°C	1.97" Dia x 0.09" H (50.0mm x 2.3mm)

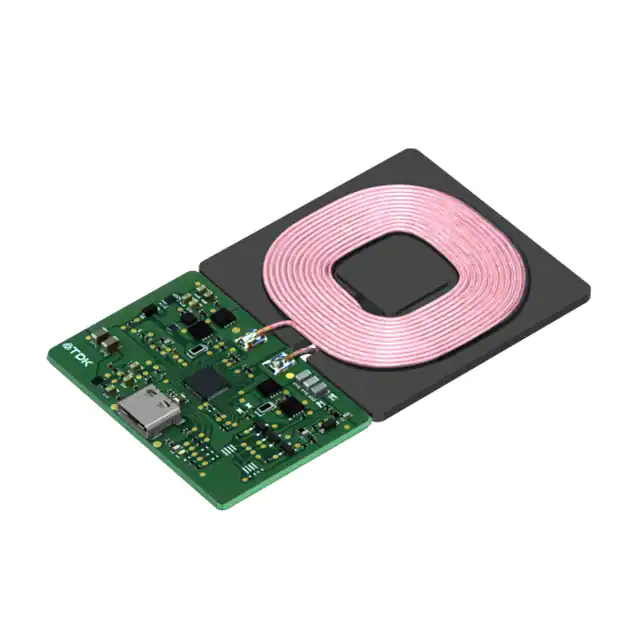

WTM905525-12F2-12V-G WIRELESS POWER TRANSFER TX COIL TDK Corporation	1,713	44.13	RFQ	Datasheet	WTM	Box	Obsolete	Transmitter	1 Coil, 1 Layer	-	-	-	-	-	-	-	-	3.43" L x 2.05" W x 0.197" H (87.0mm x 52.0mm x 5.0mm)

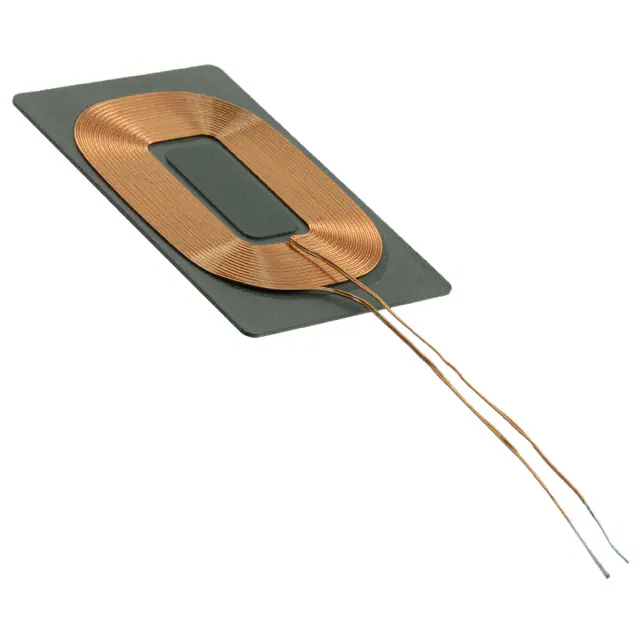

IWAS4832FFEB9R7J50 RX 1 COIL 1 LAYER BIFILAR 9.7UH Vishay Dale	3,723	0.00	RFQ	-	-	Bulk	Obsolete	Receiver	1 Coil, 1 Layer, Bifilar	9.7µH	±5%	200mOhm	30 @ 200kHz	-	-	-	-	1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm)

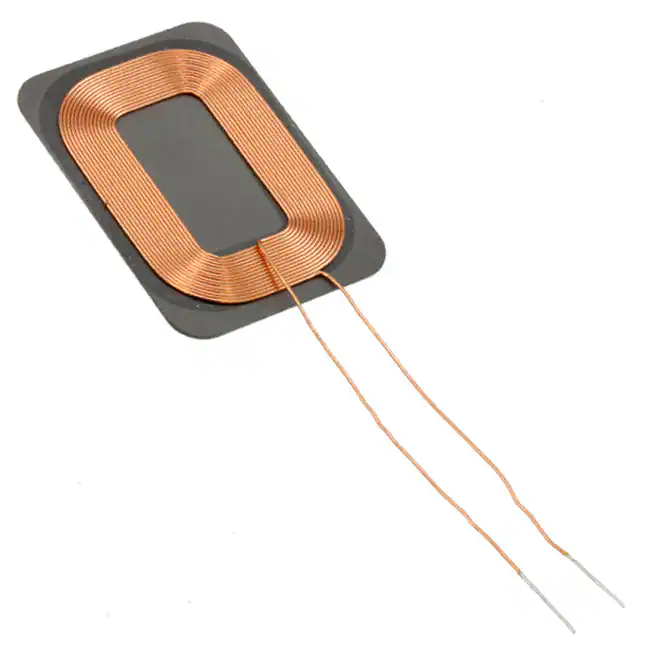

IWAS3827ECEB100J50 RX 1 COIL 1 LAYER 10.7UH Vishay Dale	4,475	0.00	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	1 Coil, 1 Layer	10.7µH	±5%	183mOhm	30 @ 200kHz	-	-	-	-	1.50" L x 1.05" W x 0.04" H (38.1mm x 26.7mm x 1.0mm)

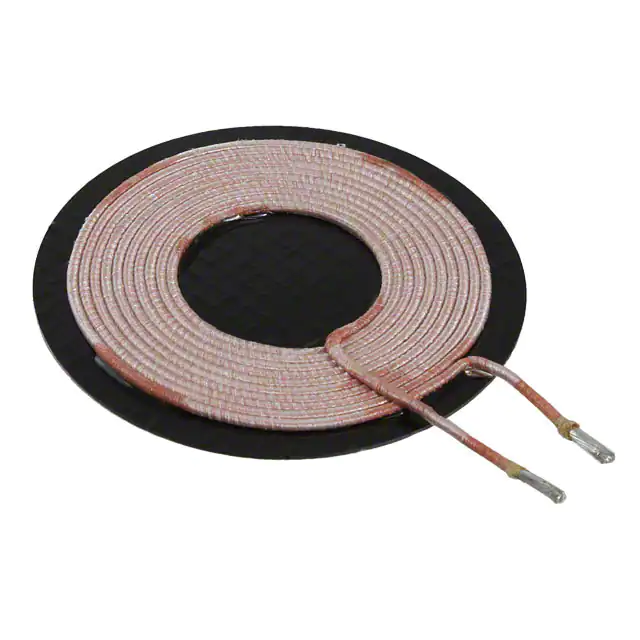

WT-505060-10K2-A11-G TX 1 COIL 1 LYR 6.3UH TDK Corporation	2,210	13.26	RFQ	Datasheet	WT	Tray	Obsolete	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	60mOhm Max	70 @ 100kHz	-	-	-	-30°C ~ 70°C	1.97" Dia x 0.13" H (50.0mm x 3.4mm)

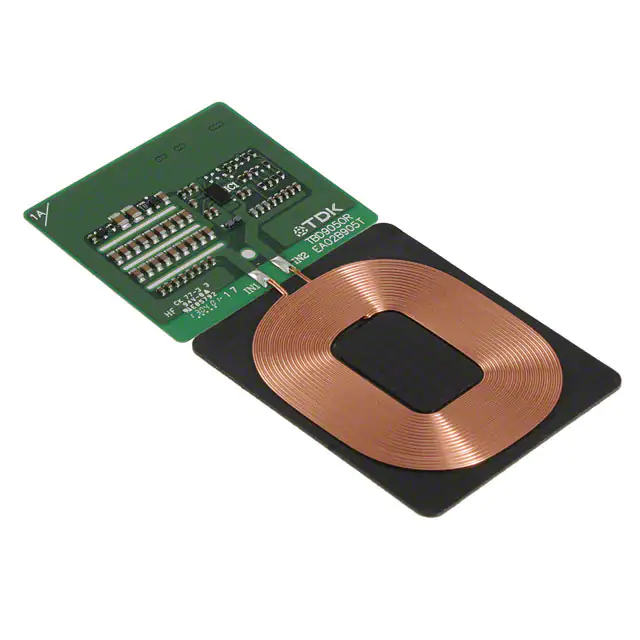

TMX-66-2M7 RX 1 COIL 1 LYR TDK Corporation	4,622	0.00	RFQ	Datasheet	-	Tray	Obsolete	Receiver	1 Coil, 1 Layer	-	-	-	24 @ 100kHz	-	-	-	-	1.46" L x 1.25" W x 0.03" H (38.0mm x 32.0mm x 1.0mm)

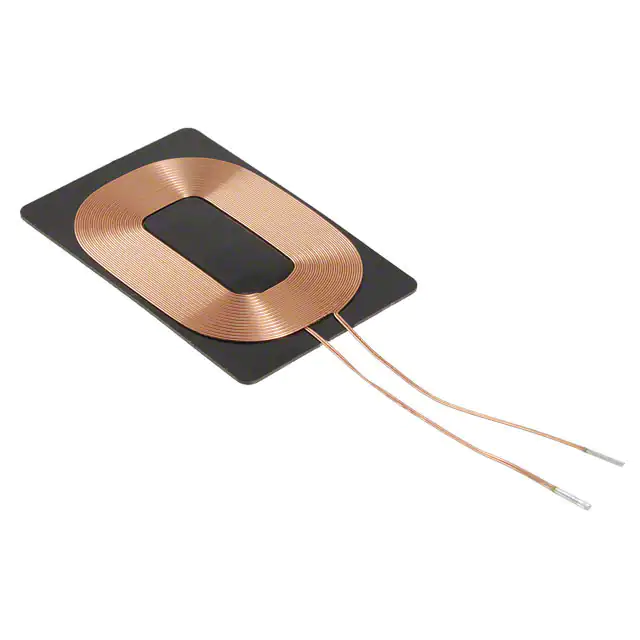

WR-483250-15M2-G RX 1 COIL 1 LYR BIFILAR 10.5UH TDK Corporation	3,483	0.00	RFQ	Datasheet	WR	Tray	Obsolete	Receiver	1 Coil, 1 Layer, Bifilar	10.5µH	±5%	200mOhm Max	-	-	-	-	-30°C ~ 70°C	1.90" L x 1.27" W x 0.04" H (48.2mm x 32.2mm x 1.1mm)
WR-383250-17M2-G RX 1 COIL 1 LYR BIFILAR 11.1UH TDK Corporation	2,546	0.00	RFQ	Datasheet	WR	Tray	Obsolete	Receiver	1 Coil, 1 Layer, Bifilar	11.1µH	±5%	270mOhm Max	-	-	-	-	-30°C ~ 70°C	1.50" L x 1.26" W x 0.04" H (38.1mm x 32.0mm x 1.0mm)
AWCCA-48R32H11-C01-B RX 1 COIL 1 LAYER 10.5UH 2.6A Abracon LLC	1,285	0.00	RFQ	Datasheet	AWCCA-48R32	Box	Active	Receiver	1 Coil, 1 Layer	10.5µH	±10%	190mOhm	28 @ 100kHz	2.6A	15A	11MHz	-25°C ~ 85°C	1.90" L x 1.28" W x 0.04" H (48.5mm x 32.5mm x 1.2mm)

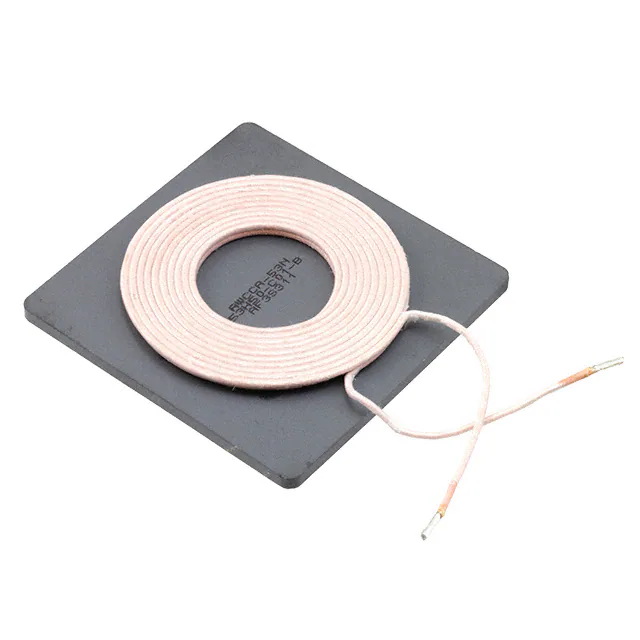

AWCCA-53N53H50-C01-B RX TX 1 COIL 1 LAYER 24UH 5.7A Abracon LLC	1,788	0.00	RFQ	Datasheet	AWCCA-53N53	Box	Active	Receiver, Transmitter	1 Coil, 1 Layer	24µH	±10%	72mOhm	170 @ 100kHz	5.7A	30A	2.8MHz	-25°C ~ 85°C	2.08" L x 2.08" W x 0.19" H (53.0mm x 53.0mm x 5.0mm)
AWCCA-53N53H50-C02-B RX TX 1 COIL 1 LAYER 6.3UH 11A Abracon LLC	4,086	8.30	RFQ	Datasheet	AWCCA-53N53	Box	Active	Receiver, Transmitter	1 Coil, 1 Layer	6.3µH	±10%	19mOhm	66 @ 100kHz	11A	40A	6.4MHz	-25°C ~ 85°C	2.08" L x 2.08" W x 0.19" H (53.0mm x 53.0mm x 5.0mm)
AWCCA-107T52H40-C01-B TX 3 COIL 1 LAYER 11.5UH 12UH Abracon LLC	2,065	10.68	RFQ	Datasheet	AWCCA-107T52	Box	Discontinued at Digi-Key	Transmitter	3 Coil, 1 Layer	11.5µH, 12µH	±10%	56mOhm	80 @ 100kHz	7.5A	18A	7MHz	-25°C ~ 85°C	4.25" L x 2.06" W x 0.15" H (108.0mm x 52.5mm x 4.0mm)

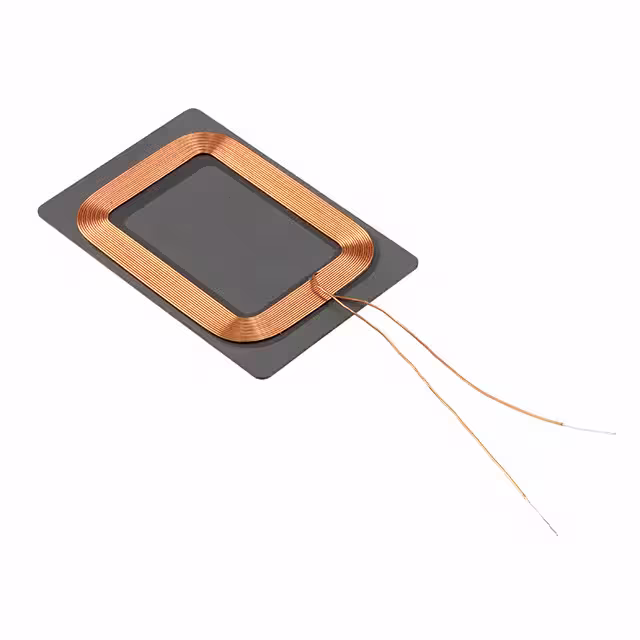

IWAS4832ECEB160J50 RX 1 COIL 1 LAYER 16.2UH Vishay Dale	1,069	0.00	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	1 Coil, 1 Layer	16.2µH	±5%	366mOhm Max	30 @ 200kHz	-	-	-	-	1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm)
IWAS4832FEEB150J50 RX 1 COIL 1 LAYER 16.2UH Vishay Dale	2,148	0.00	RFQ	Datasheet	-	Bag	Obsolete	Receiver	1 Coil, 1 Layer	16.2µH	±5%	366mOhm	30 @ 200kHz	-	-	-	-	-
SWC4242KB120-100 RX 1 COIL 1 LAYER 12.5UH Laird-Signal Integrity Products	2,536	4.11	RFQ	Datasheet	SWC	Box	Active	Receiver	1 Coil, 1 Layer	12.5µH	±10%	240mOhm Max	20 @ 100kHz	-	-	-	-40°C ~ 85°C	1.65" L x 1.65" W x 0.03" H (42.0mm x 42.0mm x 0.7mm)
WRM483245-15F5-5V-G1 RX 1 COIL 1 LYR 13UH TDK Corporation	1,236	0.00	RFQ	Datasheet	WRM	Tray	Obsolete	Receiver	1 Coil, 1 Layer	13µH	-	270mOhm Max	-	-	-	-	-	-

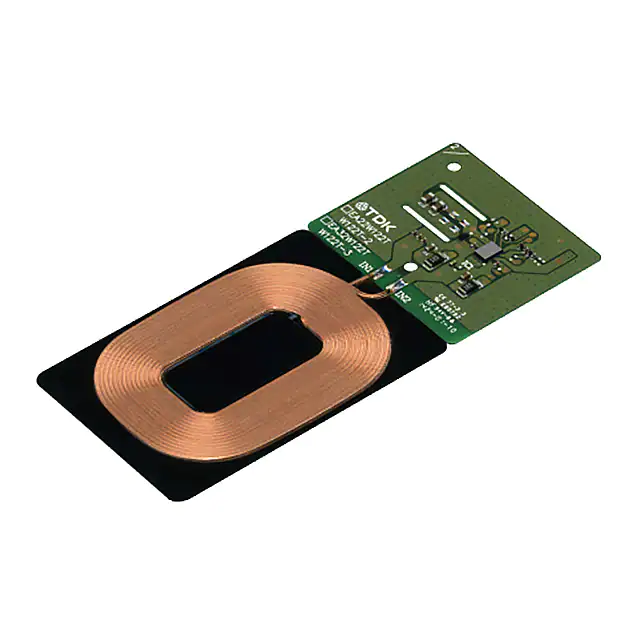

WRM483245-15F5-5V-G2 RX 1 COIL 1 LYR 13UH TDK Corporation	1,573	0.00	RFQ	Datasheet	WRM	Tray	Obsolete	Receiver	1 Coil, 1 Layer	13µH	-	270mOhm Max	-	-	-	-	-	-

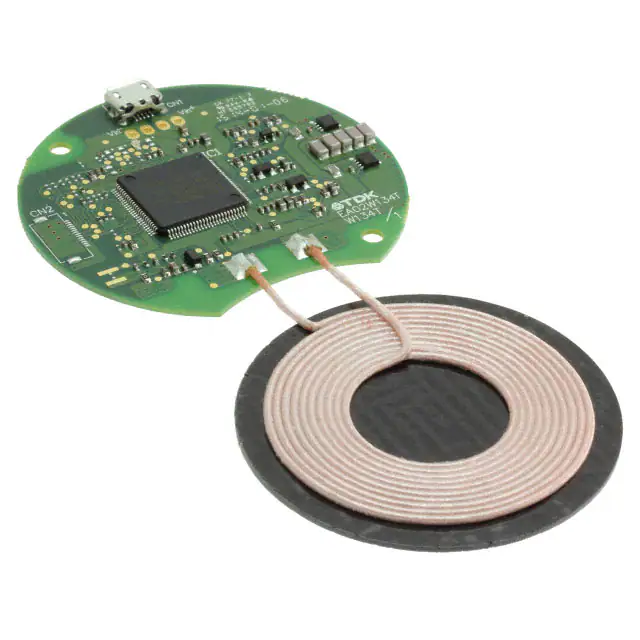

WTM505090-10K2-5V-G1 TX 1 COIL 1 LYR 6.3UH TDK Corporation	3,155	0.00	RFQ	Datasheet	WTM	Tray	Obsolete	Transmitter	1 Coil, 1 Layer	6.3µH	-	60mOhm Max	-	-	-	-	-	-

Total 267 Record«Prev 1... 8 9 10 111213 14 Next»
