Wireless Charging Coils

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Function	Type	Inductance	Tolerance	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension
760308201 RX 1 COIL 1 LAYER 10UH 4.5A Würth Elektronik	3,284	9.15	RFQ	Datasheet	WE-WPCC	Tray	Active	Receiver	1 Coil, 1 Layer	10µH	±5%	200mOhm Max	50 @ 125kHz	3.5A	8A	15MHz	-20°C ~ 105°C	1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm)
AWCCA-TX1005545-F002 WIRELESS CHARGING COIL Abracon LLC	2,121	6.83	RFQ	Datasheet	AWCCA	Tray	Not For New Designs	Transmitter	3 Coil, 1 Layer	12.5µH, 11.5µH, 12.5µH	±10%	75mOhm	90 @ 100kHz	-	-	-	-25°C ~ 85°C	3.94" L x 2.17" W x 0.18" H (100.0mm x 55.0mm x 4.5mm)

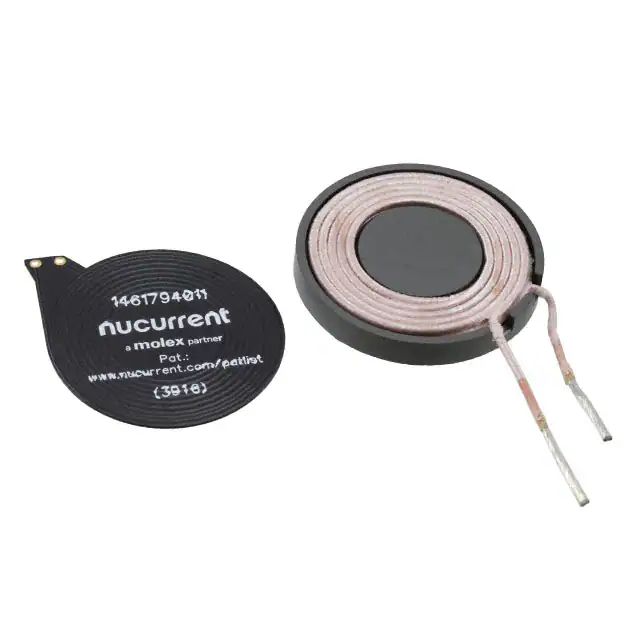

1461794011 RX TX 2 COIL 1 LAYER 9.6UH 5.6UH Molex	3,754	10.46	RFQ	Datasheet	NuCurrent, PowerLife, 146179	Tray	Active	Receiver, Transmitter	2 Coil, 1 Layer	9.6µH, 5.6µH	±2%	550mOhm, 38mOhm	18 @ 200kHz, 160 @ 200kHz	-	-	-	-	1.06" Dia x 0.15" H (27.0mm x 3.7mm)

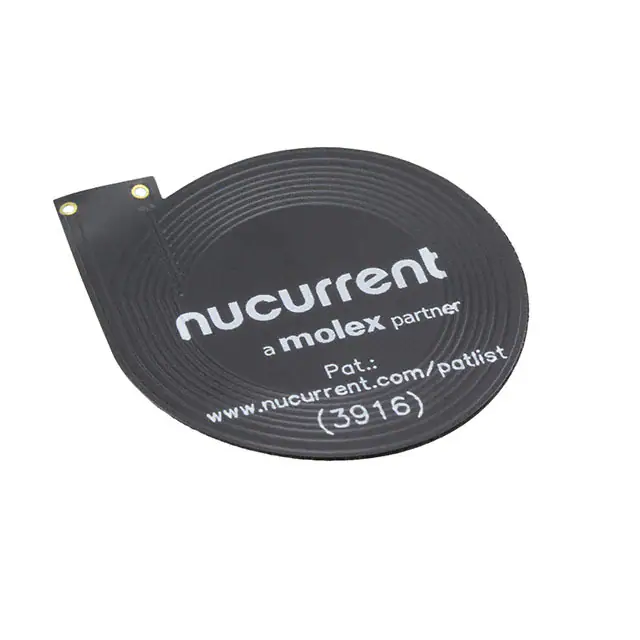

1461798021 RX 1 COIL 1 LAYER 4UH Molex	3,408	10.50	RFQ	Datasheet	NuCurrent, PowerLife, 146179	Bulk	Obsolete	Receiver	1 Coil, 1 Layer	4µH	±2%	235mOhm	115 @ 6.78MHz	-	-	-	-	1.38" Dia x 0.02" H (35.0mm x 0.6mm)
1461794001 RX 2 COIL, 1 LYR 8.9UH Molex	4,776	11.22	RFQ	Datasheet	NuCurrent, PowerLife, 146179	Bulk	Obsolete	Receiver	2 Coil, 1 Layer	8.9µH	±2%	350mOhm	25 @ 200kHz	-	-	-	-	2.58" L x 1.91" W x 0.02" H (65.5mm x 48.4mm x 0.5mm)

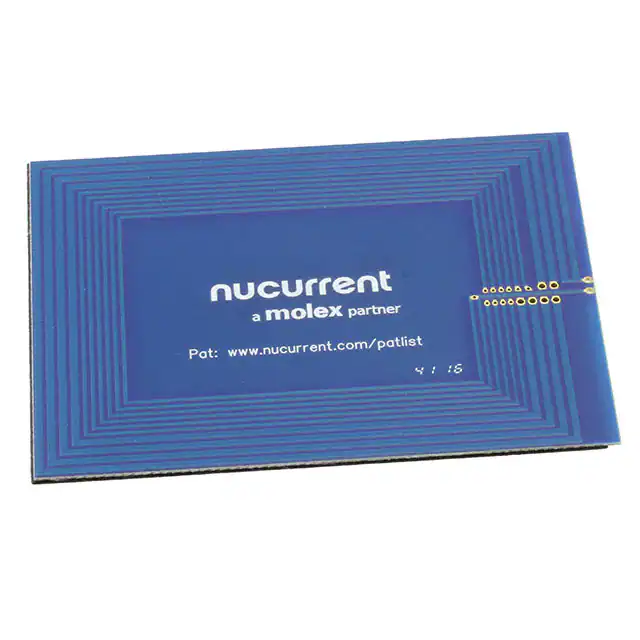

1461798001 RX 1 COIL 1 LAYER 2.9UH Molex	4,660	11.22	RFQ	Datasheet	NuCurrent, PowerLife, 146179	Bulk	Obsolete	Receiver	1 Coil, 1 Layer	2.9µH	±2%	120mOhm	160 @ 6.78MHz	-	-	-	-	2.24" L x 2.86" W x 0.04" H (56.8mm x 72.8mm x 1.0mm)

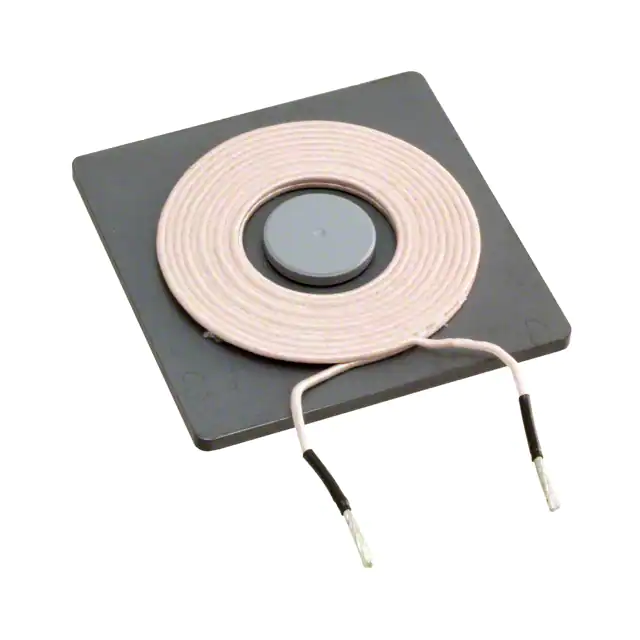

RWC5353EJ240-500 TX 1 COIL 2 LAYER 24UH 5.5A Laird-Signal Integrity Products	3,971	10.15	RFQ	Datasheet	RWC	Box	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	75mOhm Max	90 @ 100kHz	5.5A	10A	-	-40°C ~ 125°C	2.09" L x 2.09" W x 0.26" H (53.0mm x 53.0mm x 6.7mm)
1461790001 RX 1 COIL 1 LAYER 17.3UH Molex	4,874	11.14	RFQ	Datasheet	NuCurrent, PowerLife, 146179	Bulk	Obsolete	Receiver	1 Coil, 1 Layer	17.3µH	±2%	450mOhm	-	-	-	-	-	1.69" L x 1.97" W x 0.02" H (43.0mm x 50.0mm x 0.5mm)

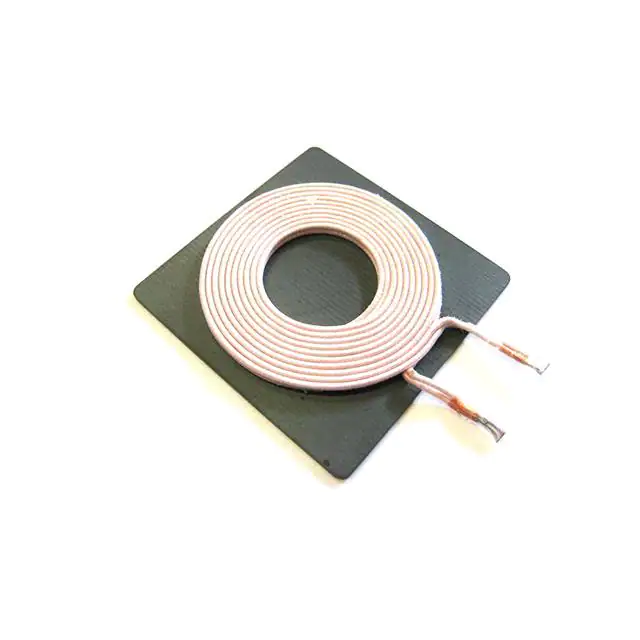

CTTX505035BF-6R3K WIRELESS TRANSMITTER COIL Central Technologies	3,665	4.65	RFQ	-	CTTX505035BF	Bulk	Active	Transmitter	1 Coil, 2 Layer, Bifilar	6.3µH	±10%	25mOhm	-	10A	-	-	-40°C ~ 85°C	1.97" L x 1.97" W x 0.16" H (50.0mm x 50.0mm x 4.0mm)

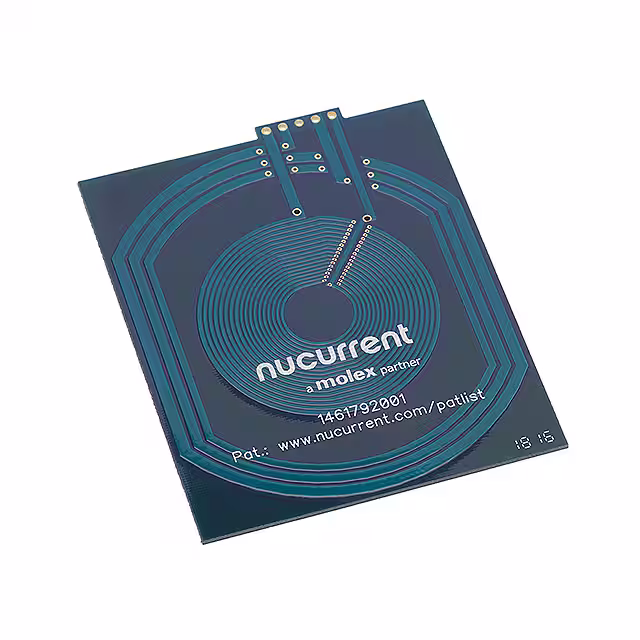

1461792001 RX 2 COIL 1 LAYER 10.6UH Molex	3,458	11.17	RFQ	Datasheet	NuCurrent, PowerLife, 146179	Bulk	Obsolete	Receiver	2 Coil, 1 Layer	10.6µH	±2%	190mOhm	24 @ 200kHz	-	-	-	-	2.55" L x 2.11" W x 0.06" H (64.7mm x 53.6mm x 1.4mm)
WT1005690-11F2-M9-G TX COIL UNIT TDK Corporation	1,668	11.26	RFQ	-	WT	Box	Active	-	-	-	-	-	-	-	-	-	-	-
STX106530612R5KT 3 COIL 1 LAYER 12.5UH, 11.5UH, 1 Superworld Electronics (S) Pte. Ltd.	4,947	0.00	RFQ	Datasheet	STX	Bulk	Active	Transmitter	3 Coil, 1 Layer	12.5µH, 11.5µH, 12.5µH	±10%	80mOhm Max	-	6.5A	-	-	-40°C ~ 85°C	4.17" L x 2.09" W x 0.24" H (106.0mm x 53.0mm x 6.0mm)
WRM483245-15F5-5V-G RX 1 COIL 1 LYR 13UH TDK Corporation	4,966	0.00	RFQ	Datasheet	WRM	Tray	Obsolete	Receiver	1 Coil, 1 Layer	13µH	-	270mOhm	-	-	-	-	-	2.99" L x 1.26" W x 0.04" H (76.0mm x 32.0mm x 1.0mm)

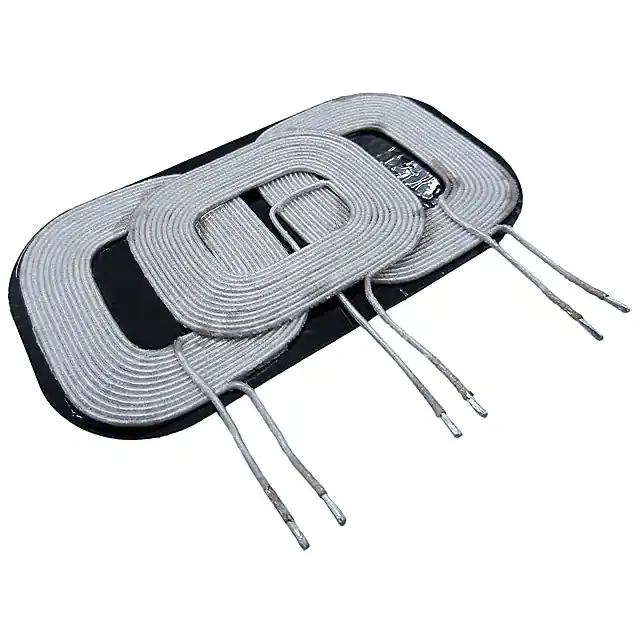

WT-1005660-12K2-A6-G TX 3 COIL 1 LYR 12.5UH/11.5UH TDK Corporation	2,826	15.96	RFQ	Datasheet	WT	Tray	Not For New Designs	Transmitter	3 Coil, 1 Layer	12.5µH, 11.5µH, 12.5µH	±10%	80mOhm Max	70 @ 100kHz	-	-	-	-30°C ~ 70°C	3.94" L x 2.20" W x 0.11" H (100.0mm x 56.0mm x 2.8mm)

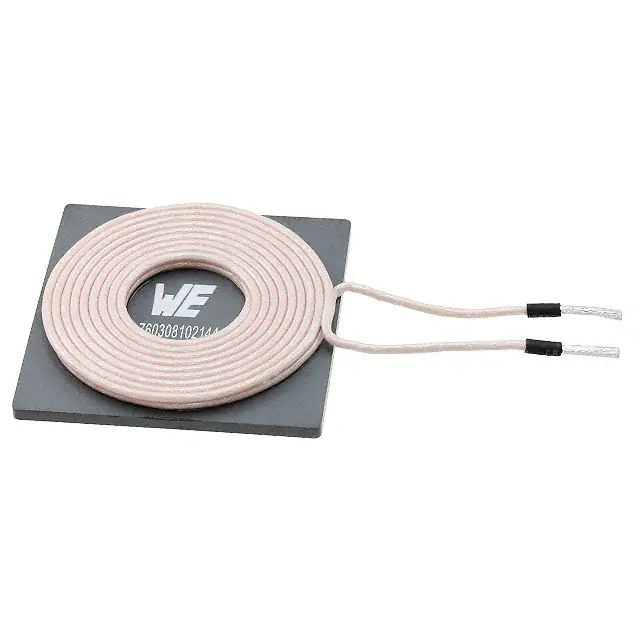

760308102144 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,235	22.73	RFQ	Datasheet	WE-WPCC	Box	Obsolete	Transmitter	1 Coil, 2 Layer	19.5µH	±10%	45mOhm Max	220 @ 125kHz	9.5A	20A	5MHz	-20°C ~ 105°C	2.10" L x 2.10" W x 0.28" H (53.30mm x 53.30mm x 7.00mm)

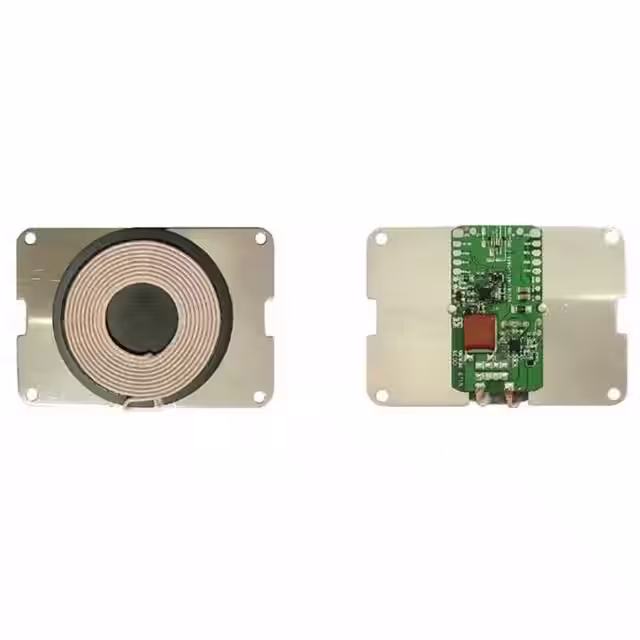

QPT-6071A TRANSMITTER QST	3,939	0.00	RFQ	Datasheet	-	Bulk	Active	Transmitter	1 Coil, 1 Layer	6.5µH	±10%	380mOhm Max	65 @ 100kHz	-	-	-	0°C ~ 40°C	1.97" Dia x 0.09" H (50.0mm x 2.3mm)
2114 UNIVERSAL QI WIRELESS CHARGING M Adafruit Industries LLC	1,696	24.95	RFQ	Datasheet	-	Bulk	Active	Receiver	-	-	-	-	-	600mA	-	-	-	-
2115 UNIVERSAL QI WIRELESS CHARGING M Adafruit Industries LLC	4,777	0.00	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	-	-	-	-	-	600mA	-	-	-	-
2116 UNIVERSAL QI WIRELESS CHARGING M Adafruit Industries LLC	1,797	0.00	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	-	-	-	-	-	600mA	-	-	-	-

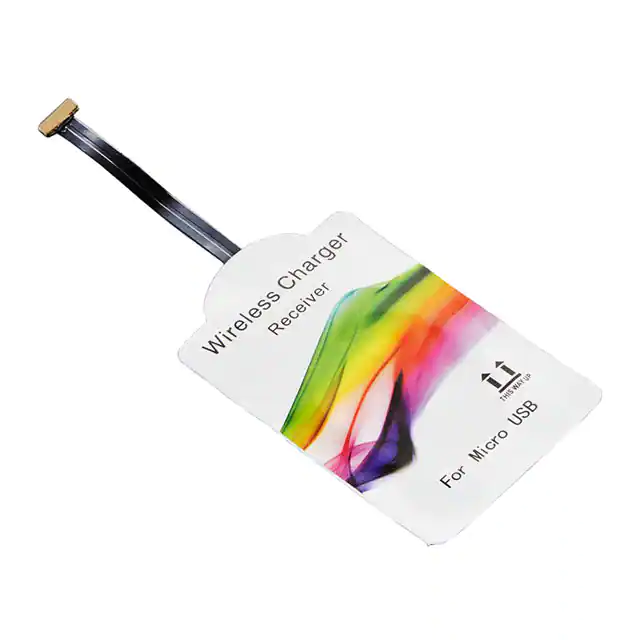

2117 UNIVERSAL QI WIRELESS CHARGING M Adafruit Industries LLC	1,655	0.00	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	-	-	-	-	-	600mA	-	-	-	-

Total 267 Record«Prev 1... 7 8 9 101112 13 14 Next»
