Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

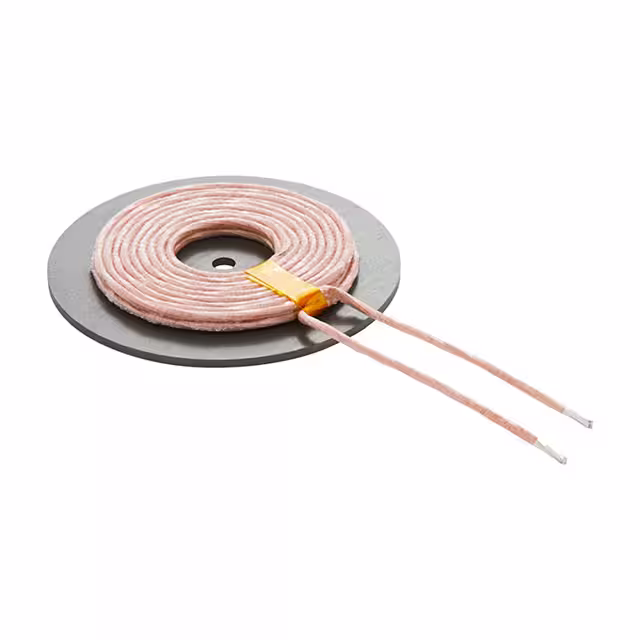

WTSC-10R0K-A3SINGLE-COIL CIRCLE BASE WIRELESS |
3,494 | 4.67 |
|
Datasheet |
WCC | Box | Active | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 75mOhm Max | - | 4A | 6A | - | -20°C ~ 85°C | 1.38" Dia x 0.13" H (35.0mm x 3.3mm) |
|
WTSC-2R76J-A11CUSTOM WIRELESS CHARGING COIL |
2,065 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|

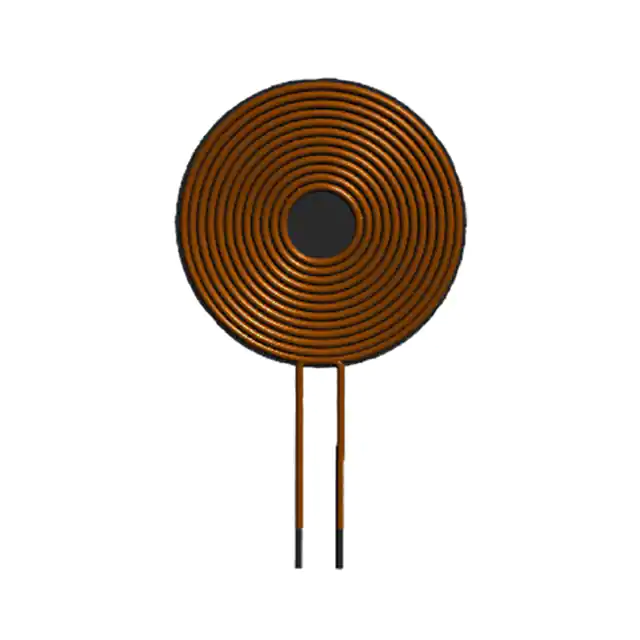

AWCCA-RX350300-101RX COIL, 1 COIL 25UH |
2,843 | 2.11 |
|
Datasheet |
AWCCA | Tray | Obsolete | Receiver | 1 Coil, 2 Layer | 25µH | ±10% | 170mOhm | 85 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.38" Dia x 0.12" H (35.0mm x 3.0mm) |
|

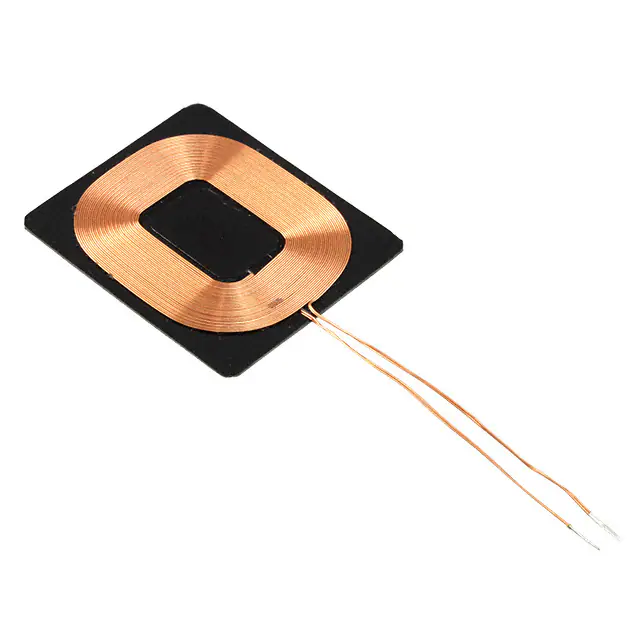

AWCCA-38R32H09-C01-BRX 1 COIL 1 LAYER 11.1UH 2.1A |
3,022 | 2.31 |
|
Datasheet |
AWCCA-38R32 | Box | Not For New Designs | Receiver | 1 Coil, 1 Layer | 11.1µH | ±10% | 260mOhm | 22 @ 100kHz | 2.1A | 12A | 11MHz | -25°C ~ 85°C | 1.54" L x 1.30" W x 0.05" H (39.0mm x 33.0mm x 1.3mm) |
|

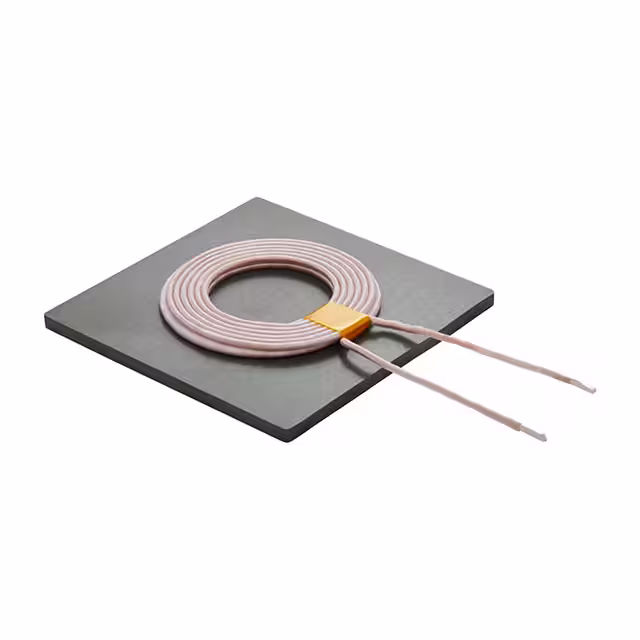

WTSQ-10R0K-MP-A5SINGLE-COIL SQUARE BASE WIRELESS |
1,579 | 6.63 |
|
Datasheet |
WCC | Box | Active | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 48mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 2.09" L x 2.09" W x 0.21" H (53.0mm x 53.0mm x 5.3mm) |
|
|
AWCCA-RX483205-103WIRELESS CHARGING COIL |
1,831 | 3.10 |
|
Datasheet |
AWCCA | Tray | Obsolete | Receiver | 1 Coil, 1 Layer | 14.5µH | ±10% | 140mOhm | 60 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm) |
|
|
SRX324801120KBARX 1 COIL 2 LAYER 12UH 3000MA |
2,744 | 0.00 |
|
Datasheet |
SRX | Bulk | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 200mOhm Max | - | 3A | - | - | -40°C ~ 85°C | 1.89" L x 1.26" W x 0.06" H (48.0mm x 32.0mm x 1.6mm) |
|
|
SRX2939018R6JBRX 1 COIL 2 LAYER 8.6UH 2400MA |
3,418 | 0.00 |
|
Datasheet |
SRX | Active | Receiver | 1 Coil, 1 Layer | 8.6µH | ±5% | 165mOhm Max | - | 2.4A | - | - | -40°C ~ 85°C | 1.52" L x 1.20" W x 0.04" H (38.5mm x 30.5mm x 1.1mm) | |
|
|
AWCCA-RX404012-102WIRELESS CHARGING COIL |
2,599 | 3.31 |
|
Datasheet |
AWCCA | Tray | Obsolete | Receiver | 1 Coil, 1 Layer | 8µH | ±10% | 80mOhm | 30 @ 125kHz | - | - | - | -25°C ~ 85°C | 1.57" L x 1.57" W x 0.05" H (40mm x 40mm x 1.2mm) |
|
|
AWCCA-RX514012-F003WIRELESS CHARGING COIL |
1,739 | 3.30 |
|
Datasheet |
AWCCA | Tray | Not For New Designs | Receiver | 1 Coil, 1 Layer | 8.5µH | ±10% | 160mOhm | 25 @ 125kHz | - | - | - | -25°C ~ 85°C | 2.01" L x 1.57" W x 0.05" H (51.0mm x 40.0mm x 1.2mm) |
|
|
SCT50036R3KA11STX 1 COIL 1 LAYER 6.3UH 5000MA |
4,167 | 0.00 |
|
Datasheet |
SCT | Bag | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 45mOhm Max | - | 5A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.12" H (50.0mm x 3.0mm) |
|
|
SRX324501140KSRX 1 COIL 1 LAYER 14UH 1200MA |
4,559 | 0.00 |
|
Datasheet |
SRX | Bag | Active | Receiver | 1 Coil, 1 Layer | 14µH | ±10% | 355mOhm Max | - | 1.2A | - | - | -40°C ~ 85°C | 1.77" L x 1.26" W x 0.07" H (45.0mm x 32.0mm x 1.7mm) |
|
|
IWAS3827ABEB100JF1IWAS-3827AB-F1 10 5% EB E2 |
3,900 | 2.97 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 10.65µH | ±5% | 178mOhm | 30 @ 200kHz | - | - | - | -40°C ~ 105°C | 1.50" L x 1.05" W x 0.07" H (38.1mm x 26.7mm x 1.7mm) |
|
|
AWCCA-RX300200-102WIRELESS CHARGING COIL |
1,283 | 3.41 |
|
Datasheet |
AWCCA | Tray | Obsolete | Receiver | 1 Coil, 1 Layer | 6.3µH | ±10% | 140mOhm | 26 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.18" Dia x 0.08" H (30.0mm x 2.0mm) |
|

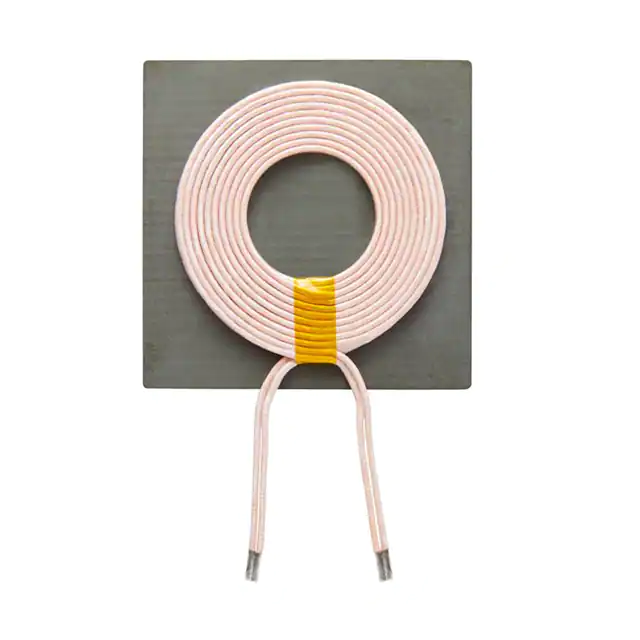

WTSQ-6R3K-A11SINGLE-COIL SQUARE BASE WIRELESS |
1,715 | 3.08 |
|
Datasheet |
WCC | Box | Active | Transmitter | 2 Coil, 1 Layer | 6.3µH | ±10% | 25mOhm Max | - | 9A | 10A | - | -20°C ~ 85°C | 2.09" L x 2.09" W x 0.21" H (53.0mm x 53.0mm x 5.3mm) |
|

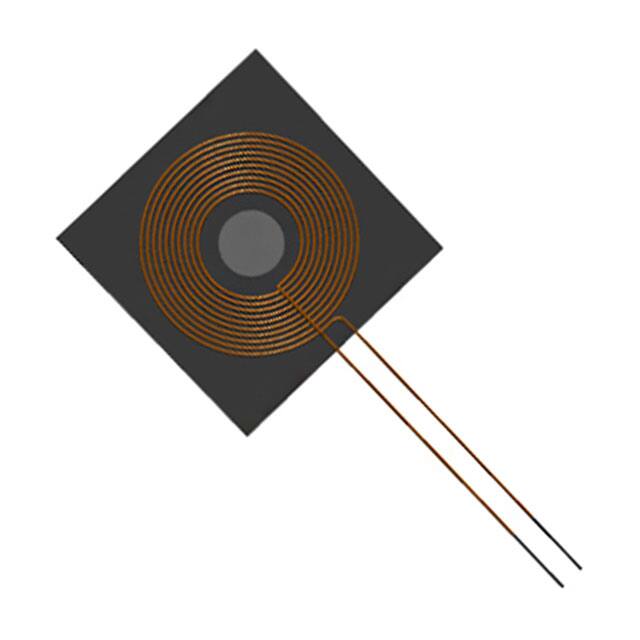

AWCCA-37R37H18-C01-BRECEIVER COIL, 1 COIL, 10UH |
3,728 | 0.00 |
|
Datasheet |
AWCCA | Box | Obsolete | Receiver | 1 Coil, 1 Layer | 10µH | ±10% | 160mOhm | 38 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.46" Dia x 0.07" H (37.0mm x 1.8mm) |
|
|
STX5050036R3KA11STX 1 COIL 1 LAYER 6.3UH 5000MA |
2,169 | 0.00 |
|
Datasheet |
STX | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 45mOhm Max | - | 5A | - | - | -40°C ~ 85°C | 1.97" L x 1.97" W x 0.12" H (50.0mm x 50.0mm x 3.0mm) |
|
|
IWAS4832AAEB220JF1IWAS-4832AA-F1 22 5% EB E2 |
4,495 | 3.43 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 22µH | ±5% | 427mOhm | 38 @ 200kHz | - | - | - | -40°C ~ 105°C | 1.89" L x 1.26" W x 0.06" H (48.0mm x 32.0mm x 1.6mm) |
|
AWCCA-20R20H08-C01-BRECEIVER COIL, 12UH |
2,290 | 3.56 |
|
Datasheet |
AWCCA | Box | Not For New Designs | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 290mOhm | 20 @ 100kHz | - | - | - | -25°C ~ 85°C | 0.79" L x 0.79" W x 0.03" H (20.0mm x 20.0mm x 0.8mm) |
|
AWCCA-20N20H20-C01-BTX OR RX COIL, 1 COIL 6.3UH |
4,966 | 3.61 |
|
Datasheet |
AWCCA | Box | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 150mOhm | 34 @ 100kHz | - | - | - | -25°C ~ 85°C | 0.79" Dia x 0.08" H (20.0mm x 2.0mm) |
