Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

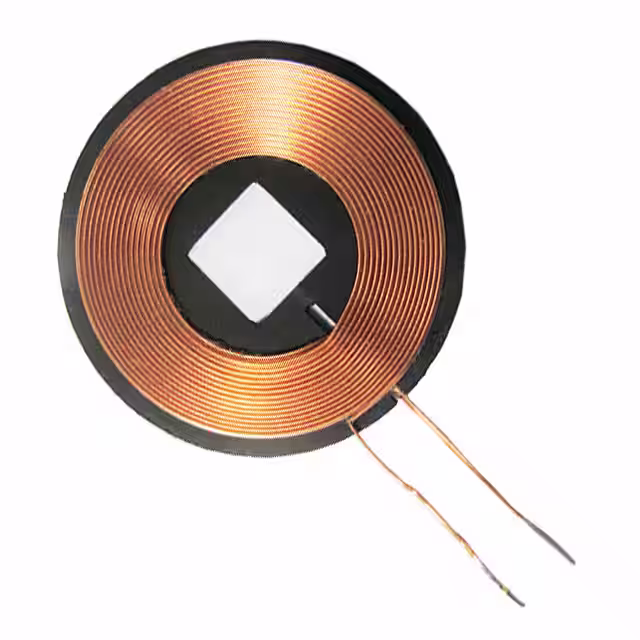

AWCCA-26R26H08-C01-BRX 1 COIL 1 LAYER 10UH |
4,962 | 3.69 |
|
Datasheet |
AWCCA | Box | Not For New Designs | Receiver | 1 Coil, 1 Layer | 10µH | ±10% | 320mOhm | 18.5 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.02" Dia x 0.03" W (26.0mm x 0.8mm) |
|
SCT55048R9KMPA4TX 1 COIL 1 LAYER 8.9UH 6000MA |
4,106 | 0.00 |
|
Datasheet |
SCT | Bag | Active | Transmitter | 1 Coil, 1 Layer | 8.9µH | ±10% | 55mOhm Max | - | 6A | - | - | -40°C ~ 85°C | 2.17" Dia x 0.16" H (55.0mm x 4.0mm) |
|

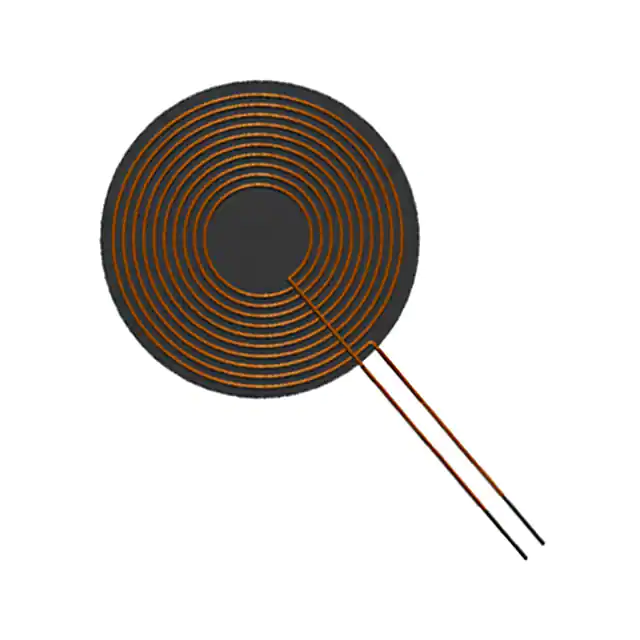

AWCCA-15N15H06-C01-BTX OR RX COIL, 1 COIL, 14.9UH |
4,911 | 3.56 |
|
Datasheet |
AWCCA | Box | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 14.9µH | ±10% | 1Ohm | 8.5 @ 100kHz | - | - | - | -25°C ~ 85°C | 0.59" Dia x 0.02" H (15.0mm x 0.6mm) |
|

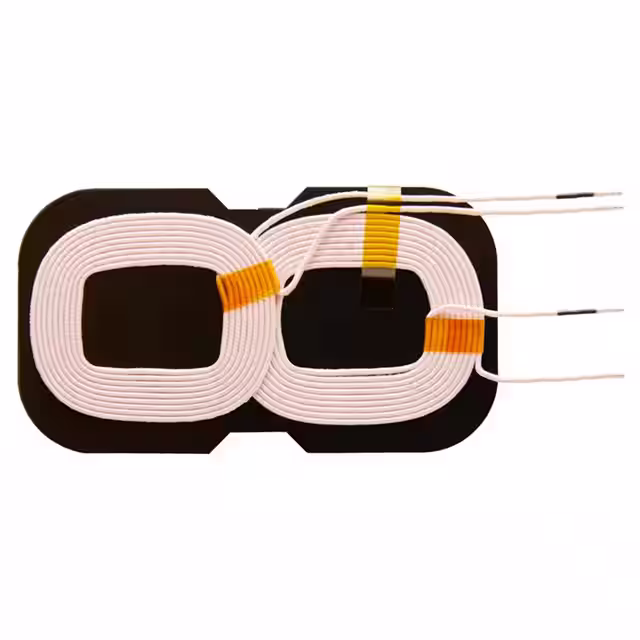

WTM-7R1K-A28DOUBLE-COIL WIRELESS CHARGING CO |
4,668 | 10.26 |
|
Datasheet |
WCC | Box | Active | Transmitter | 2 Coil, 1 Layer | 7.1µH | ±10% | 45mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.70" L x 2.05" W x 0.16" H (94.0mm x 52.0mm x 4.0mm) |
|
|
AWCCA-TX523517-102WIRELESS CHARGING COIL |
3,609 | 4.84 |
|
Datasheet |
AWCCA | Tray | Obsolete | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 80mOhm | 60 @ 100kHz | - | - | - | -40°C ~ 120°C | 2.05" L x 1.38" W x 0.07" H (52.0mm x 35.0mm x 1.8mm) |
|

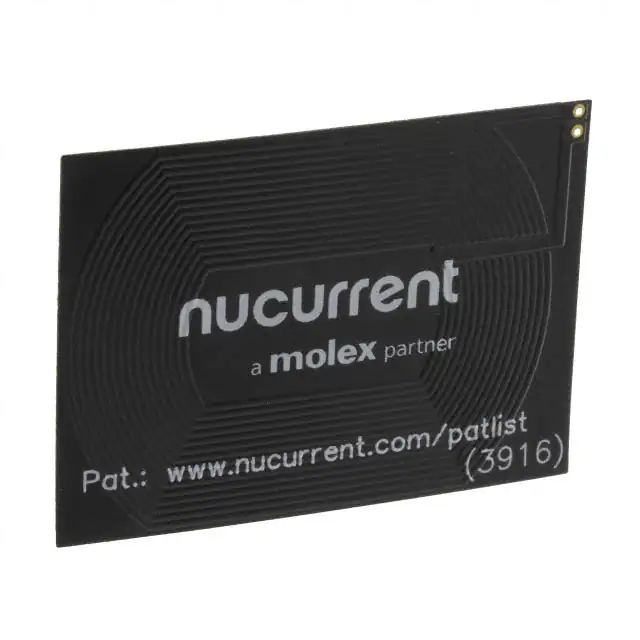

1461791001RX 1 COIL 1 LAYER 11.6UH |
3,041 | 0.00 |
|
Datasheet |
NuCurrent, PowerLife, 146179 | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer | 11.6µH | ±2% | 520mOhm | 23 @ 200kHz | - | - | - | - | 1.69" L x 1.22" W x 0.02" H (43.0mm x 31.0mm x 0.5mm) |
|

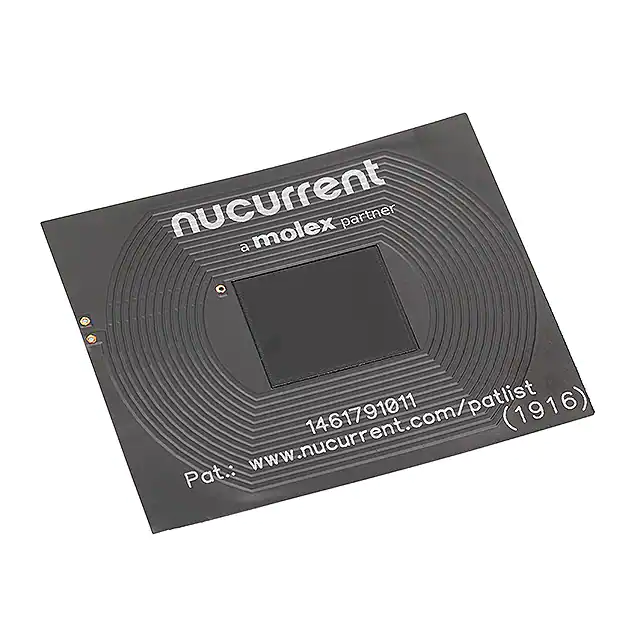

1461791011RX 2 COIL, 1 LYR 9.9UH |
3,378 | 8.52 |
|
Datasheet |
NuCurrent, PowerLife, 146179 | Bulk | Obsolete | Receiver | 2 Coil, 1 Layer | 9.9µH | ±2% | 390mOhm | 23 @ 200kHz | - | - | - | - | 1.58" L x 1.85" W x 0.02" H (40.0mm x 47.0mm x 0.5mm) |
|

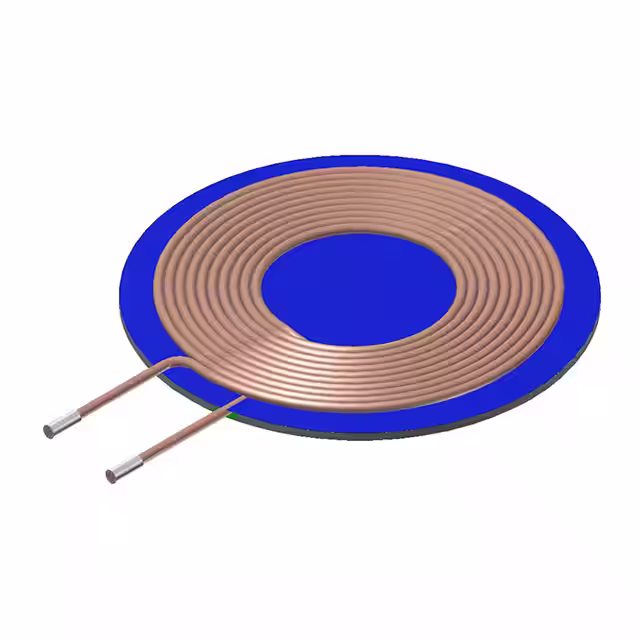

WT505090-10F2-LP-GTX 1 COIL, 1 LYR 6.3UH |
2,766 | 4.88 |
|
Datasheet |
WT | Tray | Not For New Designs | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 60mOhm | - | - | - | - | - | 1.97" Dia x 0.10" H (50.0mm x 2.5mm) |
|

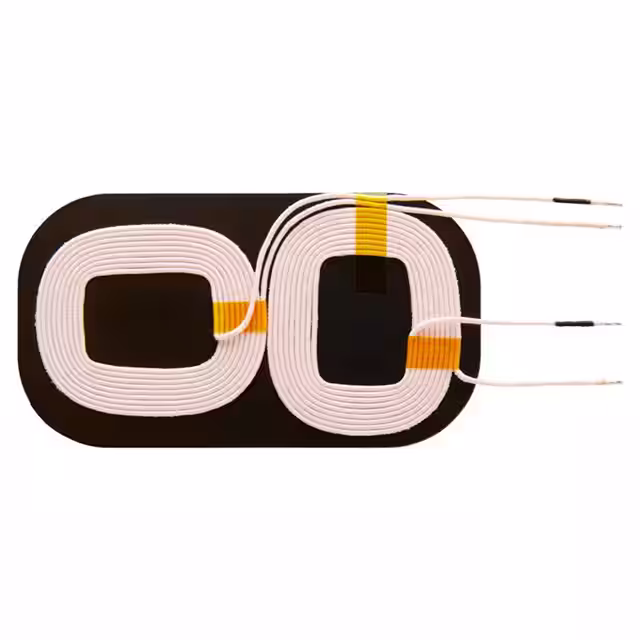

WTM-7R3K-S7DOUBLE-COIL WIRELESS CHARGING CO |
2,698 | 10.97 |
|
Datasheet |
WCC | Box | Active | Transmitter | 2 Coil, 1 Layer | 7.3µH | ±10% | 50mOhm Max | - | 7A | 12A | - | -20°C ~ 85°C | 3.94" L x 2.17" W x 0.16" H (100.0mm x 55.0mm x 4.0mm) |
|

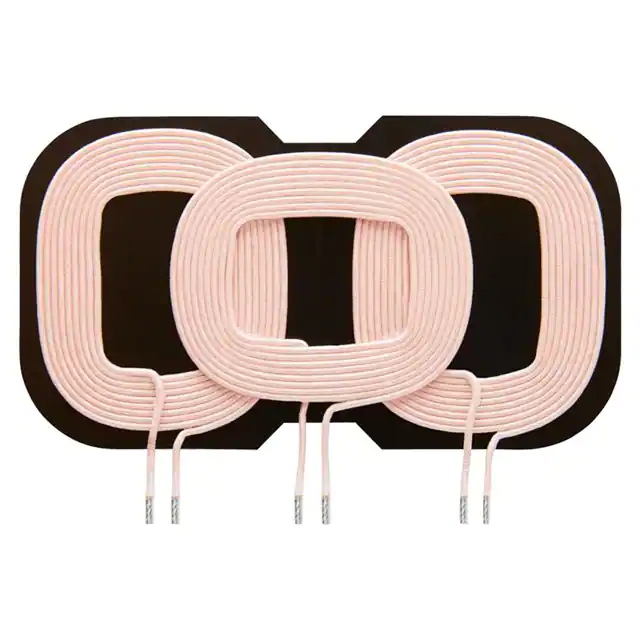

WTM-7R0K-A28MULTI-COIL WIRELESS CHARGING COI |
4,192 | 10.97 |
|
Datasheet |
WCC | Box | Active | Transmitter | 3 Coil, 1 Layer | 6.5µH, 7µH | ±10% | 45mOhm Max | - | 7A | 12A | - | -20°C ~ 85°C | 3.70" L x 2.05" W x 0.16" H (94.0mm x 52.0mm x 4.0mm) |
|

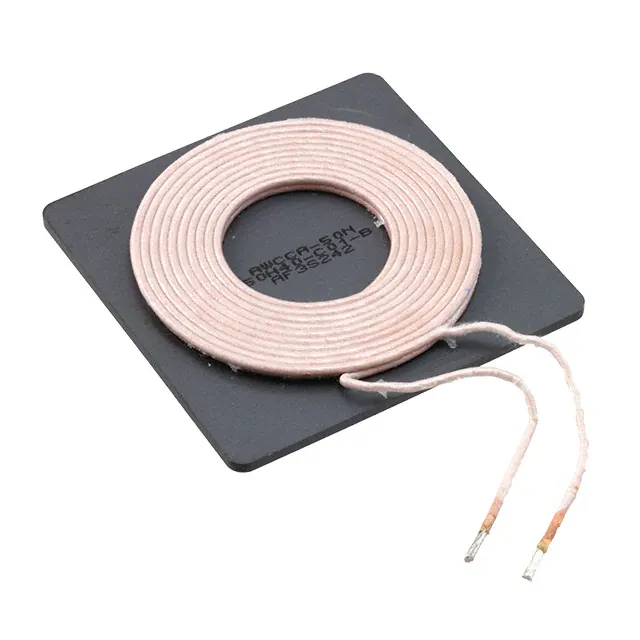

AWCCA-50N50H40-C01-BRX TX 1 COIL 1 LAYER 24UH 5.7A |
3,865 | 8.96 |
|
Datasheet |
AWCCA-50N50 | Box | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 72mOhm | 165 @ 100kHz | 5.7A | 27A | 2.9MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.15" H (50.0mm x 50.0mm x 4.0mm) |
|

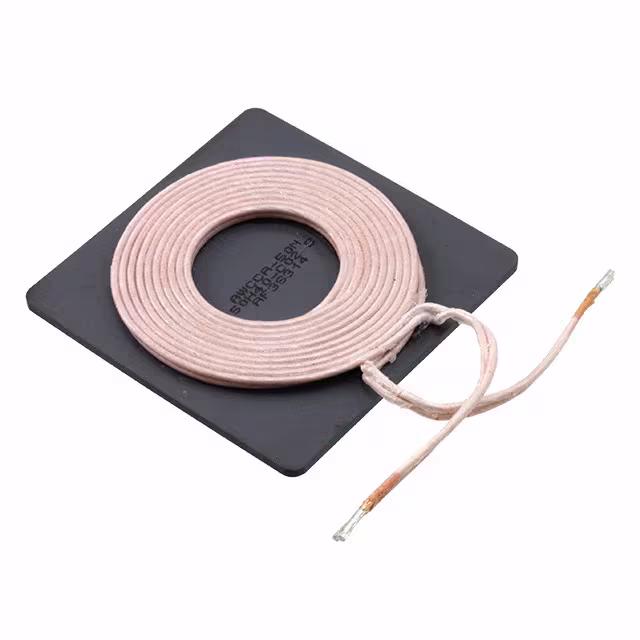

AWCCA-50N50H40-C02-BRX TX 1 COIL 1 LAYER 6.3UH 11.1A |
1,752 | 4.77 |
|
Datasheet |
AWCCA-50N50 | Box | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 72 @ 100kHz | 11.1A | 40A | 5.7MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.15" H (50.0mm x 50.0mm x 4.0mm) |
|
|
SCT50046R3KA11DTX 1 COIL 2 LAYER 6.3UH 10000MA |
2,275 | 0.00 |
|
Datasheet |
SCT | Bag | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 25mOhm Max | - | 10A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.16" H (50.0mm x 4.0mm) |
|
|
AWCCA-TX535315-101WIRELESS CHARGING COIL |
4,167 | 5.63 |
|
Datasheet |
AWCCA | Tray | Obsolete | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 55mOhm | 135 @ 125kHz | - | - | - | -40°C ~ 85°C | 2.09" L x 2.09" W x 0.18" H (53.0mm x 53.0mm x 4.5mm) |
|
|
STX5050046R3KA11DTX 1 COIL 2 LAYER 6.3UH 10000MA |
1,296 | 0.00 |
|
Datasheet |
STX | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 25mOhm Max | - | 10A | - | - | -40°C ~ 85°C | 1.97" L x 1.97" W x 0.16" H (50.0mm x 50.0mm x 4.0mm) |
|
|
STX555504100KMPA2TX 1 COIL 1 LAYER 10UH 6000MA |
3,894 | 0.00 |
|
Datasheet |
STX | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 80mOhm Max | - | 6A | - | - | -40°C ~ 85°C | 2.17" L x 2.17" W x 0.12" H (55.0mm x 55.0mm x 3.0mm) |
|
|
WTM-12R5K-A28WIRELESS CHARGING COIL |
2,576 | 0.00 |
|
Datasheet |
WCC | Bulk | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH | ±10% | 65mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.70" L x 2.13" W x 0.16" H (94.0mm x 54.0mm x 4.0mm) |
|

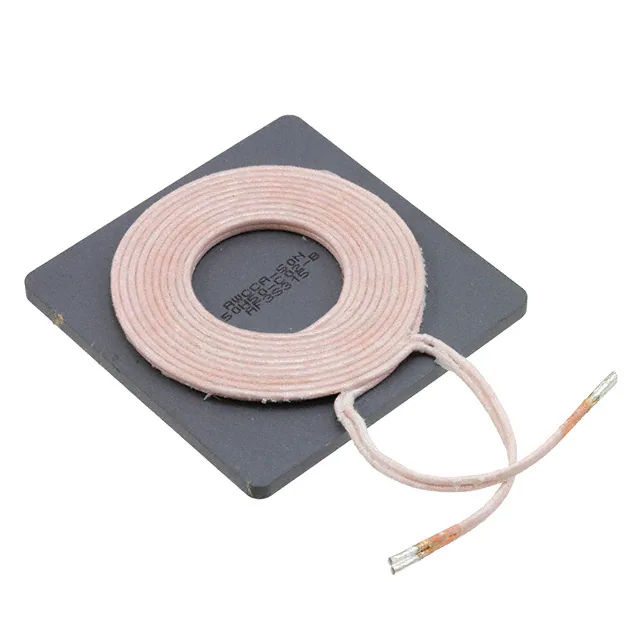

AWCCA-50N50H50-C02-BRX TX 1 COIL 1 LAYER 6.3UH 10.6A |
3,382 | 9.54 |
|
Datasheet |
AWCCA-50N50 | Box | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 75 @ 100kHz | 10.6A | 40A | 5.7MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm) |
|

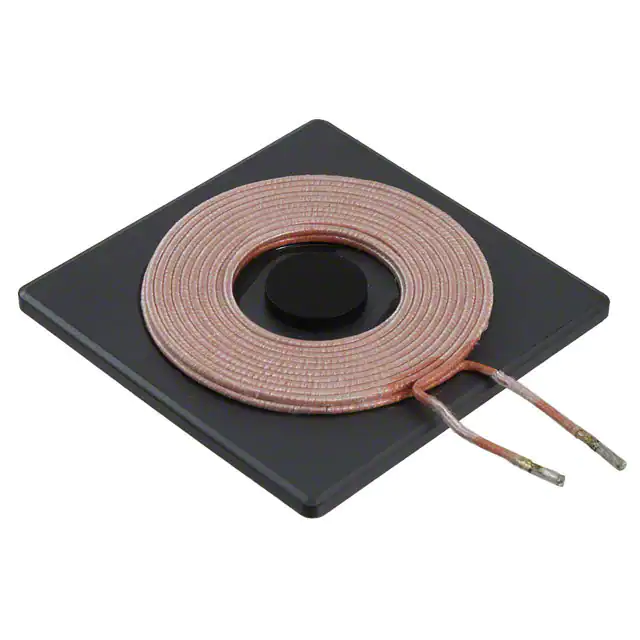

WT525225-20K2-A1-GTX 1 COIL 2 LYR 24UH |
4,182 | 9.86 |
|
Datasheet |
WT | Tray | Obsolete | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 100mOhm Max | 80 @ 100kHz | - | - | - | -30°C ~ 70°C | 2.05" L x 2.05" W x 0.22" H (52.0mm x 52.0mm x 5.6mm) |
|
|
WTM-9R8K-A9WIRELESS CHARGING COIL |
1,766 | 0.00 |
|
Datasheet |
WCC | Bulk | Active | Transmitter | 3 Coil, 1 Layer | 9.8µH, 10.2µH | ±10% | 60mOhm, 65mOhm Max | - | 8A | 10A | - | -20°C ~ 85°C | 3.98" L x 2.24" W x 0.16" H (101.0mm x 57.0mm x 4.0mm) |
