Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

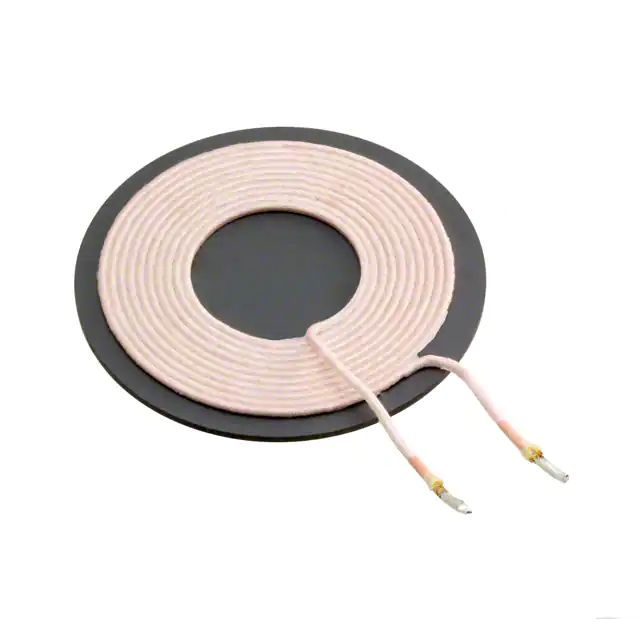

RWC5050AK060-500TX 1 COIL 1 LAYER 6.5UH |
1,399 | 8.43 |
|
Datasheet |
RWC | Box | Active | Transmitter | 1 Coil, 1 Layer | 6.5µH | ±10% | 50mOhm Max | 70 @ 100kHz | - | - | - | -40°C ~ 125°C | 1.97" Dia x 0.12" H (50.0mm x 3.0mm) |
|
RWC5353EJ240-501TX 1 COIL 2 LAYER 24UH 5.5A |
4,076 | 9.63 |
|
Datasheet |
RWC | Box | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 75mOhm Max | 90 @ 100kHz | 5.5A | 10A | - | -40°C ~ 125°C | 2.09" L x 2.09" W x 0.26" H (53.0mm x 53.0mm x 6.7mm) |
|

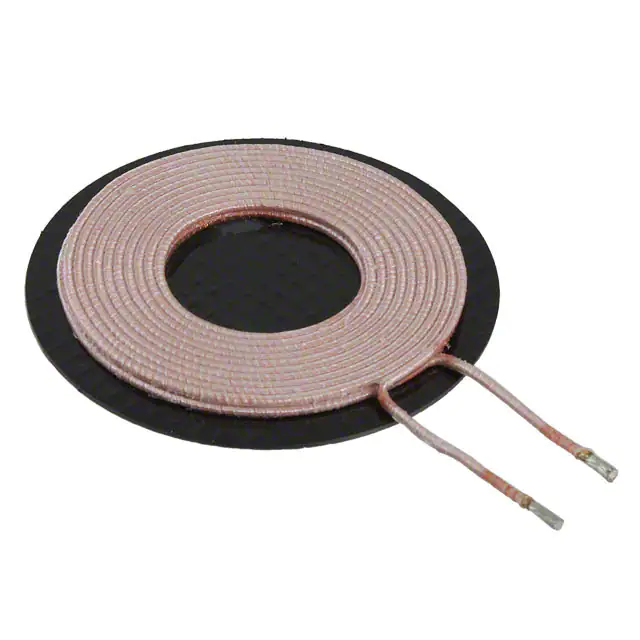

WT-505060-20K2-A10-GTX 1 COIL 2 LYR 24UH |
2,655 | 13.26 |
|
Datasheet |
WT | Tray | Obsolete | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 100mOhm Max | 80 @ 100kHz | - | - | - | -30°C ~ 70°C | 1.97" Dia x 0.13" H (50.0mm x 3.4mm) |
|

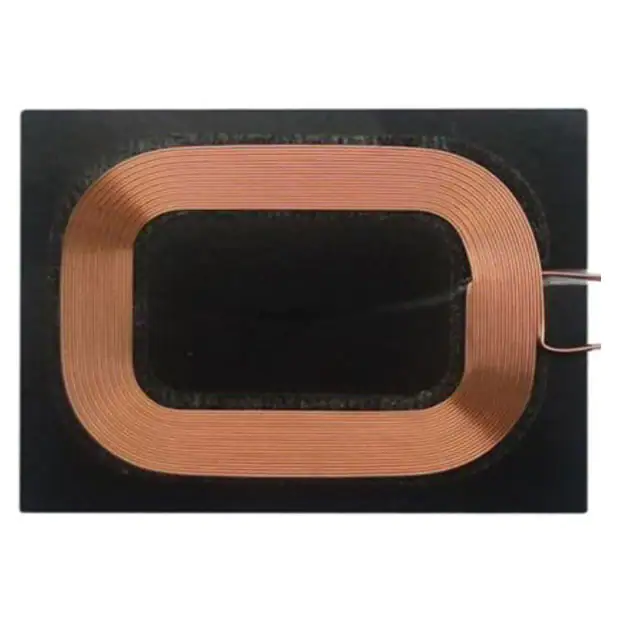

QPR-0108RECEIVER |
3,885 | 42.86 |
|
Datasheet |
- | Box | Active | Receiver | 1 Coil, 1 Layer | 8.5µH | ±10% | 130mOhm | 20 @ 100kHz | - | - | - | - | 1.97" L x 1.57" W x 0.03" H (50.0mm x 40.0mm x 0.8mm) |
|

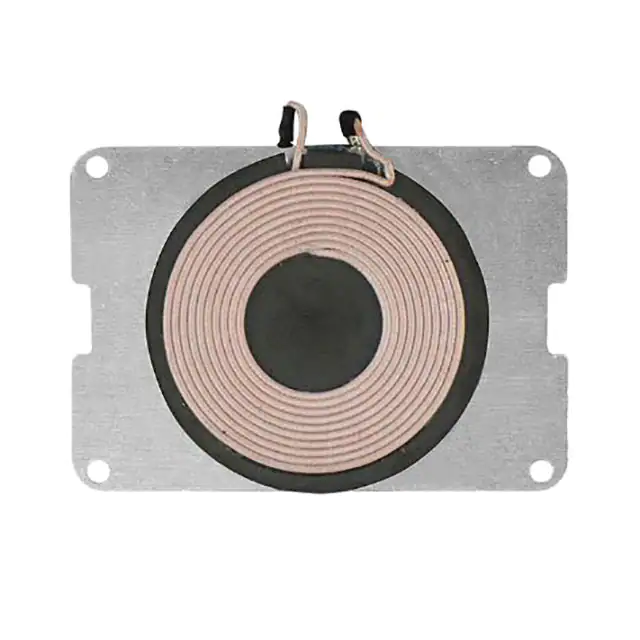

QPT-0036A10W TRANSMITTER MODULE |
4,430 | 42.86 |
|
Datasheet |
- | Box | Active | Transmitter | 1 Coil, 1 Layer | 3.8µH | ±10% | - | - | - | - | - | - | 2.83" L x 1.97" W x 0.04" H (72.0mm x 50.0mm x 1.0mm) |
|

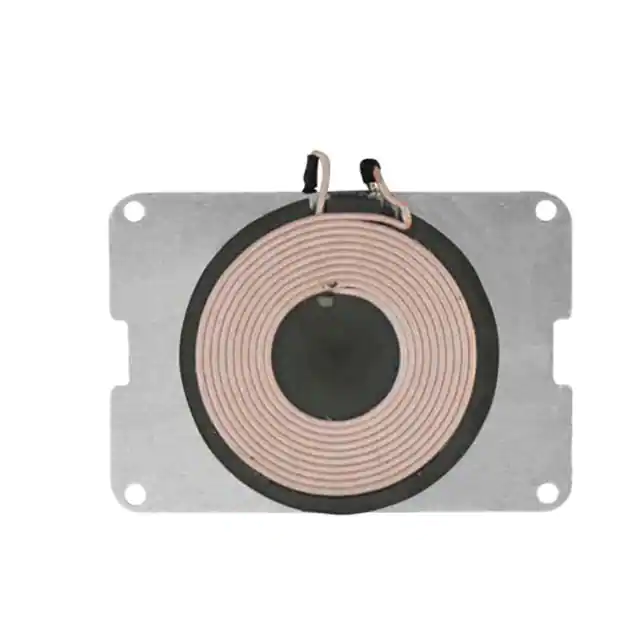

QPT-002310W TRANSMITTER MODULE |
2,425 | 42.86 |
|
Datasheet |
- | Box | Active | Transmitter | 1 Coil, 1 Layer | 3.8µH | ±10% | - | - | - | - | - | - | 2.83" L x 1.97" W x 0.04" H (72.0mm x 50.0mm x 1.0mm) |
|

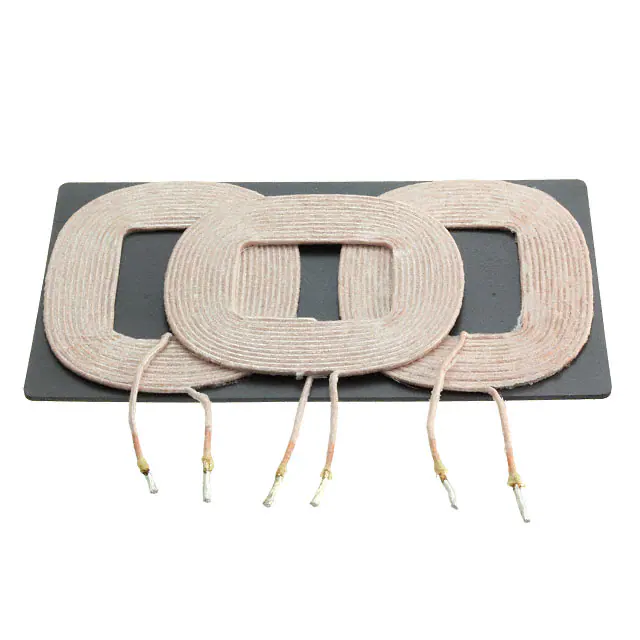

SWC10056AA120-500TRANSMITTER 3 COIL 1 LAYER |
4,650 | 15.01 |
|
Datasheet |
SWC | Box | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 65mOhm Max | 90 @ 100kHz | - | - | - | -40°C ~ 125°C | 3.94" L x 2.20" W x 0.18" H (100.0mm x 56mm x 4.5mm) |
|
QPR-6011RECEIVER |
1,097 | 0.00 |
|
- |
- | Bulk | Active | Receiver | 1 Coil, 1 Layer | 5µH | ±10% | 130mOhm | 10 @ 100kHz | - | - | - | - | 2.01" L x 1.57" W x 0.09" H (51.0mm x 40.0mm x 2.2mm) |
|

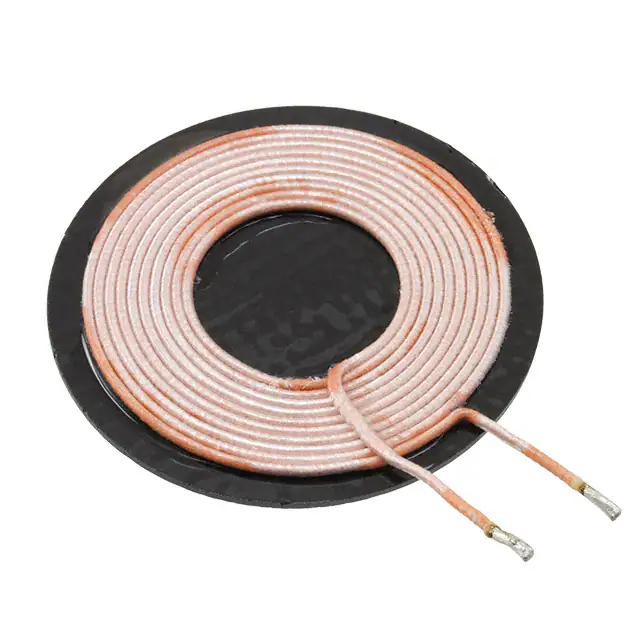

WT505090-10K2-A11-GTX 1 COIL 1 LYR 6.3UH |
3,098 | 6.72 |
|
- |
WT | Tray | Not For New Designs | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 60mOhm | - | - | - | - | - | 1.97" Dia x 0.15" H (50.0mm x 3.8mm) |
|

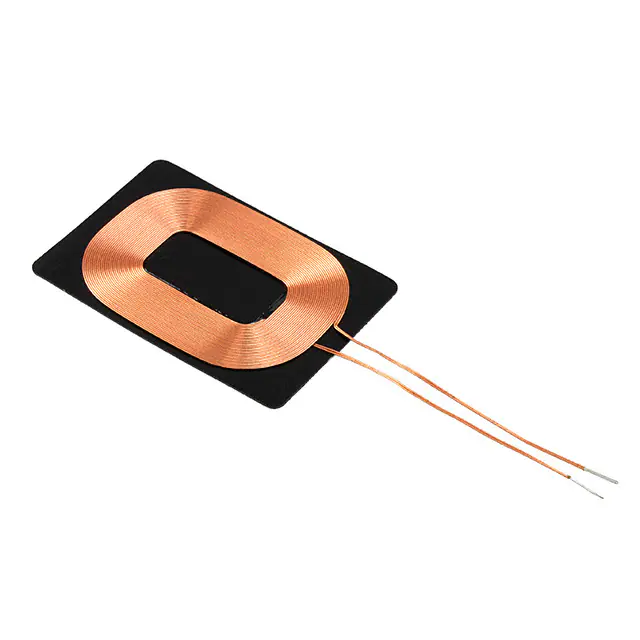

WR483245-15F5-GRX 1 COIL 1 LYR 13UH |
3,729 | 6.03 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 13µH | - | 200mOhm | - | - | - | - | - | 1.89" L x 1.27" W x 0.03" H (48.2mm x 32.2mm x 1.0mm) |
|
760308111TX 1 COIL 2 LYR BIFIL 6.3UH 13A |
4,354 | 13.60 |
|
Datasheet |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 2 Layer, Bifilar | 6.3µH | ±10% | 24mOhm Max | 80 @ 125kHz | 13A | 16A | 20MHz | -20°C ~ 105°C | 2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm) |
|
|
IWTX5050CZEB6R3KF1WIRELESS CHARGING TRANSMIT COIL |
1,581 | 1.38 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 45mOhm Max | 120 @ 100kHz | 5A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.12" H (50.0mm x 3.0mm) |
|

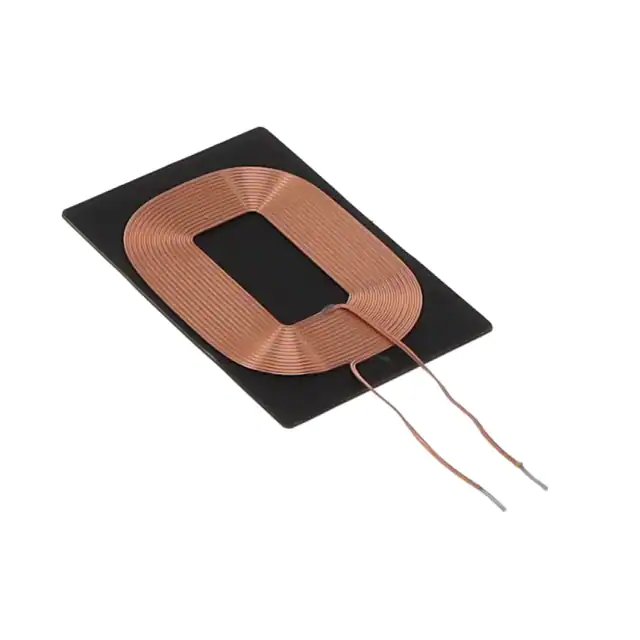

IWAS4832AEEB120KF1WIRELESS CHARGING RECEIVE COIL |
1,845 | 2.89 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 200mOhm Max | 33 @ 100kHz | 3A | - | - | -40°C ~ 85°C | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.0mm) |
|

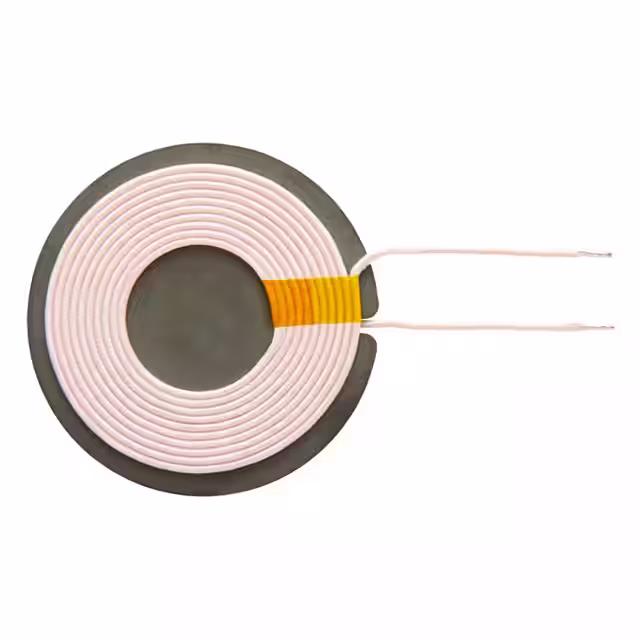

WTSC-6R3K-A11BSINGLE-COIL WIRELESS CHARGING CO |
3,482 | 7.56 |
|
Datasheet |
WCC | Box | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 40mOhm Max | - | 6A | 10A | - | -20°C ~ 85°C | 1.97" Dia x 0.12" H (50.0mm x 3.0mm) |
|

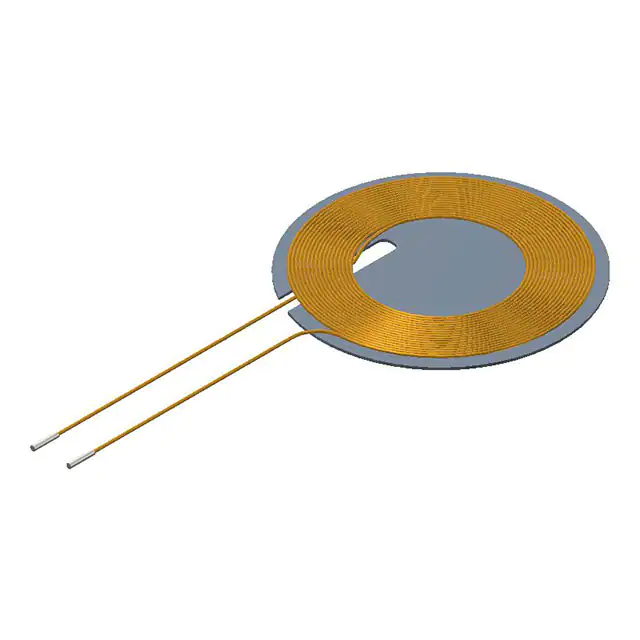

WR202020-18M8-GRX 1 COIL, 1 LYR 9.9UH |
2,874 | 4.18 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 9.9µH | - | 520mOhm | - | - | - | - | - | 0.79" Dia x 0.02" H (20.0mm x 0.6mm) |
|
|
WRSR-11R0K-16WIRELESE CHARGE COIL 11.0UH 2.5A |
2,924 | 0.00 |
|
Datasheet |
WRSR | Bulk | Active | Receiver | 1 Coil, 1 Layer | 11µH | ±10% | 200mOhm Max | 30 @ 125kHz | 2.5A | 4A | - | -25°C ~ 105°C | 1.34" L x 1.05" W x 0.04" H (34.0mm x 26.7mm x 0.9mm) |
|

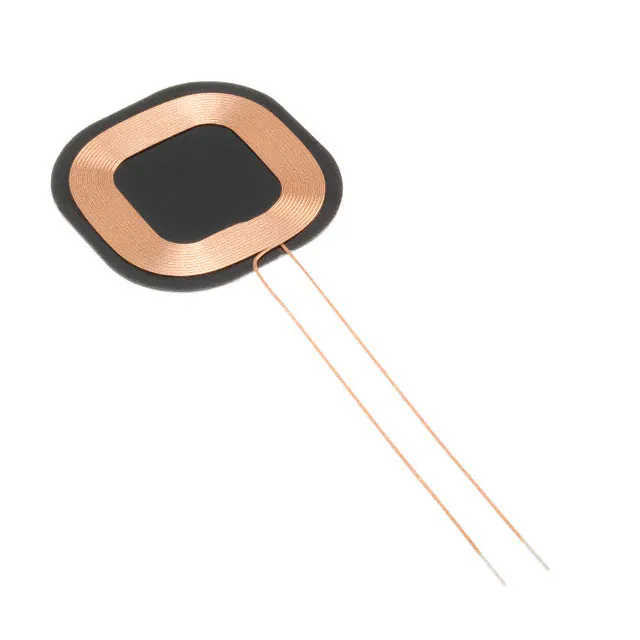

WR303050-12F5-IDRX 1 COIL 1 LYR 8.23UH |
4,999 | 5.27 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 8.23µH | ±5% | 260mOhm | - | - | - | - | - | 1.18" L x 1.17" W x 0.03" H (30.0mm x 29.6mm x 0.9mm) |
|

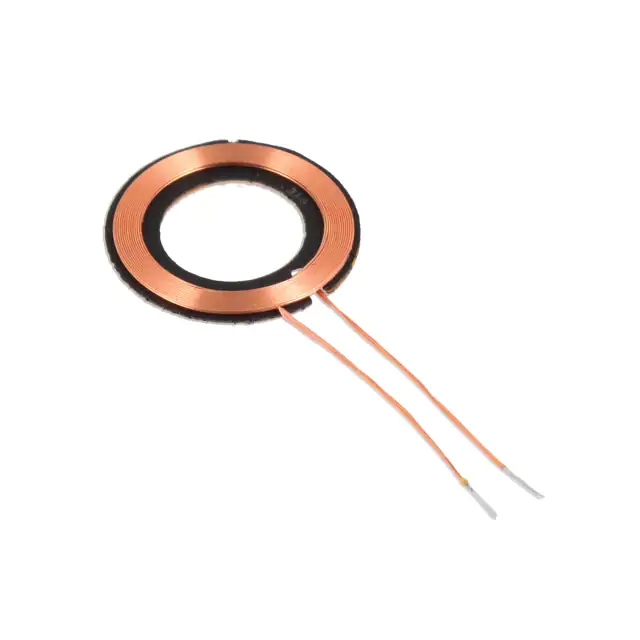

760308105214WE-WPCC WIRELESS POWER CHARGING |
2,235 | 8.02 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
760308102213RX 1 COIL 1 LAYER 7.9UH 1.7A |
4,959 | 8.63 |
|
Datasheet |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 7.9µH | ±10% | 330mOhm Max | 18 @ 125kHz | 1.7A | 4A | 21MHz | -20°C ~ 105°C | 1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm) |
|

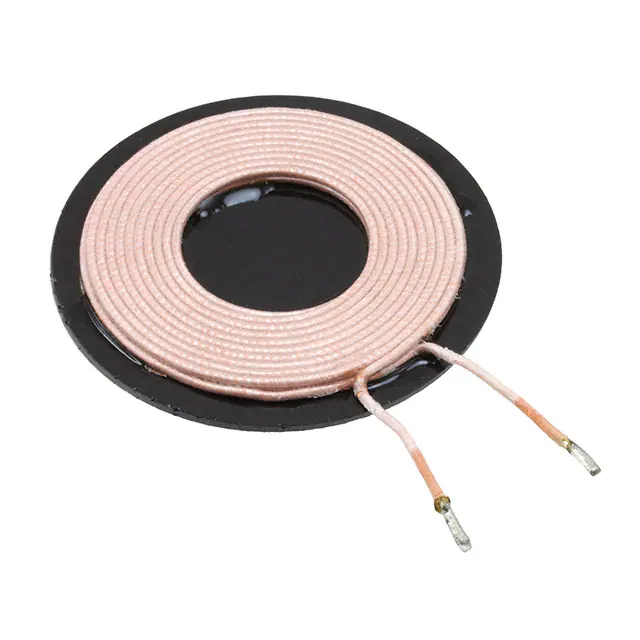

WT505090-20K2-A10-GTX 1 COIL 2 LYR 24UH |
3,222 | 9.17 |
|
Datasheet |
WT | Tray | Active | Transmitter | 1 Coil, 2 Layer | 24µH | - | 100mOhm | - | - | - | - | - | 1.97" Dia x 0.15" H (50.0mm x 3.8mm) |
