Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

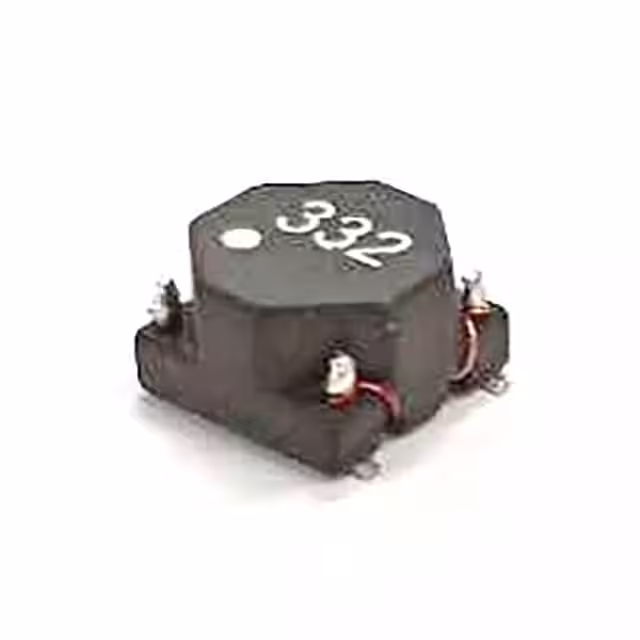

CM633SG332NCMC 3.3MH 520MA 2LN SMD |
590 | 2.80 |
|
Datasheet |
- | Signal Line | 2 | - | 3.3 mH @ 100 kHz | 520mA | 360mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SSR21NH-M07890CMC 89MH 700MA 2LN TH |
233 | 3.17 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 89 mH @ 10 kHz | 700mA | 1.05Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSR21NH-M08680CMC 68MH 800MA 2LN TH |
204 | 3.17 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 68 mH @ 10 kHz | 800mA | 800mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB21H-R06825CMC 82.5MH 600MA 2LN TH |
120 | 2.84 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 82.5 mH @ 10 kHz | 600mA | 1.5Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21HS-R06780CMC 78MH 600MA 2LN TH |
117 | 2.84 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 78 mH @ 10 kHz | 600mA | 1.48Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
FE2X39-3-2NLCMC 350MA 2LN TH |
2,438 | 3.22 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 350mA | 2.6Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SSRH24NH-45059CMC 5.9MH 4.5A 2LN TH |
180 | 3.48 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.9 mH @ 10 kHz | 4.5A | 48mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

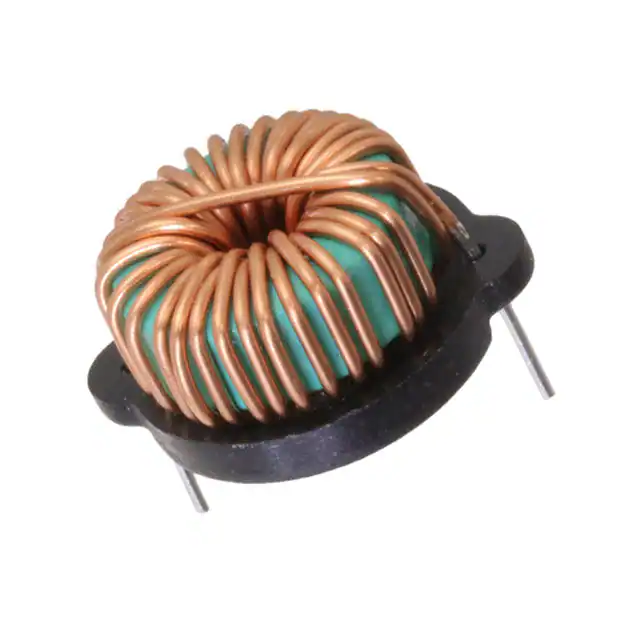

SN5-30P2NMC 25.0UH 2.0A 0.0460 OHM TH |
200 | 3.14 |
|
Datasheet |
Horizontal, 2 PC Pin | Power Line | 2 | - | 25 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
SSRH24NVS-20215CMC 21.5MH 2A 2LN TH |
175 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 21.5 mH @ 10 kHz | 2A | 177mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
PDLF4500LCCMC 500MA 4LN 848 OHM SMD |
4,278 | 0.00 |
|
Datasheet |
8-SMD, Gull Wing | Signal Line | 4 | 848 Ohms @ 200 MHz | 5 µH @ 1 MHz | 500mA | 200mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
SSRH24NHS-25130CMC 13MH 2.5A 2LN TH |
2,923 | 1.93 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 13 mH @ 10 kHz | 2.5A | 111mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSHB21H-07340CMC 34MH 700MA 2LN TH |
180 | 3.01 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 34 mH @ 10 kHz | 700mA | 1.16Ohm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|

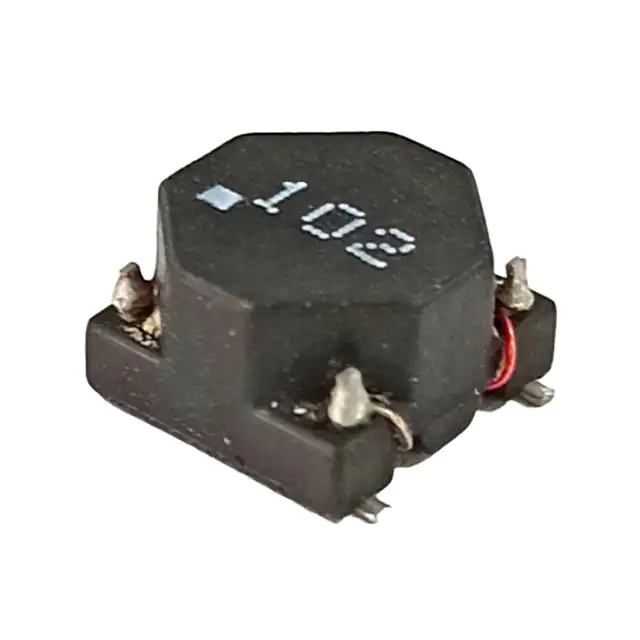

CM633SG102NCMC 1MH 950MA 2LN SMD |
775 | 3.10 |
|
Datasheet |
- | Signal Line | 2 | - | 1 mH @ 100 kHz | 950mA | 180mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PAC6006.264NLTCMC 11A 2LN 1.4K OHM SMD |
1,033 | 3.53 |
|
Datasheet |
Horizontal, 4 J-Lead | - | 2 | 1.4 kOhms @ 5.3 MHz | - | 11A | 5.5mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

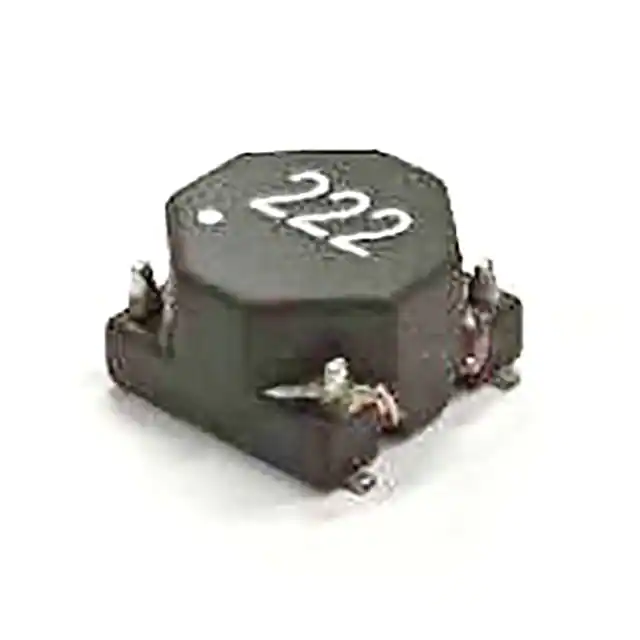

CM633SG222NCMC 2.2MH 750MA 2LN SMD |
465 | 3.22 |
|
Datasheet |
- | Signal Line | 2 | - | 2.2 mH @ 100 kHz | 750mA | 300mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SS35H-35047CMC 4.7MH 3.5A 2LN TH |
1,552 | 2.10 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 1 kHz | 3.5A | 100mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SH-132CMC 2.4A 2LN TH |
114 | 3.78 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 2 | - | 2.6 µH @ 100 kHz | 2.4A | 51mOhm | 50V | - | -25°C ~ 60°C | - | - | - | - | - |
|
RS612-4-02CMC 3UH 4A 2LN TH |
339 | 3.40 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 3 µH @ 1 kHz | 4A (Typ) | 10mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|

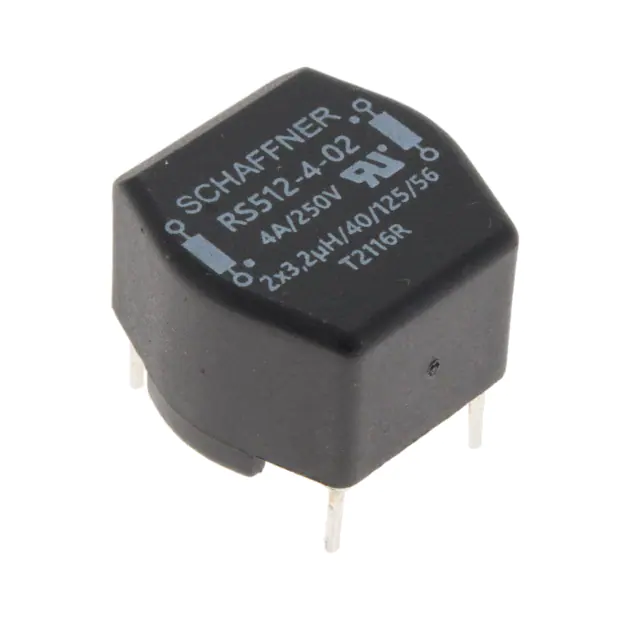

RS512-4-02CMC 3UH 4A 2LN TH |
263 | 3.40 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 3 µH @ 1 kHz | 4A (Typ) | 10mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|

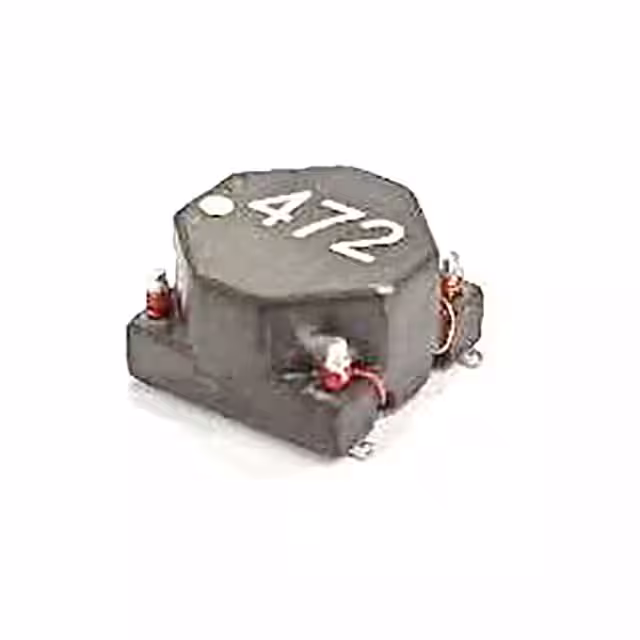

CM633SG472NCCMC 4.7MH 350MA 2LN SMD |
895 | 3.38 |
|
Datasheet |
- | Signal Line | 2 | - | 4.7 mH @ 100 kHz | 350mA | 900mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
