Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

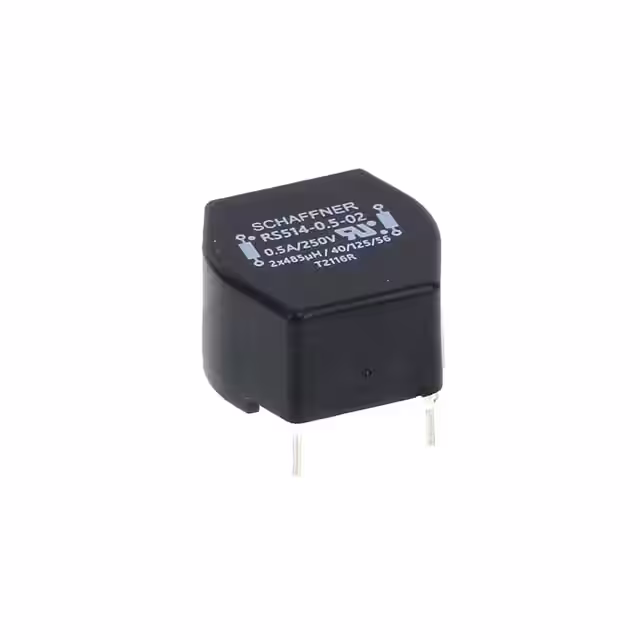

RS514-0.5-02CMC 480UH 500MA 2LN TH |
487 | 3.62 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 480 µH @ 1 kHz | 500mA (Typ) | 800mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
RS614-0.5-02CMC 480UH 500MA 2LN TH |
480 | 3.62 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 480 µH @ 1 kHz | 500mA (Typ) | 800mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|

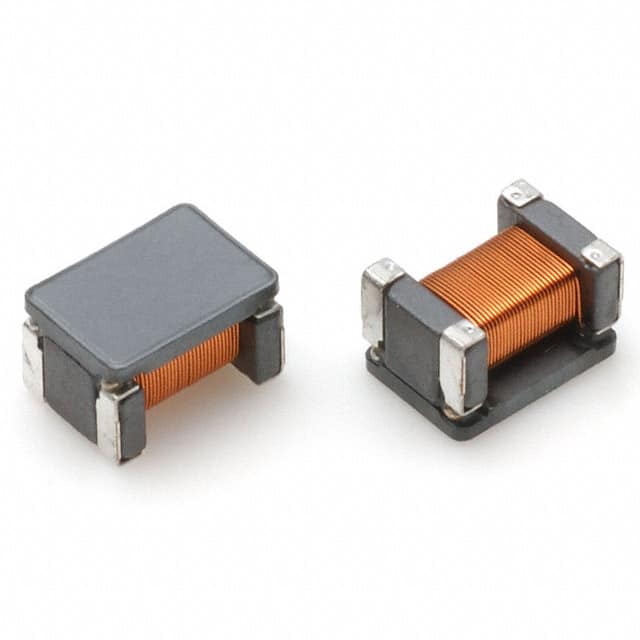

LGJ45B-110-2P-TL003CMC 250MA 2LN 300OHM SMD AECQ200 |
1,409 | 7.22 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 300 Ohms @ 10 MHz | - | 250mA | 600mOhm | 50V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
LGJ45B-510-2P-TL003CMC 200MA 2LN 1KOHM SMD AEC-Q200 |
1,006 | 7.22 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 1 kOhms @ 10 MHz | - | 200mA | 1Ohm | 50V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
LGJ45B-101-2P-TL003CMC 150MA 2LN 2KOHM SMD AEC-Q200 |
184 | 7.22 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 2 kOhms @ 10 MHz | - | 150mA | 2Ohm | 50V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

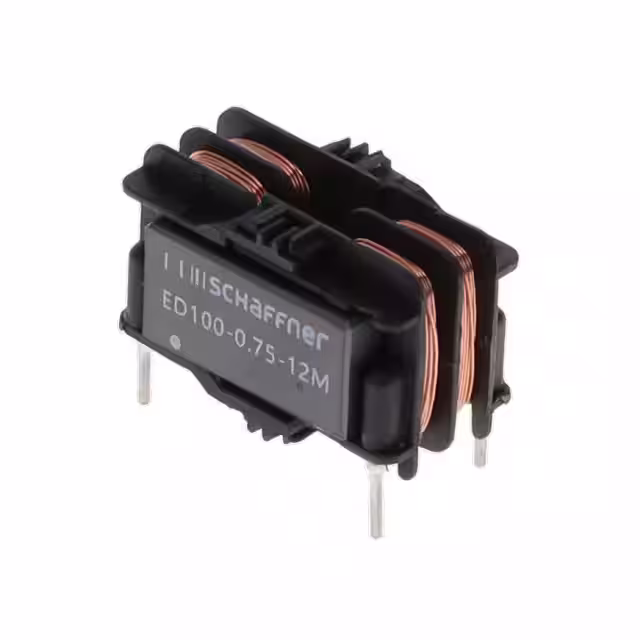

ED100-0.75-12MCMC 12MH 750MA 2LN TH |
450 | 3.46 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 750mA | 1.2Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|
ED100-0.3-27MCMC 27MH 300MA 2LN TH |
450 | 3.40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 300mA | 5.5Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|

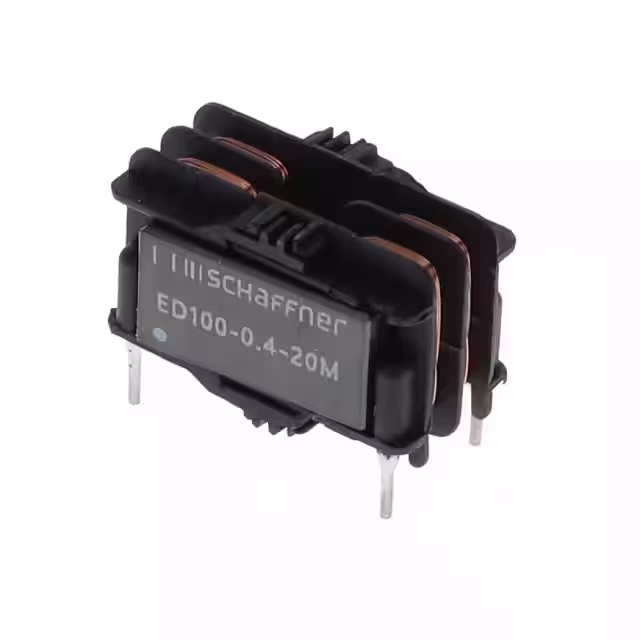

ED100-0.4-20MCMC 20MH 400MA 2LN TH |
450 | 3.40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 400mA | 3.7Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|
ED100-0.2-40MCMC 40MH 200MA 2LN TH |
448 | 3.40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 40 mH @ 10 kHz | 200mA | 10Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|

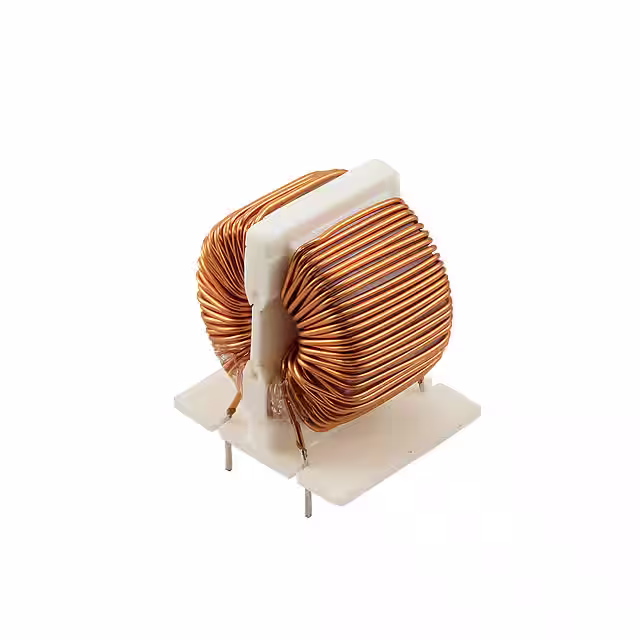

SC-02-30JCMC 3MH 2A 2LN TH |
1,992 | 3.69 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 2A | 110mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

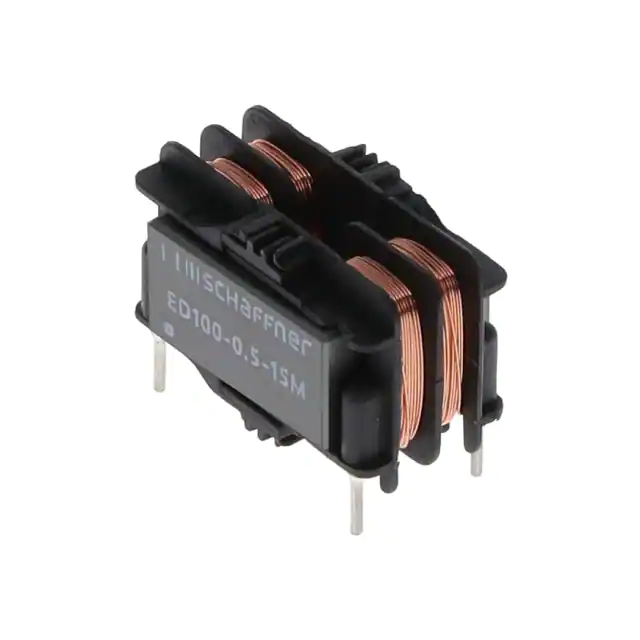

ED100-0.5-15MCMC 15MH 500MA 2LN TH |
450 | 3.46 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 2Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|

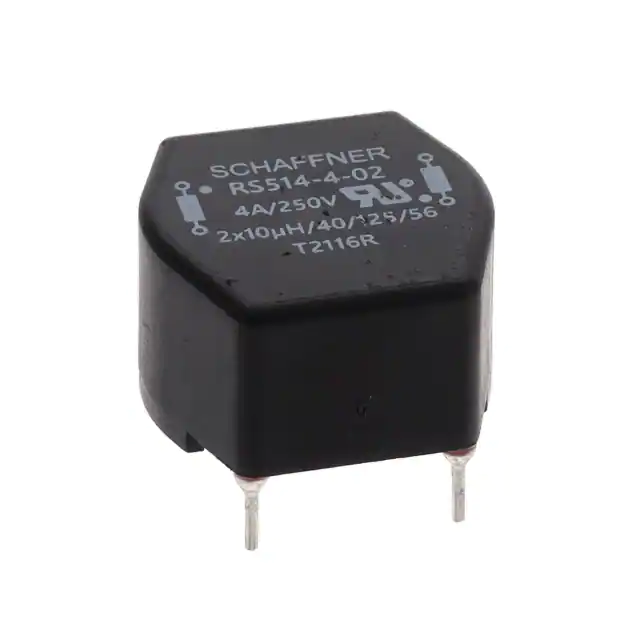

RS514-4-02CMC 8UH 4A 2LN TH |
163 | 3.83 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 8 µH @ 1 kHz | 4A (Typ) | 20mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
T60405R6131X204CMC 2.5MH 4.5A 2LN 2.32K OHM TH |
497 | 1.84 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 2.32 kOhms @ 100 kHz | 2.5 mH @ 100 kHz | 4.5A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

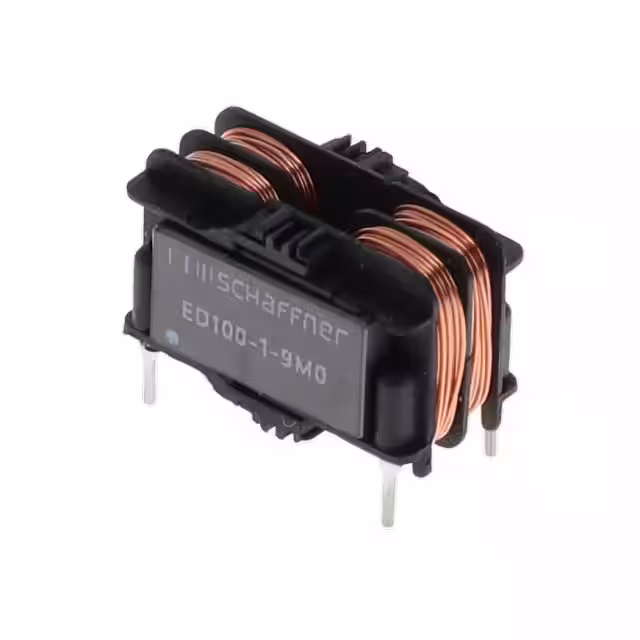

ED100-1-9M0CMC 9MH 1A 2LN TH |
450 | 3.48 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 1A | 600mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|

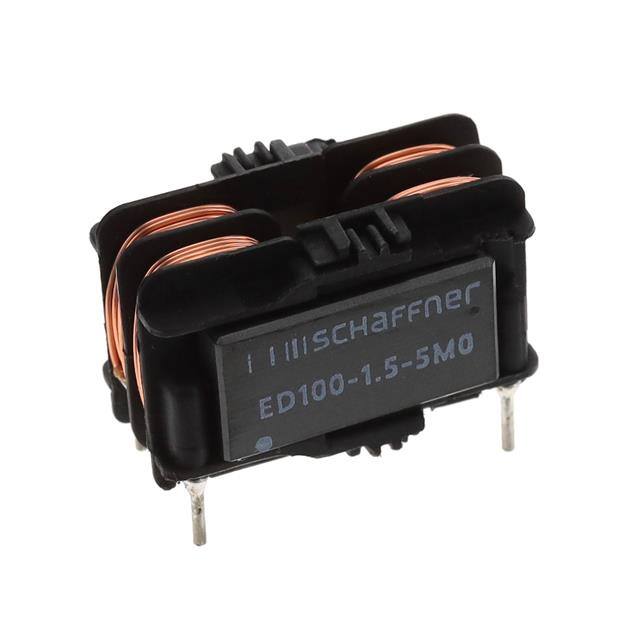

ED100-1.5-5M0CMC 5MH 1.5A 2LN TH |
448 | 3.56 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 1.5A | 300mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|

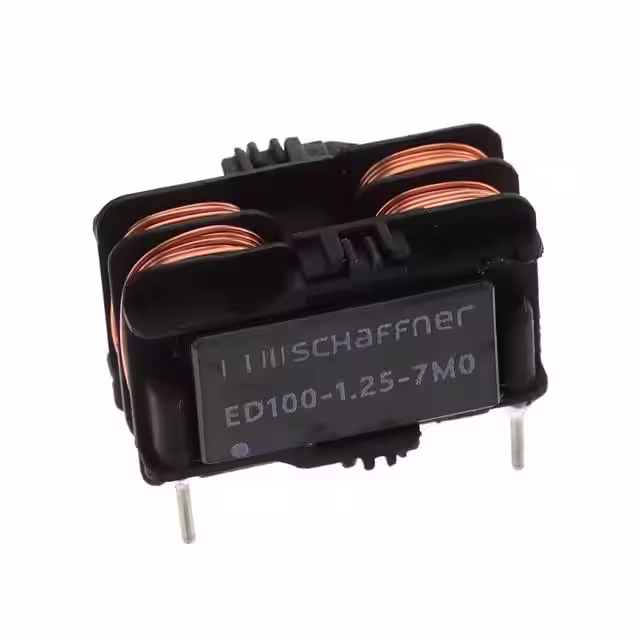

ED100-1.25-7M0CMC 7MH 1.25A 2LN TH |
190 | 3.51 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 1.25A | 400mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ED101-0.4-20MCMC 20MH 400MA 2LN TH |
445 | 3.62 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 400mA | 3.7Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ED101-0.3-27MCMC 27MH 300MA 2LN TH |
445 | 3.62 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 300mA | 5.5Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ED100-2-3M0CMC 3MH 2A 2LN TH |
419 | 3.59 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 2A | 200mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|
|
MSD7342-472MLCFIXED IND 4.7UH 2.46A 51MOHM SM |
2,107 | 0.00 |
|
Datasheet |
Nonstandard | - | 2 | - | 4.7 µH @ 100 kHz | 2.46A | 51mOhm | - | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
