Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
MSD7342-104MLCFIXED IND 100UH 630MA 770MOHM SM |
1,255 | 0.00 |
|
Datasheet |
Nonstandard | - | 2 | - | 100 µH @ 100 kHz | 630mA | 770mOhm | - | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|
|
MSD7342-473MLCFIXED IND 47UH 860MA 420MOHM SM |
1,082 | 0.00 |
|
Datasheet |
Nonstandard | - | 2 | - | 47 µH @ 100 kHz | 860mA | 420mOhm | - | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|
|
MSD7342-682MLCFIXED IND 6.8UH 2.1A 70MOHM SM |
890 | 0.00 |
|
Datasheet |
Nonstandard | - | 2 | - | 6.8 µH @ 100 kHz | 2.1A | 70mOhm | - | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|
|
MSD7342-183MLCFIXED IND 18UH 1.35A 170MOHM SM |
638 | 0.00 |
|
Datasheet |
Nonstandard | - | 2 | - | 18 µH @ 100 kHz | 1.35A | 170mOhm | - | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|
|
MSD7342-332MLCFIXED IND 3.3UH 2.89A 37MOHM SM |
542 | 0.00 |
|
Datasheet |
Nonstandard | - | 2 | - | 3.3 µH @ 100 kHz | 2.89A | 37mOhm | - | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|
|
MSD7342-683MLCFIXED IND 68UH 720MA 600MOHM SM |
385 | 0.00 |
|
Datasheet |
Nonstandard | - | 2 | - | 68 µH @ 100 kHz | 720mA | 600mOhm | - | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|
|
MSD7342-333MLCFIXED IND 33UH 1.07A 270MOHM SM |
215 | 0.00 |
|
Datasheet |
Nonstandard | - | 2 | - | 33 µH @ 100 kHz | 1.07A | 270mOhm | - | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|
|
MSD7342-123MLCFIXED IND 12UH 1.61A 120MOHM SM |
134 | 0.00 |
|
Datasheet |
Nonstandard | - | 2 | - | 12 µH @ 100 kHz | 1.61A | 120mOhm | - | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|
ED101-0.2-40MCMC 40MH 200MA 2LN TH |
446 | 5.79 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 40 mH @ 10 kHz | 200mA | 10Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|

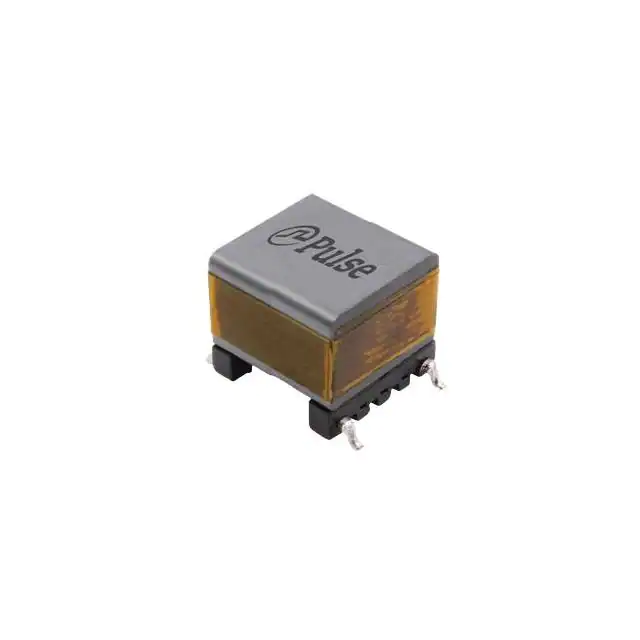

PAC6034.205NLTCMC 1.1A 2LN 16.2K OHM SMD |
147 | 4.10 |
|
Datasheet |
Vertical, 4 Gull Wing | - | 2 | 16.2 kOhms @ 2 MHz | - | 1.1A | 290mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

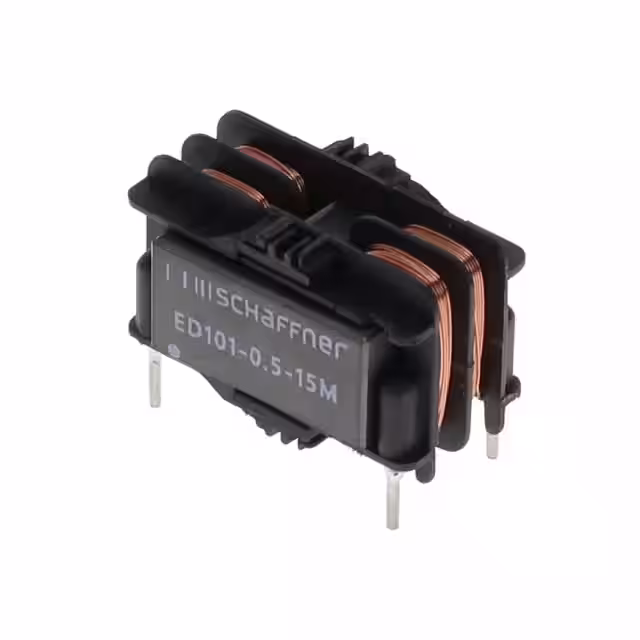

ED101-0.5-15MCMC 15MH 500MA 2LN TH |
445 | 3.64 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 2Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|

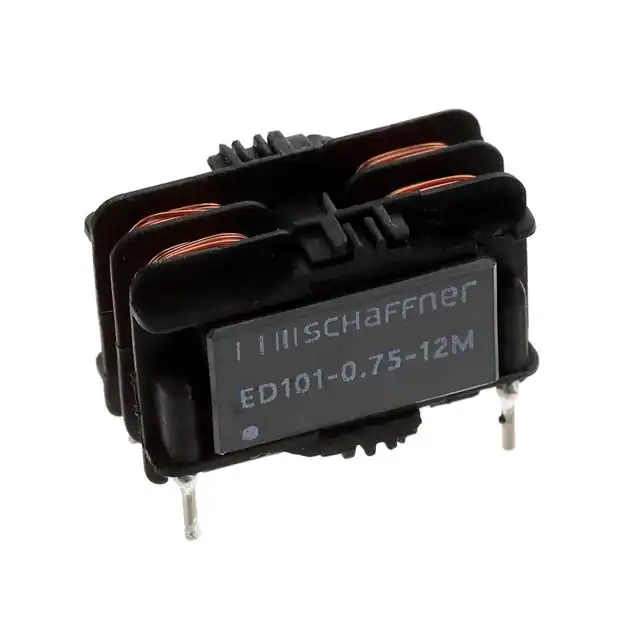

ED101-0.75-12MCMC 12MH 750MA 2LN TH |
435 | 3.64 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 750mA | 1.2Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ED101-1-9M0CMC 9MH 1A 2LN TH |
439 | 3.67 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 9 mH @ 10 kHz | 1A | 600mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|
PHBC12-1R0A0080VCMC 80UH 5A 2LN TH |
4,304 | 3.67 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 80 µH @ 100 kHz | 5A | 35.6mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
MSD1278H-153MEDFIXED INDUCTOR 15UH SMD |
1,222 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 15 µH @ 100 kHz | 4.77A | 48mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-223MEDFIXED INDUCTOR 22UH SMD |
1,175 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 22 µH @ 100 kHz | 4.06A | 68mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-472MEDFIXED INDUCTOR 4.7UH SMD |
1,165 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 4.7 µH @ 100 kHz | 7.14A | 22mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-394KEDFIXED INDUCTOR 390UH SMD |
1,151 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 390 µH @ 100 kHz | 1.12A | 910mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-334KEDFIXED INDUCTOR 330UH SMD |
1,144 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 330 µH @ 100 kHz | 1.16A | 815mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-823MEDFIXED INDUCTOR 82UH SMD |
1,141 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 82 µH @ 100 kHz | 2.34A | 206mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
