Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

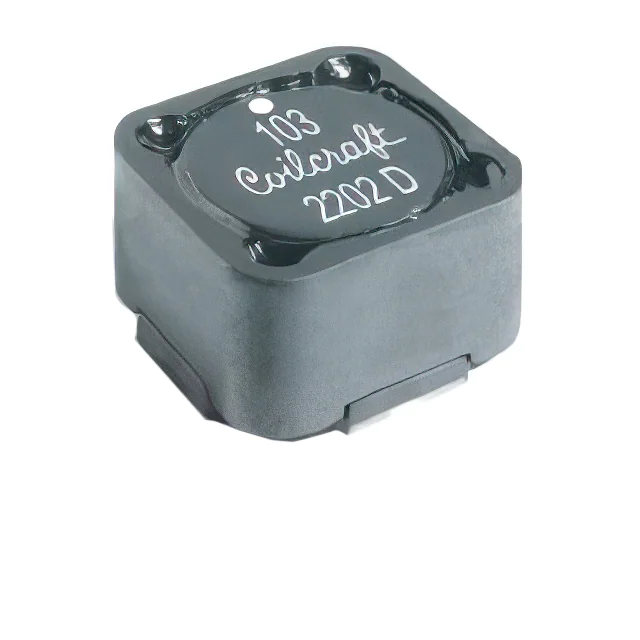

MSD1278H-684KEDFIXED INDUCTOR 680UH SMD |
1,139 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 680 µH @ 100 kHz | 790mA | 1.78Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-273MEDFIXED INDUCTOR 27UH SMD |
1,134 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 27 µH @ 100 kHz | 3.91A | 78mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-224KEDFIXED INDUCTOR 220UH SMD |
1,128 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 220 µH @ 100 kHz | 1.41A | 540mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-564KEDFIXED INDUCTOR 560UH SMD |
1,128 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 560 µH @ 100 kHz | 900mA | 1.35Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-683MEDFIXED INDUCTOR 68UH SMD |
1,094 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 68 µH @ 100 kHz | 2.65A | 155mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-183MEDFIXED INDUCTOR 18UH SMD |
1,088 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 18 µH @ 100 kHz | 4.67A | 51mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-473MEDFIXED INDUCTOR 47UH SMD |
1,069 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 47 µH @ 100 kHz | 2.94A | 127mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-652MEDFIXED INDUCTOR 6.5UH SMD |
1,061 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 6.5 µH @ 100 kHz | 6.74A | 25mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-104KEDFIXED INDUCTOR 100UH SMD |
1,041 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 100 µH @ 100 kHz | 2.25A | 230mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-103MEDFIXED INDUCTOR 10UH SMD |
998 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 10 µH @ 100 kHz | 5.56A | 36mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-563MEDFIXED INDUCTOR 56UH SMD |
990 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 56 µH @ 100 kHz | 2.75A | 140mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
MSD1278H-333MEDFIXED INDUCTOR 33UH SMD |
756 | 3.83 |
|
Datasheet |
Nonstandard | - | 2 | - | 33 µH @ 100 kHz | 3.66A | 86mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ED101-1.25-7M0CMC 7MH 1.25A 2LN TH |
450 | 3.73 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 10 kHz | 1.25A | 400mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|
ED101-1.5-5M0CMC 5MH 1.5A 2LN TH |
448 | 3.75 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 1.5A | 300mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|
|
ED101-2-3M0CMC 3MH 2A 2LN TH |
157 | 3.78 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 2A | 200mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | - | - | - | - |
|
SN8D-400JBCMC 80UH 2A 2LN TH |
146 | 4.51 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 80 µH @ 100 kHz | 2A | 85mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|

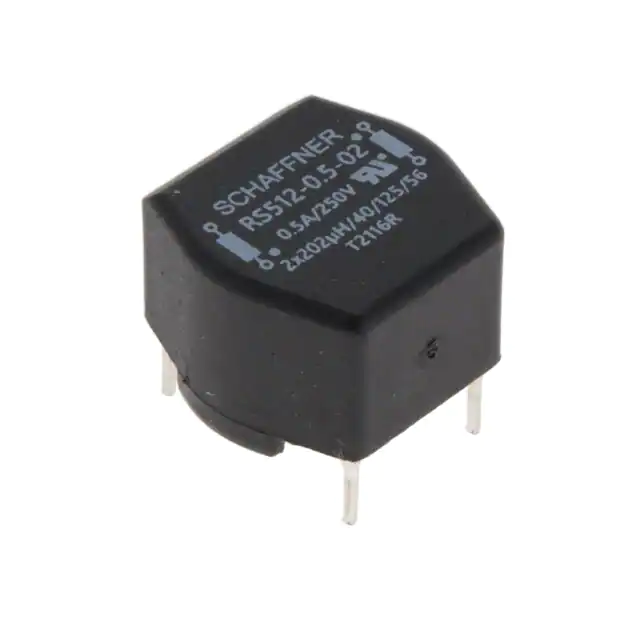

RS512-0.5-02CMC 200UH 500MA 2LN TH |
359 | 3.21 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 200 µH @ 1 kHz | 500mA (Typ) | 650mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
RN232-0.6-02-47MCMC 47MH 600MA 2LN TH |
295 | 4.16 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 600mA | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
PA4040.003NLCMC 2.5A 2LN TH |
1,670 | 5.20 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2.5A | 46mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

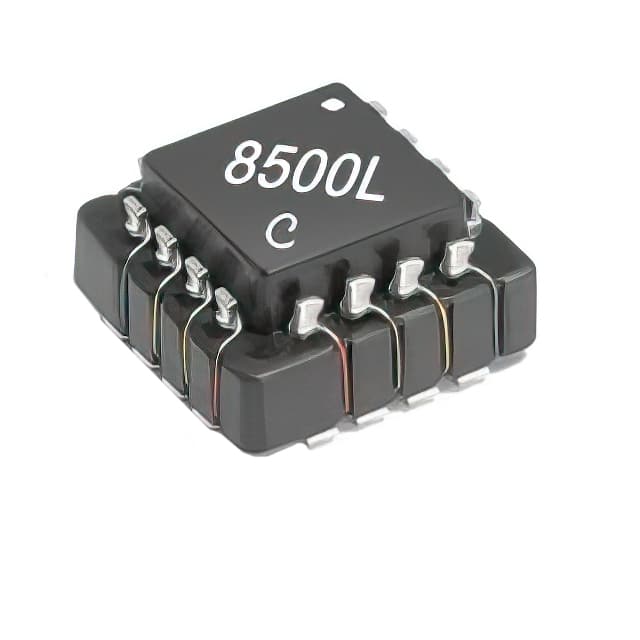

CDF8500LDCMC 5UH 500MA 8LN 520 OHM SMD |
2,866 | 4.69 |
|
Datasheet |
16-BQFN | Signal Line | 8 | 520 Ohms @ 42 MHz | 5 µH @ 1 MHz | 500mA | 180mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
