Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDF8000LDCMC 5UH 100MA 8LN 630 OHM SMD |
1,415 | 4.69 |
|
Datasheet |
16-BQFN | Signal Line | 8 | 630 Ohms @ 37 MHz | 5 µH @ 1 MHz | 100mA | 250mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
PA4040.002NLCMC 1.5A 2LN TH |
1,666 | 5.20 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.5A | 120mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA4040.004NLCMC 3.5A 2LN TH |
1,654 | 5.20 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3.5A | 32mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA4040.001NLCMC 1A 2LN TH |
1,613 | 5.20 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1A | 245mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SN12-300NMC 36.0UH 5.0A 0.0200 OHM TH |
2,545 | 5.68 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 36 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SC-07-D060CMC 60UH 7A 2LN TH |
299 | 5.61 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 60 µH @ 100 kHz | 7A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-05-E75JKHCMC 8.1MH 5A 2LN TH |
2,814 | 5.84 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8.1 mH @ 10 kHz | 5A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
PMCU-0100CMC 650MA 2LN TH |
6,765 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 10 mH @ 1 kHz | 650mA | 750mOhm | - | 250V | -40°C ~ 80°C | - | - | - | - | - |
|
LGJ45B-220-2P-TL003CMC 200MA 2LN 500OHM SMD AECQ200 |
2,485 | 4.66 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 500 Ohms @ 10 MHz | - | 200mA | 1Ohm | 50V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
CM0903SG881NCMC 880UH 1.63A 2LN SMD |
590 | 5.04 |
|
Datasheet |
- | Signal Line | 2 | - | 880 µH @ 100 kHz | 1.63A | 110mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
ACMS-Q6527E-101-TCMC 100UH 350MA 2LN SMD AEC-Q200 |
6,000 | 6.27 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 350mA | 2Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

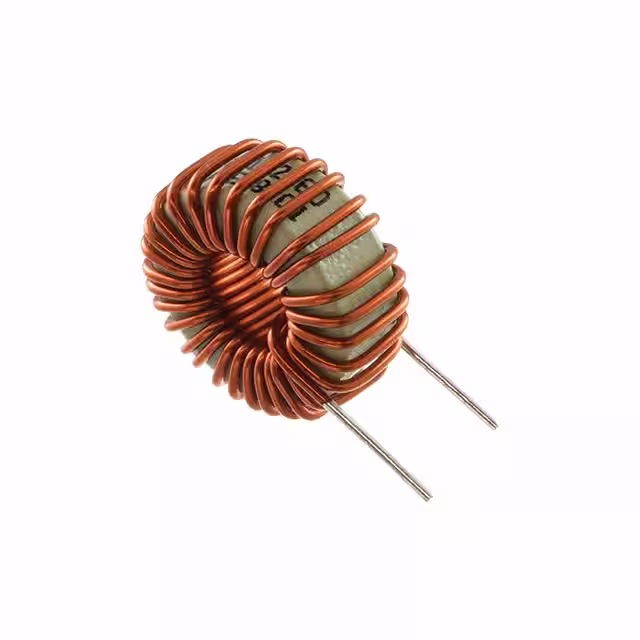

PHBC10-0R8A0038VCMC 38UH 3A 2LN TH |
1,437 | 3.02 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 38 µH @ 100 kHz | 3A | 31.2mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
HHBC13-1R2A0081VCMC 81UH 6A 2LN TH |
1,742 | 4.12 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 81 µH @ 100 kHz | 6A | 24.7mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PMCU-0056CMC 1A 2LN TH |
519 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 5.6 mH @ 1 kHz | 1A | 400mOhm | - | 250V | -40°C ~ 80°C | - | - | - | - | - |
|
|
CDF10000LDCMC 5UH 100MA 10LN 520 OHM SMD |
4,221 | 5.48 |
|
Datasheet |
20-BQFN | Signal Line | 10 | 520 Ohms @ 43 MHz | 5 µH @ 1 MHz | 100mA | 250mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
PA3747.146NLCMC 1A 2LN TH |
1,190 | 6.22 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1A | 207mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.305NLCMC 2.75A 2LN TH |
1,190 | 6.22 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2.75A | 49.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.605NLCMC 1.55A 2LN TH |
1,190 | 6.22 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.55A | 132mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.705NLCMC 1.5A 2LN TH |
1,190 | 6.22 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.5A | 134mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.905NLCMC 1.45A 2LN TH |
1,190 | 6.22 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.45A | 154mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
