Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA3747.505NLCMC 1.85A 2LN TH |
1,186 | 6.22 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.85A | 103.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.306NLCMC 750MA 2LN TH |
1,183 | 6.22 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 750mA | 572mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.206NLCMC 1A 2LN TH |
1,173 | 6.22 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1A | 295mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA3747.106NLCMC 1.4A 2LN TH |
1,070 | 6.22 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.4A | 169mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

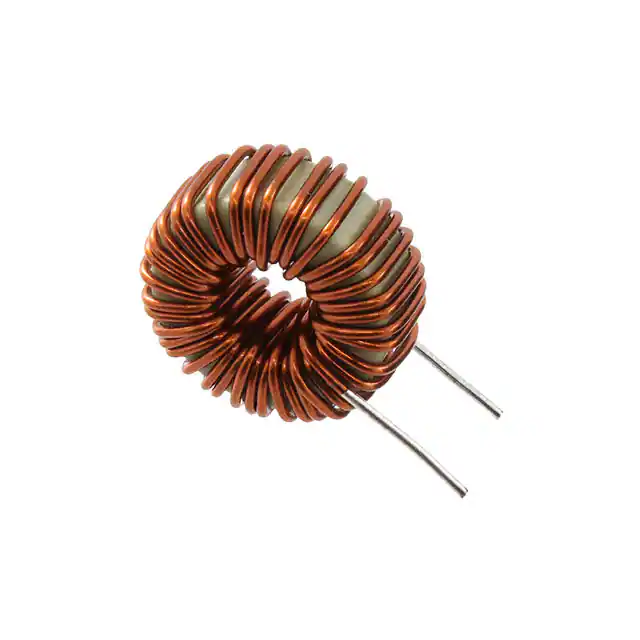

PHBC10-0R8A0068VCMC 68UH 3A 2LN TH |
3,399 | 3.24 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 68 µH @ 100 kHz | 3A | 42.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PMCU-1001CMC 3.6A 2LN TH |
475 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 70 µH @ 1 kHz | 3.6A | 30mOhm | 500V | 300V | -40°C ~ 80°C | - | - | - | - | - |
|
SCR22-100-1R3A015JHCMC 1.5MH 10A 2LN TH |
111 | 5.56 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 10A | 12mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

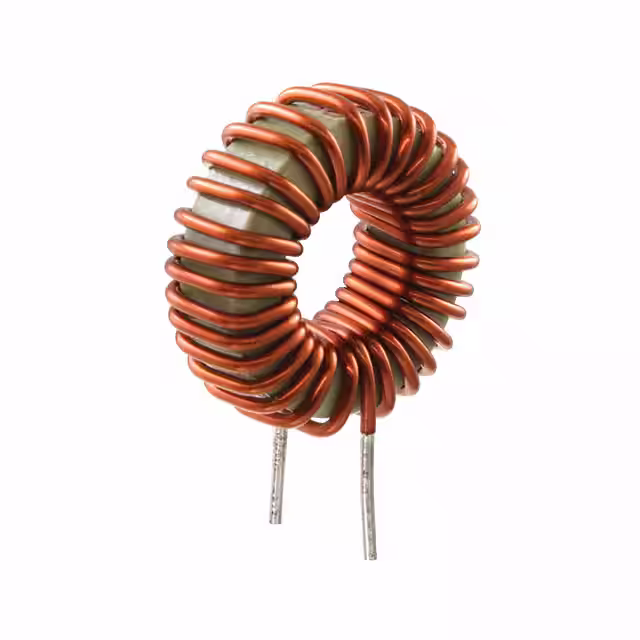

PHBC12-1R0A0028VCMC 28UH 5A 2LN TH |
2,769 | 3.37 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 28 µH @ 100 kHz | 5A | 21.1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

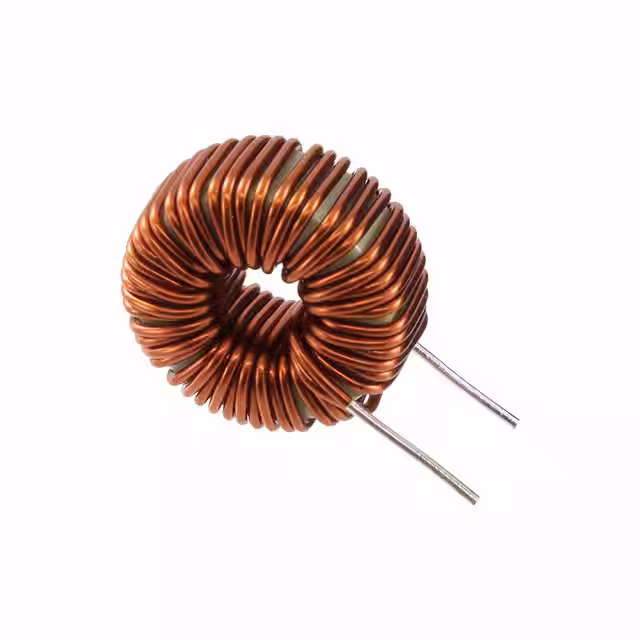

PHBC10-0R8A0107VCMC 107UH 3A 2LN TH |
2,649 | 3.46 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 107 µH @ 100 kHz | 3A | 53mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-06-E42JKHCMC 4.2MH 6A 2LN TH |
120 | 6.99 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 10 kHz | 6A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

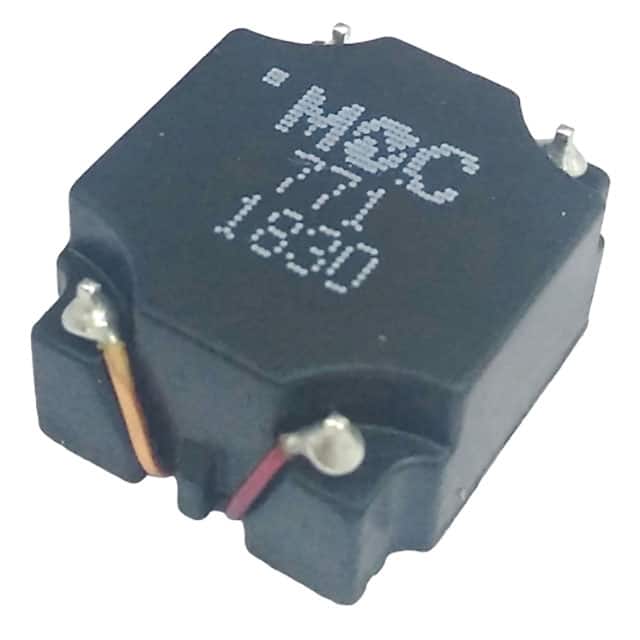

CM1385SG771NCMC 770UH 3.6A 2LN SMD |
250 | 6.24 |
|
Datasheet |
- | Signal Line | 2 | - | 770 µH @ 100 kHz | 3.6A | 25mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PE-62891NLCMC |
408 | 6.05 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CC2824D225R-10CMC 2.2MH 500MA 2LN 5.3KOHM SMD |
622 | 6.78 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 5.3 kOhms @ 5 MHz | 2.2 mH @ 10 kHz | 500mA | 520mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CC2824B475R-10CMC 4.7MH 400MA 2LN 12.3KOHM SMD |
3,163 | 3.71 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 12.3 kOhms @ 2 MHz | 4.7 mH @ 10 kHz | 400mA | 0.55Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

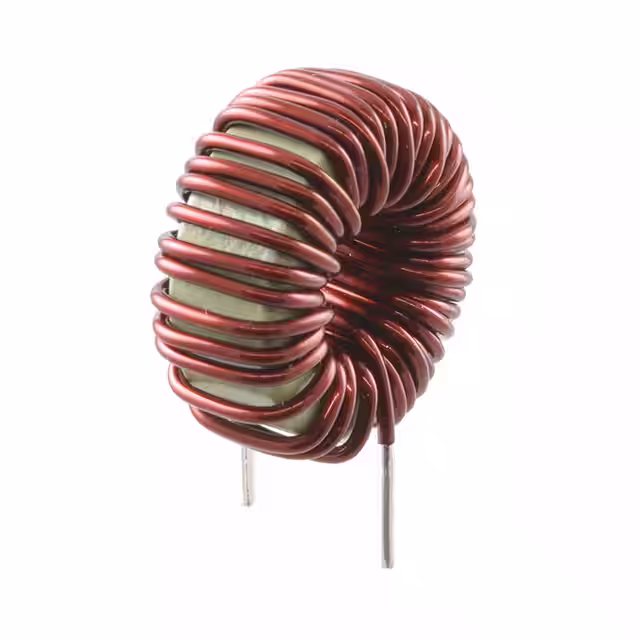

PHBC13-1R2A0081VCMC 81UH 6A 2LN TH |
3,936 | 4.45 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 81 µH @ 100 kHz | 6A | 24.7mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

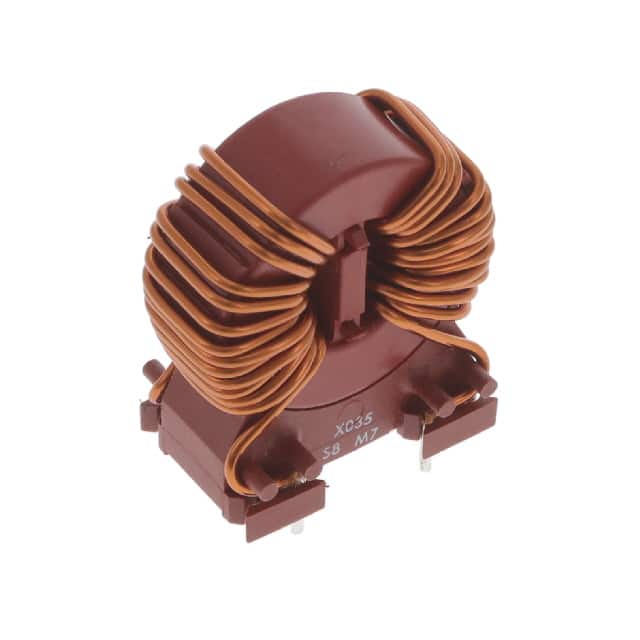

T60405R6166X035CMC 22A TH |
2,364 | 8.22 |
|
Datasheet |
- | - | - | - | - | 22A | - | - | - | - | - | - | - | - | - |
|
|
T8132NLCMC 16LN SMD |
295 | 8.40 |
|
Datasheet |
- | - | 16 | - | - | - | 400mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
PHBC13-1R2A0127VCMC 127UH 6A 2LN TH |
2,737 | 4.76 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 127 µH @ 100 kHz | 6A | 31.7mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PMCE-0160CMC 1.5A 2LN TH |
880 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 16 mH @ 1 kHz | 1.5A | 250mOhm | - | 3750V (3.75kV) | -40°C ~ 80°C | - | - | - | - | - |
|
|
CC2824E474R-10CMC 470UH 700MA 2LN 8.6KOHM SMD |
1,874 | 7.91 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 8.6 kOhms @ 5 MHz | 470 µH @ 100 kHz | 700mA | 260mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
