Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCZ2010CH240L4T000CMC 100MA 4LN 24 OHM SMD |
678 | 0.74 |
|
Datasheet |
0804 (2010 Metric), 8 Lead | Signal Line | 4 | 24 Ohms @ 100 MHz | - | 100mA | 1Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
WCM 7060FASF-701-LM2 LINE COMMON MODE CHOKE SURFACE |
152 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 4A | 15mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
AEOI3225-101NZCMC 100UH 100MA 2LN SMD AECQ200 |
1,000 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 100 µH @ 100 kHz | 100mA | 3.36Ohm | 80V | - | -40°C ~ 125°C | - | - | - | Automotive | - |
|
|
AEOI3225-201NZCMC 200UH 70MA 2LN SMD AEC-Q200 |
1,000 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 70mA | 5.5Ohm | 80V | - | -40°C ~ 125°C | - | - | - | Automotive | - |
|
TCM1608G-650-4P-T200CMC 100MA 4LN 65 OHM SMD |
4,181 | 0.80 |
|
Datasheet |
0603 (1608 Metric), 8 Lead | Signal Line | 4 | 65 Ohms @ 100 MHz | - | 100mA | 1.3Ohm | 5V | - | -25°C ~ 85°C | - | - | - | - | - |
|

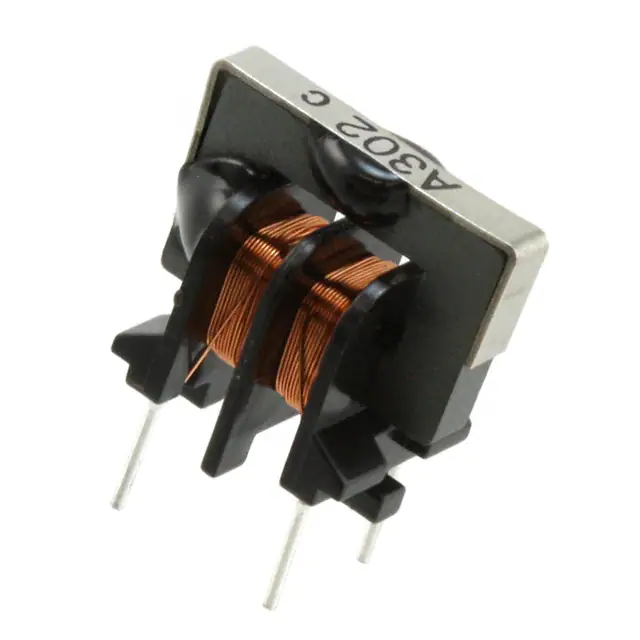

TLF9UA302WR42K1CMC 3MH 420MA 2LN TH |
440 | 0.47 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 1 kHz | 420mA | 1.5Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
ECMS1V0704-132-RCMC 2.5A 2LN 1.3K OHM SMD |
969 | 0.50 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.3 kOhms @ 100 MHz | - | 2.5A | 21mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
FL2D-Z5-15315MH 2 LINE COMMON MODE CHOKE TH |
120 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 1 kHz | 500mA | 600mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
ECMS1V0905-301-RCMC 6A 2LN 300 OHM SMD |
637 | 0.56 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 300 Ohms @ 100 MHz | - | 6A | 6mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
FL2D-10-3323.3MH 2 LINE COMMON MODE CHOKE T |
120 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 1 kHz | 1A | 100mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
ALFT-03A-7CMC 7MH 800MA 2LN TH |
1,609 | 1.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7 mH @ 1 kHz | 800mA | 800mOhm | 250V | - | -25°C ~ 85°C | - | - | - | - | - |
|
ALFT-09V-202CMC 700MA 2LN TH |
3,833 | 1.10 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | - | 700mA | 800mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ALFT-09V-103CMC 300MA 2LN TH |
1,339 | 1.10 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | - | 300mA | 3.6Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ALFT-09V-102CMC 1A 2LN TH |
2,197 | 1.10 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | - | 1A | 400mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

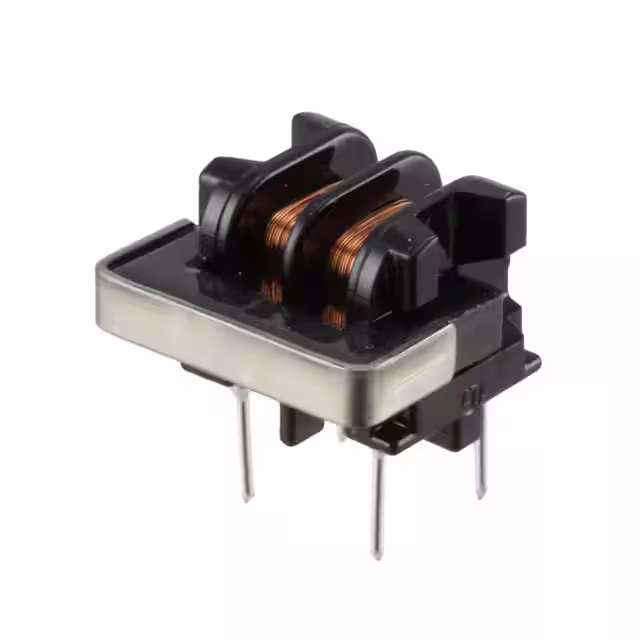

SU9H-02080CMC 8MH 200MA 2LN TH |
1,966 | 0.62 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 200mA | 6Ohm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
OWICM5025RF-101CMC 100 OHM@ 100MHZ 6.5A 2LN SMD |
500 | 0.00 |
|
- |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 100 Ohms @ 100 MHz | - | 6A | - | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
OWICM5025RF-142CMC 1400 OHM@100MHZ 1.5A 2LN SMD |
500 | 0.00 |
|
- |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | - | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
OWICM5025RF-251CMC 250 OHM@ 100MHZ 5.0A 2LN SMD |
500 | 0.00 |
|
- |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 250 Ohms @ 100 MHz | - | 5A | - | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
DLW32SH220XK2LCMC 22UH 250MA 2LN SMD AEC-Q200 |
1,978 | 0.59 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 22 µH @ 100 kHz | 250mA | 500mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
OWISFT0905-100CMC 10UH@1KHZ 1.6A 2LN 920 OHM@8 |
1,000 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 920 Ohms @ 80 MHz | 10 µH @ 1 kHz | 1.6A | 80mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
