Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
FL2D-A2-2022MH 2 LINE COMMON MODE CHOKE THR |
2,746 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 12A | 145mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-50-102COMMON MODE FILTER 1000H 5A 30M |
3,886 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 5A | 30mOhm (Typ) | 2000V (2kV) | 1500V (1.5kV) | -40°C ~ 125°C | - | - | - | - | - |
|
|
FL2D-80-102COMMON MODE FILTER 1000H 8A 30M |
4,241 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 8A | 30mOhm (Typ) | 2000V (2kV) | 1500V (1.5kV) | -40°C ~ 125°C | - | - | - | - | - |
|
SN8S-300JACMC 26UH 2A 2LN TH |
4,050 | 2.90 |
|
Datasheet |
Vertical, 2 PC Pin | Power Line | 2 | - | 26 µH @ 100 kHz | 2A | 42mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|

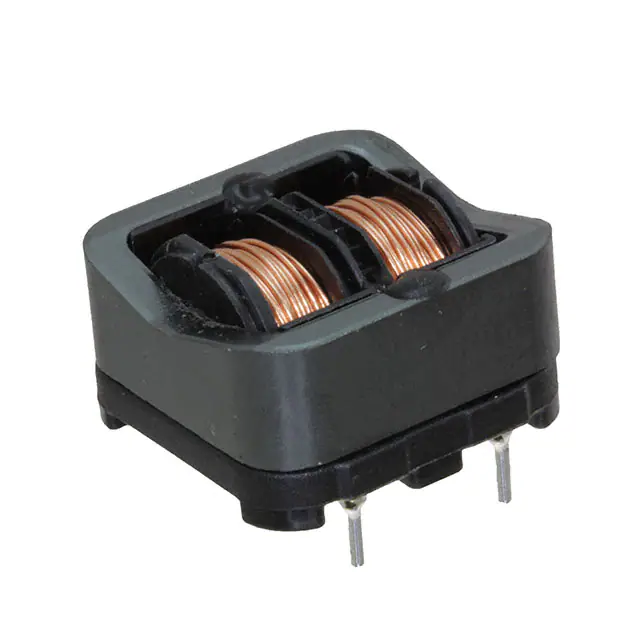

SSR21NH-08325CMC 32.5MH 800MA 2LN TH |
1,792 | 1.74 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 32.5 mH @ 10 kHz | 800mA | 470mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

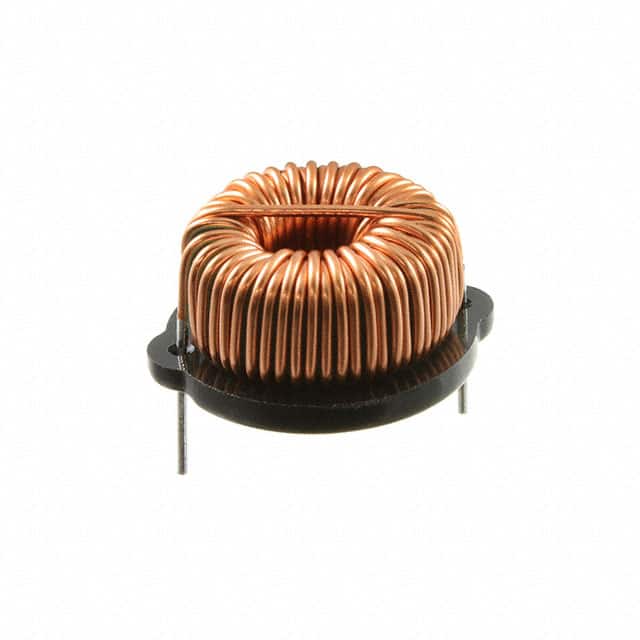

SN8S-50P2NMC 72.0UH 2.0A 0.0750 OHM TH |
1,908 | 3.94 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 72 µH @ 100 kHz | 2A | 75mOhm | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SSR21NHS-12135CMC 13.5MH 1.2A 2LN TH |
3,197 | 3.10 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 13.5 mH @ 10 kHz | 1.2A | 240mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
CMF23H-393121-BCMC 39MH 1.2A 2LN TH |
3,406 | 3.38 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 1.2A | 766mOhm | - | 300V | -40°C ~ 105°C | - | - | - | - | - |
|
|
FL2D-D0-0404H 2 LINE COMMON MODE CHOKE THRO |
4,925 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 µH @ 1 kHz | 40A | 2mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SSR21NHS-M12220CMC 22MH 1.2A 2LN TH |
3,174 | 3.14 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 10 kHz | 1.2A | 350mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB21H-18054CMC 5.4MH 1.8A 2LN TH |
3,097 | 3.01 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.4 mH @ 10 kHz | 1.8A | 220mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
|
|
SSHB21HS-R05910CMC 91MH 500MA 2LN TH |
3,073 | 2.84 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 91 mH @ 10 kHz | 500mA | 1.88Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
MSD7342-822MLCFIXED IND 8.2UH 2.03A 75MOHM SM |
2,001 | 0.00 |
|
Datasheet |
Nonstandard | - | 2 | - | 8.2 µH @ 100 kHz | 2.03A | 75mOhm | - | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|
|
CPSQ1515L-203CMC 1.3A 2LN 52K OHM TH |
3,498 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | 52 kOhms @ 650 kHz | 20 mH @ 1 kHz | 1.3A | 250mOhm | 250V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CPSQ1515S-203CMC 1.3A 2LN 52K OHM TH |
2,885 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | 52 kOhms @ 650 kHz | 20 mH @ 1 kHz | 1.3A | 250mOhm | 250V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CPSQ1918S-502CMC 4.5A 2LN 10K OHM TH |
1,919 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | 10 kOhms @ 1 MHz | 5 mH @ 1 kHz | 4.5A | 55mOhm | 250V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SN12HP-2201NMC 20.0UH 10.0A 0.0130 OHM TH |
4,358 | 5.80 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 20 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
VSTCB1060R-402CMC 0.52A 2LN 7.9K OHM SMD |
100 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 7.9 kOhms @ 3.5 MHz | 4 mH @ 100 kHz | 520mA | 550mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
VSTCB1060R-302CMC 0.65A 2LN 7.6K OHM SMD |
100 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 7.6 kOhms @ 2 MHz | 3 mH @ 100 kHz | 650mA | 330mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
VSTCB1060R-502CMC 0.35A 2LN 14K OHM SMD |
100 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 14 kOhms @ 1.3 MHz | 5 mH @ 100 kHz | 350mA | 680mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
