Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
VSTCB1060R-202CMC 0.75A 2LN 7K OHM SMD |
100 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 7 kOhms @ 4 MHz | 2 mH @ 100 kHz | 750mA | 290mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
CPSQ2418L-502CMC 6.0A 2LN 15K OHM TH |
3,191 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 15 kOhms @ 1 MHz | 5 mH @ 1 kHz | 6A | 50mOhm | 250V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SN12-800JNMC 270.0UH 3.0A 0.1300 OHM TH |
1,861 | 6.06 |
|
Datasheet |
Vertical, 2 PC Pin | Power Line | 2 | - | 270 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
T60405R6161X016CMC 2.6A |
3,315 | 6.20 |
|
Datasheet |
- | - | - | - | - | 2.6A | - | - | - | - | - | - | - | - | - |
|
SN14-400NMC 120.0UH 5.0A 0.0450 OHM TH |
3,054 | 3.52 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 120 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
HHBC13-1R2A0127VCMC 127UH 6A 2LN TH |
3,171 | 6.55 |
|
Datasheet |
Vertical, No Base, 2 PC Pin | - | 2 | - | 127 µH @ 100 kHz | 6A | 31.7mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SCR-080-1R1A020JHCMC 2MH 8A 2LN TH |
4,892 | 3.43 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 8A | 15.9mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
DCM181713H-222NHF2,200uH, 90mOhm, 2 Amp DIP CMC |
4,725 | 4.17 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 90mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181713H-102NHF1,000uH, 55mOhm, 2.5Amp DIP CMC |
3,853 | 4.17 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 2.5A | 55mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM181713H-701NHF700uH, 27mOhm, 5Amp Max. DIP CMC |
1,476 | 4.17 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 700 µH @ 10 kHz | 5A | 27mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
DCM282818H-502NHF5,000uH,85mOhm,4Amp Max. DIP CMC |
3,535 | 5.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 4A | 85mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PMCU-5470CMC 180MA 2LN TH |
100 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 47 mH @ 1 kHz | 180mA | 6.9mOhm | - | 250V | -40°C ~ 80°C | - | - | - | - | - |
|
DCM232315H-102NHF1,000uH, 35mOhm, 5Amp DIP CMC |
2,071 | 5.05 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 5A | 35mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
T60405R6166X210CMC 2.96MH 10A 2LN 3.15K OHM TH |
3,239 | 8.29 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 3.15 kOhms @ 100 kHz | 2.96 mH @ 100 kHz | 10A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
C20200-022,500uH, 90mOhm, 2.4Amp Max. |
4,842 | 4.06 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 2.5 mH @ 1 kHz | 2.4A | 90mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

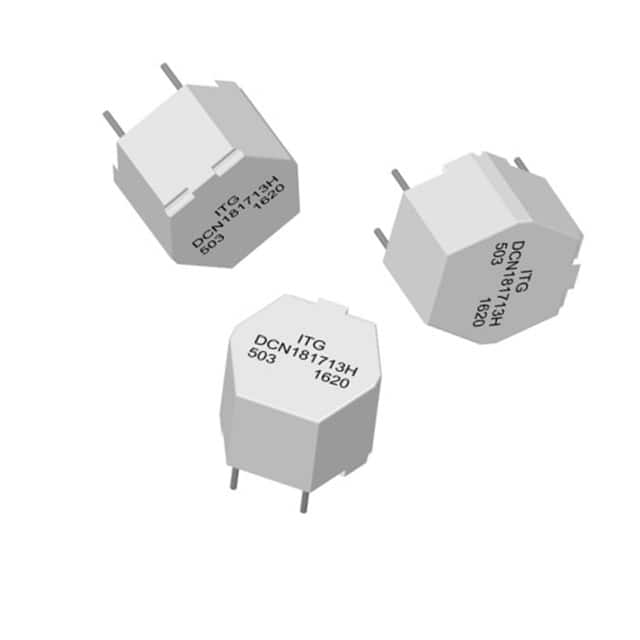

DCN181713H-332HF3,300uH, 52mOhm, 2.5Amp DIP CMC |
3,831 | 6.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2.5A | 52mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
DCN181713H-682HF6,800uH,89mOhm, 1.8Amp DIP CMC |
4,090 | 6.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.8A | 89mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
DCN181713H-273HF27,000uH,410mOhm,1.1Amp CMC |
3,890 | 6.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.1A | 410mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
DCN181713H-102HF1,000uH,16mOhm, 5.4Amp DIP CMC |
2,181 | 6.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 5.4A | 16mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
DCN181713H-222HF2,200uH,33mOhm, 3.5Amp DIP CMC |
2,875 | 6.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 3.5A | 33mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
