Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCR19XV-220-1R6A004JVCMC 100UH 22A 2LN TH AEC-Q200 |
4,303 | 8.98 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 22A | 1.38mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
DFK-25-0002CMC 2A 2LN TH |
4,436 | 8.34 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 2A | 250mOhm | - | - | -25°C ~ 100°C | - | - | - | - | - |
|
C20200-151,200uH, 6mOhm, 16Amp Max. |
2,236 | 7.81 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 1.2 mH @ 1 kHz | 16A | 6mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
C20200-0930,000uH, 330mOhm, 2.3Amp Max. |
3,639 | 6.50 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 30 mH @ 1 kHz | 2.3A | 330mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C201388A-501Nanocrystal 0.50mH 11.0mOhm 5.8A |
2,487 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 10 kHz | 5.8A | 11mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
C301313A-203NHF20.0mH, 370mOhm, 1.6A Irms. |
1,593 | 7.80 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 1.6A | 370mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C20200-142,500uH, 11mOhm, 12.5Amp Max. |
1,896 | 7.80 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 2.5 mH @ 1 kHz | 12.5A | 11mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-135,000uH, 22mOhm, 8.9Amp Max. |
2,403 | 7.75 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 5 mH @ 1 kHz | 8.9A | 22mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-22500uH, 5mOhm 14Amp Max. |
1,328 | 6.56 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 500 µH @ 1 kHz | 14A | 5mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
C20200-1112,000uH, 110mOhm, 4Amp Max. |
2,430 | 6.50 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 12 mH @ 1 kHz | 4A | 110mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
DSF-28-0002CMC 2LN TH |
4,786 | 10.36 |
|
Datasheet |
Nonstandard | - | 2 | - | - | - | - | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201388A-502Nanocrystal 5.0mH 66.0mOhm 2.4A |
4,713 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 2.4A | 66mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

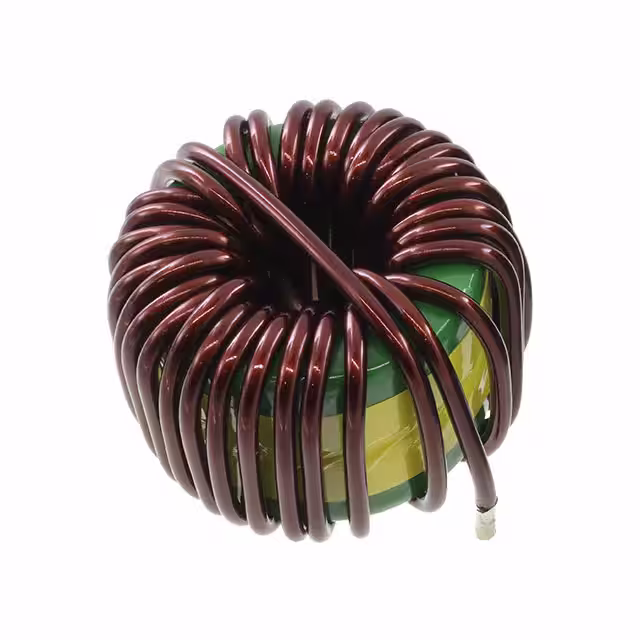

SN20P-120HNMC 120.0UH 20.0A 0.0180 OHM TH |
3,682 | 12.87 |
|
Datasheet |
- | Power Line | 2 | - | 120 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
SCT25XV-150-1R6A010JVCMC 800UH 15A 2LN TH AEC-Q200 |
4,337 | 12.12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 800 µH @ 100 kHz | 15A | 4.62mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-130-1R5A012JVCMC 1.15MH 13A 2LN TH AEC-Q200 |
2,144 | 12.12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.15 mH @ 100 kHz | 13A | 6.33mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCT25XV-110-1R4A013JVCMC 1.35MH 11A 2LN TH AEC-Q200 |
4,130 | 12.12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.35 mH @ 100 kHz | 11A | 7.72mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT25XV-110-1R4A013JHCMC 1.35MH 11A 2LN TH AEC-Q200 |
2,579 | 12.12 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.35 mH @ 100 kHz | 11A | 7.89mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCR25XV-080-1R2A018JHCMC 4MH 8A 2LN TH AEC-Q200 |
2,323 | 12.47 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 100 kHz | 8A | 13.5mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCR29XV-080-1R3A026JVCMC 4.15MH 8A 2LN TH AEC-Q200 |
2,585 | 12.24 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.15 mH @ 100 kHz | 8A | 14.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR29XV-060-1R1A036JVCMC 7.9MH 6A 2LN TH AEC-Q200 |
3,243 | 12.24 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.9 mH @ 100 kHz | 6A | 27.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
