Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSRH7H-M11081CMC 8.1MH 1.1A 2LN TH |
698 | 1.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8.1 mH @ 10 kHz | 1.1A | 270mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

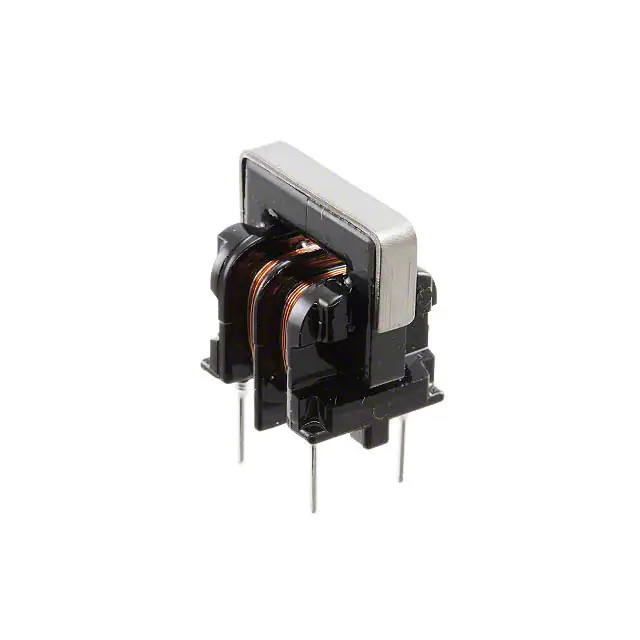

SU9VF-02100CMC 10MH 200MA 2LN TH |
7,787 | 1.82 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 200mA | 4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
LCV70-701-2PL-TL00CMC 7.5UH 4A 2LN 700OHM SMD |
5,948 | 1.93 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | 7.5 µH @ 1 MHz | 4A | 15mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82789C0223N002CMC 22UH 250MA 2LN SMD AEC-Q200 |
1,340 | 1.93 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 22 µH @ 100 kHz | 250mA | 580mOhm | 80V | 42V | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SU9V-05020CMC 2MH 500MA 2LN TH |
698 | 1.84 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 500mA | 1Ohm | - | 250V | -25°C ~ 125°C | - | - | - | - | - |
|
|
ADF32T-4R7CMC 4.7UH 100MA 0.62RDC SMD |
8,895 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 4.7 µH @ 100 kHz | 100mA | 620mOhm | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
744235220CMC 22UH 250MA 2LN 8KOHM SMD |
1,291 | 1.80 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 8 kOhms @ 100 MHz | 22 µH @ 100 kHz | 250mA | 2.65Ohm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744235101CMC 100UH 150MA 2LN 8KOHM SMD |
626 | 1.80 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 8 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 2Ohm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

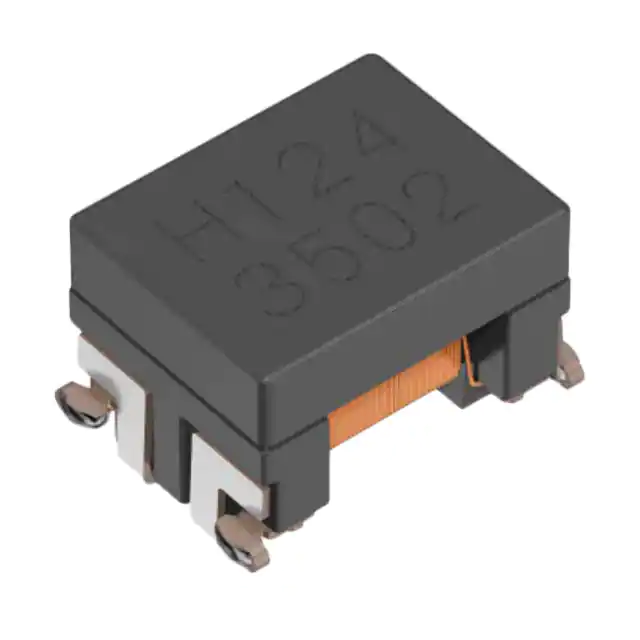

ACT1210D-510-2P-TL00CMC 50UH 115MA 2LN 2.3KOHM SMD |
11,863 | 1.88 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 2.3 kOhms @ 10 MHz | 50 µH @ 100 kHz | 115mA | 3Ohm | 80V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
APPM00050524122XYECMC 2A 2LN 1.2K OHM SMD AEC-Q200 |
4,147 | 0.85 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.2 kOhms @ 100 MHz | - | 2A | 74mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

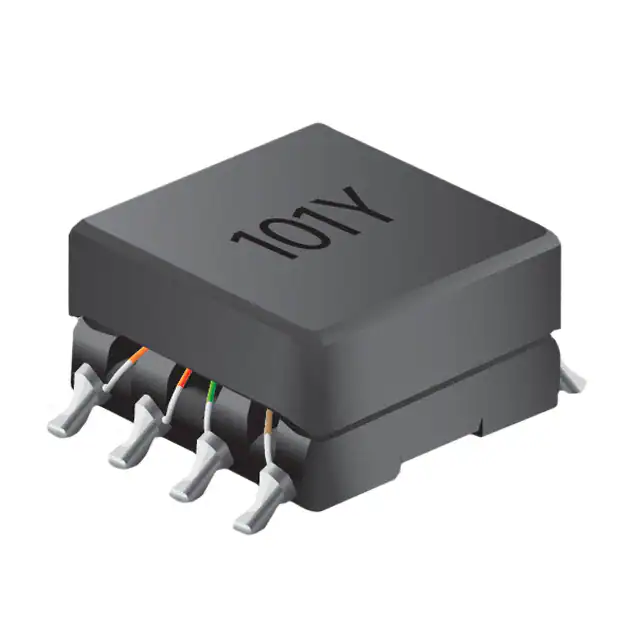

SRF1306-251YLINE FILTER 50VDC 0.6A |
1,672 | 1.94 |
|
Datasheet |
8-SMD, Gull Wing | - | 2 | 600 Ohms @ 1 MHz | 250 µH @ 100 kHz | 600mA | 150mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
SRF1306-600YCMC 60UH 2A 2LN 600 OHM SMD |
128 | 1.94 |
|
Datasheet |
8-SMD, Gull Wing | - | 2 | 600 Ohms @ 5 MHz | 60 µH @ 100 kHz | 2A | 65mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
B82789C0113H002CMC 11UH 300MA 2LN SMD AEC-Q200 |
4,850 | 2.10 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 11 µH @ 100 kHz | 300mA | 250mOhm | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SRF1306-350YCMC 35UH 2.7A 2LN 400 OHM SMD |
1,058 | 1.94 |
|
Datasheet |
8-SMD, Gull Wing | - | 2 | 400 Ohms @ 5 MHz | 35 µH @ 100 kHz | 2.7A | 35mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
DLW5ATH112MQ2LCMC 1.5A 2LN 1.1KOHM SMD AECQ200 |
905 | 1.71 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.1 kOhms @ 100 MHz | - | 1.5A | 56mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SHO-301CMC 4A 2LN TH |
201 | 1.98 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 12 µH @ 100 kHz | 4A | 15.5mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
|
PA4339.501NLTCMC 4UH 5A 2LN 350 OHM SMD |
2,186 | 2.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 350 Ohms @ 100 MHz | 4 µH @ 100 kHz | 5A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82793S0253N201CMC 25UH 800MA 2LN SMD AEC-Q200 |
7,404 | 2.22 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 25 µH @ 100 kHz | 800mA | 110mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
PA4339.102NLTCMC 8UH 3A 2LN 1.02K OHM SMD |
3,278 | 2.00 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 1.02 kOhms @ 100 MHz | 8 µH @ 100 kHz | 3A | 17mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
1259CM-0001=P3CMC 5A 2LN 700 OHM SMD AEC-Q200 |
1,136 | 3.24 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 5A | 10mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
