Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82732F2601B001CMC 68MH 600MA 2LN TH |
527 | 3.40 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 68 mH @ 10 kHz | 600mA | 1.97Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82731M2701A030CMC 27MH 700MA 2LN TH |
7,090 | 3.80 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 700mA | 1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82734R2172B030CMC 27MH 1.7A 2LN TH |
5,993 | 4.51 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.7A | 320mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

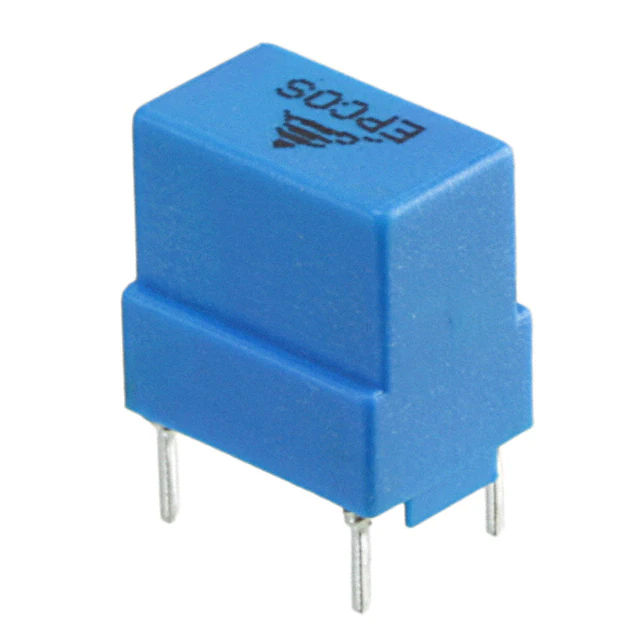

B82720K2102N040CMC 3MH 1A 2LN TH |
2,118 | 3.49 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 1A | 220mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82720K2202N040CMC 1.1MH 2A 2LN TH |
163 | 3.49 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 2A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
CM4440Z121R-10CMC 20A 3LN 120 OHM SMD |
2,197 | 1.14 |
|
Datasheet |
Vertical, 6 Flat Lead | Power Line | 3 | 120 Ohms @ 100 MHz | - | 20A | 1mOhm | 100V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACM12V-351-2PL-TL00CMF FOR POWER,350,10A,-40~125 |
823 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 350 Ohms @ 100 MHz | - | 10A | 2.9mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
RN202-1-02-3M0CMC 3MH 1A 2LN TH |
1,513 | 2.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 1A | 210mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN202-1.5-02-1M6CMC 1.6MH 1.5A 2LN TH |
515 | 2.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.6 mH @ 10 kHz | 1.5A | 94mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

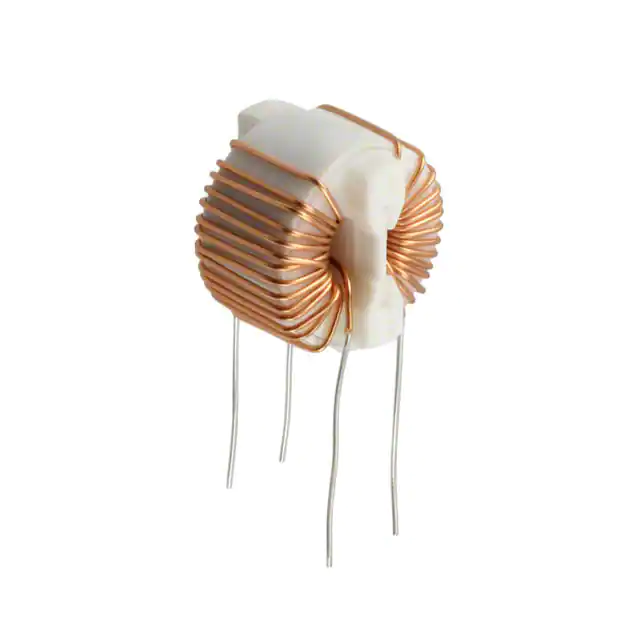

SC-01-10GCMC 1MH 1A 2LN TH |
1,229 | 1.71 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 1A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
CMS1-12-RCMC 131UH 1.15A 2LN SMD |
5,196 | 2.39 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 131 µH @ 100 kHz | 1.15A | 100mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
RN212-0.6-02-15MCMC 15MH 600MA 2LN TH |
4,816 | 2.11 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 600mA | 490mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN102-0.3-02-22MCMC 22MH 300MA 2LN TH |
442 | 2.11 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 22 mH @ 10 kHz | 300mA | 1.3Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82721K2701N020CMC 10MH 700MA 2LN TH |
6,992 | 3.30 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 700mA | 550mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82721K2122N020CMC 6.8MH 1.2A 2LN TH |
3,313 | 3.30 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.2A | 280mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
RN112-2-02-1M0CMC 1MH 2A 2LN TH |
8,427 | 2.14 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 2A | 70mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

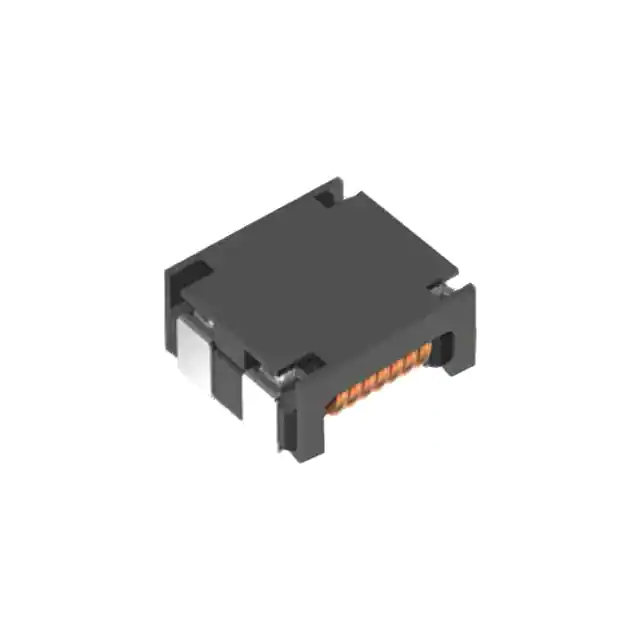

ACM12V-172-2PL-TL00CMC 4.8A 2LN 1.7KOHM SMD AECQ200 |
1,522 | 2.48 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.7 kOhms @ 100 MHz | - | 4.8A | 12mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
RN212-1.5-02-3M3CMC 3.3MH 1.5A 2LN TH |
1,304 | 2.14 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 102mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

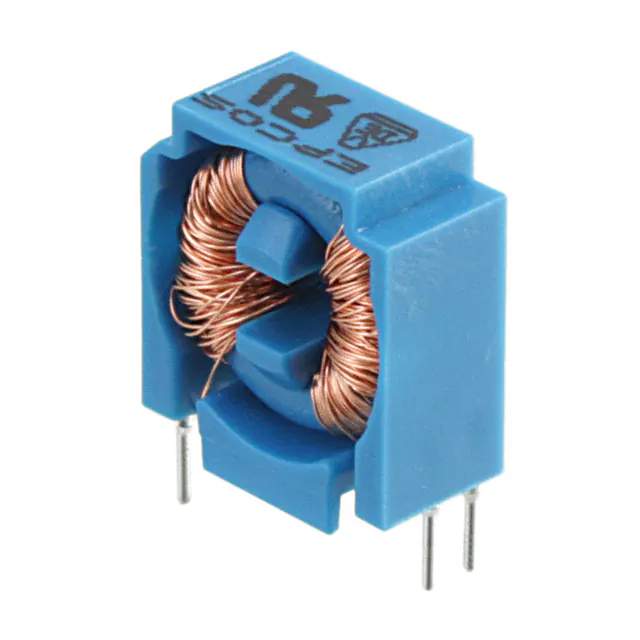

B82791H2251N020CMC 47MH 250MA 2LN TH |
18,964 | 4.06 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 250mA | 2.4Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82791H2351N001CMC 22MH 350MA 2LN TH |
583 | 4.06 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 22 mH @ 10 kHz | 350mA | 1.9Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
