Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82721K2102U030CMC 10MH 1.1A 2LN TH |
526 | 3.56 |
|
Datasheet |
Vertical, 4 PC Pin | Power, Signal Line | 2 | - | 10 mH @ 10 kHz | 1.1A | 310mOhm | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
PA2743NLCMC 3.3A 2LN SMD |
2,210 | 2.33 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 3.3A | 18mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
B82730U3401A020CMC 15MH 400MA 2LN TH |
880 | 2.63 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 400mA | 2.4Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
B82732R2172B030CMC 6.8MH 1.7A 2LN TH |
15,035 | 3.88 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.7A | 190mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

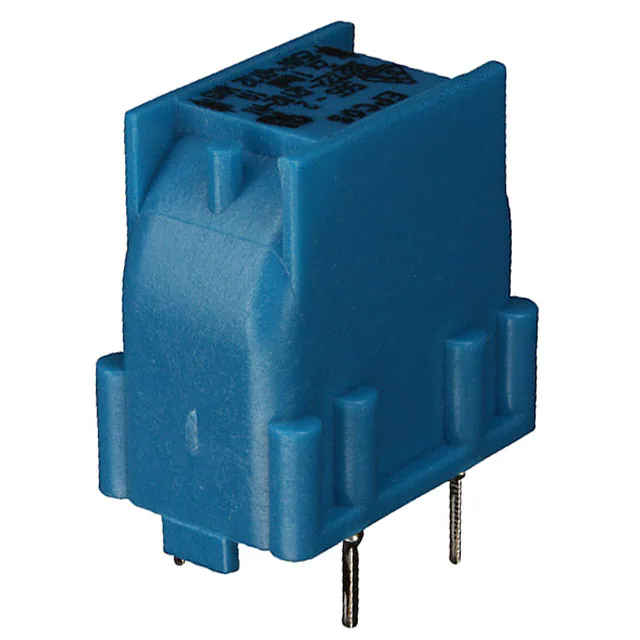

B82722J2102N001CMC 10MH 1A 2LN TH |
4,263 | 3.67 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 480mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
P0422NLCMC 4.7A 2LN SMD |
9,900 | 3.05 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 4.7A | 40mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|

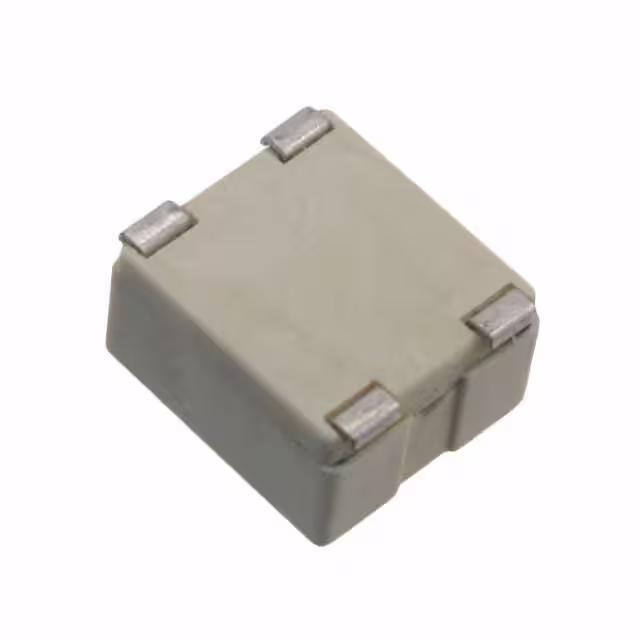

CPFC85NP-WH04CMC 5.65A 2LN 300 OHM SMD |
1,587 | 2.44 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 300 Ohms @ 100 MHz | - | 5.65A | 20mOhm | - | - | - | - | - | - | - | - |
|

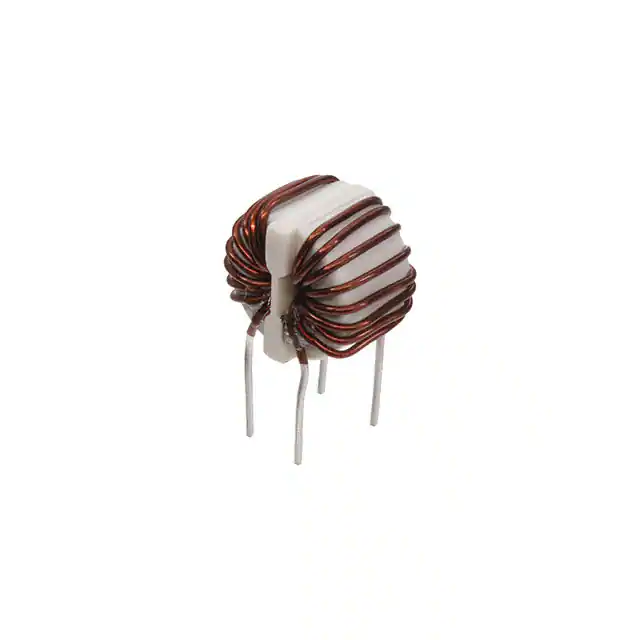

SC-06-01GCMC 105UH 6A 2LN TH |
650 | 2.27 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 105 µH @ 1 kHz | 6A | 10mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B82793C0105N265CMC 1MH 700MA 2LN SMD AEC-Q200 |
14,030 | 2.54 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 1 mH @ 100 kHz | 700mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

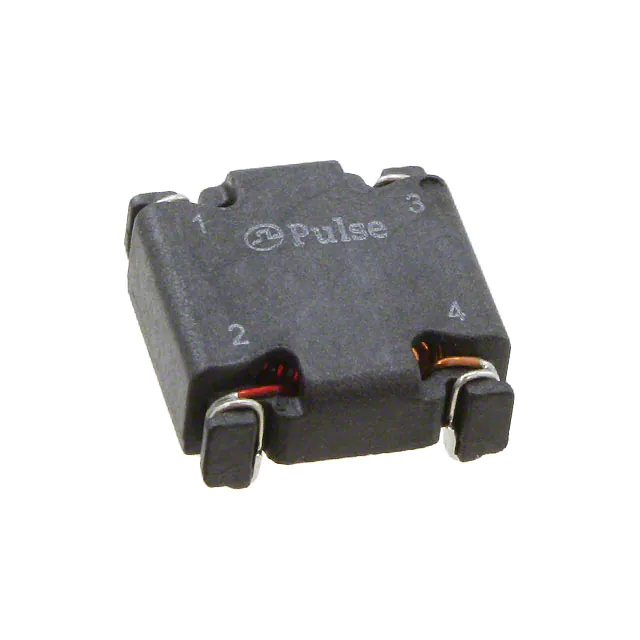

PA2747NLCMC 7A 2LN SMD |
2,778 | 2.36 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 7A | 2.9mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
PA2748NLCMC 1.8A 2LN SMD |
560 | 2.26 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.8A | 55mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

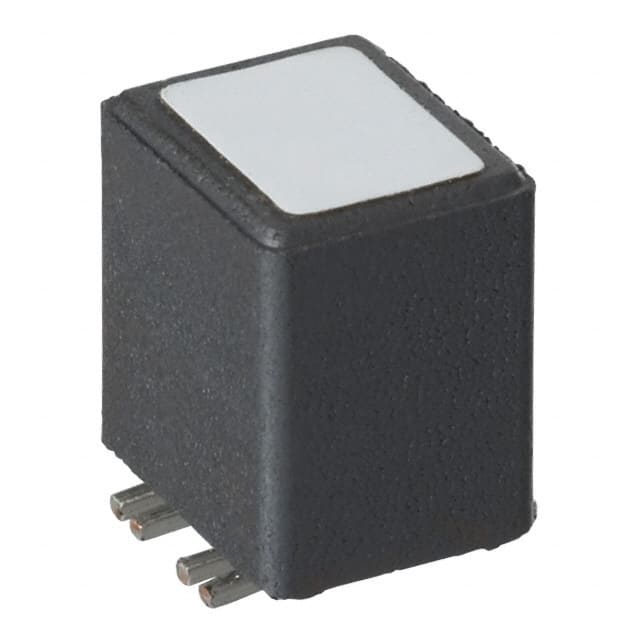

CM2722R151R-10CMC 5A 4LN 150 OHM SMD |
48,137 | 3.27 |
|
Datasheet |
Vertical, 8 Flat Lead | Power Line | 4 | 150 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SSRH7H-M20016CMC 1.6MH 2A 2LN TH |
2,799 | 1.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.6 mH @ 10 kHz | 2A | 90mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

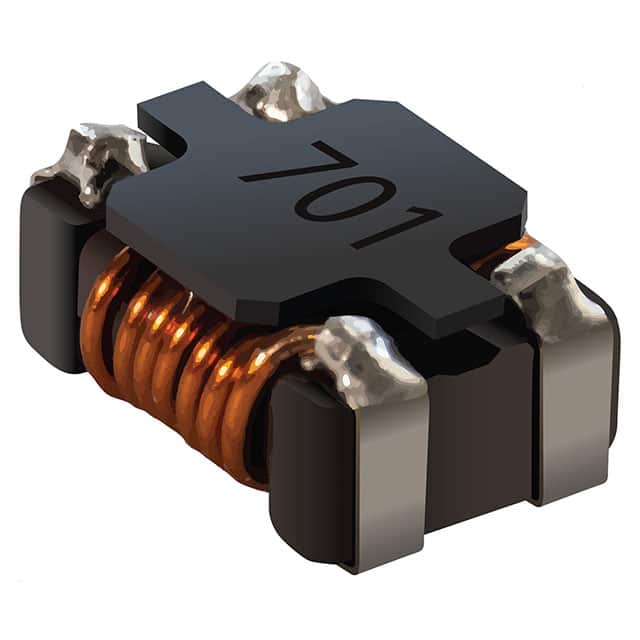

SRF9045A-701YCMC 7.5UH 5A 2LN 700OHM SMD |
2,625 | 2.39 |
|
Datasheet |
4-SMD | Power Line | 2 | 700 Ohms @ 100 MHz | 7.5 µH @ 100 kHz | 5A | 10mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SSRH7HS-M05324CMC 32.4MH 500MA 2LN TH |
950 | 1.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 32.4 mH @ 10 kHz | 500mA | 1.21Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH7H-M05408CMC 40.8MH 500MA 2LN TH |
385 | 1.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 40.8 mH @ 10 kHz | 500mA | 1.36Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82720A2202N040CMC 1.1MH 2A 2LN TH |
1,156 | 3.49 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 2A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
7408-RCCMC 5MH 1.1A 2LN TH |
5,699 | 2.29 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 1.1A | 280mOhm | - | 250V | -55°C ~ 105°C | - | - | - | - | - |
|
DLW5BSM501TQ2LCMC 1A 2LN 500 OHM SMD |
400 | 2.13 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 500 Ohms @ 100 MHz | - | 1A | 230mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|
SRF0602-470YCMC 47UH 300MA 2LN 140 OHM SMD |
5,599 | 2.49 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 140 Ohms @ 4 MHz | 47 µH @ 10 kHz | 300mA | 160mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
