Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLW5BTH101TQ2LCMC 4A 2LN 100 OHM SMD AEC-Q200 |
1,241 | 1.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 100 Ohms @ 100 MHz | - | 4A | 13mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

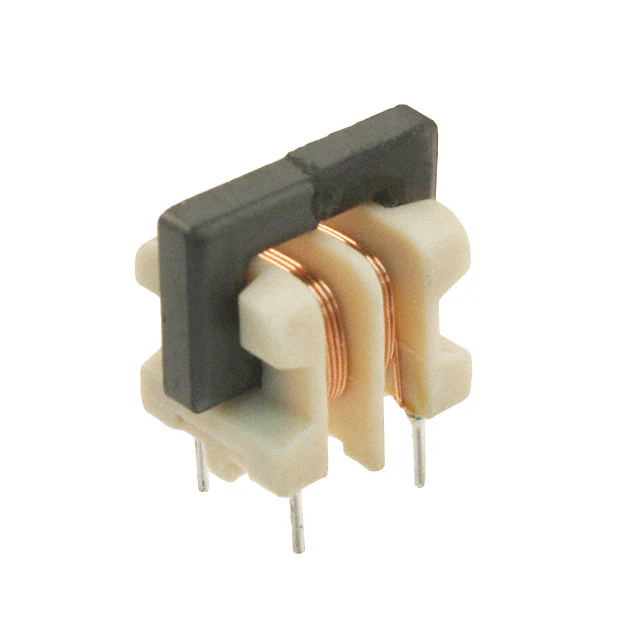

B82730U3601A020CMC 4.7MH 600MA 2LN TH |
313 | 2.63 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 10 kHz | 600mA | 920mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
DLW5BTH501TQ2LCMC 2.5A 2LN 500OHM SMD AEC-Q200 |
150 | 1.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 500 Ohms @ 100 MHz | - | 2.5A | 27mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

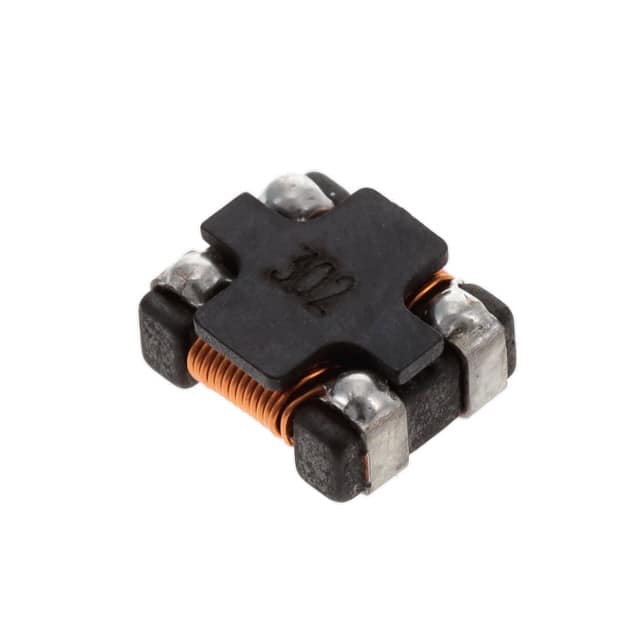

SRF7035A-301YCMC 4UH 5A 2LN 300OHM SMD |
2,101 | 2.08 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | 300 Ohms @ 100 MHz | 4 µH @ 100 kHz | 5A | 10mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SRF7035A-102YCMC 7.9UH 3A 2LN 1KOHM SMD |
979 | 2.08 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | 1 kOhms @ 100 MHz | 7.9 µH @ 100 kHz | 3A | 23mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SRF7035A-302YCMC 22.6UH 1.2A 2LN 3KOHM SMD |
692 | 2.08 |
|
Datasheet |
Horizontal, 4 J-Lead | Power Line | 2 | 3 kOhms @ 100 MHz | 22.6 µH @ 100 kHz | 1.2A | 72mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
7448640418CMC 33MH 300MA 2LN TH |
708 | 2.07 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 43 mH @ 10 kHz | 400mA | 2.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

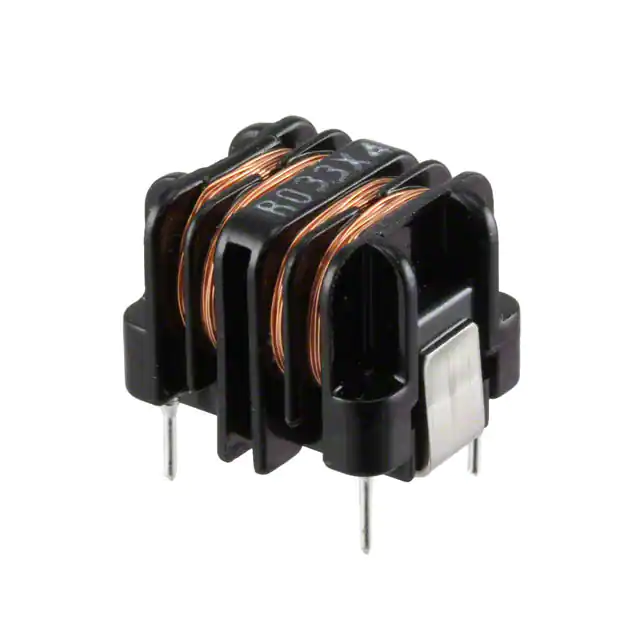

SU10VFC-R03370CMC 37MH 300MA 2LN TH |
603 | 1.86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 37 mH @ 1 kHz | 300mA | 4.2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82722A2202N001CMC 2.2MH 2A 2LN TH |
725 | 3.67 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82720A2301N040CMC 12MH 300MA 2LN TH |
2,608 | 3.49 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 300mA | 1.1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
ACMP-9050-222-TCMC 2.5A 2LN 2.2K OHM SMD |
1,929 | 2.18 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 2.2 kOhms @ 100 MHz | - | 2.5A | 60mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|

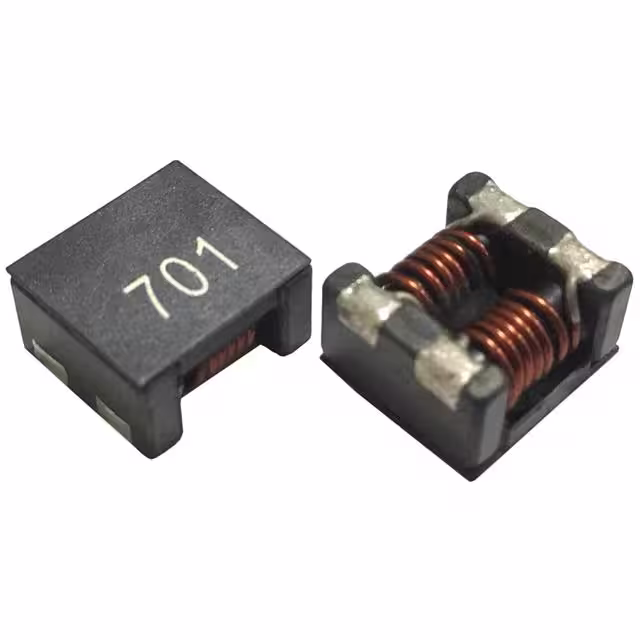

APPM00070638701XY0CMC 4A 2LN 700 OHM SMD AEC-Q200 |
1,581 | 0.99 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 4A | 15mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
PA2745NLCMC 5A 2LN SMD |
4,951 | 2.26 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 5A | 6.75mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

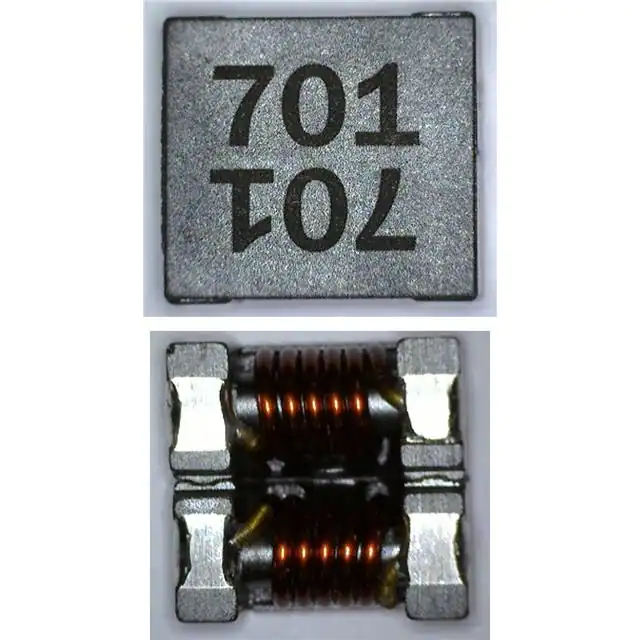

ACMP-Q7040-102-TCMC 3A 2LN 1.02KOHM SMD AEC-Q200 |
4,219 | 2.64 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1.02 kOhms @ 100 MHz | - | 3A | 17mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
PA2742NLCMC 1A 2LN SMD |
2,833 | 2.26 |
|
Datasheet |
Vertical, 8 Flat Lead | - | 2 | - | - | 1A | 92mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
B82793C0513N201CMC 51UH 800MA 2LN SMD AEC-Q200 |
9,050 | 2.54 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | 51 µH @ 100 kHz | 800mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW44SM101SK2LCMC 3.1A 2LN 100 OHM SMD |
3,217 | 2.13 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 100 Ohms @ 100 MHz | - | 3.1A | 22.4mOhm | 60V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
B82793C0253N201CMC 25UH 800MA 2LN SMD AEC-Q200 |
2,190 | 2.54 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 25 µH @ 100 kHz | 800mA | 110mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW44SM302SK2LCMC 1.1A 2LN 2.2KOHM SMD |
2,055 | 2.13 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 2.2 kOhms @ 100 MHz | - | 1.1A | 168mOhm | 60V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
B82793C0104N201CMC 100UH 500MA 2LN SMD AEC-Q200 |
2,801 | 2.54 |
|
Datasheet |
Horizontal, 4 Gull Wing | Signal Line | 2 | - | 100 µH @ 100 kHz | 500mA | 180mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
