DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

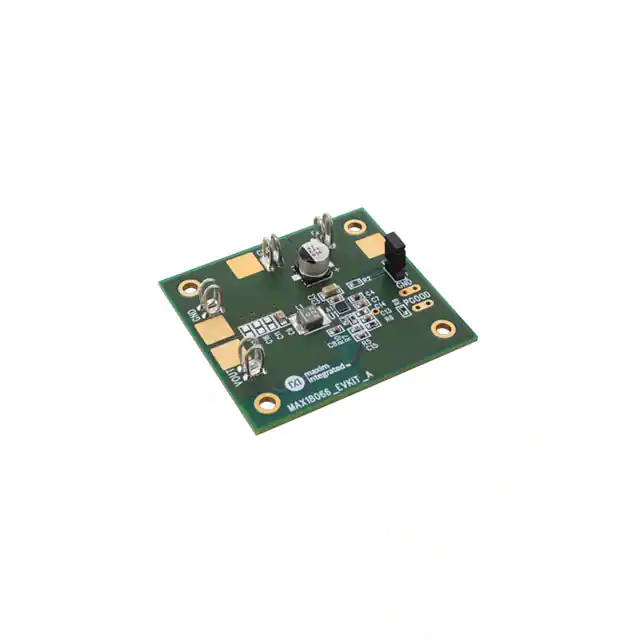

MAX18066EVKIT#EVAL BOARD FOR MAX18066 |
4,837 | 506.51 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 4A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | MAX18066 |
|

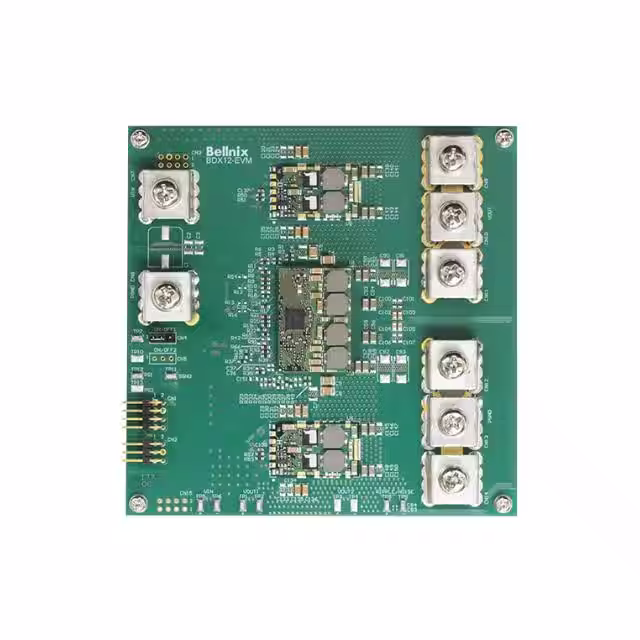

BDX12-EVM-06EVAL BRD BDX-100M(1) BDX-50S(5) |
1,932 | 489.52 |
|
Datasheet |
BDX | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 350A | 8V ~ 14V | - | 600kHz | Partially Populated Board(s) | - |
|
KITFS5600FRDMEVMEVAL BOARD FOR FS5600 |
1,930 | 432.00 |
|
Datasheet |
- | Bulk | Active | DC/DC Converter | 2 Non-Isolated Outputs | - | 1.8V ~ 8V, 1.8V ~ 7.2V | 10A, 3A | 36V | Buck | - | Board(s), Cable(s) | FS5600 |
|

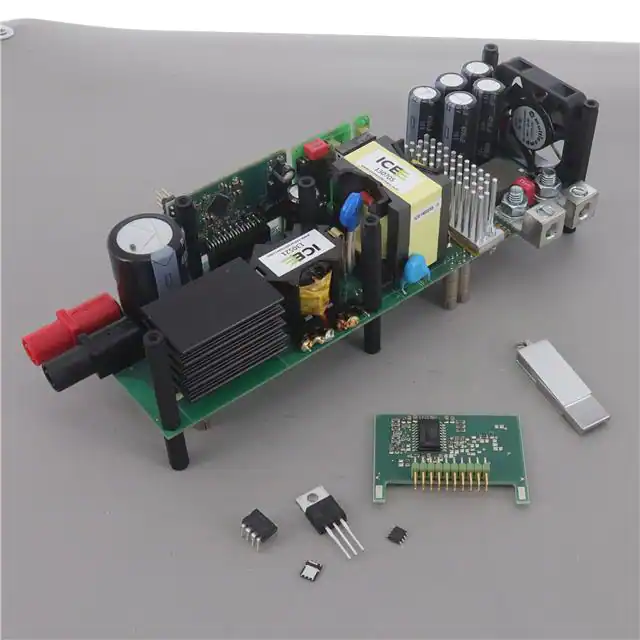

EVAL600W12VLLCC7DTOBO1EVAL BOARD FOR ICE2QR2280Z |
2,151 | 515.90 |
|
- |
CoolMOS™, CoolSet™, EiceDRIVER™, OptiMOS™ | Bulk | Discontinued at Digi-Key | DC/DC Converter | 1 Non-Isolated Output | 600 W | 12V | 50A | 350V ~ 410V | Buck | 150kHz | Board(s) | ICE2QR2280Z |
|

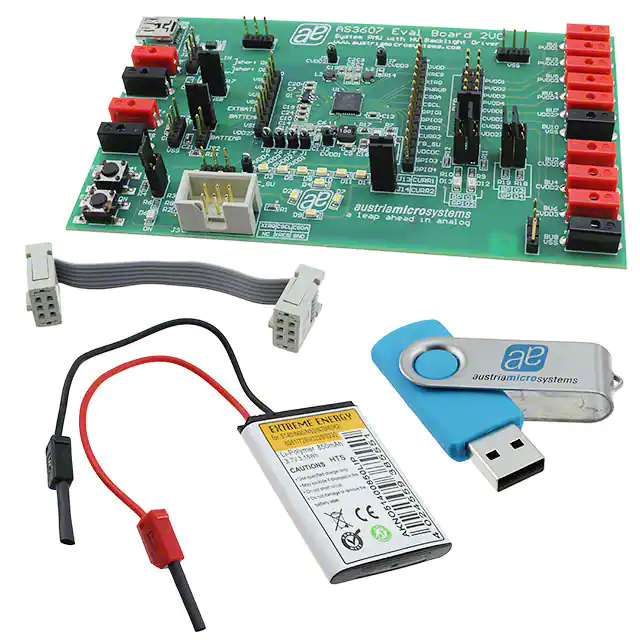

AS3607 EVAL BOARDEVAL BOARD FOR AS3607 |
3,961 | 617.40 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down with LDO | 10 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Boost, Buck | - | Board(s) | AS3607 |
|
AS3608 EVAL BOARDEVAL BOARD FOR AS3608 |
4,350 | 617.40 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down with LDO | 10 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Boost, Buck | - | Board(s) | AS3608 |
|
AS3658-DBEVAL BOARD FOR AS3658 |
4,869 | 617.40 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down with LDO | 13 Non-Isolated Outputs | - | - | - | 3V ~ 5.5V | Boost, Buck | - | Board(s) | AS3658 |
|
|
TEA1916DB1262ULEVAL BOARD FOR TEA1916 |
3,814 | 597.60 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | - | 12V | 20A | 90 ~ 264 VAC | Flyback | - | Board(s) | TEA1916 |
|

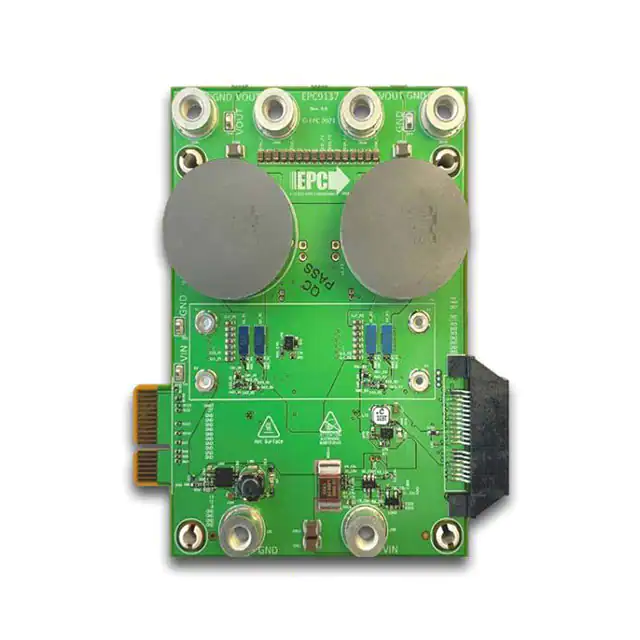

EPC9137KITEVAL BOARD FOR EPC2206 |
3,475 | 780.00 |
|
Datasheet |
eGaN® | Box | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 125A | 20V ~ 60V | Buck | 250kHz | Board(s) | EPC2206 |
|
|
TDINV3000W050B-KITEVAL BOARD FOR TP65H050G4WS |
2,238 | 0.00 |
|
Datasheet |
- | Box | Discontinued at Digi-Key | DC/AC Inverter | 1 Non-Isolated Output | 3 kW | - | - | 400V | Full-Bridge | 50kHz | Board(s) | TP65H050G4WS |
|
|
NDM2Z-50HT-DEMO-NDEVAL BOARD FOR NDM2Z50 |
2,746 | 99.47 |
|
- |
Novum® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | 165 W | 1.2V | 50A | 4.5V ~ 14V | Buck | 320kHz | Board(s) | NDM2Z-50 |
|
|
NDM2Z-25HT-DEMO-NDEVAL BOARD FOR NDM2Z25 |
2,016 | 100.41 |
|
- |
Novum® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | 82.5 W | 1.2V | 25A | 4.5V ~ 14V | Buck | 320kHz | Board(s) | NDM2Z-25 |
|
|
LMU20P1EVKITEVAL BOARD FOR LMU20P1 |
4,521 | 0.00 |
|
- |
LMUEVK | Case | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.5V | 100mA | 0.5V ~ 1.8V | Boost | 6MHz | Board(s) | LMU20P1 |
|

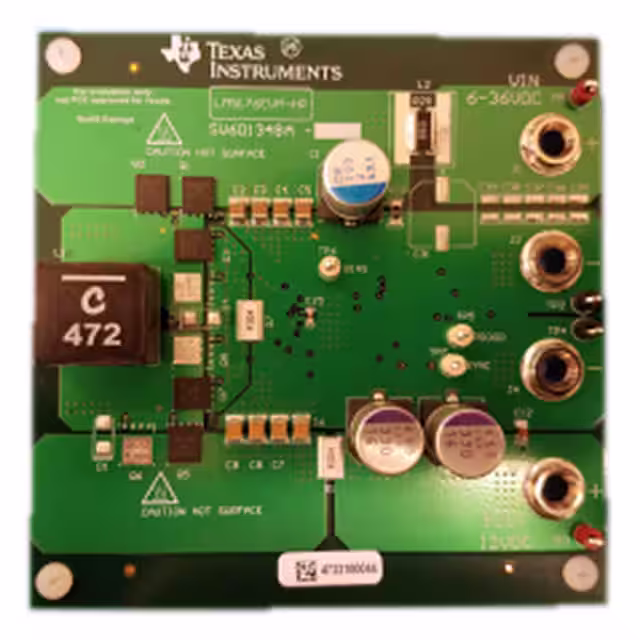

LM5176EVM-HPEVAL BOARD FOR LM5176 |
2,210 | 238.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 12A | 6V ~ 36V | Buck-Boost | 250kHz | Board(s) | LM5176 |
|
|
LM51772EVM-HPEVAL BOARD FOR LM51772 |
4,144 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 70 W | 20V | 5A | 9V ~ 48V | Buck-Boost | 600kHz | Board(s) | LM51772 |
|

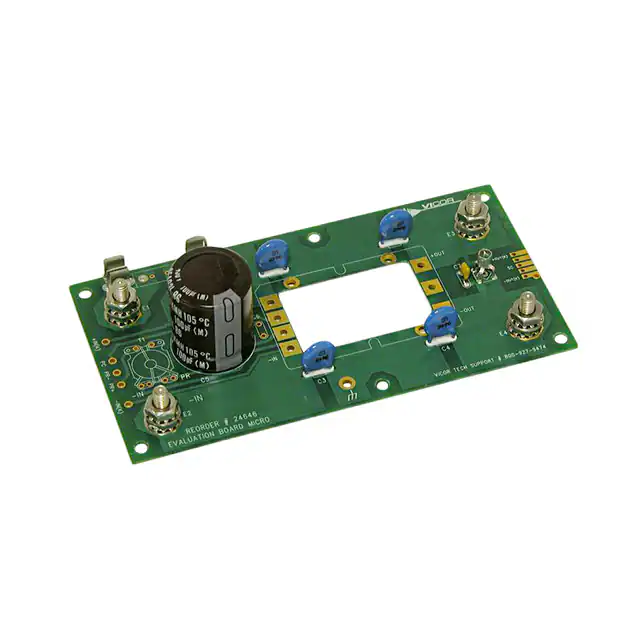

24646RMICRO MODULE EVALUATION BOARD |
1,090 | 309.84 |
|
Datasheet |
- | Bulk | Active | DC/DC Converter | - | - | - | - | - | - | - | Partially Populated Board(s) | - |
|
EPC9143KITEVAL BOARD FOR DSPIC33CK32MP102 |
4,467 | 480.00 |
|
Datasheet |
eGaN® | Box | Active | DC/DC Converter | 1 Non-Isolated Output | 300 W | 12V | 25A | 18V ~ 60V | - | 500kHz | Board(s) | dsPIC33CK32MP102, EPC2053 |
|
TDTTP4000W066C-KITEVAL BOARD FOR TP65H035WS |
4,019 | 1089.60 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 4 kW | 387V | - | 85 ~ 265 VAC | - | 66kHz | Board(s) | TP65H035WS |
|
5644EVAL BOARD FOR TPS61040 |
2,080 | 14.92 |
|
- |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 400mA | 1.8V ~ 6V | Boost | 1MHz | Board(s) | TPS61040 |
|
DFR0568DC-DC AUTOMATIC STEP UP-DOWN POW |
1,889 | 3.12 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 2.5V ~ 15V | Buck-Boost | - | Board(s) | - |
