DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

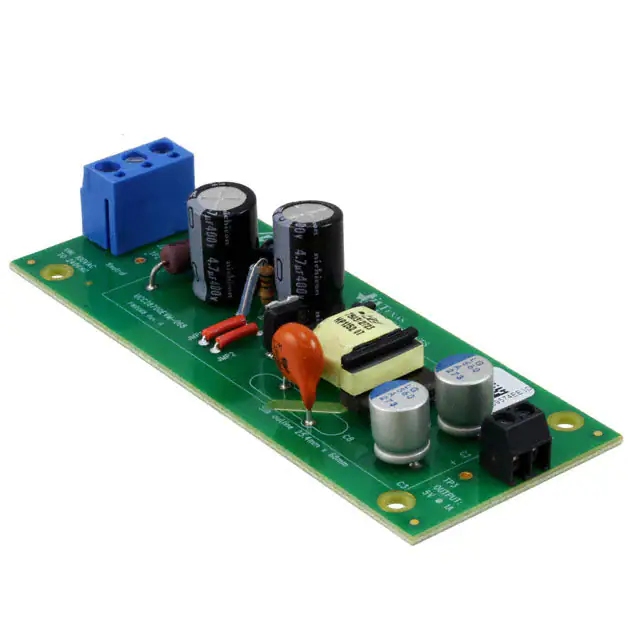

UCC28700EVM-068EVAL BOARD FOR UCC28700 |
1,181 | 58.80 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 5 W | 5V | 1A | 100 ~ 240 VAC | Flyback | - | Board(s) | UCC28700 |
|
LM2661/3/4EVAL/NOPBEVAL BOARD LM2661 LM2663 LM2664 |
4,025 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Negative Inverter or Voltage Doubler | 3 Non-Isolated Outputs | - | - | - | 1.5V ~ 5.5V | Boost, Inverting | - | Board(s) | LM2661, LM2663, LM2664 |
|

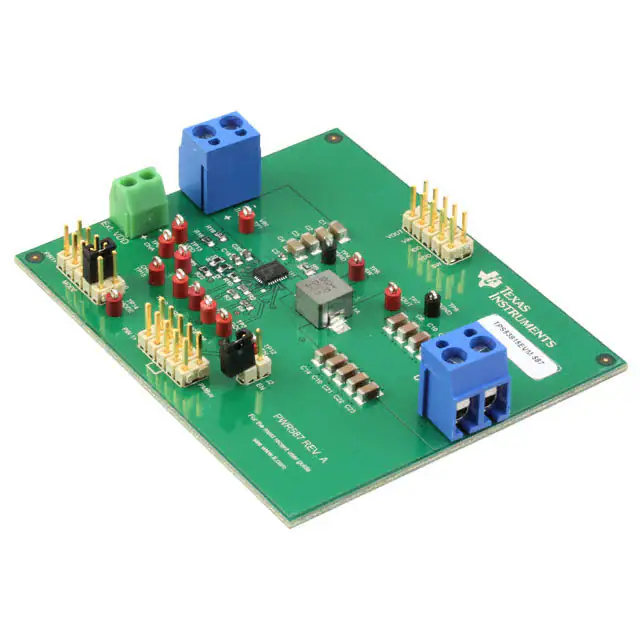

TPS53915EVM-587EVAL BOARD FOR TPS53915 |
3,586 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP3™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 12V | Buck | - | Board(s) | TPS53915 |
|

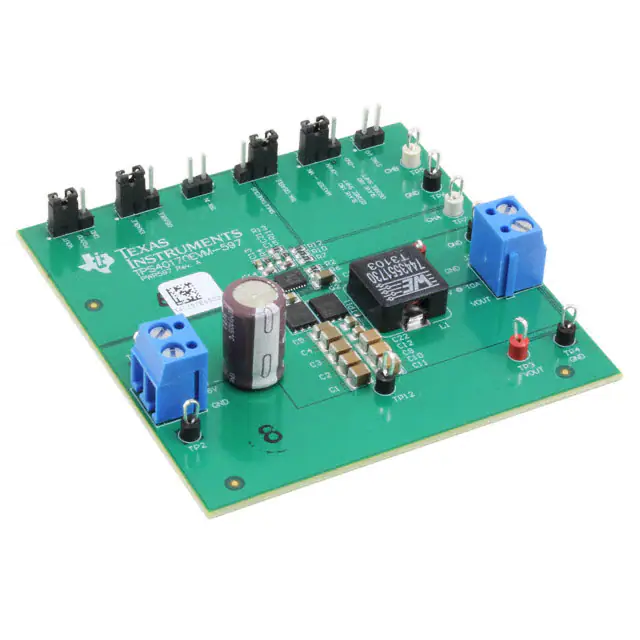

TPS40170EVM-597EVAL BOARD FOR TPS40170 |
4,854 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 10A | 10V ~ 36V | Buck | 300kHz | Board(s) | TPS40170 |
|
TPS562200EVM-601EVAL BOARD FOR TPS562200 |
4,511 | 58.80 |
|
Datasheet |
D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 17V | Buck | 650kHz | Board(s) | TPS562200 |
|

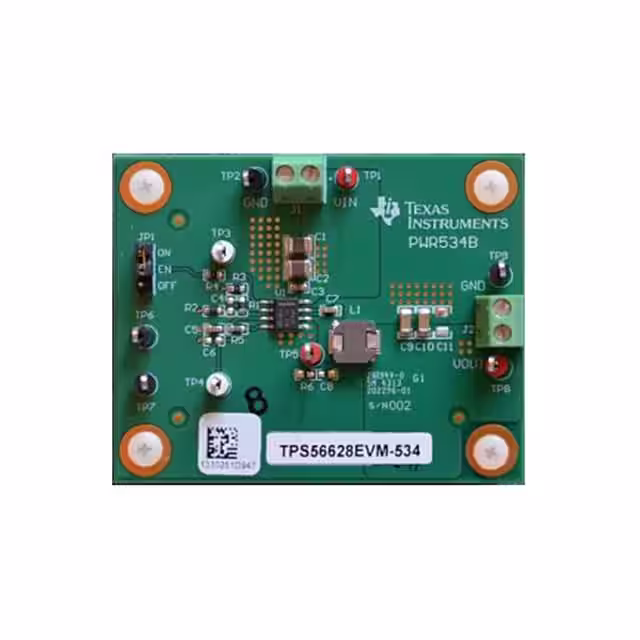

TPS56628EVM-534EVAL BOARD FOR TPS56628 |
2,996 | 58.80 |
|
Datasheet |
D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 6A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS56628 |
|

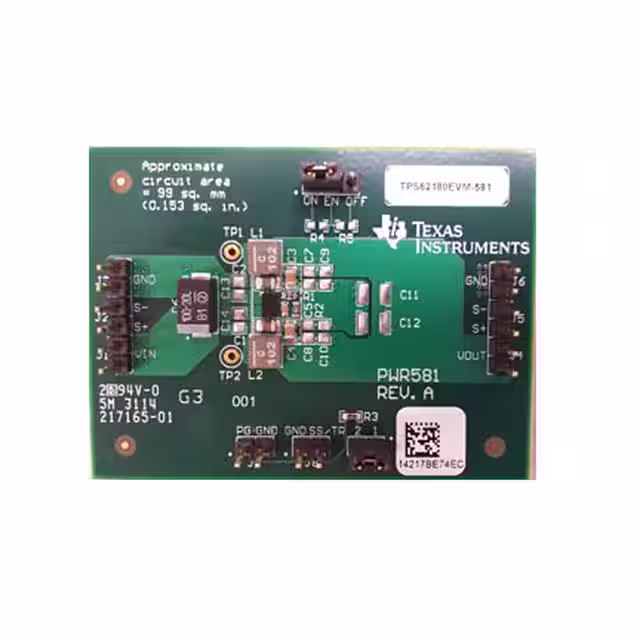

TPS62180EVM-581EVAL BOARD FOR TPS62180 |
4,446 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 4V ~ 15V | Buck | - | Board(s) | TPS62180 |
|

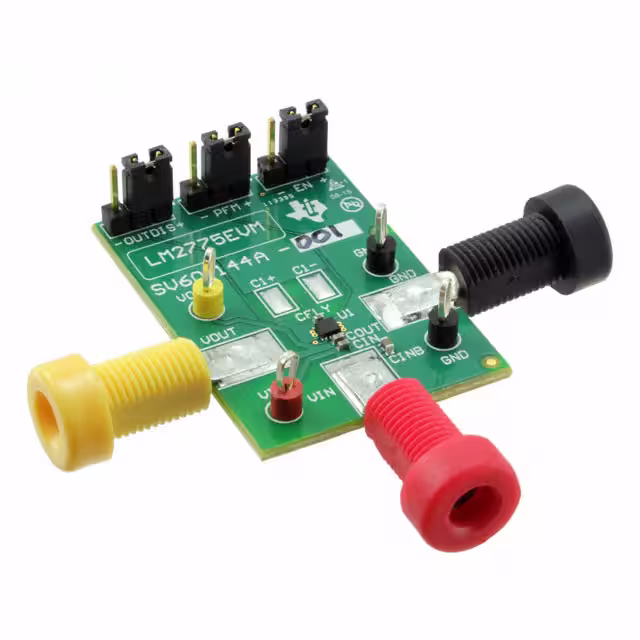

LM2775EVMEVAL BOARD FOR LM2775 |
4,244 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 200mA | 2.7V ~ 5.5V | Boost | 2MHz | Board(s) | LM2775 |
|
TPS61046EVM-682EVAL BOARD FOR TPS61046 |
2,880 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 12V, 5V ~ 28V | 100mA, 20mA | 1.8V ~ 5.5V | Boost | 1MHz | Board(s) | TPS61046 |
|
TPS65133EVM-699EVAL BOARD FOR TPS65133 |
4,671 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | ±5V | 250mA, 250mA | 2.9V ~ 5V | Boost | 1.7MHz | Board(s) | TPS65133 |
|

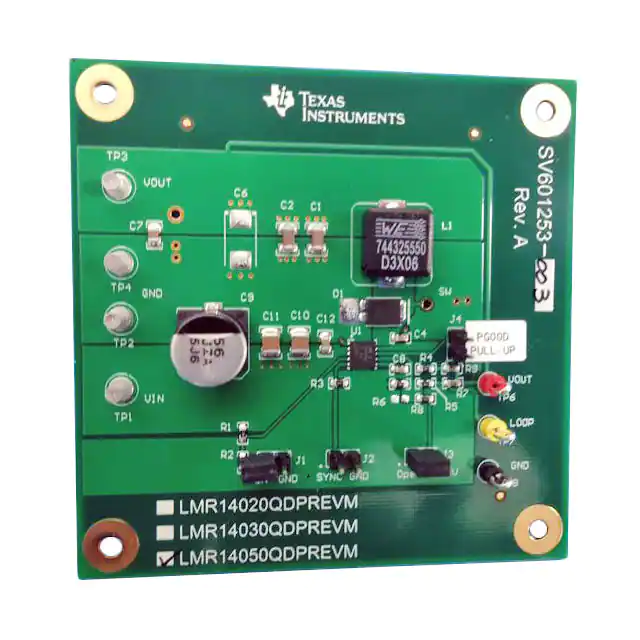

LMR14050QDPREVMEVAL BOARD FOR LMR14050Q1 |
1,714 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 5A | 7V ~ 40V | Buck | 400kHz | Board(s) | LMR14050-Q1 |
|
LM76002EVM-500KEVAL BOARD FOR LM76002 |
1,558 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 3.5V ~ 60V | Buck | 500kHz | Board(s) | LM76002 |
|

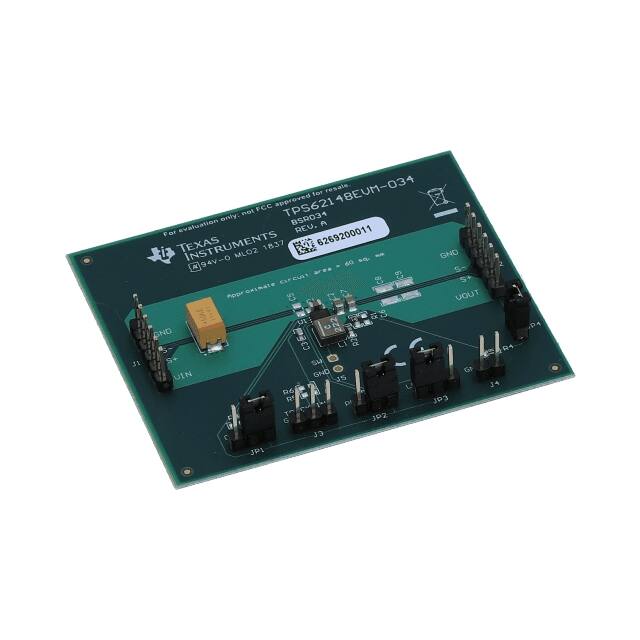

TPS62148EVM-034EVAL BOARD FOR TPS62148 |
1,649 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 3V ~ 17V | Buck | 2.5MHz | Board(s) | TPS62148 |
|

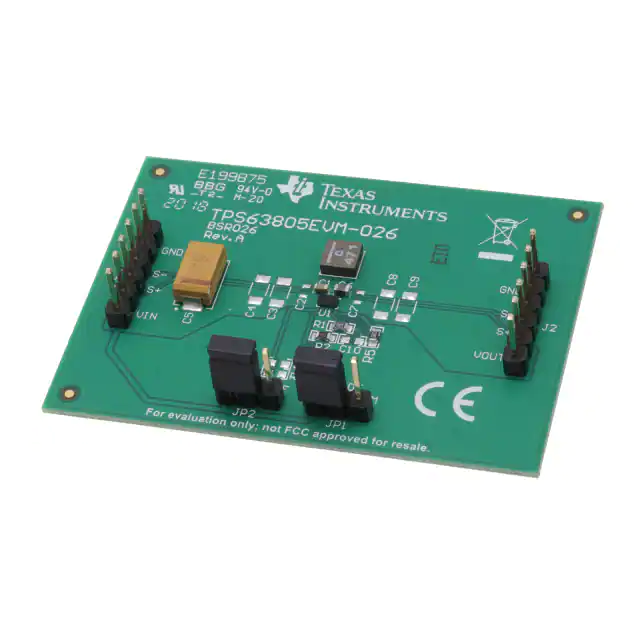

TPS63805EVM-026EVAL BOARD FOR TPS63805 |
2,573 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 2A | 1.3V ~ 5.5V | Buck-Boost | - | Board(s) | TPS63805 |
|

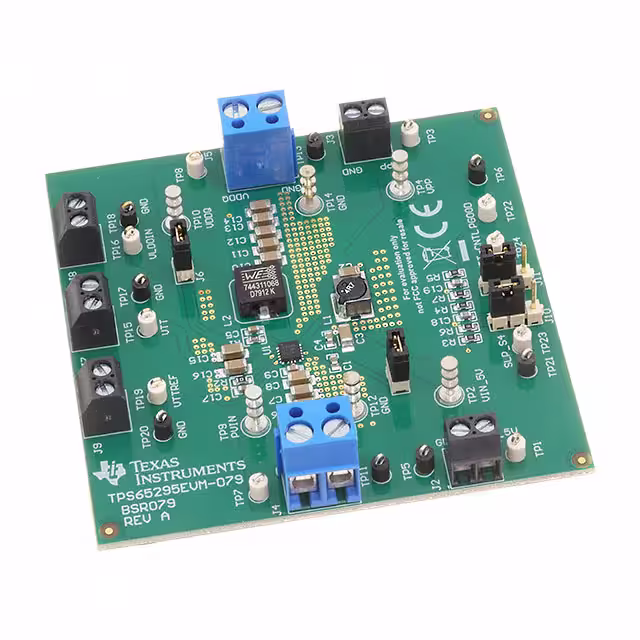

TPS65295EVM-079EVAL BOARD FOR TPS65295 |
2,917 | 58.80 |
|
Datasheet |
D-CAP3™ | Box | Active | Special Purpose DC/DC, DDR Memory Supply | 3 Non-Isolated Outputs | - | 0.6V, 1.2V, 2.5V | 8A, 1A, 1A | 4.5V ~ 18V | Buck | 600kHz | Board(s) | TPS65295 |
|

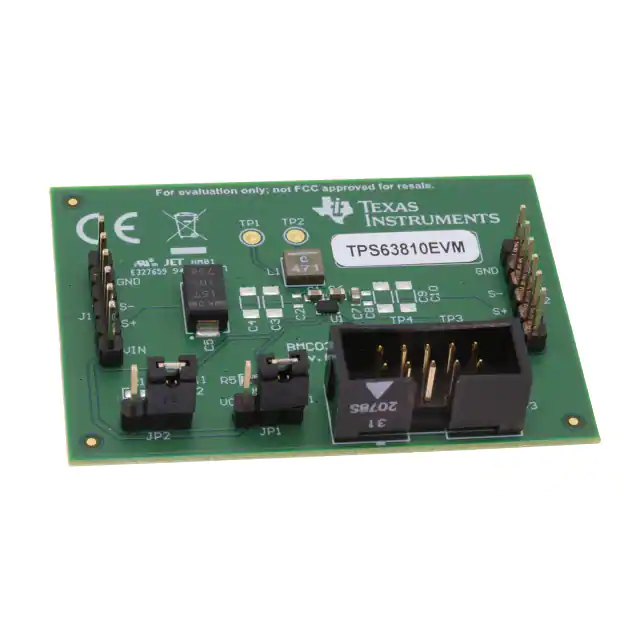

TPS63810EVMEVAL BOARD FOR TPS63810 |
1,866 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.8V ~ 5.2V | 2.5A | 2.2V ~ 5.5V | Buck-Boost | - | Board(s) | TPS63810 |
|
TPS63802EVMEVAL BOARD FOR TPS63802 |
3,579 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.8V ~ 5V | 2A | 1.3V ~ 5.5V | Buck-Boost | 2.1MHz | Board(s) | TPS63802 |
|

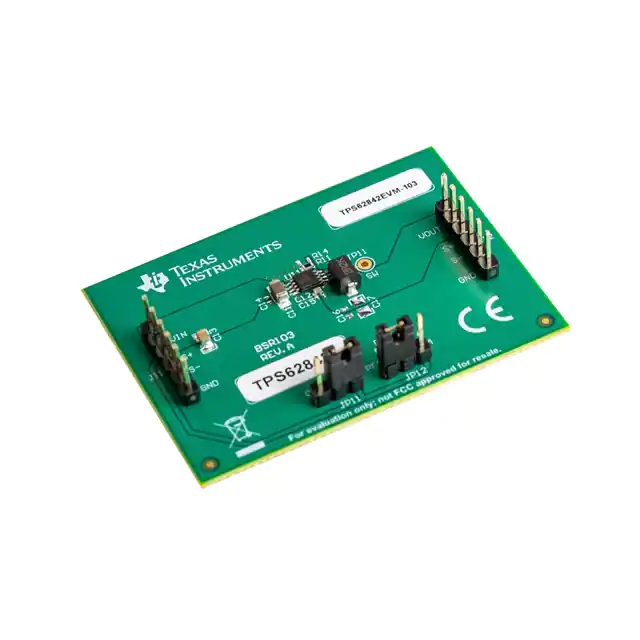

TPS62842EVM-103EVAL BOARD FOR TPS62842DGR |
3,299 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 750mA | 1.8V ~ 6.5V | Buck | 1.8MHz | Board(s) | TPS62842DGR |
|

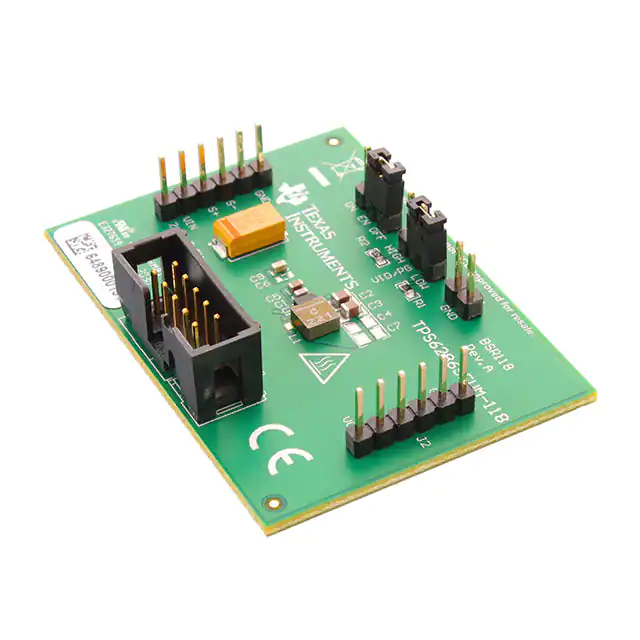

TPS62869EVM-118EVAL BOARD FOR TPS62869 |
4,759 | 58.80 |
|
Datasheet |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V | 6A | 2.4V ~ 5.5V | Buck | - | Board(s) | TPS62869 |
|
TPS628600EVM-109EVAL BOARD FOR TPS628600 |
4,897 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V | 600mA | 1.8V ~ 5.5V | Buck | - | Board(s) | TPS628600 |
